price of fence mesh making machine (factory)

Supplier: Hebei Jiaoyang Wire Mesh Machine Co., Ltd.
Region: Hebei, China
Contact: Mr. Ken Wang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

transformer:	125KVA;	Supply Ability:	20 Set/Sets per Month;
After-sales Service Provided:	Engineers available to service machinery overseas;	Delivery Detail:	40 days after 30% prepaid.;
Place of Origin:	Hebei China;	Port:	xingang,Tianjin;
Dimensions:	6x3.2x1.8m;	Model Number:	GWC-2500C.;
wire diameter:	3~6mm;	Brand Name:	jiaoyang;
Primary Voltage:	125KVA;	Packaging Detail:	main part is nuide to the container and spare part are to the wood box;
voltage:	380v;	Payment Terms:	T/T;
mesh aperture:	50~200mm;	Usage:	fencing mesh machine making;
wire mesh length:	max 6m;	Rated Capacity:	380V;
wire mesh width:	customized;	Rated Duty Cycle:	380V;

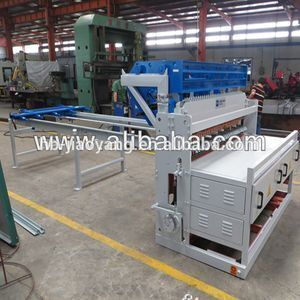

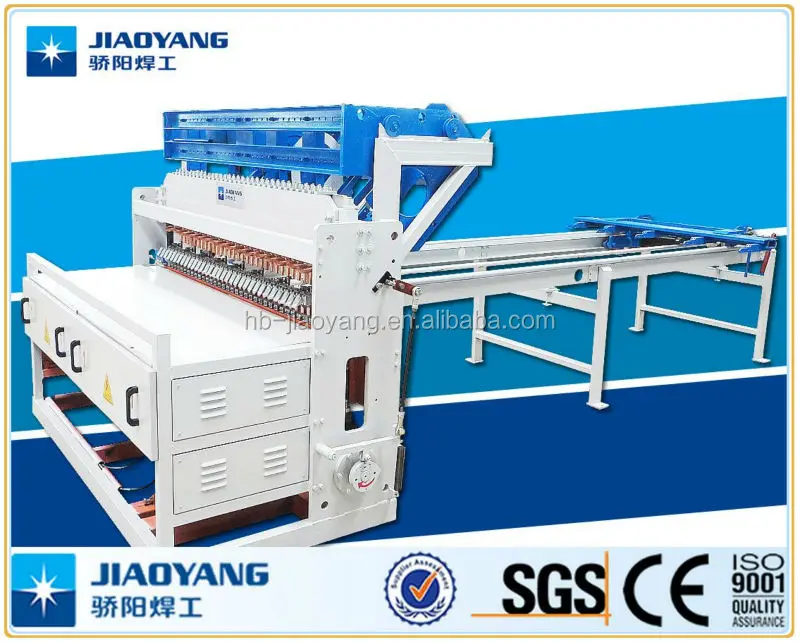

fence mesh making machine/welded fence making machine

Product Description

This kind of machine is used for fence 3~6mm. It is an automatic welding equipment designed and manufactured

by ourselves absorbing advanced resistance welding technology from home and abroad, of which multinomial

technologies have won the national patents.

II Our welded wire mesh machine has the following major advantages:
1. Main machine frame is welded with the thicker steel panel and steel bar. The main structure is well set and compact.

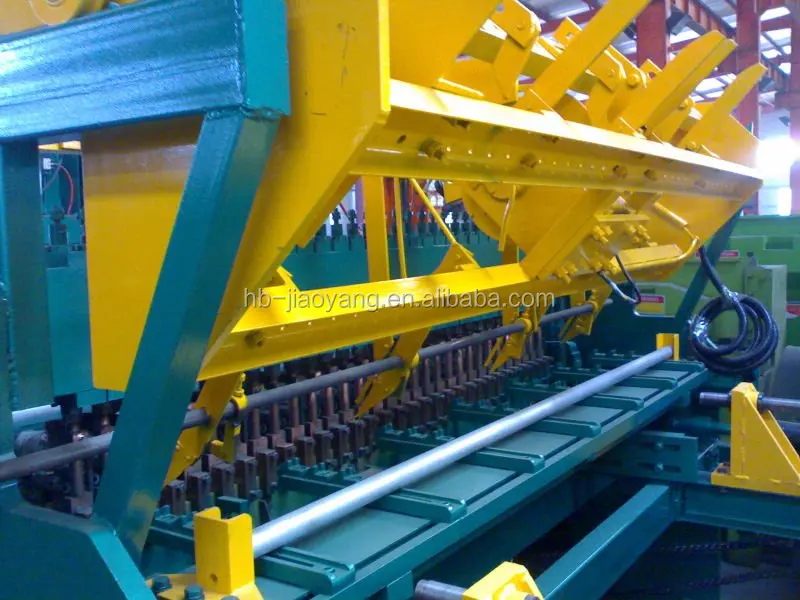

2.The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture

size more accurate. 3.The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more

standard and accurate.

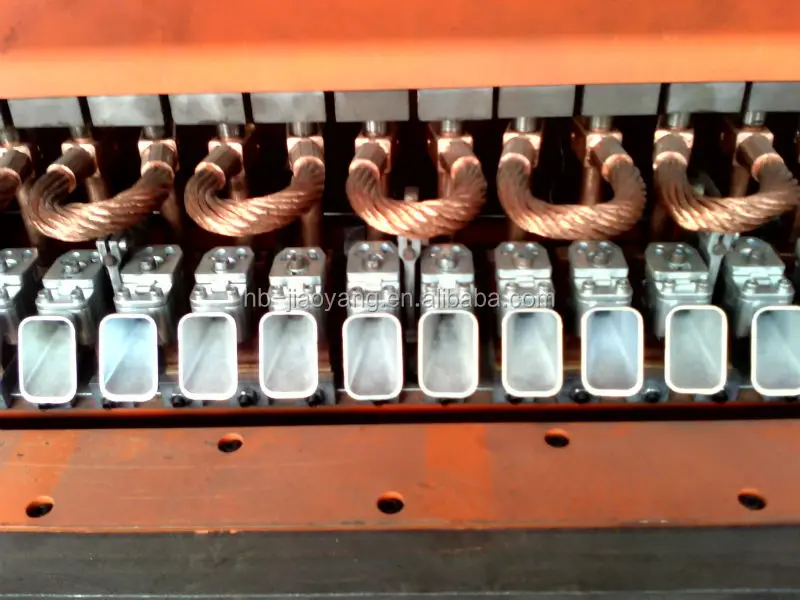

4. The mesh aperture size can be adjusted. The line wire spacing can be adjusted through adjusting the electrode spacing.

The cross wire spacing can be adjusted by PLC . And even on the same piece of wire mesh different mesh size

can be made through PLC control panel.
5. Welding adopts latemodel efficient welding transformer. The voltage adjusting range is big which enlarge the range of

wire diameter size. It is adjusted through the electricity current button on the front panel.
6. In order to adapt the capacity of the clients’, welding transformers don’t work at the same time but separately one by

one when welding the same row of cross wire.

7. The transformer is equipped with water cooling system in case short-circuit and to prolong its life-span.
8. This machine adopts synchronous control technology. The welding time and separating welding is controlled by numeric

integrated circuit, which is with high control precision and stable function.

9. Welding Speed: 50~60 times/minute, the work speed mainly depends on material of the raw material, steel bar

diameter, space of the mesh, choice of welding parameter, proficiency of workers, etc.

Function

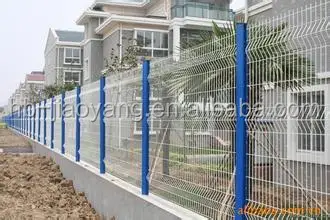

The machine can be used to produce the mesh for guard rail of road, railway, hills, fencing, mesh for casting

of building roofs, etc.

Main parameter

wire diameter	3.0-6.0mm	Feedding of line wire	pre-straightened and cut
space of cross wires	50-200mm	Feeding of cross wires	pre-straightened and cut
space of line wires	50-200mm	rated voltage	380v
width of mesh	2500mm	rated electrical power	125kva*6
welding speed	60times/min	overall dimension	220026001800mm
number of electrodes	48	machine weight	3T
