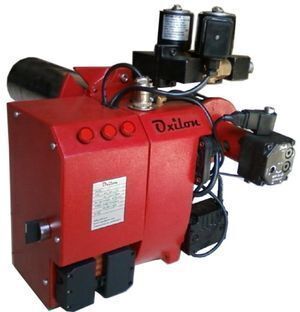

Melting Furnace Dual Fuel Burner from 17 Kw/Hr. to 12000 Kw/Hr.

Supplier: Oxilon Private Limited
Region: GUJARAT, India
Contact: Mr. Dharmendra Mevada
Price: $551.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	OXILON;	Port:	Mumbai;
Ignition Mode:	Electronic Ignition;	Payment Terms:	L/C,T/T;
Place of origin:	Surat, Gujarat, India;	Place of Origin:	Gujarat India;
Type:	Oil Burner;	Fuels:	Diesel, LDO, Kerosene, Waste oil, LPG, Natural Gas, Bio Gas;
Supply Ability:	1500 Unit/Units per Month;	Warranty:	One Year;
Power:	230V, 50Hz;	Certificate:	ISO9001, CE European;
Packaging Detail:	Burner will be packed with full of safety in wooden box.;	Model:	DLX Series;
Brand:	OXILON;	Environmentally:	Environmentally Friendly;
Product name:	Power Dual Fuel Burner;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;

Product Details

*Model No.*	*Kw/Hr.* *(Min-Max.)*	*Kcal/hr.* *(Min-Max.)*	*Gas Flow* *N.Gas* *Nm3/hr*	*Gas Flow* *L.P.G* *Kg./hr.*	*Oil Flow* *(Min-Max.)*	*Power* *Supply*
DLX 8 SH/EH/CH	20 - 70	17200 - 60200	2.0 - 7.0	1.5 - 5.0	1.7 - 6.0	230 V, 1Ph
DLX 13 SH/EH/CH	25 - 120	21500 - 103200	2.5 - 12.0	2.0 - 9.0	2.0 - 10.0	230 V, 1Ph
DLX 14 SH/EH/CH	35 - 148	30100 - 127280	3.5 - 15.0	2.6 - 11.0	3.0 - 12.5	230 V, 1Ph
DLX 17 SH/EH/CH	40 - 180	34400 - 154800	4.0 - 18.0	3.0 - 13.5	3.5 - 15.5	230 V, 1Ph
DLX 24 SH/EH/CH	50 - 250	43000 - 215000	5.0 - 25.0	4.0 - 19.0	4.0 - 21.0	230 V, 1Ph
DLX 34 SH/EH/CH	70 - 350	60200 - 301000	7.0 - 35.0	5.0 - 26.0	6.0 - 29.5	230 V, 1Ph
DLX 39 SH/EH/CH	80 - 390	68800 - 335400	8.0 - 39.0	6.0 - 29.0	7.0 - 33.0	230 V, 1Ph
DLX 53 SH/EH/CH	105 - 530	90300 - 455800	10.5 - 53.0	8.0 - 40.0	9.0 - 45.0	230 - 440 V, 3 Ph

Technical and functional features :-

* Dual fuel burners are suitable to burn gas as well as light oil .

* Dual fuel burner for Natural gas, L.P .G. , H.S.D. , L.D.O , and Diesel.

* Available for Pyrolysis oil & Kerosene.

* Available for Biogas, Town gas & Producer gas.

* Single Stage Operation ( ON/OFF )

* Single switch operation to change the fuel.

* Combustion head is designed for high performance and low emission in gas as well as in oil operation.

* Manual Air , Oil and Gas flow adjustment.

* Burner Mounted control panel containing all electrical burner sequence and safety controls.

* Electrical connections with 7 pole Male - female socket set allowing all Indications to machine panel.

* All regulation and setting devices are simple and practical for both fuels, easy access to every part of the burner makes an easy maintenance procedure.

* Gear pump with pressure regulator.

* Monobloc electrodes for easy and steady installation in to the nozzle even after maintenance.

* Completely sealed aluminium casing wrapped with a new modern design cover.

* Compact in overall dimensions.

* Compatible with any type of combustion chamber .

* Enjoy the benefit of price difference of fuels. By using a dual fuel burner we can save considerable running cost as compare to single fuel burner.

* Continuous Ventilation available on request. either by continuous blower or by compressed air connection.

* Standard version running on manual fuel selection mode and on request automatic fuel changeover is available. The automatic changeover system can be trigged by gas pressure or by a timer.

Product Introduction

Widely used in applications like Aluminum Melting Furnace, Powder Coating Oven, Industrial Oven, Bakery Oven, Dryer, boilers and many more. Oxilon burners will be fully efficient in terms of fuel consumption and operation. It's operation will be user friendly and easy to use.
