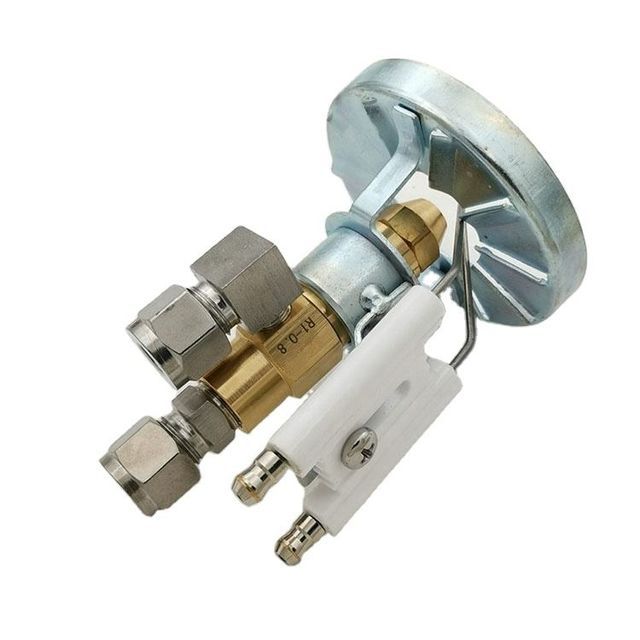

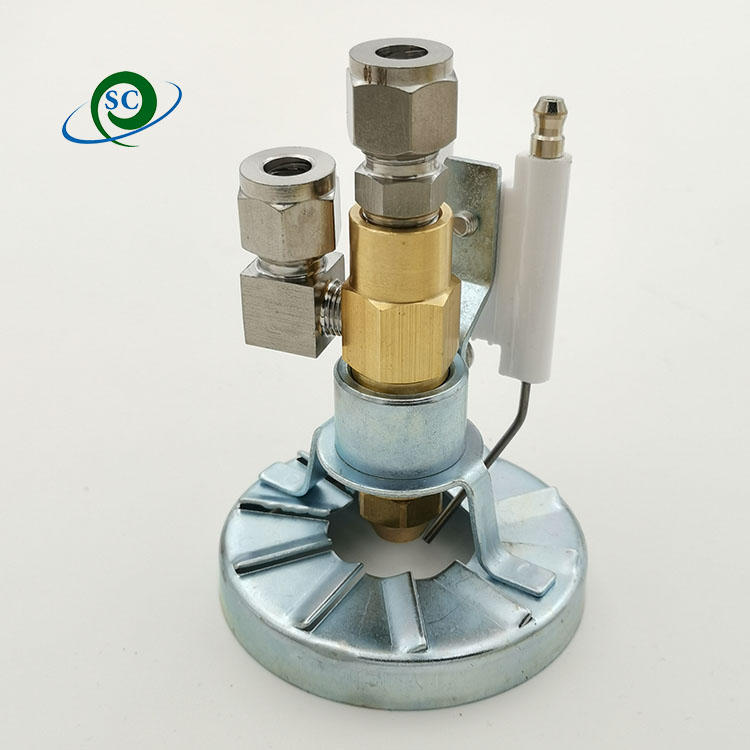

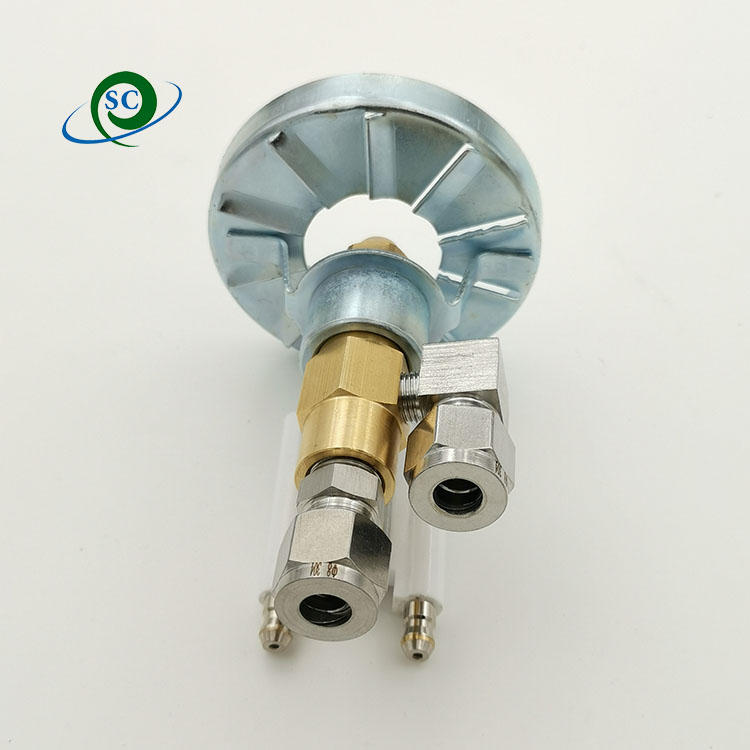

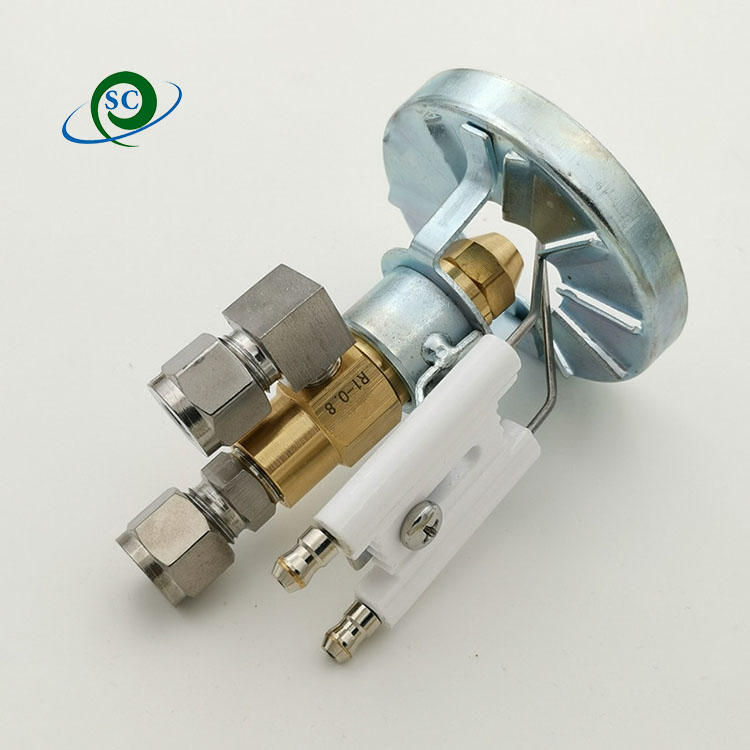

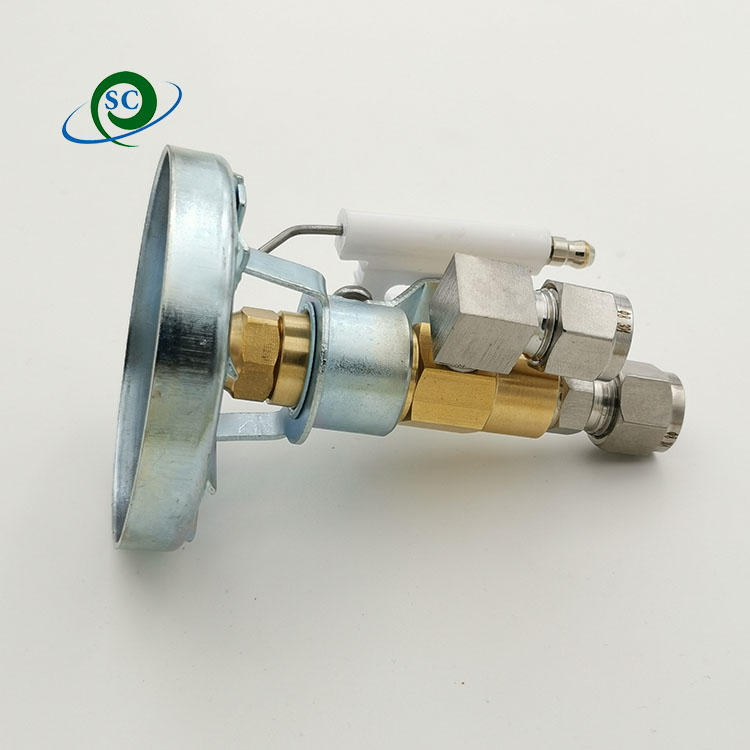

Waste oil burner nozzle siphon type full cone oil fuel nozzle air atomization sprayer diesel heavy oil nozzle burner accessories

Waste oil burner nozzle siphon type full cone oil fuel nozzle air atomization sprayer diesel heavy oil nozzle burner accessories

feature:

·Use compressed air to generate vortex in the tube and mix impact atomized droplets.

· It can produce mist particles with fine particle size under the condition of low pressure and low volume.

· The spray flow, angle and particle size can be adjusted by controlling the airflow and pressure.

· Due to the large fluid channel of the nozzle, the anti-clogging effect is good.

·The atomization effect is very good in the application of heavy oil, waste oil stove, engine oil and other liquids with high viscosity.

· The working pressure range is 0-10/kg/cm2, and different flow rates require different filter screens

The flow range is 1.5-1.7 L/h, and a 45um oil filter is required

The flow range is 1.89-3.78 L/h, and a 75um oil filter is required

The flow range is 4.76-5.10 L/h, and a 125um oil filter is required

The flow range is 5.68-41.64 L/h, and a 140um oil filter is required

The flow rate is greater than 45.42L/h, no oil filter is needed

Working pressure at 3 bar:

0.5mm diameter, liquid water flow rate is 4 L/H;

0.8mm diameter, liquid water flow rate is 6 L/H;

1.0mm diameter, liquid water flow rate is 8 L/H;

1.5mm caliber, liquid water flow rate is 11L/H;

2.0mm caliber, liquid water flow rate is 14L/H;

2.5mm diameter, liquid water flow rate is 17L/H;

3.0mm caliber, liquid water flow rate is 20L/H;

3.5mm diameter, liquid water flow rate is 23L/H;

4.0mm caliber, liquid water flow rate is 26L/H;

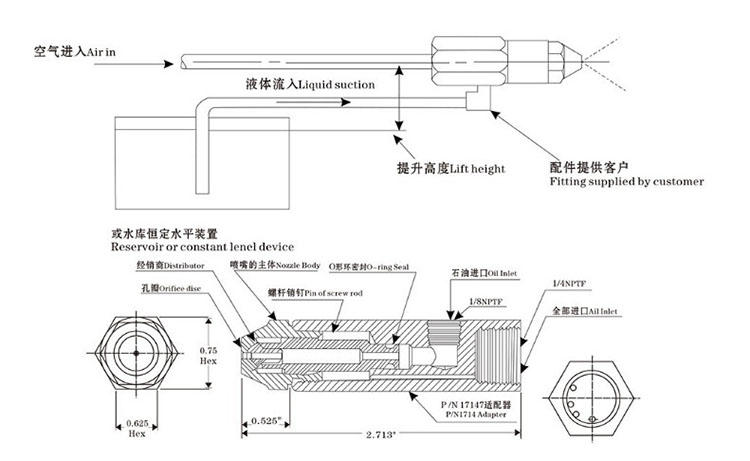

The siphon height is 30cm, and the spray angle is 15-45 degrees.

Spraying liquids through nozzles can serve different purposes:

distributeEngineers design nozzles with different spray distribution patterns. Patterns can be solid stream, solid cone, hollow cone, flat spray, scoop fan. Nozzles are designed to aim at the uniformity and impact of the sprayed jets, whether they are used alone or overlapped. The diagram below shows details of various volumes and spray segments. For your convenience, we have marked the distribution on each page.
