electric water ball valve with manual function electric water valve flow control 5V 12V 24V 110V 220V
-
Supplier: Tianjin Tianfei High-Tech Valve Co., Ltd. -
Region: Tianjin, China -
Contact: Ms Xiaojing Wang -
Price: $11.50 /piece -
Min. Order: 1 piece
| Packaging Detail: | carton(electric ball valve); | Type: | electric ball valve; |
| Port: | Beijing Tianjin; | Type: | BALL VALVES,Float Valves; |
| Model Number: | CWX25S; | Power: | electric / manual; |
| Place of Origin: | Tianjin China; | Media: | Water; |
| Port type: | reduced port/full port; | IP level: | IP65; |

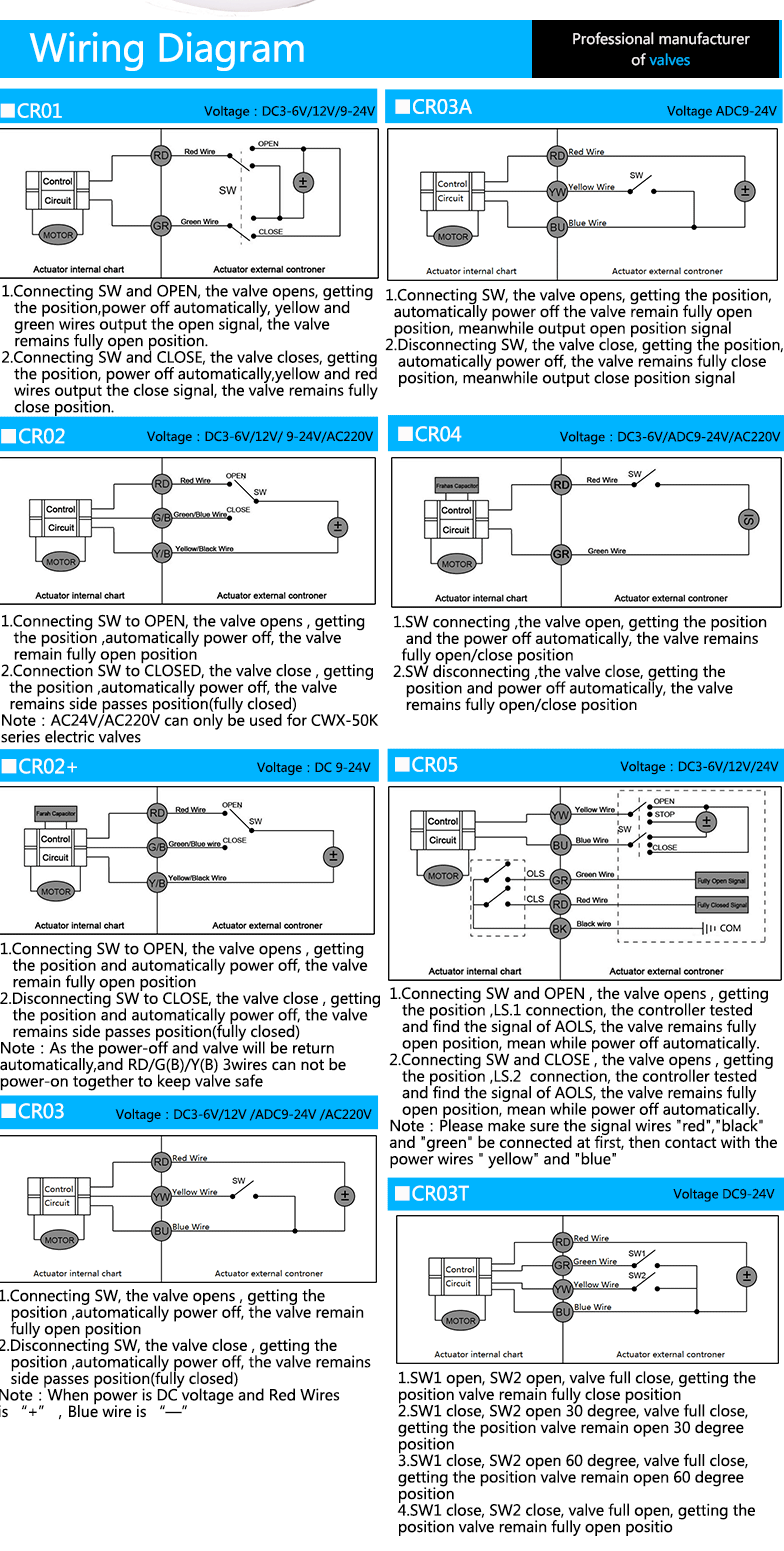

| Wiring Diagram: | CR01 CR02 CR03 CR04 CR05; | Certificate: | ISO9001:2008; |
| Body material: | 304 stainless steel/brass/pvc; | product name: | electric ball valve; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; | Structure: | Ball; |
| Port Size: | DN25 (DN8-DN32 optional); | Torque: | 2.5NM; |
| Temperature of Media: | Medium Temperature; | Supply Ability: | 20000 Piece/Pieces per Month electric ball valve; |
| Application: | General; | Pressure: | Max1.0mpa; |
| Brand Name: | CWX; | Current: | Max80mA; |

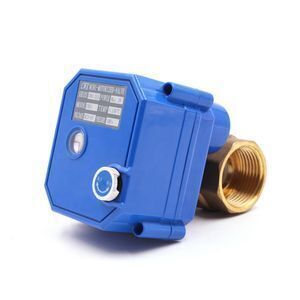

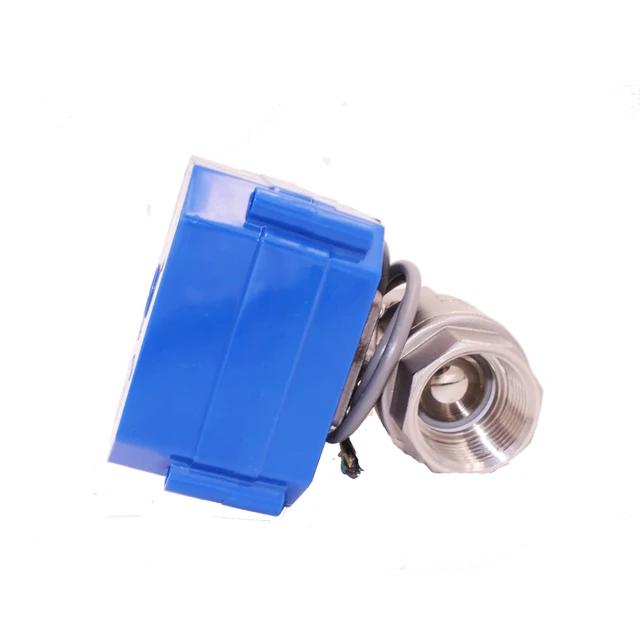

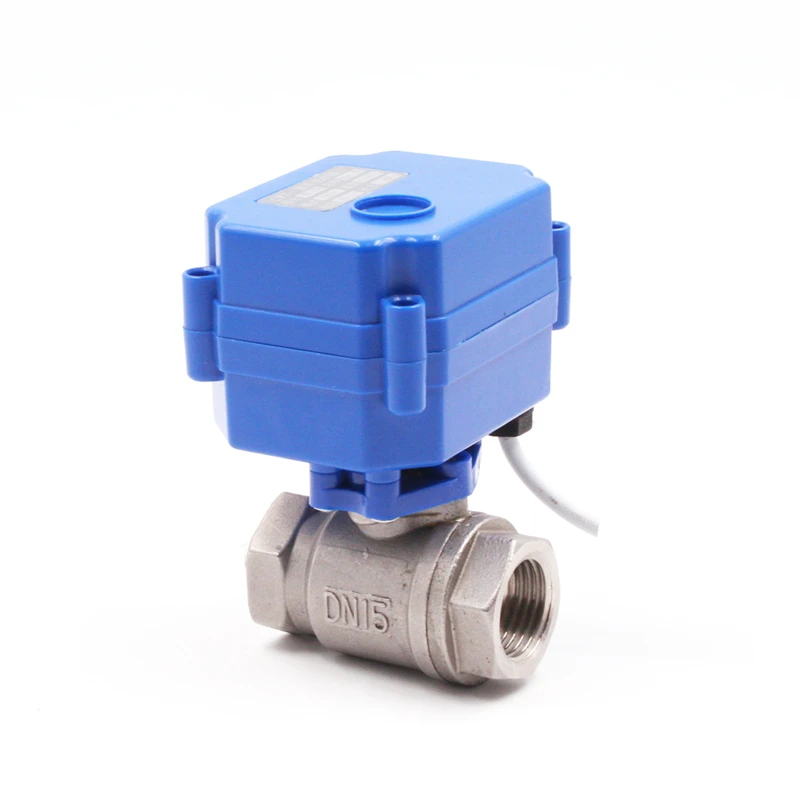

electric ball valve/motorized ball valve electric water ball valve brass ball valve
1.POM material gear box ;
2.Manual Override, the valve can be operated when power failure;
3.Min dimension and position indicator
4.good sealing performance, IP65 enclosure

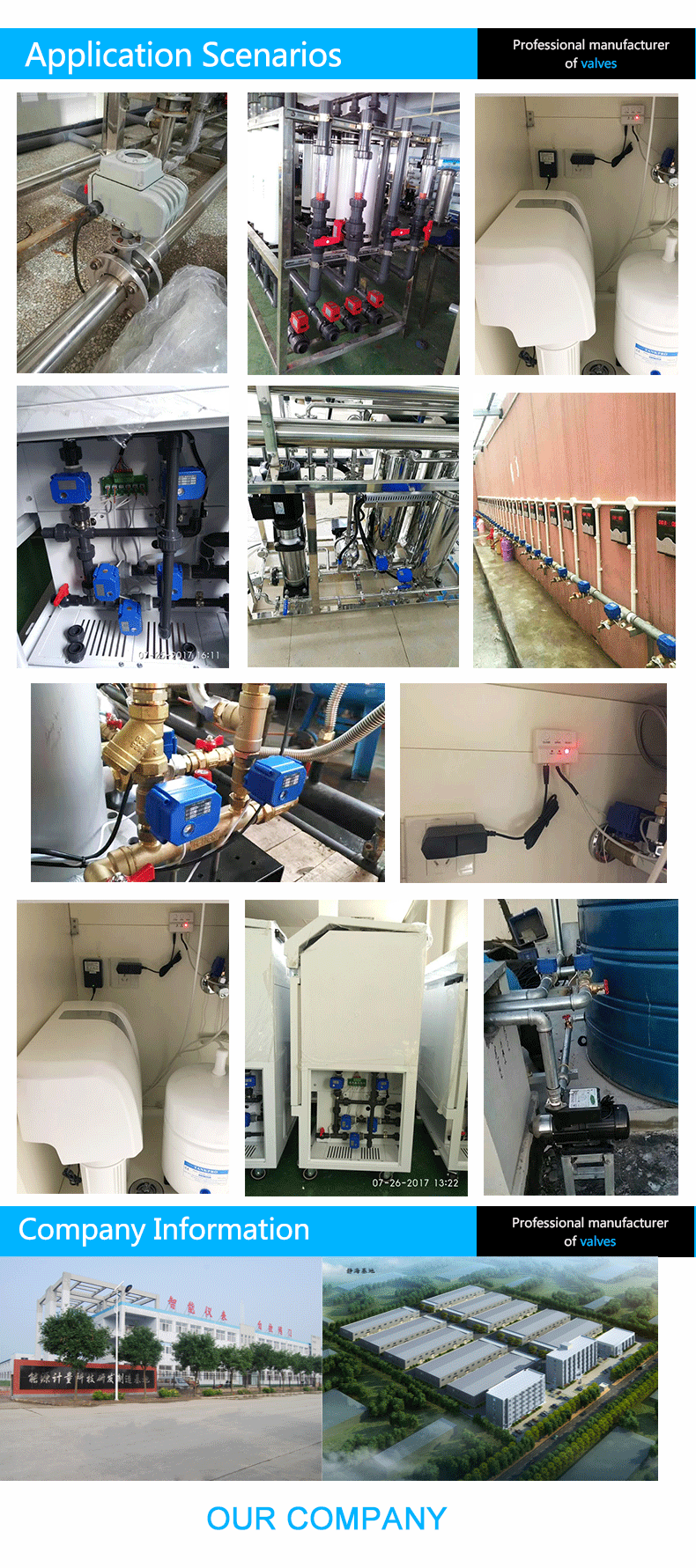

1.Heat energy meters, fire work, save water system
2.Auto control system, industrial mini auto control equipment
3.Water saving equipment, drinking water equipment
4.Air-conditioning fan coin(HVAC)
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
| CWX-25S | DC3-6V DC12V A/DC9-24V AC220V AC85-265V | Max80mA | Max2.5NM | <8s | CR01 CR02 CR03 CR04 CR05 |
| Working pressure | Power | Medium temperature | Size | IP Gard | Special function |
| Max1.0Mpa | <2W | 0-90℃ | DN8-32 Two-way DN8-20 Three-way | IP65 | Wireless switch control (within 200 meters) |
| Brass | Connection | Size | d | L | H | W |
| Both female thread full port | DN8 | 8 | 46 | 31 | 0.287 | |
| DN15 | 15 | 57 | 38 | 0.363 | ||
| DN20 | 20 | 71 | 45 | 0.444 | ||
| DN25 | 23.5 | 72 | 49 | 0.533 | ||
| Both female thread reduce port | DN10 | 8 | 46 | 31 | 0.286 | |
| DN20 | 15 | 66 | 38 | 0.378 | ||
| DN25 | 20 | 72 | 47 | 0.538 | ||
| DN32 | 25 | 86 | 60 | 0.75 | ||
| 3-way vertical | DN15 | 12 | 63 | 49 | 0.365 | |
| DN20 | 15 | 66 | 53 | 0.422 | ||
| Female-male thread full port | DN15 | 15 | 63 | 38 | 0.362 | |
| Female-male thread reduce port | DN20 | 15 | 66 | 38 | 0.392 | |
| DN32 | 20 | 76 | 50 | 0.624 | ||
| Both male thread | DN15 | 15 | 68 | 38 | 0.354 | |
| Stainless steel | Both female thread full port | DN8 | 8 | 46 | 31 | 0.294 |
| DN15 | 15 | 55 | 38 | 0.37 | ||
| DN20 | 20 | 71 | 45 | 0.438 | ||
| DN25 | 25 | 72 | 49 | 0.547 | ||
| Both female thread reduce port | DN10 | 8 | 46 | 30.5 | 0.298 | |
| DN20 | 15 | 63 | 39 | 0.443 | ||
| DN25 | 20 | 75 | 47 | 0.538 |
motorized ball valve CWX-15N |
motorized ball valve CWX-60P |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
Contact:
Tianjin Tianfei High-Tech valve Co., Ltd.
Address:B-5-C, NO.16 Rongyuan Road, 300384,Tianjin, China
Email :tf.cof(at)tfjt.com
TEL:+86-022-85685296
-
