15K ultrasonic transducer MS-6015-4BZ-BZ 15k Ultrasonic oscillator

Product details
Port:SHANGHAI;Frequency Tolerance:0.1KHZ;
Load Capacitance:12500-19000PF;Payment Terms:L/C,T/T;
Nominal Frequency:15KHZ;Model Number:MS-6015-4BZ-BZ;
Package Type:Throught Hole;Place of Origin:Jiangsu China;
Supply Voltage:220V;Supply Ability:50 Piece/Pieces per Week;
Size:Customer Size Accepted;Operating Temperature:Max Temperature 80°;
Dimensions:60mm*4;Brand Name:MISEN;
Packaging Detail:wooden case;
Product Description
Product Name
15K ultrasonic transducer MS-6015-4BZ-BZ 15k Ultrasonic oscillator
Model
MS-6015-4BZ-BZ
Quantity of Ceramic discs
4PCS
Power voltage
220V
Frequency
15KHZ
Delivery date
conventional products are in stock,customize needs about 7 days
Used
Sealing and Cutting
Attention
Customized welding die, can be modified or redone, but not returned

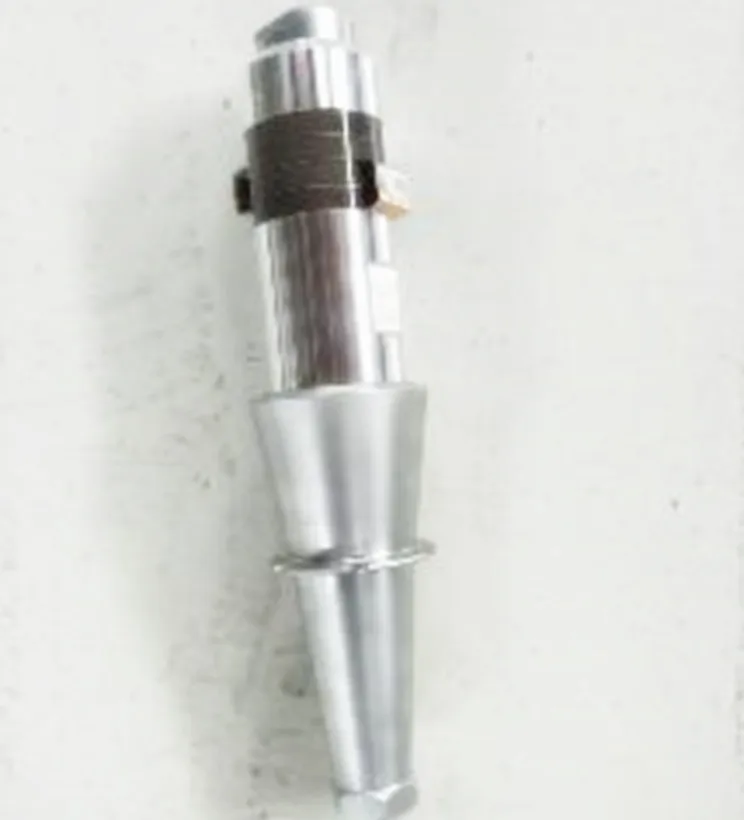

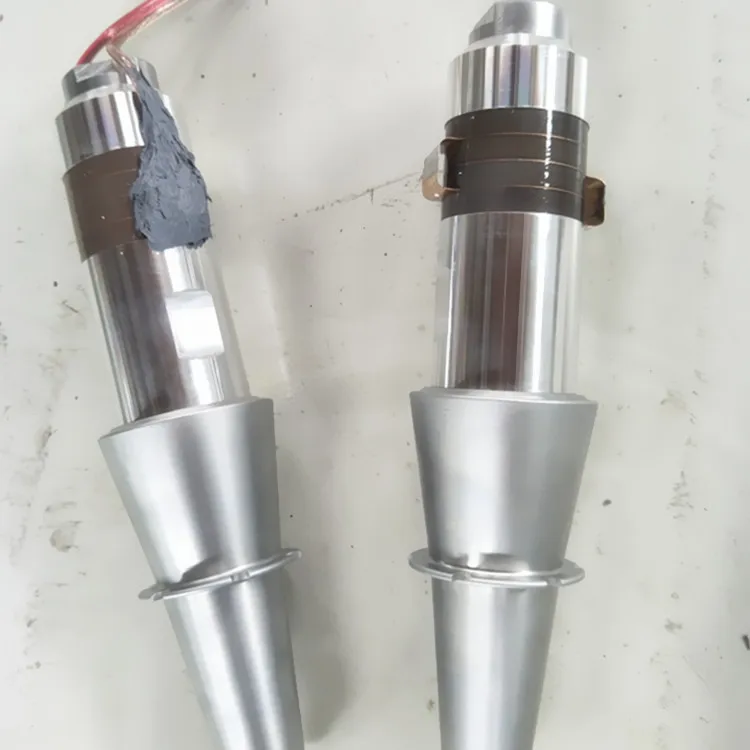

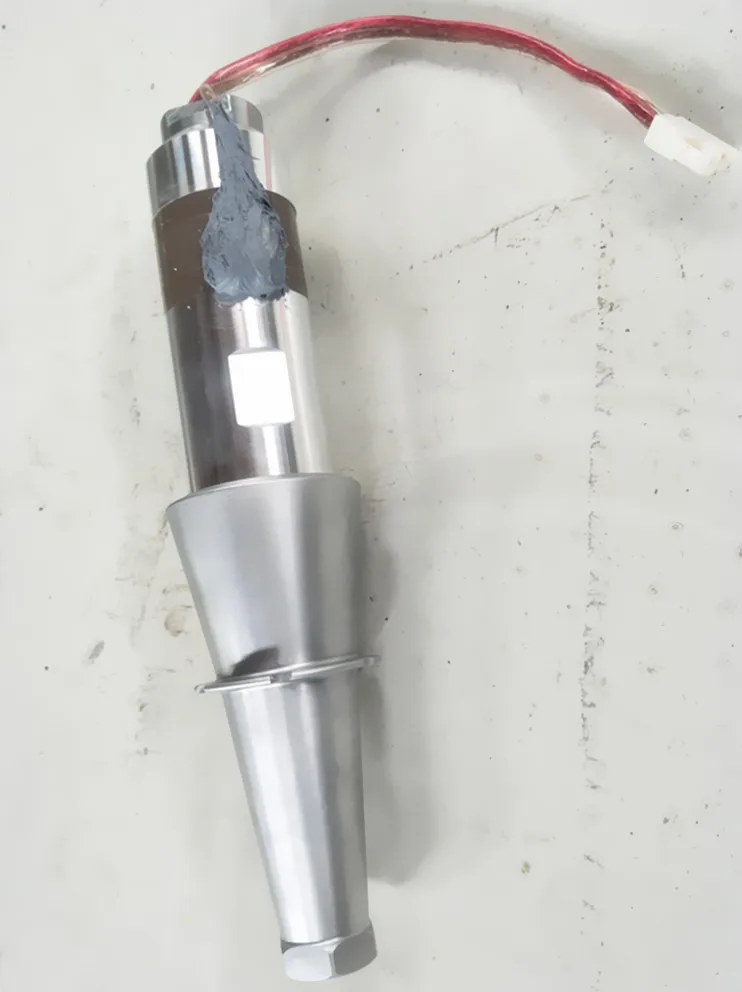

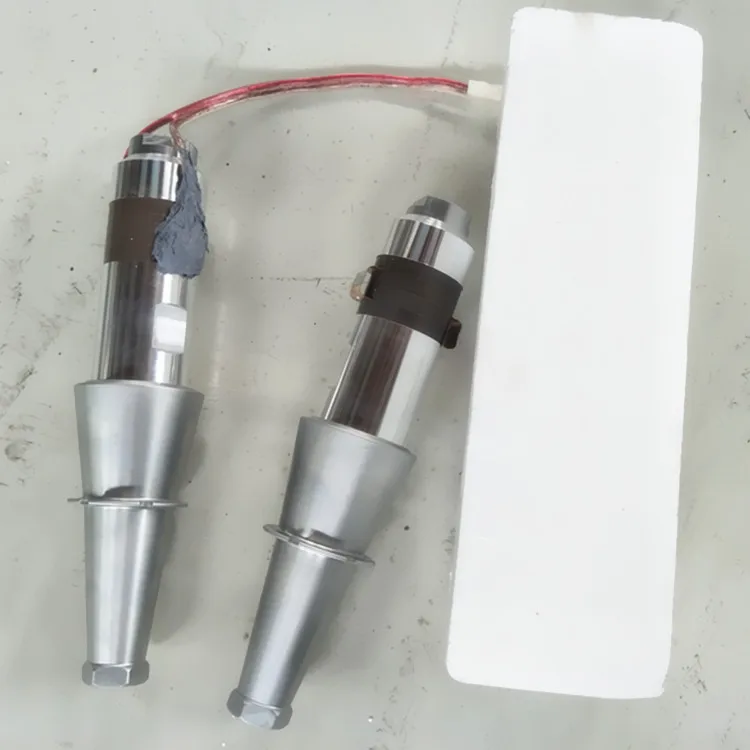

Products Show
Product introduction

     Ultrasonic booster can change the amplitude of transducer. Booster is a passive device and cannot produce vibration itself. It is only to output after the input vibration is changed into amplitude, and finishing the impedance conversion at the same time. Under the stimulus of electric field, ultrasonic transducer can produce regular vibration and the amplitude is about 10μmm commonly.

     That is not enough to finish the welding and processing step directly.
     Through with the suitable booster, the amplitude of ultrasonic can be changed in a large range. If the material is enough intensive, the amplitude can exceed 100μmm. We named oscillator after connecting ultrasonic transducer with booster.
On the other hand, when the booster works vibration through longitudinal and extension, on the both sides of the particle direction of motion is the opposite, which is equal to a rest section. This section is named nodal point, which is the best-fixed point of the oscillator. To departure from the fixed point, it will reduce the work efficiency of the oscillator.
    In the general, the transform efficiency of aluminum booster is high but the intension of material is low and easy to cracking and easy to slipping from the hole of screw; the intension of the steel booster is high but the sound impedance is large comparatively; the all round properties of the titanium alloy booster is good but the price is high and the processing is difficult.

Our Company

Factory

Our Factory

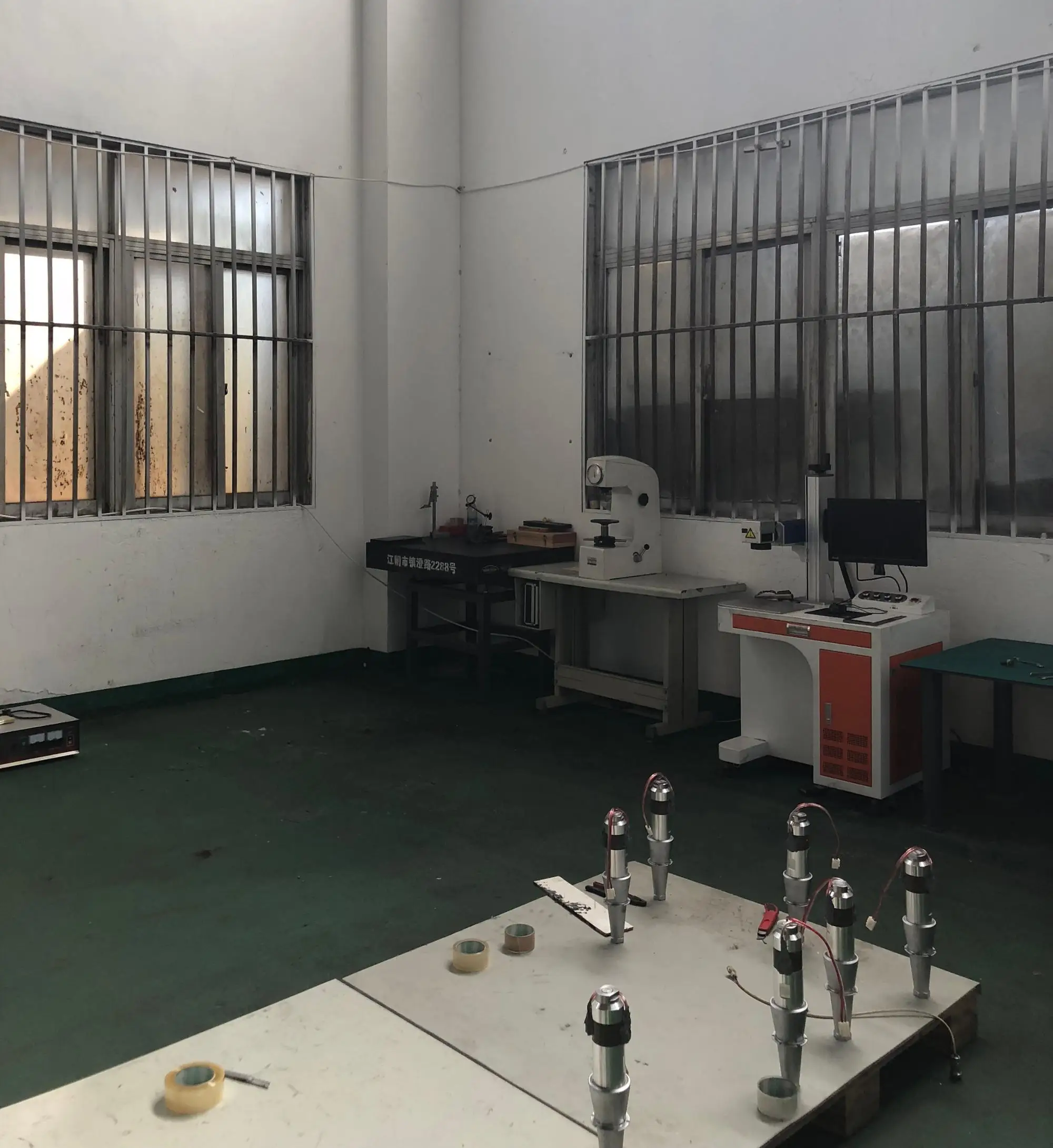

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : WOODEN CASE

Delivery Details :Shipment will be made within 7-10 days after confirmation of the order

1. Special logistics packaging
2. Suitable carton size
3. The mode of transportation
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and trading company

Q: How long is your delivery time?

A: Generally it is 15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but not for free.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
