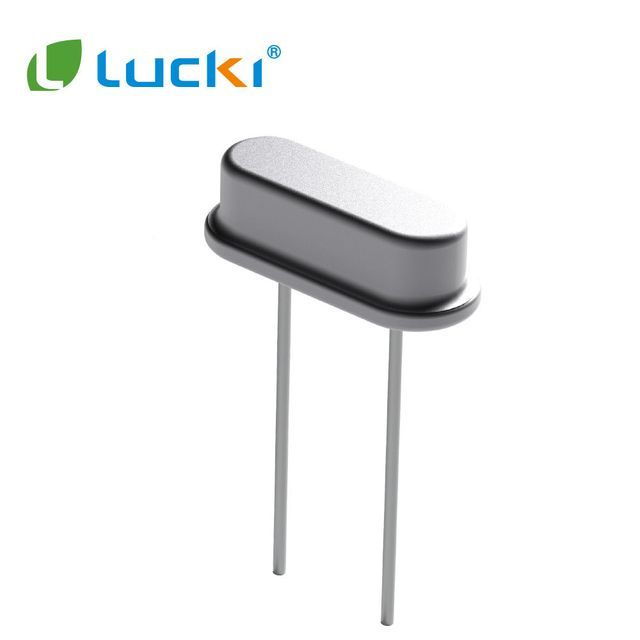

LUCKI HC-49S Metal Pot Crystal DIP 30ppm 30pF 10MHz Cell Phone Crystal Quartz

Supplier: Zhejiang Lucki Cm Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Mr Luckitec Zhu
Price: $0.07 / 1000 - 4999 pieces
$0.06 / 5000 - 9999 pieces
$0.05 / >=10000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Frequency Range:	3.2MHz-100MHz	Nominal frequency:	10 MHz
Load Capacitance:	30pF	frequency:	10 MHz
sample:	free sample	Application level:	industry, automotive
Supply capacity:	2,000,000 pieces per day	Basic resonator:	crystal
aspect:	other	Current - Power (Max):	Series, 16 pF, 20 pF, 30 pF, 32 pF, or specify
Operating temperature:	-20℃--+70℃	Frequency Stability:	±30ppm
type:	quartz crystal	Origin:	Zhejiang, China
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Aging (at25):	±5ppm/year maximum
Voltage - Power:	not applicable	model:	HC49S/SMD 1
Package:	OPP bag+carton/SMD	type of packaging:	OPP bag + carton
Supplier type:	Original manufacturer, ODM	Certificate:	IATF16949, ISO9001, ISO14001, RoHS
Available media:	other	letter of credit:	Leqi W9S10000000F30FC1N-1 WX6
brand:	Lucky	Frequency Tolerance:	not applicable

Frequency Range	3.2~90MHz
Frequency Tolerance (at 25)	±30 ppm, or specify
Frequency Stability Over Operating Temperature Range	±30 ppm, or specify
range of working temperature	-20~+70℃, or specified
Parallel capacitance (CO)	7pF max
drive level	1~500μW (100μW typical value)
load capacitance	Series, 16 pF, 20 pF, 30 pF, 32 pF, or specify
Aging (at25)	±5ppm/year maximum
storage temperature range	-40-+85℃

basic	third overtone
3.2~3.686MHz 200Ω max	27-30MHz 100Ω max
3.686～5MHz 150Ω max.	30～50MHz, maximum 80Ω
5~10MHz 80Ω max.	50~90MHz Max 60Ω
10~14MHz 40Ω max.
14~30MHz 30Ω max.

feature

Resistance welded crystal unit. A large number of standard frequencies. Higher frequency pull and lower equivalent series resistance. Lower cost and high volume production capacity. Best choice for TV, STB, LCDM and Cable Modem, RoHS Compliant/Lead Free.

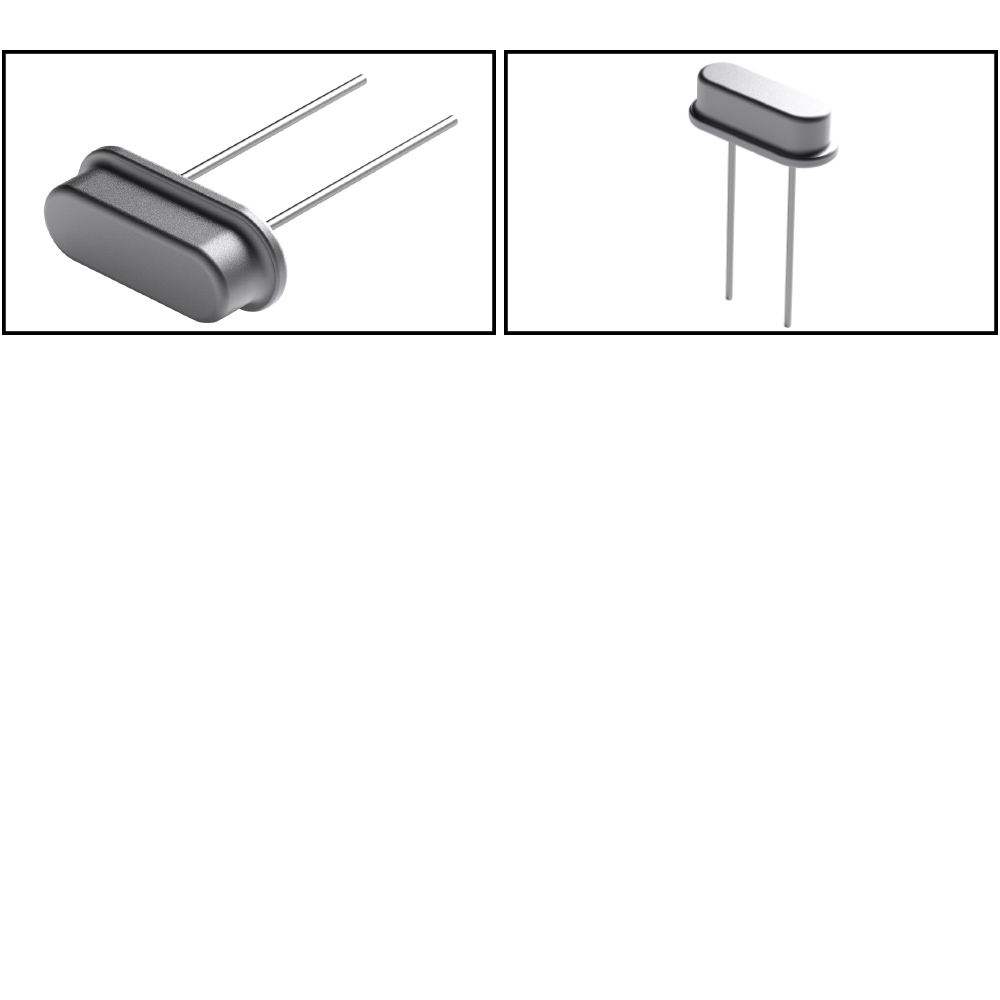

Metal can crystal M49S series
