frequency: | 1~220MHz | Frequency Stability: | ±25ppm ±50ppm |
data sheet: | www.q-crystal.com/home/index/product_index | type: | MHz range oscillator |
payment terms: | wire transfer | place of origin; place of origin: | Guangdong, China |
technical support: | Professional FAE team | Operating temperature: | -40°C to +85°C |
Application level: | Consumer and Industrial | Load capacitance: | 15pF |
aspect: | 2.5x2.0mm 4-pin | Minimum order quantity: | 1000 |
Voltage - Power: | 1.6~3.6V | Packaging Details: | Bulk packaging for DIP products, Tape and Real for SMD products |
Supplier Type: | original manufacturer | Card: | Hua Xiao |
Certificate: | RoHS, REACH, ISO9001, ISO14001 | Cross reference: | ECS 2520MV, ABRACON ASD |
port: | Shenzhen | application: | Telecom, Watch, RTC, DSP |
type of packaging: | patch | model: | SJK 2N-2520 |
Supply capacity: | 500,000 pieces per month | Available media: | data sheet |
Current - Supply (Max): | 15mA | Frequency tolerance: | ±10ppm ±25ppm ±50ppm |
Warranty: | 180 days | brand: | Hua Xiao |
Shipping: | DHL, UPS, FedEx, TNT, EMS |
application
Active crystal oscillators, also known as OSCs, XOs, SPXOs, or simply oscillators, combine a quartz crystal, load capacitor, and resonator circuit in a single package. This reduces the PCB form factor and component count, which simplifies circuit design and reliability, especially in small PCBs.
feature

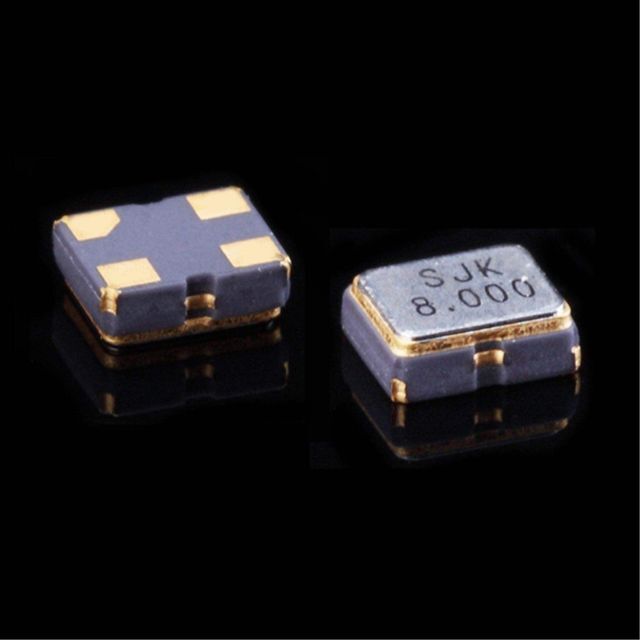

Item type | 2N (SMD 2520 crystal oscillator) |
output type | CMOS |
output load | 15pF, or specify |
voltage | 3.3V (1.8V, 2.5V, available) |
Frequency Range | 4~75MHz |
Frequency Stability | ±25ppm, ±50ppm or as specified |
Operating temperature | -40~+85℃, or specified |
Storage temperature | -55~+125℃ |
VoltageVol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
Rise (Tr) / Fall (Tf) time | 5ns max |
supply current | 10mA max |
symmetry | 45~55% |
Start Time | 5 ms max |
Period jitter | 40 seconds |
Phase jitter | 1 ps max |
Aging (25℃) | ±3ppm/year maximum. |
packaging unit | 3000 pieces. /reel |
*touchwinnerSee below if you need other specs or components not listed by Alibaba.

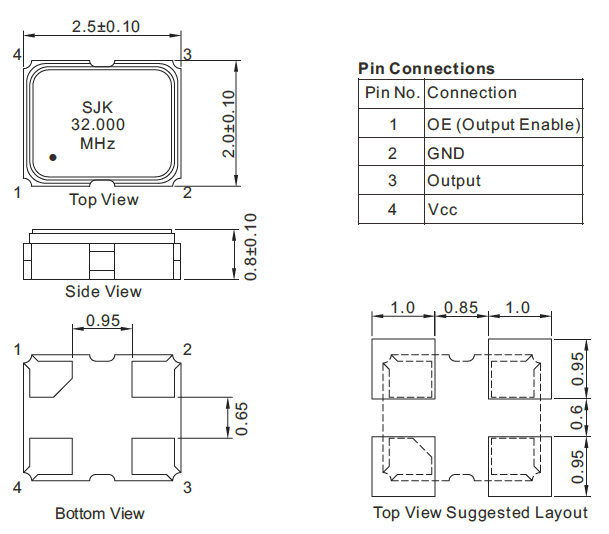

aspect
Unit: mm
