Payment Terms: | T/T; | Supply Voltage: | 3.3V(1.8V,2.5V available); |
Load Capacitance: | 10pF; | Model Number: | SMD 2520 7Q; |
Place of Origin: | Guangdong China; | Supply Ability: | 500000 Piece/Pieces per Month; |
Dimensions: | 2.5x2.0MM; | Operating Temperature: | -30°C ~ +85°C; |
Frequency Tolerance: | ±2.0PPM; | Nominal Frequency: | 13-52MHz; |
Packaging Detail: | Bulk pack for DIP products, Tape and Real for SMD product; | Supplier Type: | Original manufacturer; |
Brand Name: | SJK; | Frequency Range: | 13-52MHz; |
Fan Out Type: | Clipped Sinewave; | Package Type: | SMD,Surface Mount; |
Port: | shenzhen; |
7Q Series SMD 2520 TCXO/VCTCXO
Model: 7Q Series (SMD 2520 TCXO/VC-TCXO)
Frequency range: 10~52MHz
Supply voltage: 1.8V~3.3V
Frequency stability: ±0.5ppm~±2.5ppm
Size: 2.5×2.0×0.8 mm
Applications: Mobile phone, GPS, Wireless communications, IoT, etc
Specifications and Dimensions |
Features of 7Q Series SMD 2520 TCXO /VC-TCXO
Output frequency range from 10MHz to 52MHz
2520size, 0.80mm high SMD TCXO /VC-TCXO
Low voltage operations and low phase noise
Temperature stability: ±0.5ppm~±2.5ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Mobile phone, Wearable electronics, IoT, GPS, WLAN, and more
RoHS Compliant /Pb-Free
Electrical Specifications of 7Q Series SMD 2520 TCXO /VC-TCXO
Item /Type | 7Q (SMD 2520 TCXO /VC-TCXO) | ||
Output Type | Clipped Sine wave | ||
Output Load | 10KΩ//10pF | ||
Supply Voltage | 1.8~3.3V | ||
Frequency Range | 10~52MHz | ||
Supply Current | 2.0mA Max. | ||
Output Level | 0.8Vp-p Min. | ||
Frequency Stability | Tolerance | ±2.0ppm Max. (after 2 reflows ) | |
vs Temperature | ±0.5ppm~±2.5ppm | ||
vs Supply Voltage | ±0.2ppm Max. (Vcc±5%) | ±0.2ppm Max. (Vcc±5%) | |
vs Load | ±0.2ppm Max. (Load varies±10%) | ||
vs Aging | ±1.0ppm Max./Year | ||
Auto Frequency Control (AFC) Range | ±5ppm~±10ppm (1.4±1V) | ||
Start-up Time | 2ms Max. | ||
Operating Temperature | -30~+85℃ | ||
Phase Noise @ 19.2MHz | 100Hz | -115dBc/Hz | |
1KHz | -135dBc/Hz | ||
10KHz | -148dBc/Hz | ||
Packing Unit | 3000pcs./Reel |

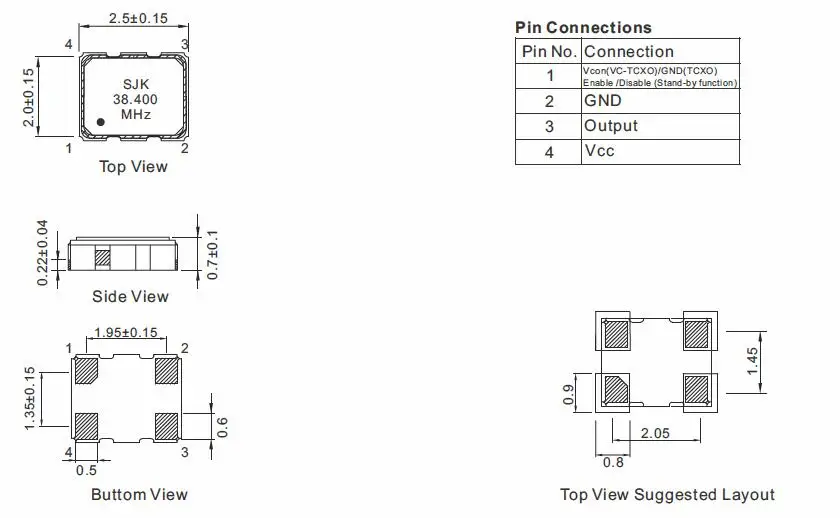

Dimensions [mm]
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
