Packaging Detail: | CARTONS,PALLETS.; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,O/A,Paypal; |
Output Voltage: | 12V; | Supply Ability: | 50000 Piece/Pieces per Month; |
Place of Origin: | Zhejiang China; | Input Voltage: | 110V/220V; |
Output Type: | Single; | IP rate: | IP20; |
Model Number: | S-360-12; | Color: | Sliver; |
Brand Name: | WODE; | Material: | Aluminium; |
Output Frequency: | 50/60Hz; | Output Power: | 360W; |
Output Current: | 30A; | Port: | FOB NINGBO OR FOB SHANGHAI; |
Certification: | CE ROSH; |

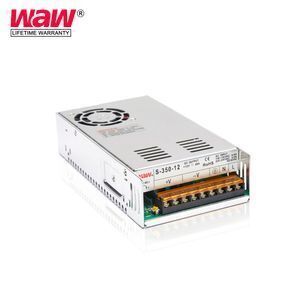

12V 30A Switching Power Supply 360W ac to dc 110v/220v with CE ROHS approved power supply
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications
Model Specification | S-350-5 | S-350-7.5 | S-350-12 | S-350-15 | S-350-24 | S-350-27 | S-350-48 |
DC output voltage | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
Output voltage error | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 50A | 40A | 29A | 23.2A | 14.6A | 13A | 7.3A |
Output current range | 0-50A | 0-40A | 0-29A | 0-23.2A | 0-14.6A | 0-13A | 0-7.3A |
Wave and noise | 50mVp-p | 150mVp-p | 150mV | 150mV | 150mV | 200mV | 240mV |
Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 250W | 300W | 348W | 348W | 350.4W | 351W | 350.4W |
Efficiency | 78% | 79% | 83% | 83% | 84% | 85% | 86% |
Adjustable range for DC voltage | 4.5-5.6V | 6-9V | 10-13.2V | 13.5-18V | 20-26.4V | 26-32V | 41-56V |
AC input voltage range | 90~132VAC/180~264VAC BY SWITCH 47~63Hz;248~370VDC | ||||||
Input current | 6.5A/115V 4A/230V | ||||||
AC impulse current | 25A/115V 50A/230V | ||||||
Leakage current | <3.5mA/240VAC | ||||||
Overload protection | 105%~135%. Type,PULSING HICCUP SHUTDOWN; Reset,auto recovery | ||||||
Over-voltage protection | 5.75-6.75V | 9.4-10.9V | 13.8-16.2V | 18-21V | 27.6-32V | 33.7-39V | 57.6-67.2V |
High-temperature protection | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°CCut off output(5~15V) | ||||||
RTH3>=70°C FAN ON<=60°C FAN OFF>=85°CCut off output(24~48V) | |||||||
Temperature coefficient | ±0.03%°C(0~50°C) | ||||||
Setup rise hold up time | 200ms,50ms,20ms | ||||||
Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||||||
Withstand voltage | Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC | ||||||
Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms | ||||||
Working temperature and humidity | -10°C~+50°C,20~90%RH | ||||||
Store temperature and humidity | -20°C~+85°C,10~95%RH | ||||||
Overall dimension | 215*115*50mm | ||||||
Weight | 0.95Kgs /17pcs per carton | ||||||
Safety standards | Design refer to UL1012, EN60950-1,EN61347-1,EN-61347-2 approved | ||||||
EMC standards | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | ||||||
Note,1.The testing condition for the parameter above is,230VAC input, rated load,25°C 70%Rh,Humidity | |||||||
2.Error,include the setting error, line stability and load stability.(Note,5) | |||||||
3.Wave test,adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting | |||||||
4.Inlet voltage stability test, when is over load, the lowest voltage of inlet is representative to the highest voltage. | |||||||
5.Load stability test: The load is from 0% to 100%,others 60%. | |||||||
6.C2,3,11must be knocked down. |
We are the only supplier in Alibaba can provide LIFETIME WARRANTY power supply,please don't be hesitate to check with our Ali web:http://wodecn.en.alibaba.com/ and contact us by TradeManager or Skype for more details(our TM ID is wodecn and Skype ID is wode.smps).
