Cccam Ali 3510C NEWcam/Mgcam/IPTV/dan/multistream DVB S/T/T2 satellite receiver

Supplier: Shenzhen For U Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Ivy Xiao
Price: $2.00 / >=2000 pieces
Min. Order: 2000 pieces

Click here to contact

Product details

Function:	3G, Wifi, IPTV, YouTube, Weather, Google Map;	Standard:	DVB-T/DVB-T2 Standard;
Place of Origin:	Guangdong China (Mainland);	Port:	Shenzhen;
Type:	DVB-S2/HD/MEPG-4/H.264;	Brand:	Can be customized;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal;	Video Resolution:	1080P/1080i/720p/576P/576i/480p/480i;
Price:	Factory direct price/FOB Shenzhen Price;	Packaging Detail:	Inner packing: Vacuum packing / Plastic bag;
Input Voltage:	AC 80-260V 50~60Hz;	USB Port:	Two USB;
MENU:	Can be customized;	Type:	Digital;
Delivery Detail:	Shipped in 10 days after payment;	High Definition:	Yes;
Brand Name:	Ali;	solution:	DVB-S2/Ali3510C;
Supply Ability:	100000 Piece/Pieces per Week month;	FTA(Free To Air):	Yes;
Model Number:	Ali3510C;

Cccam Ali 3510C NEWcam/Mgcam/IPTV/dan/multistream DVB S/T/T2 satellite receiver

Product Description

Key Features

DVB-S2 / DVB-S Compatible
Multiple Stream supported
True-color OSD and 2D graphics accelerator, anti-flicker filter supported
OTA Security Software Upgrade
Support EPG and Timer
HDMI version 1.4, HDCP revision 1.2 and DVI version 1.0 compliant transmitter
All of the PAL and NTSC analog TV standards supported
1 channel video DAC integrated, CVBS output modes are supported
2 USB 2.0 Host, High-speed and Full-speed devices supported, PVR is supported
Conditional access and data broadcast supported
Low power standby mode
Supports fast channel blind
WiFi 3G supported
Patch: cryptoworks viaccess biss supported
IKS(internet key share): Ccam, Newcam MScam supported

System

CPU	Ali M3510C,600MHZ
Flash	32M-bit Serial Flash
RAM	512Mb SDRAM DDR2

Video and Audio

Video Standard	MPEG-2 MP@ML,MP@HL,MPEG-4 H.264/AVC
Video Mode	576i, 576p,720p, 1080i, 1080p
Audio Standard	MPEG-1 Layer I&II,AAC,HEAAC

Tuner and Demodulator

Type	DVB-S/S2
Frequency Range	950 ~ 2150MHz
RF Input Level	-60 ~ -25dBm
Transmission Mode	ISO/IEC 13818-1 MPEG-2 Transport stream Specification
Symbol Rate	DVB-S mode:	1 ~ 45MS/s
	DVB-S2 mode	1 ~ 30MS/s
Demodulation	DVB-S mode	QPSK
	DVB-S2 mode	8PSK, QPSK 16APSK 32APSK
Code Rate	DVB-S mode	1/2, 2/3, 3/4, 5/6, 7/8
	DVB-S2 mode	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Power Supply

Input Voltage	DC 12V/1A
Operating Power Consumption	Max. 12W
Standby Power Consumption	Max. 1W

Front Panel

Display	4 Digital 7 Segment LED Display
Indicator	Red: Standby ,Green: Run
Buttons	Power, CH+, CH-
USB	2 x USB2.0

Rear Panel

RF Input	Female 75ohm
RF Output	F Type Female 75ohm
IR Extension	1 × Earphone
AV Out	4 x RCA
SCART	1 x TV Scart
S/PDIF	1 x Coaxial
HDMI	1 x HDMI
USB	1 x USB2.0
Ethernet	NO
DC Input	1 x Jack

Accessories

Battery	2 x 1.5V; AAA
User Manual	A5
RCU	Protocol

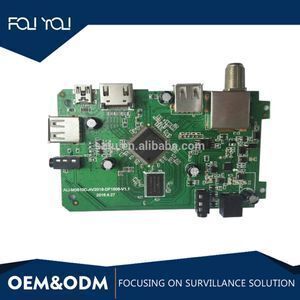

Product show

Designing Draw

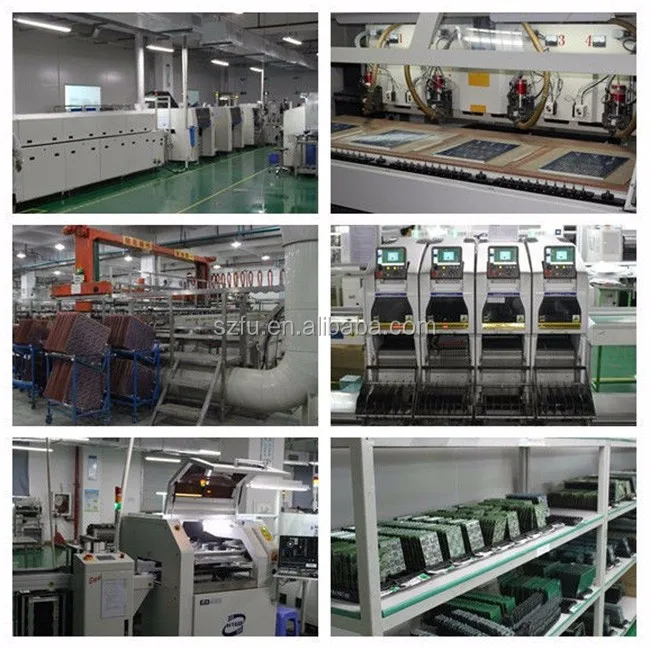

Production Process:

Our Company

Shenzhen Four U Technology Company is a manufacturer specializing in research, manufacturing, marketing of CCTV monitoring system; our product lines incudes CCTV cameras, IP cameras, Wifi cameras, DVR, camera modules.
We have a 10 engineers' professional team that contributing in research, product development, as well as product control. This ensure that we can supply to customers in huge quantity of various models our in stable functions and good performance.

FOR-U is always looking for sincere and mutual cooperation with customers all over the world. We can be your best supplies with wide range of survillance products; also we are capable in providing OEM and ODM services. Thanks for visiting our website to find out your interested products, and please do not hesitate to let us know your further requirements, we are always looking forwarder to hearing from you.

FAQ

Q: How long is the warranty?

A: 2-years warranty since delivered out.

Q: What's the MOQ?

A: 1pc for sample, at least 1000pcs after sample order.

Q:How about the OEM/ODM service ?

A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.

Q: How long is the delivery time?

A: Sample order about 3-5 working days, bulk order about 7-15 working days.

Normally, we ship goods by sea,air and express.

. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days

Q: What methods of payment accepted?

A: 1. We can accept T/T, L/C, Western Union, Escrow and Paypal before production.
2. If you have any doubt about payment, please contact with us freely.

Q: Why do you choose us?

A: Shenzhen Four U Technology Co.,ltd is a qualified HD DVR/Camera Kit manufacturer! We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
