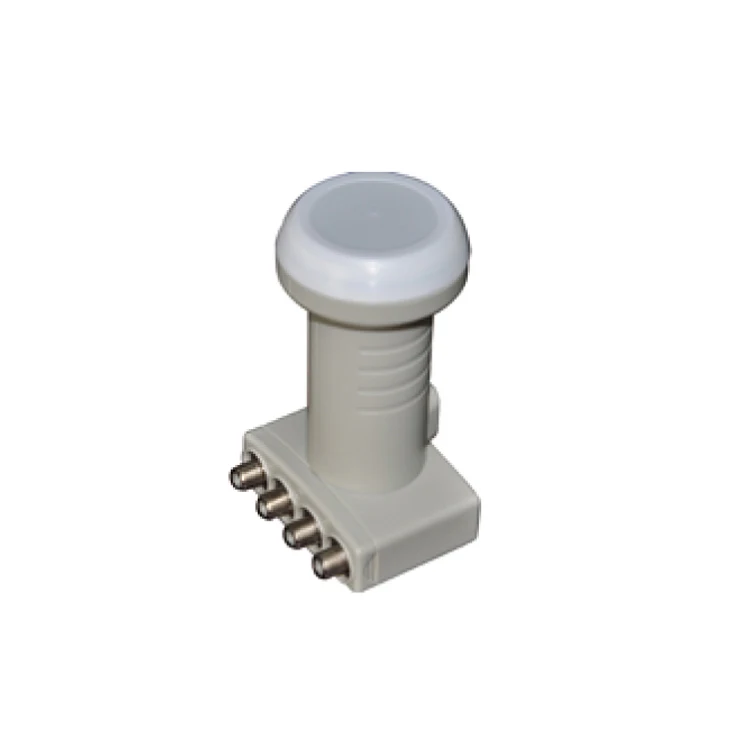

Universal high power ku band prime focus 4K quattro LNB frequency

Ku Band Quad/Quattro LNB

FEATURES

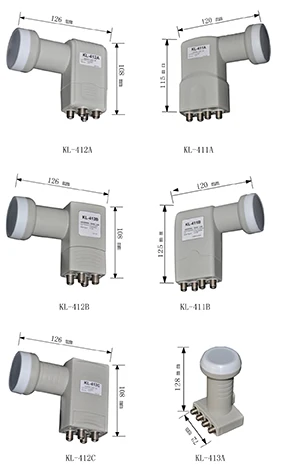

* 10.7 to 12.75GHz wide Ku band range.		* Low consumption.
* Low band/high-band selectable by 22KHz tone.		* Variety of shape options.
* Polarity selectable by 13V/18V.		* Voltage tolerance design for different receivers .
* High efficient and low phase noise.		* Weather protection by rubber boot(optional).

SPECIFICATIONS
RF Input
Input Frequency	Low Band:10.7~11.75GHz
	Higth Band:11.7~12.75GHz
IF Output
Outut Frequency	Low Band:950~1950MHz
	High Band:1100~2150MHz
Output VSWR	2.0:1(Typ.)@25℃
Output Impedance	75Ω
Output Connector	Type F Female
Local Oscillator
L.O Frequency	9.75GHz,10.6GHz
L.O Frequency Stability	±1MHz(Max.)@25℃
	±3MHz(Max.)@-40℃ to +60℃
Phase Noise	-60dBc/Hz @1KHz Offset
	-80dBc/Hz @10KHz Offset
	-100dBc/Hz @100KHz Offset
Conversion Performance
Conversion Gain	55dB (Typ.)
Gain Flatness	±3 [±0.5dB/27MHz](Typ.)
P 1dB Gain Compression	5 dBm(Typ.)
Noise Figure	0.7dB (Typ.)
Image Rejection	45dBm (Typ.)
Power Requirements
Band Select Control	High Band:22 KHz, Low Band:0 Hz
Polarity Select Control	V:11.5~14V DC,H: 16~20V DC
Work Current	190 mA

* Technical data is subject to change without further notice.
