low band: | 10.7~12.75 GHz; | Payment Terms: | L/C,T/T,Western Union; |
Certification: | a; | Model Number: | KL-215A; |
Place of Origin: | Zhejiang China; | Type: | Digital; |
High Definition: | Yes; | Port: | Ningbo or Shanghai; |
Packaging Detail: | 1 pcs/inner small box 50 pcs/100 pcs in a colourful giftbox; | FTA(Free To Air): | Yes; |
Brand Name: | LUCKTECH or OEM; | Supply Ability: | 90000000 Piece/Pieces per Month; |

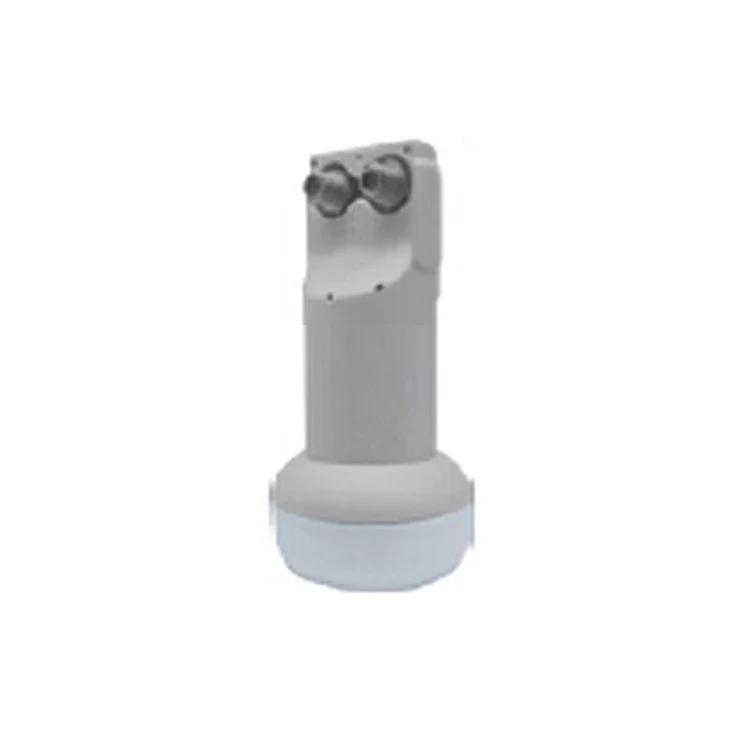

10.7 to 12.75 GHz wide Ku band range , low band /high-band selectable by 22KHz Tone TWIN LNB
FEATURES | |||
* 10.7 to 12.75GHz wide Ku band range. | * Low consumption. | ||
* Low band/high-band selectable by 22KHz tone. | * Variety of shape options. | ||
* Polarity selectable by 13V/18V. | * Voltage tolerance design for different receivers . | ||
* High efficient and low phase noise. | * Weather protection by rubber boot(optional). | ||
SPECIFICATIONS | |||
RF Input | |||
Input Frequency | Low Band:10.7~11.75GHz | ||
Higth Band:11.7~12.75GHz | |||
IF Output | |||
Outut Frequency | Low Band:950~1950MHz | ||
High Band:1100~2150MHz | |||
Output VSWR | 2.0:1(Typ.)@25℃ | ||
Output Impedance | 75Ω | ||
Output Connector | Type F Female | ||
Local Oscillator | |||
L.O Frequency | 9.75GHz,10.6GHz | ||
L.O Frequency Stability | ±1MHz(Max.)@25℃ | ||
±3MHz(Max.)@-40℃ to +60℃ | |||
Phase Noise | -60dBc/Hz @1KHz Offset | ||
-80dBc/Hz @10KHz Offset | |||
-100dBc/Hz @100KHz Offset | |||
Conversion Performance | |||
Conversion Gain | 55dB (Typ.) | ||
Gain Flatness | ±3 [±0.5dB/27MHz](Typ.) | ||
P 1dB Gain Compression | 5 dBm(Typ.) | ||
Noise Figure | 0.7dB (Typ.) | ||
Image Rejection | 45dBm (Typ.) | ||
Power Requirements | |||
Band Select Control | High Band:22 KHz, Low Band:0 Hz | ||
Polarity Select Control | V:11.5~14V DC,H: 16~20V DC | ||
Work Current | 190 mA (160mA) | ||
* Technical data is subject to change without further notice. |
Q: Is Lucktech a manufacturer or trading company?
A: Lucktech has its own invested factory, and also do some trading for the items we do not produce. We are competitive even for the trading items, as we have a strong sourcing team who concern about quality.
Q: What's the normal lead time?
A: For different items, we have different lead time, normally it is 15-35 days.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
Q: What is your payment terms?
A: T/T, sight L/C, Western Union, Paypal.
Q: Do you have the OEM service?
A: Yes, we can accept the OEM, any legal information can be printed on the product.
Q: Do you have CPR compliance for the cables?
A: Yes, now we get through the CPR Testing.
Q: What certificates do you have for PDU?
A: We have CE,SAA & RoHS certificates.
