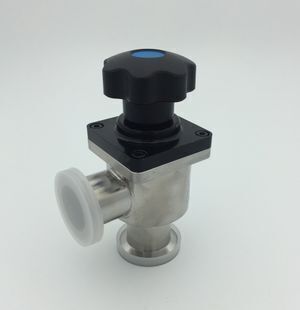

stainless steel high vacuum pressure KF25 manual safety gas angle valve

Supplier: Ningbo Leadmed Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ivy Liu
Price: $158.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	General;	Power:	Manual;
Working medium:	air;	Package Type:	stainless steel high vacuum pressure KF25 manual safety gas angle valve 1pc/box, safety shipping;
Model Number:	CDQ-KF25;	Port Size:	Standard;
Packing:	1pc/box;	Single package size:	40X30X20 cm;
Standard:	GB;	Pressure:	Vacuum;
Type:	Normal Colse;	Size:	Standard Size;
Structure:	Angle;	Usage:	vacuum angle for piping control;
Temperature of Media:	Normal Temperature;	Single gross weight:	3 KG;
Valve type:	2 Way;	Body material:	SS304;
Media:	Gas;	Brand Name:	LMVAC;
Material:	Stainless Steel;	Place of Origin:	Zhejiang China;
Selling Units:	Single item;	Connection:	Flange Ends;
Standard or Nonstandard:	Standard;	Product name:	vacuum angle valve;

Product Description

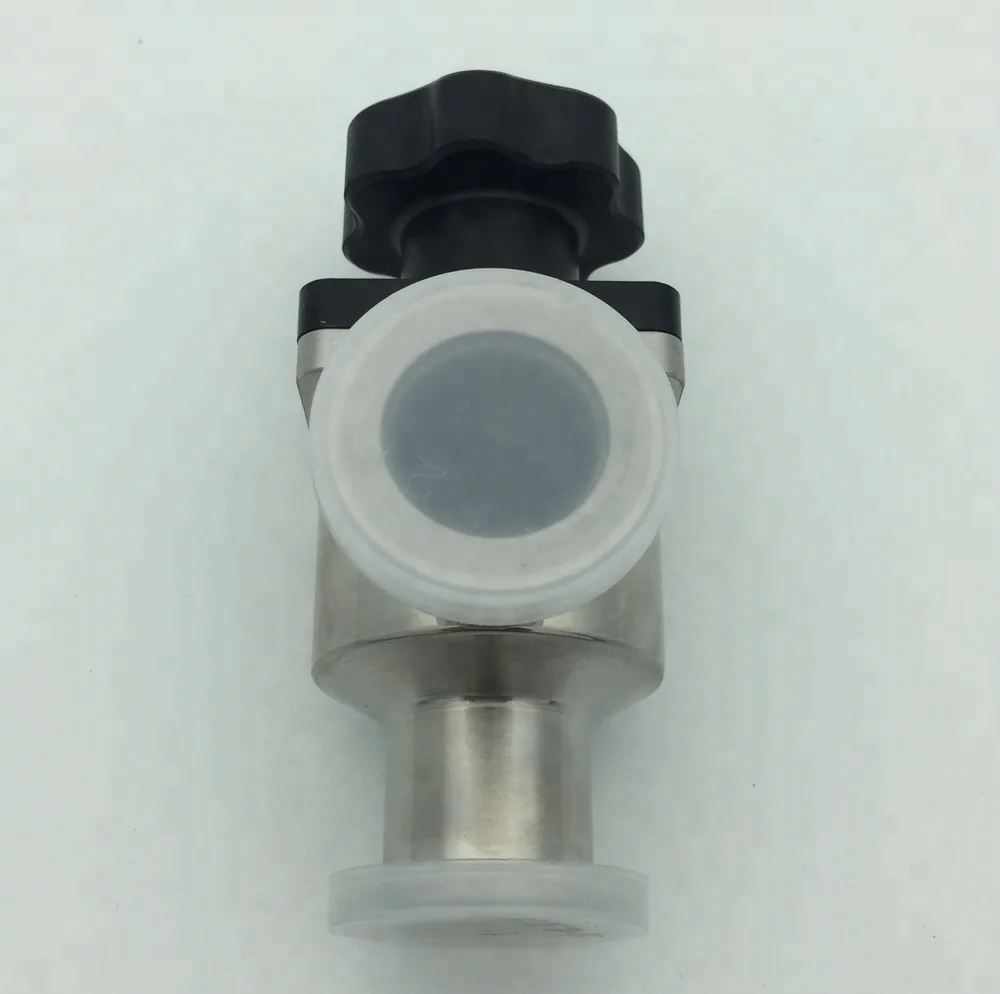

stainless steel high vacuum pressure KF25 manual safety gas angle valve

Introduction

This series of valves are made up of manual, pneumatic and electromagnetic angle valves, with reasonable design on structure, small shock vibration, small volume, durability, great sealing, long service life and so on, is the first choice for vacuum equipment.

Advantage

1. Simple structure and easy to change and maintain.
2. Easy to clean up.
3. Electromagnetic valves are designed in an energy saving way and the size is small.

Techical Parameters

Application scope:	- 1×10-5Pa~1.2×105Pa ( rubber gasket) - 1×10-6Pa~1.2×105Pa (bellows)
Differential pressure before open valve plates:	DN 200~250 (pneumatic):≤3×104Pa; others:≤1.0×105Pa any direction
Leak rate of valves' body and base:	1.3×10-7Pa·L·s-1
Cycles until first maintenance:	200,000 times
Baking Temperate of valve bodies:	≤150℃
Compressed air (only supply to pneumatic valves)	-0.4~0.7MPa
Mounting position:	Manual: any position Pneumatic: any position (DN≤160); sealing surface faces to vacuum (DN>160) Electromagnetic: any position (bellow sealed); sealing surface faces to vacuum (rubber gasket sealed)
Power supply:	-Pneumatic: AC220V 50Hz, 6Wor DC 24V, 3W, (Special specification can be customized) -Electromagnetic: AC 220V 50Hz
Speed of valve closing and opening:	-Pneumatic: DN16~DN50 ≤1s DN63~DN250 ≤3s -Electromagnetic: opening≤0.1s; closed≤1s ( rubber gasket sealed), closed≤0.5s( bellow sealed)
Indications of valves' position:	-Manual: with indication of start and stop -Pneumatic: with indication of start and stop (magnetic switch) -Electromagnetic: with indication of start

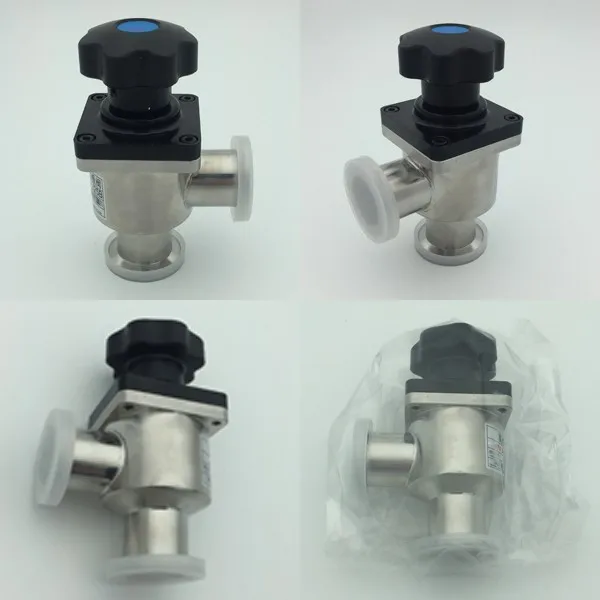

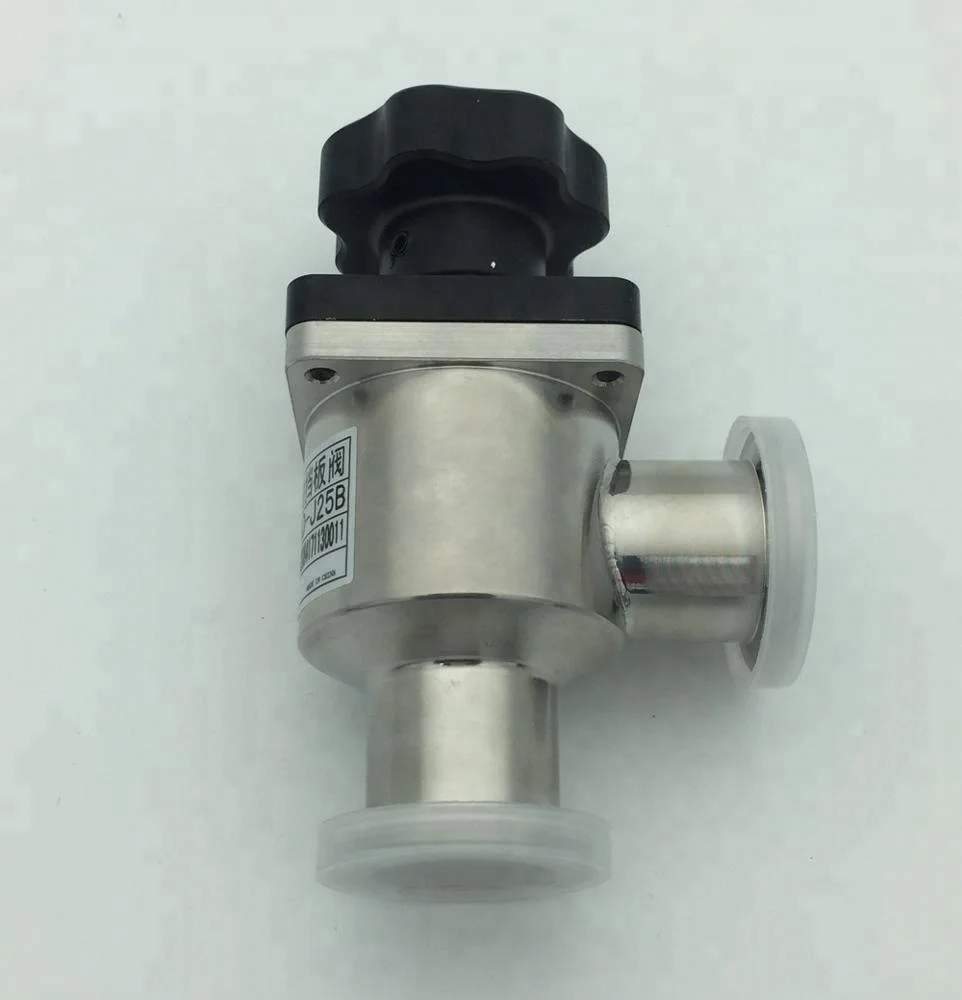

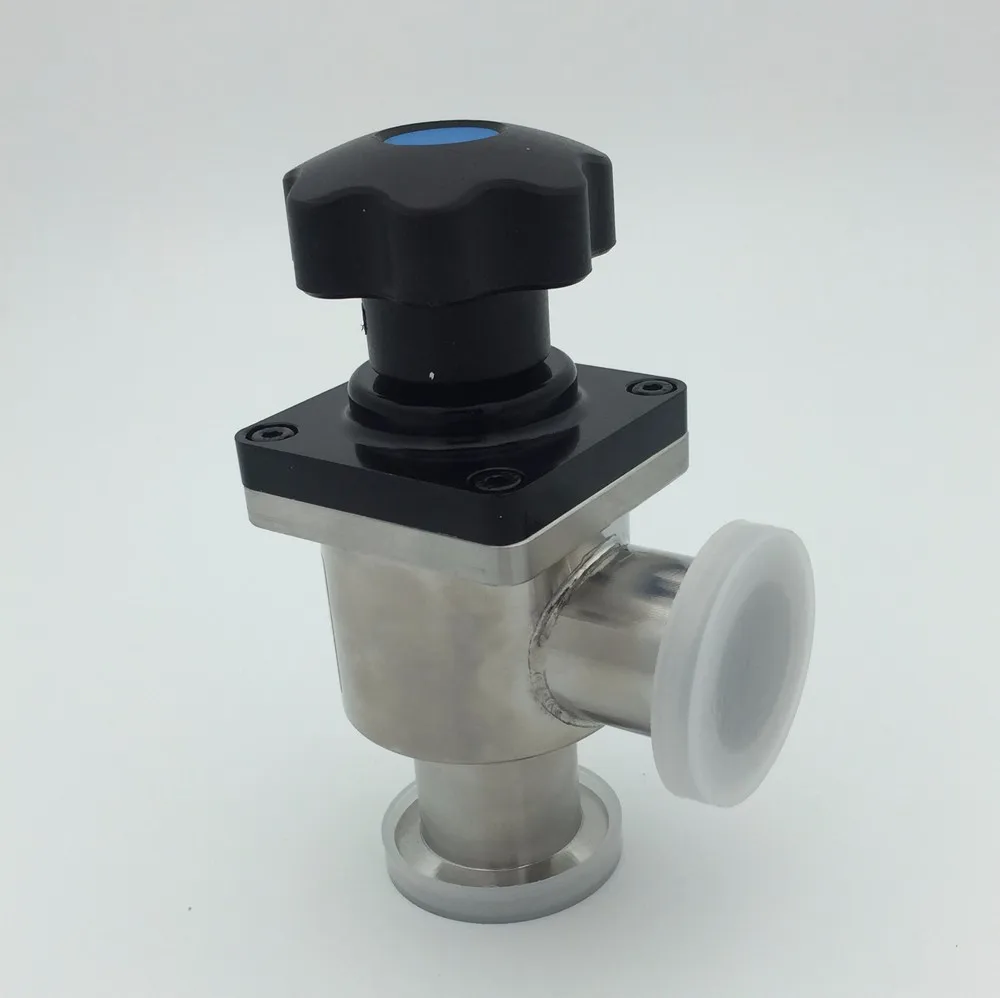

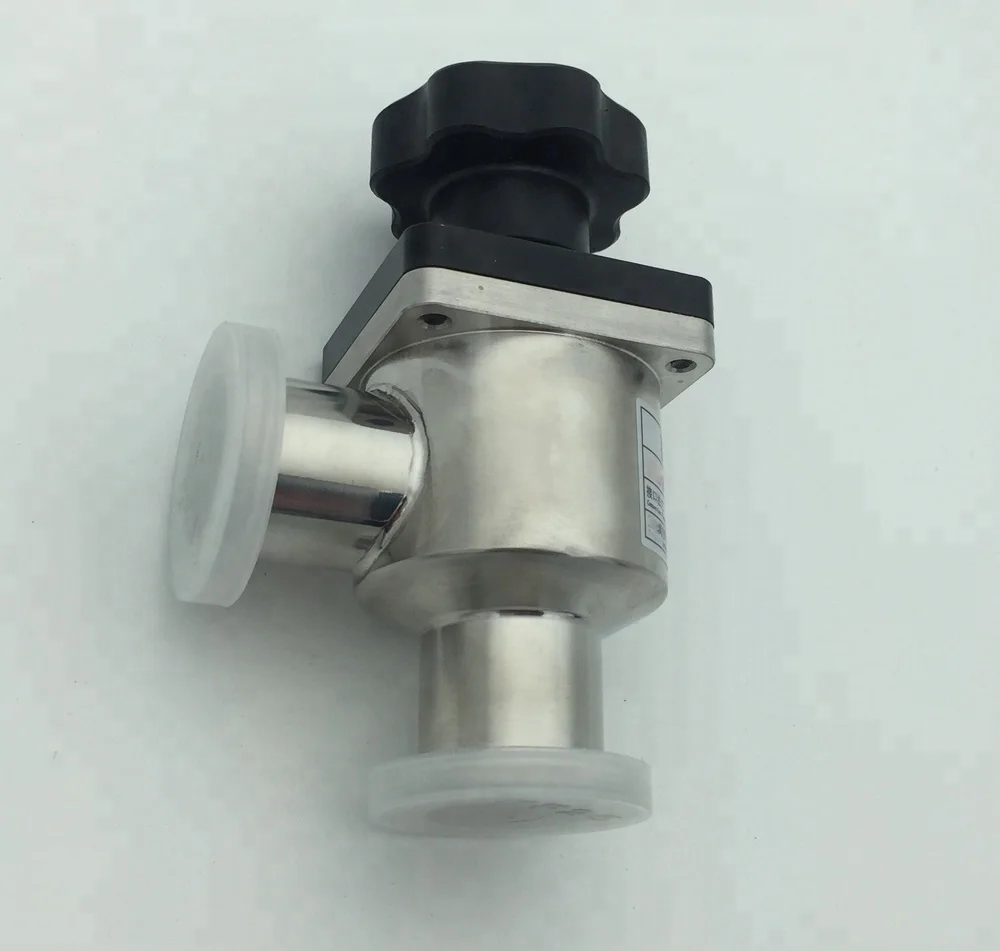

Detailed Images

Related vacuum items

Vacuum angle valves

HV and UHV;

Manual, pneumatic and electromagnetic operation;

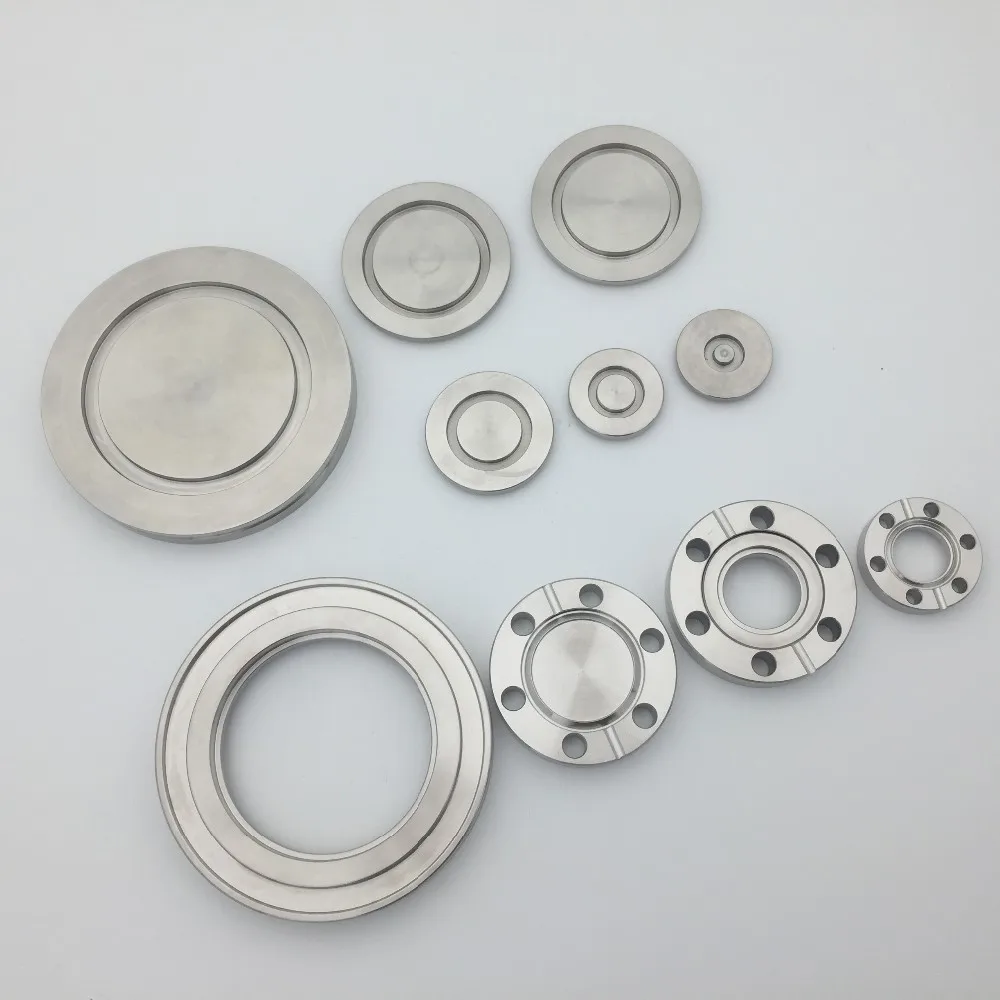

Vacuum fittings

KF, CF, ISO flanges, Tee, Cross, bellows and nipples;

Vacuum gate valves

Different sizes from DN6-400;

different connection ports supplied;

Standard and customized;

Packing and Delivery

Strong Packing to make every shipment get customers' place with a good performance;

1. Foam, bulb inside to protect each product;

2. Outer side is with carton box if goods not heavy for air shipment to make cost effective;

3. Wooden cases and pallets are used to support sea shipment;

If you have different requirements, talk to us freely!

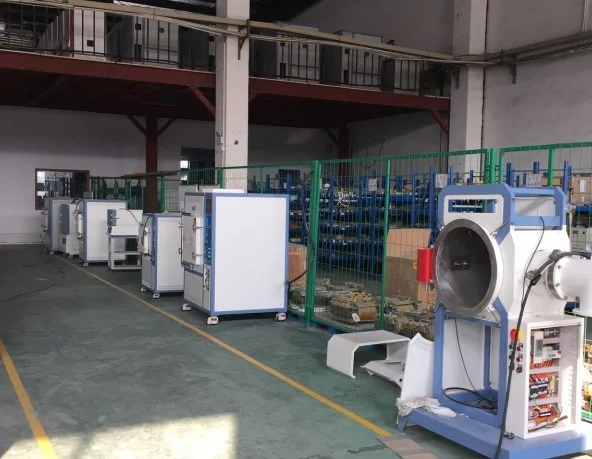

Production Flow

Ningbo Leadmed Technology Co., Ltd

Located in Ningbo city, we are a high-tech enterprise; Plant is seated in Shenyang, the largest city of heavy industry in China, here is the base production of vacuum equipment and systems, with superior advantage of technology and talent ; Leadmed technical staff are all in this field for more than 10 years , we are proud of their professional experience and ability in vacuum field, believe they can meet your specific requirements.

Leadmed products series include vacuum film coating machine, vacuum heat treatment furnace, vacuum chamber, laboratory high temperature electric furnace, box type furnace and tube furnace, and many kinds of vacuum valves and connections and fittings. Our products are designed for used in a variety fields, especially for universities, laboratory, institutes, materials, semi-conductor, IC equipment and etc.

Technology innovation is the eternal power for Leadmed, we will work persistently for advanced technology and customers satisfaction, to be a better brand supplier is our lasting pursuit!

FAQ

1. Any Stock;
Vacuum components, such as flanges, valves, pumps and high temperature furnaces, we have stock, can be shipped out very soon;
Lab machines are usually based on customers specific requirements, they need 30-60 days for production;
2. Payment terms;
If total value is more than USD 1000.00, 30%T/T in advance, 70% T/T before shipment;
When total value is less than USD 1000.00, we hope to get your supporting for 100% in advance;
3. Delivery days;
Depends on which products you ordered, if with stock, within 7-10 days;
4. After-sale service;
Any problem will be get response within 12 hours;
If cannot be solved by on-line guidance, we will replace the goods or do on-site repair;
5. Warranty;
All products are guaranteed for 12 months;
