2390 points breadboard built-in multi-output power supply protype board

Supplier: Cixi Zhongyi Electronics Factory
Region: Zhejiang, China
Contact: Ms ha ou chen
Price: $35.00 / >=4 pieces
Min. Order: 4 pieces

Click here to contact

Product details

Name:	protype board;	Min. Line Spacing:	AWG:20-29;
Supply Ability:	1500 Piece/Pieces per Month;	Base Material:	PLASTIC;
Power supply:	using plug;	Rohs:	yes;
Place of Origin:	Zhejiang China;	Copper Thickness:	THIN;
5 Distribution Strip:	Tie-point 500;	Min. Line Width:	2.54MM;
Surface Finishing:	red and blue line print;	Min. Line Spacing:	AWG:20-29;
Min. Hole Size:	2.54mm;	Payment Terms:	L/C,T/T,Western Union,paypal;
3 Terminal Strip:	Tie-point 1890;	Port:	Ningbo/Shanghai;
Number of Layers:	1 LAYER;	Material:	plastic;
Min. Hole Size:	2.54MM;	Brand Name:	ZY;
Surface Finishing:	RED AND BLUD LINE PRINT;	Model Number:	ZY-1206H;
Packaging Detail:	Carton in bulk, paper boxes and other packing ways;	Board size(cm):	18.818.40.85;

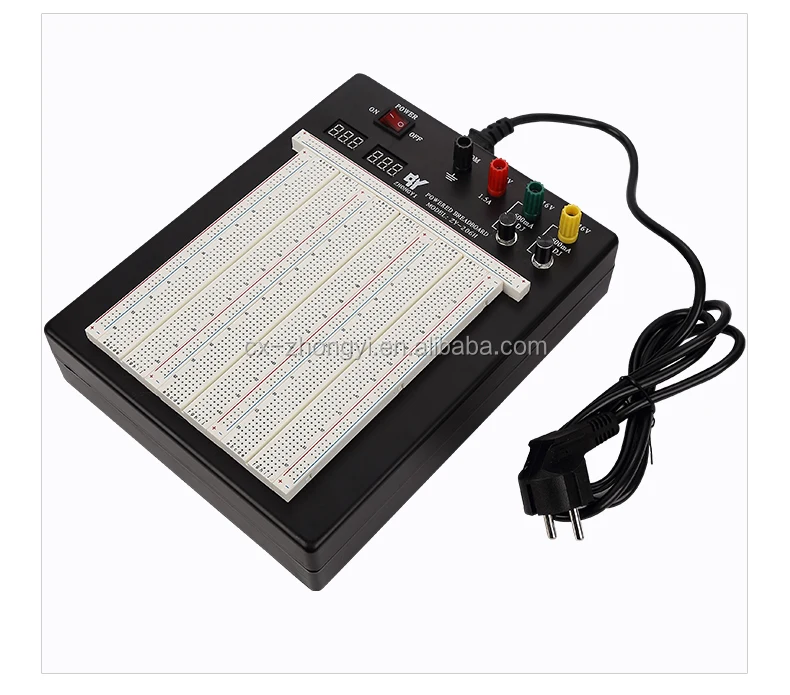

Product Name: 2390 points breadboard built-in multi-output power supply protype board

3 Terminal Strips, Tie-point 1890;

5 Distribution Strip,Tie-point 500;

4 Binding Posts;

Breadboard with built-in multi-output power supply;

All parts are mounted in a metal case.

Free samples are provided;

Management Certification: ISO 9001:2008;

Paper Box;

1pc/ set

ABS plastic material

Completely reusable

Coloured coordinates for easy component placement

Accepts a variety of wrie sizes(AWG:20-29)

Product Description

The hole is round or square. Inside the holes, it is spring clip. It is flexible. It accepts the electronic components which the pin is between AWG 20 and AWG 29. And the inside metal is with good quality. It can bear being inserted many times.

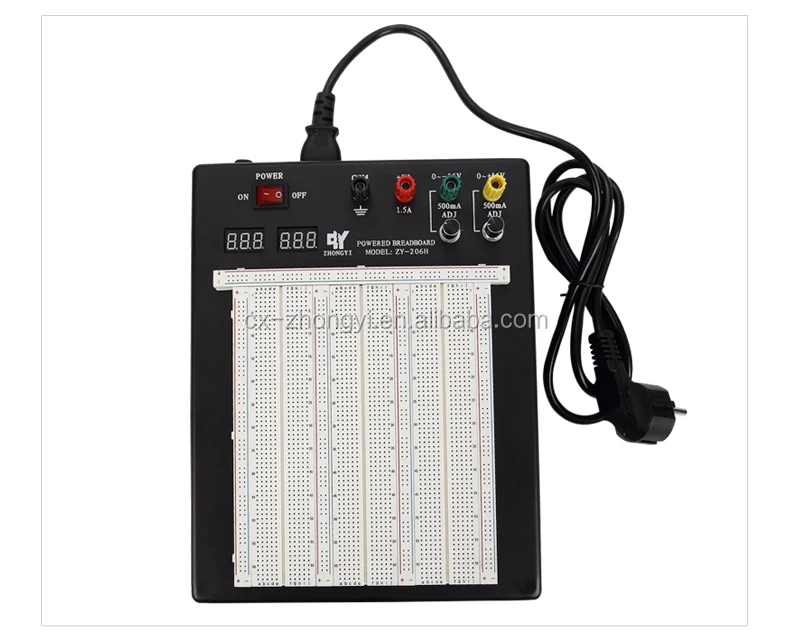

From the fron side, you can see clearly. First, with the self-adhesive paper, the breadboard sticks on the black plate. Then, use screw to fix strong.

Packaging & Shipping

Generally, we adopt carton box to pack the breadboard. Accoring to different shipping way and condition, we will adopt the most suitable way.

About package, first, the breadboard will adopt skin package. Second, 50 pieces of ZY-206 will be packed into a carton box. Of course, this is our ordinary package. According to different shipping way, we will adopt the most suitable way.

Our Services

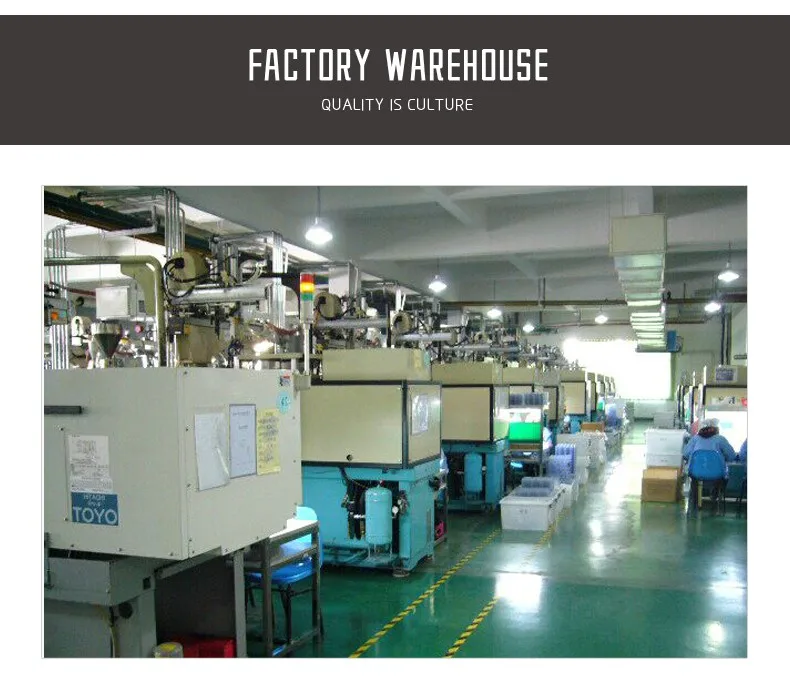

* We are manufacturer. Our factory accepts ODM and OEM. The engineer will help do the design as you require. Of course, if you send us the drawing, it is appreciated.

* If you need your own logo put on the product, we can do it. Only send us the logo, that is ok.

* If you need you own package, we can help make the package. And if you send us the package, that is also ok.
