Model Number: | HDP500; | Single package size: | 15X5X6 cm; |
Linearity: | 0.03%; | Package Type: | Each unit has original individual box,all boxes are packed in standard packages.; |
Certificates: | CE RoHS ISO9001; | output signal: | 4-20mA 1-5V.0-10v RS485; |
Single gross weight: | 2 KG; | Long-term stability: | ±0.2%F.S/y; |
Full load power: | 2W; | Brand Name: | huaibei huadian; |
Place of Origin: | Anhui China; | Power supply: | 12-36VDC; |
Overload pressure: | 200%F.S; | Response time: | ≤50MS; |
Selling Units: | Single item; | Shell protection: | IP65; |
Measuring range: | -0.1~100MPA within any range; |
Brief description

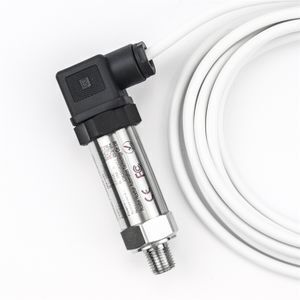

HDP 500 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core.The internal ASIC converts the sensor millivolt signal into standard voltage,current or frequency signal,which can be directly connected with computer interface card,control instrument,intelligent instrument or PLC.Current output mode can be used for distance transmission.It has small volume,light weight,all stainless steel sealing structure and can work in corrosive environment.The product is easy to installand has high anti-vibration and anti-impact performance.It is widely used in process control,aviation,aerospace, automobile,medical equipment,HVAC and other fields.
Note: the price is for: output signal :4-20mA/1-5v/0-10v
power supply :12-28V
support customized,any question,contact sales manager
Details
Mainly technical parameters
Model | HDP500 |
Power supply | 24VDC |
Output single | 4~20mA,1~5V,0~10V,RS485 |
Measuring range | -0.1...0...60Mpa |
Compensation temperature | -10~70℃ |
Medium temperature | 40~80℃ |
Environment temperature | -40~85℃ |
Measuring media | Gaseous,Liquid,Water |
Pressure type | Gaugepressure,Absolutepressure |
Accuracy | 0.1%F.S,0.25%F.S,0.5%F.S(standard) |
Zero tempe drift | ±0.03%F.S/℃ |
Sensitivity temperature drift | ±0.03%F.S/℃ |
Overload | 200%F.S |
Long-terms tability | ≤0.2%F.S/year |
Inherent frequency | 5kHz~650kHz |
Protection grade | IP65 |
selection table
product display
High temperature pressure transmitter
Temperature and pressure integrated pressure transmitter
