0.5-4.5V 4-20MA I2C output corrosion-resistant ceramic pressure sensor chip

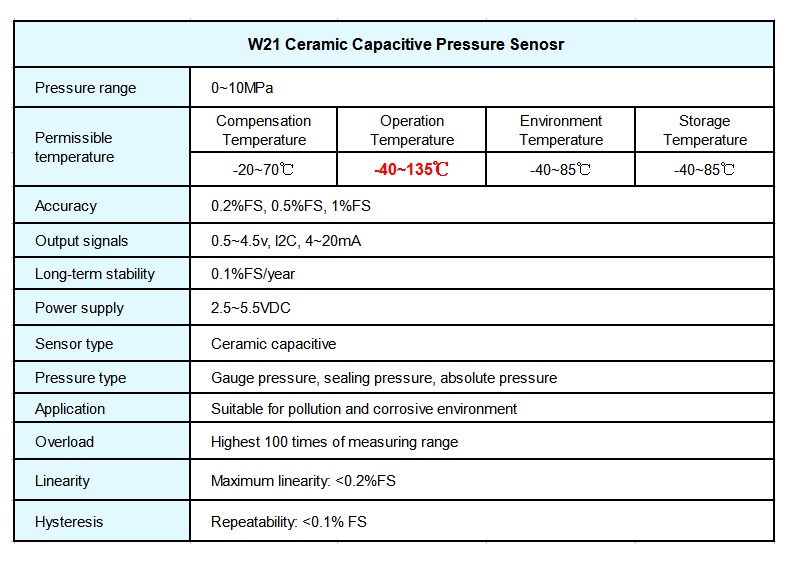

Product details
Warranty:1 yearsensor type:Ceramic capacitive sensor
Pressure type:Gauge/Sealed/Absolutebrand:WNK
Customization support:OEM productionShell material:316L
Key words:Pressure Sensor Chip/Ceramic Pressure Sensorport:Shanghai
Origin:Anhui, Chinapower supply:2.5-5.5V DC
Package preview:Stablize:0.1%FS/year
payment terms:Western Union, L/C, D/P, D/A, T/T, MoneyGram, PaypalPressure range:5-150 bar
Moderate:liquid, gas, steam, oil, airmodel:W21
Operating temperature:-40-135℃Packaging Details:Each piece into individual carton with foam protection or according to customer's requirement
Supply capacity:5000 pieces of pressure sensor chips per monthoutput:0.5...4.5V, 4-20mA, I2C
Product Description

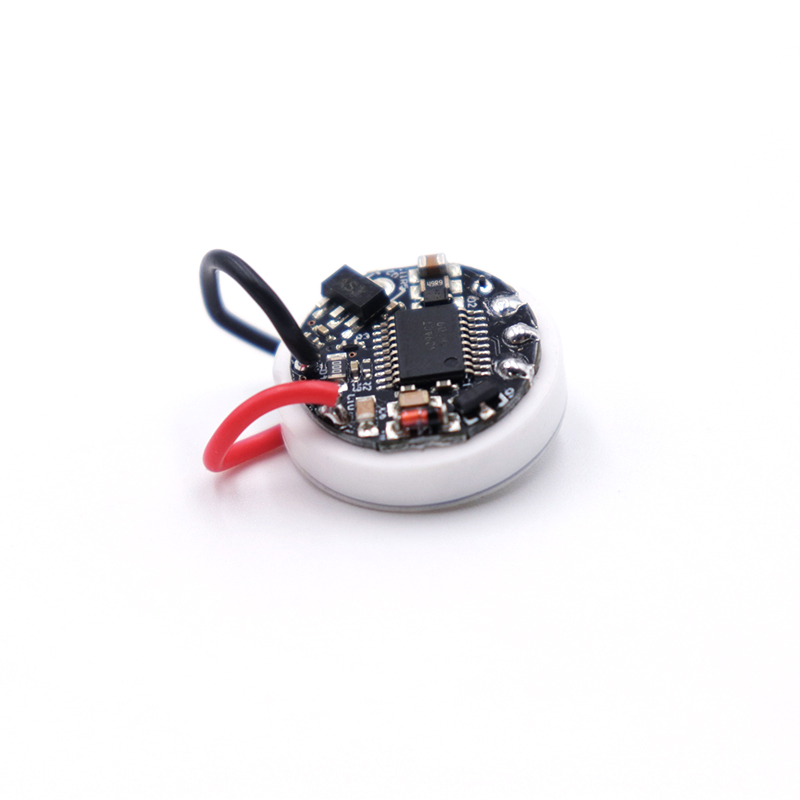

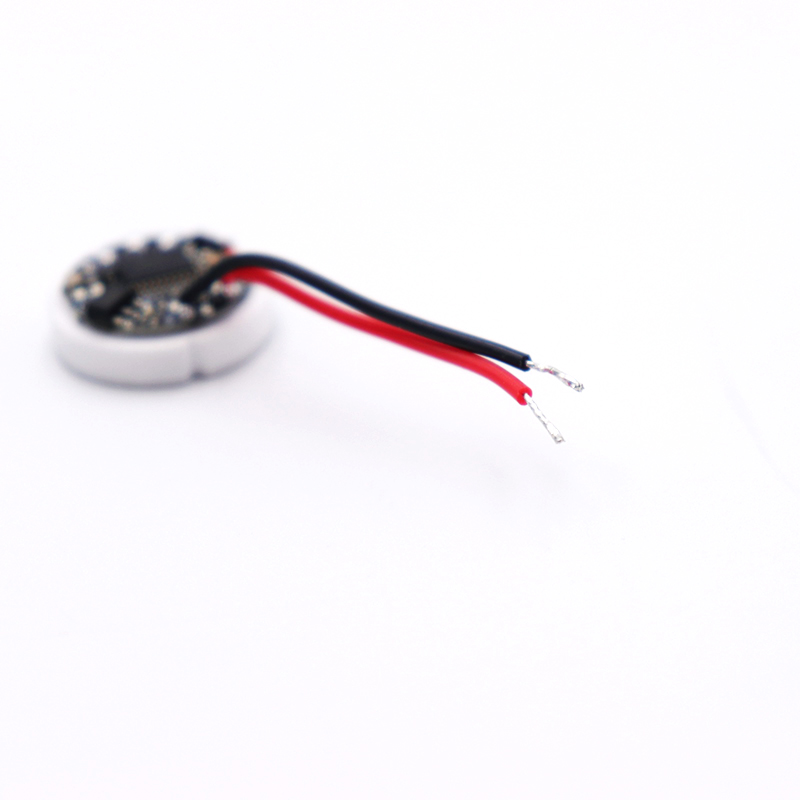

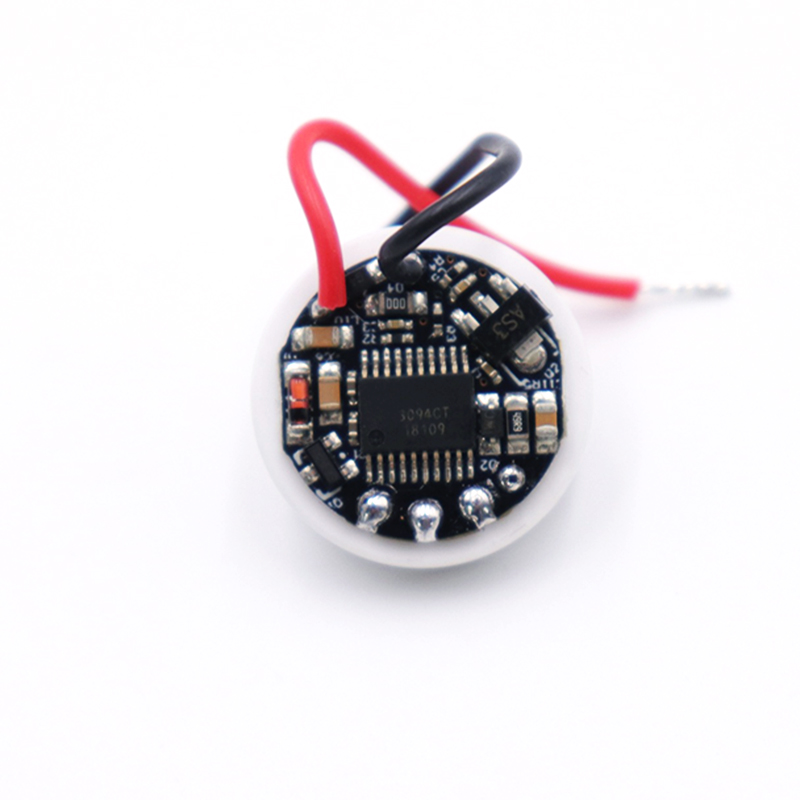

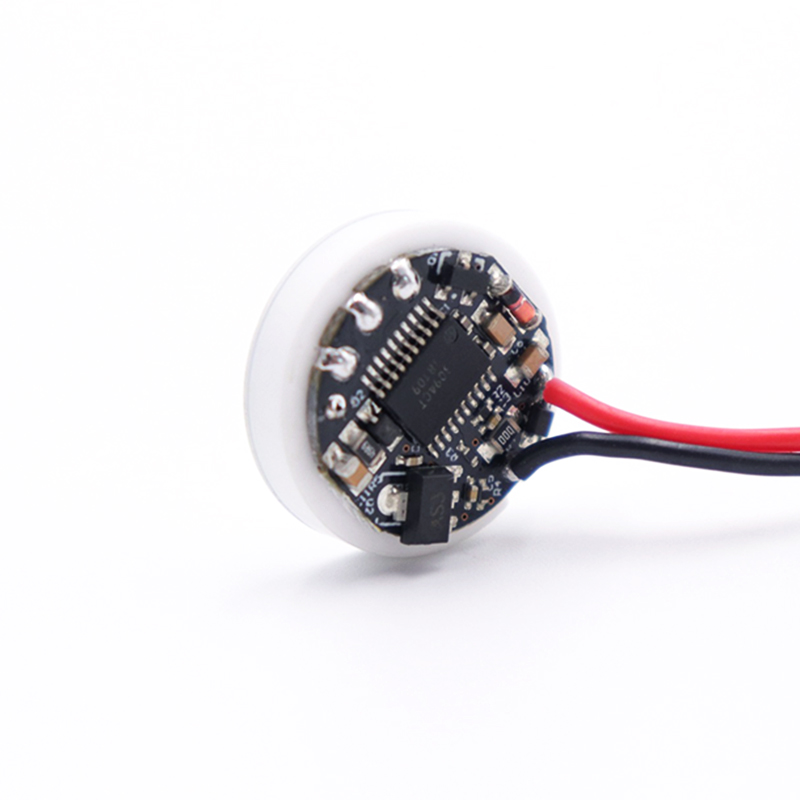

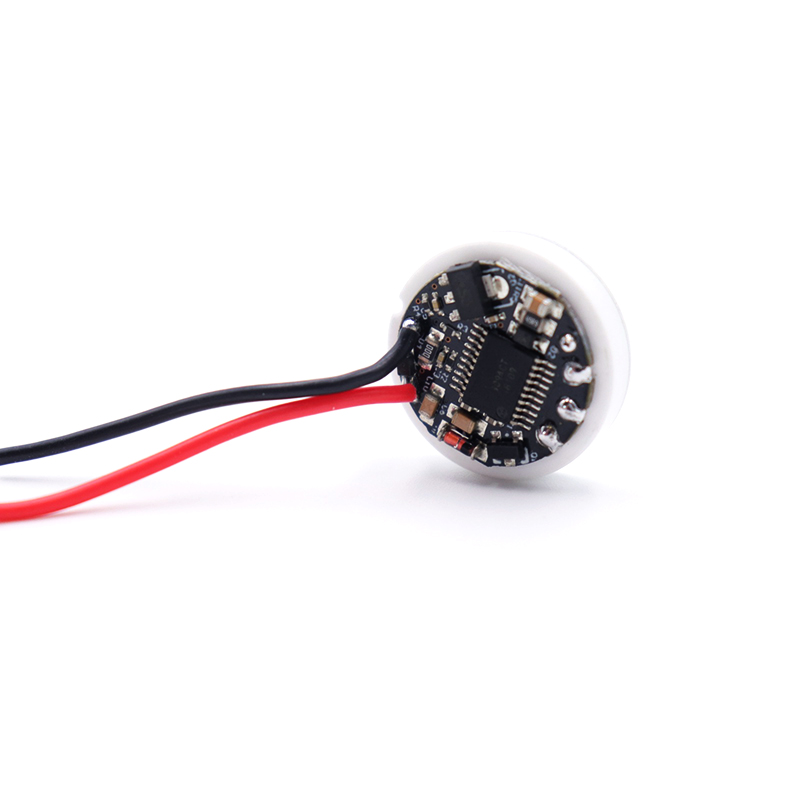

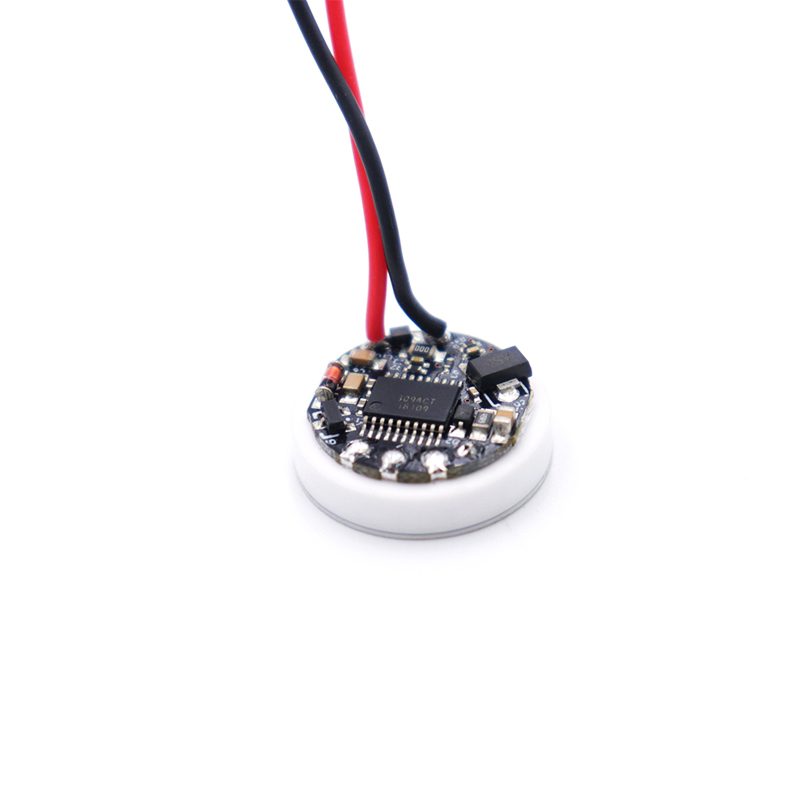

0.5-4.5V 4-20MA I2C output corrosion-resistant ceramic pressure sensor chip

The W21 series pressure sensor core is a dry ceramic capacitive pressure sensor made of ceramic materials and a special method. Ceramics are recognized as highly elastic, corrosion-resistant, wear-resistant, impact- and vibration-resistant materials. The thermal stability of ceramics makes it possible to operate in a temperature range of -40 to 135°C, and has high-precision measurement and high stability. Its anti-overload capacity can reach 100 times of the range, which completely solves the shortcoming of other types of sensors with poor overload capacity in small ranges. In addition to the general sensor range, the most distinctive feature is its positive and negative gauge pressure functions, such as: ±10kPa, ±1MPa etc. The ceramic capacitive pressure sensor has high output and wide range, and is especially suitable for manufacturing high-performance industrial control pressure transmitters and adapting to pressure measurement in harsh environments.



feature:

• Dry ceramic capacitive pressure sensor;
• Robust ceramic capacitive sensitive diaphragm;

• Excellent corrosion resistance and wear resistance;
• Adaptable to polluted and corrosive environments;
• Flat large circular diaphragm, easy to install;
• Rapid response without hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;



application:

• Pressure measurement of gases, vapors or liquids in all areas;
• Level, volume or mass measurement;
• Can be integrated into various user-defined solutions.
