4-20mA Anti-Corrosion Pressure Sensor for Pressure Measurement In Harsh Environments

Supplier: Hefei Wnk Smart Technology Co., Ltd.
Region: Anhui, China
Contact: Mr Anty Chen
Price: $11.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Power supply:	24VDC/12VDC/5VDC;	Packaging Detail:	Each piece into individual carton with foam protection Or as per client's request;
Accuracy:	0.5%F.S.(Typical);	Housing Materials:	304SST;
Output:	4~20mA, 1-5V;	EX-proof:	ExiaII CT4/CT6;
Protection:	IP65, IP67;	Port:	Shanghai/Ningbo;
Electrical connection:	Packard, cable outlet;	Housing material:	304 stainless steel;
Place of Origin:	Anhui China;	Temperature drift(zero):	±0.15% F.S.;
Brand Name:	WNK;	Supply Ability:	100000 Piece/Pieces per Week;
Pressure range:	0-20K~25MPa;	Payment Terms:	T/T,Western Union,Paypal;
Model Number:	WNK-80MA;

4-20mA Anti-corrosion Pressure Sensor for Pressure Measurement In Harsh Environments

Product Description

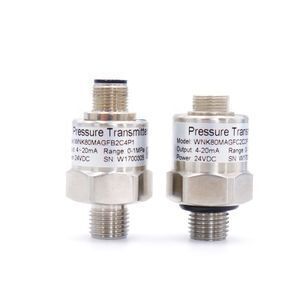

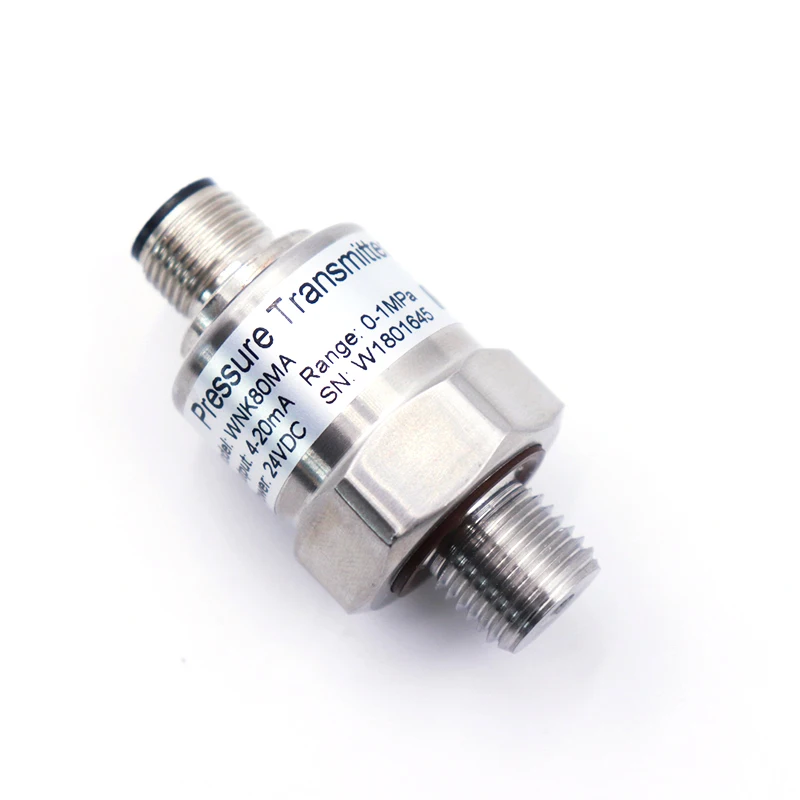

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-20kPa~25MPa
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4~20mA, 1-5V, Customization
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)

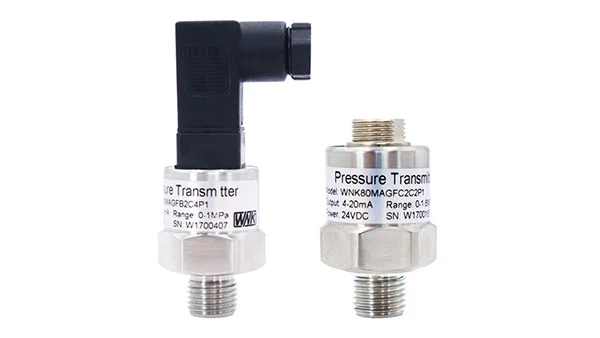

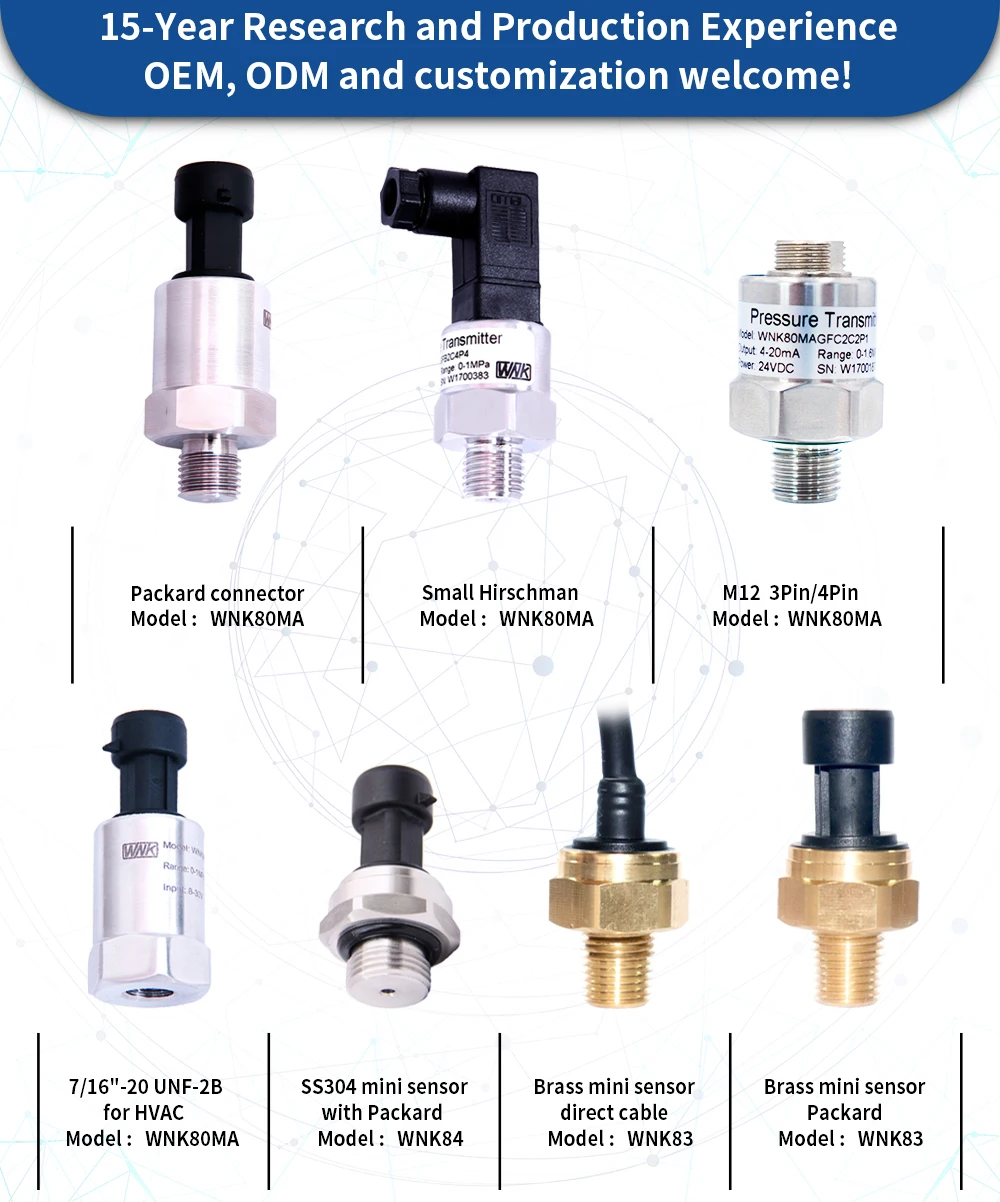

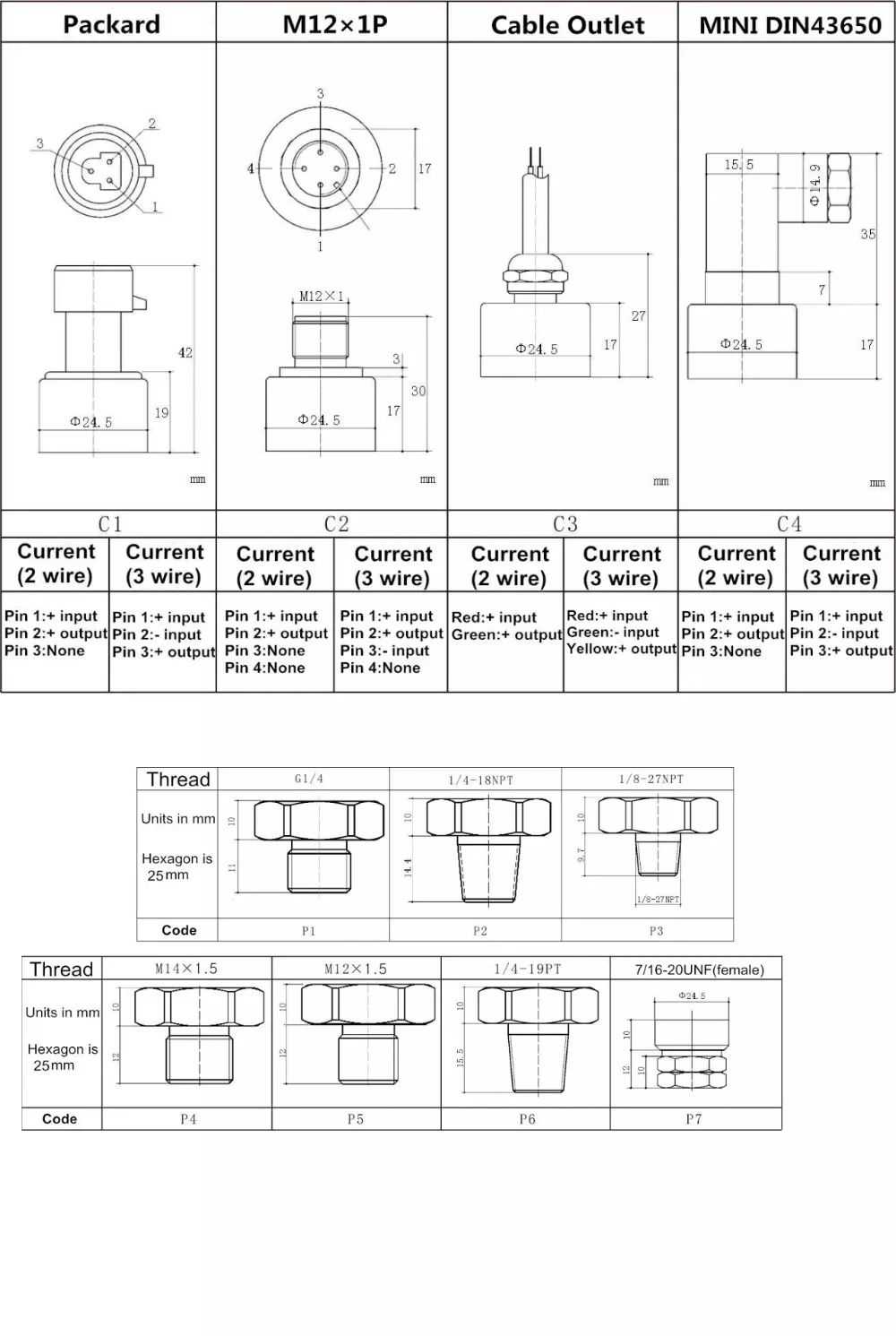

power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Product Spec

Connection

About Us

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
