For scrap handling steel scraps mw5-210l/1 circular electromagnetic lifting magnets

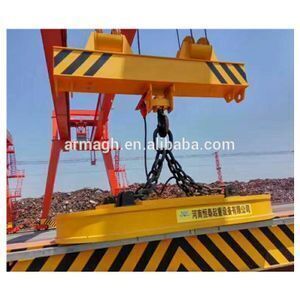

mw5-210l/1 circular lifting electromagnet handling steel scraps

Three types for option:

1. Normal temperature type (DC-220V TD-60%): for lifting normal temperature steel scraps.

2 .High temperature type (DC-220V TD-60%):for lifting high temperature steel scrapsor lift steel scraps in high temperature environment. It is specially for used to lift steel scraps into furnace to make steel in steelplants.

This magnet can handle the steel scraps under the temperature of 650°C.

3. High frequency type (DC-220V TD-75%): for lifting normal temperature steel scraps in high frequency use. It can be operated more efficiently and frequently since the duty cycle is up to 75%.The over-excitation control system (DC350/DC290V/DC-200V) is also available for large size magnet of this kind, in order to quicken the current, increasing speed and to exert stronger lifting capacity.

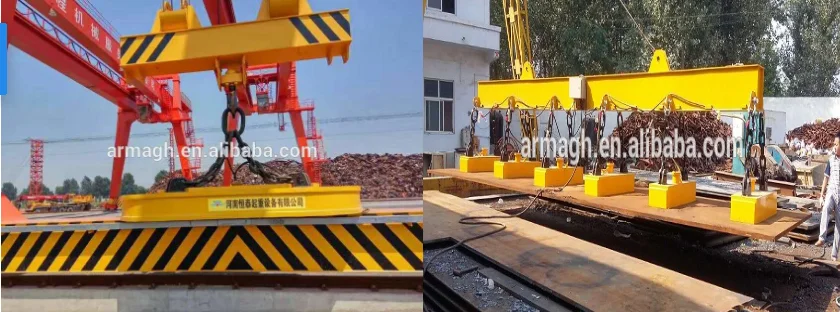

mw5-210l/1 circular lifting electromagnet handling steel scraps

Features:

1 .It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.

2 .This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling,which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.

3 .It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

4 .With simple structure reliability, it is suitable for working with all kinds of lifting equipments.

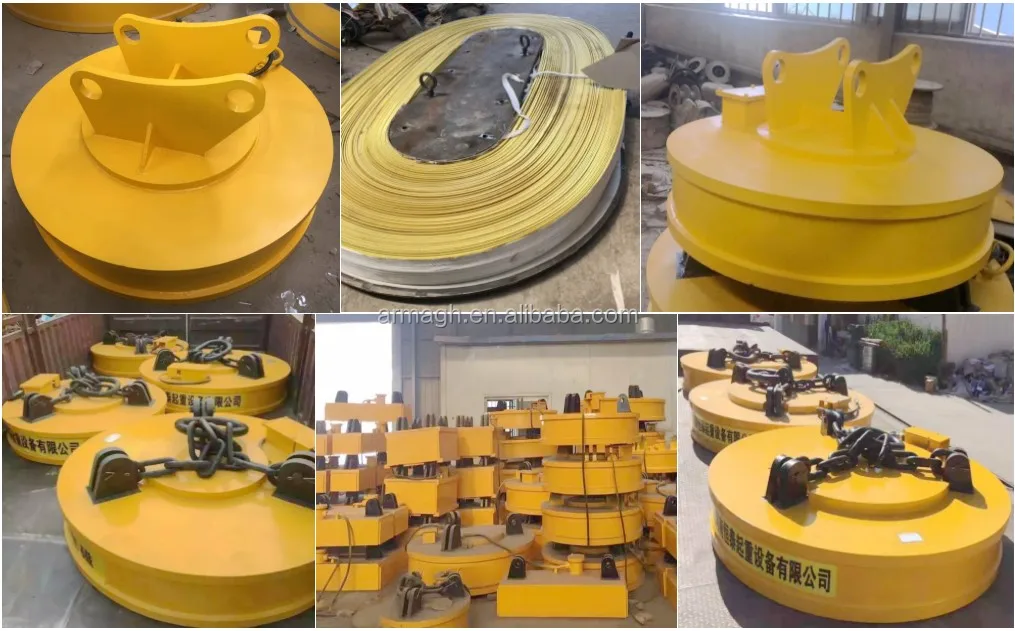

mw5-210l/1 circular lifting electromagnet handling steel scraps

Presale service:

1. Free comprehensive and detailed technology consultancyin construction sites, referential programs for constructionequipment and the most suitable product program.

2.we have a complete service network,hotline services for 24 hours and assist you to solve the problem in a short time.

After-sale service:

1.We provide free guidance of installation and debugging and free training of operation, care and maintenance.

2.  One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.

mw5-210l/1 circular lifting electromagnet handling steel scraps

mw5-210l/1 circular lifting electromagnet handling steel scraps

Henan Armagh lifting co., LTD. By virtue of scientific management system, convenient transportation conditions, strong production capacity, advanced detection means and strong sales network, to produce high quality, beautiful appearance lifting products to serve large and medium-sized enterprises at home and abroad.Company has a sound quality assurance system closely, the product research and development, design, manufacture, process, quality inspection, after-sales service and other links are covered in the quality assurance system under the control of, in the elaboration structure, energy conservation, environmental protection, safe and reliable, to adopt new technology of new materials and other aspects, make the product quality level enhances unceasingly, product marketing all over the world.
