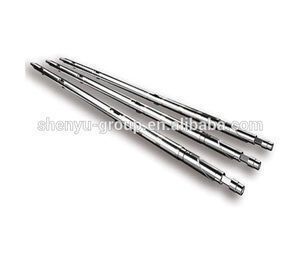

Hot Selling MWD tools for directional drilling made in China

Product details
Azimuth range:0~360 degree;Model Number:LK-MWD;
Place of Origin:China (Mainland);Pulser type:Positive pulser;
Packaging Detail:Packaging & Delivery Packaging Details Standard Export Package Delivery Time ASAP after Payment;Payment Terms:L/C,T/T;
Max operating temperature:150 Centigrade;Max pressure:20000psi(140Mpa);
Function:Survey Measurement;Type:Drilling Pipe;
Transmission Type:Mud pulse telemetry;Brand Name:Shenyu;
Inclination range:0~180 degree;
Advantages

1.Could be fishing

2.Save time , easy to assemble on wellsite

3.Low maintenance and using cost compare with similar products

4.More than 180hours downhoe working time(without gamma ray)



This system can be utilized to reduce lost in hole risk. In the event the BHA becomes stuck during the drilling process, the retrievable MWD system can be wireline retrieved, saving the customer the cost of replacing the MWD system.



Product Description

Mud-pulse MWD(Measurement While Driling) was designed to meet various needs of hole diameters,hole size from 6in to 12 1/4 in depending on different MWD sub, flow rates and other drilling requirements.



LK-MWD tools can provide information about the conditions at the drill bit. This include:

  • Inclination
  • Azimuth
  • Toolface
  • Downhole Temperature
  • DIP
  • Magnetic field strength
  • Gamma Ray(Optional)
ParameterMeasuring RangeMeasuring accuracy
Inclination angle0°-180°±0.1°
Azimuth angle0°-360°±1°
Toolface angle0°-360°±1°
Max pressure20000psi
Probe diameter48mm
Total Length6.8m / 8.8m(with gamma)
Avaliable Hole Size6 in ~ 12 1/4 in
Flow Rate Range15L/s ~ 47L/s
Gammar Ray (Optional)
+
ParameterSpecficationMeasuring accuracy
Gamma Detector TypeAPI GR
Mesurement Range0~500API

±3API (0~150API)

±10API (110~500API)

 Sensitivity 1.6 cps/API
 Vertical Resolution 130mm
  Realtime Display ModeYes
  Minmum Sample Period  10second
   Maxmum Storage Capacity 110,000groups
