Hot sale matrix drill body PDC well drill 7-1 / 2 inch M223

Click here to contact
Product details
color:Gold, black, blue, etc.;Gross weight per piece:Kilogram;
Sales unit:single item;Type of machine:drilling equipment;
Blade number:5;Outer Diameter(mm):190.1 mm;
Tool size:16 mm;type:matrix body;
brand:Tenda;model:7-1/2 inches;
use:drilling;Material:carbide;
Single volume:centimeter;Connection thread:7-1/2 inches;
place of origin; place of origin:China;
Product Description

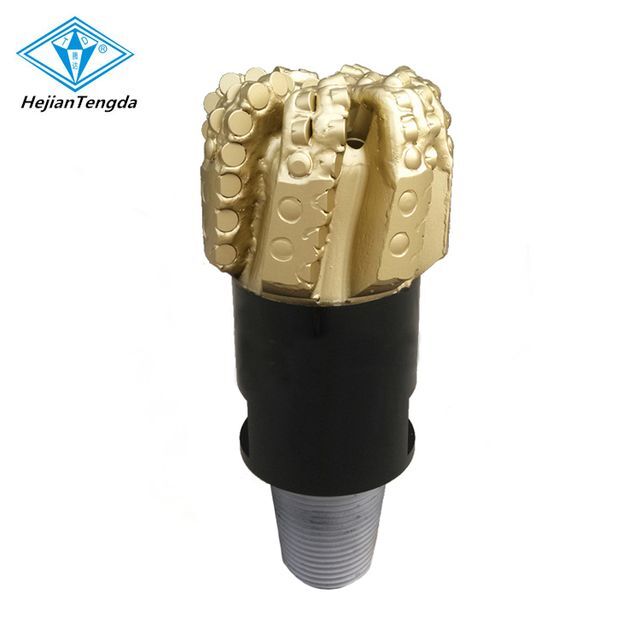

Matrix Body PDC Drill Bit 7-1/2" Inch Well Drill Bit M223

PDC bit table

PDC bit size

API registration

button moment

Triangle bit size

API registration

button moment

inch

mm

inch

KNm

inch

mm

inch

KNm

4-1/2

114.3

2-3/8

4.1 — 4.7

10-5/8

269.9

6-5/8

38 — 43.4

5-1/2

139.7

3-1/2

9.5 — 12.2

11

279.4

6-5/8

38 — 43.4

5-3/4

146.1

3-1/2

9.5 — 12.2

11-5/8

295.3

6-5/8

38 — 43.4

6

152.4

3-1/2

9.5 — 12.2

12

304.8

6-5/8

38 — 43.4

6-1/2

165.1

3-1/2

9.5 — 12.2

12-1/4

311.2

6-5/8

38 — 43.4

6-3/4

171.5

3-1/2

9.5 — 12.2

13-1/2

342.9

6-5/8

38 — 43.4

7-1/2

190.5

4-1/2

16.3 — 21.7

13-3/4

349.3

6-5/8

38 — 43.4

7-5/8

193.7

4-1/2

16.3 — 21.7

14-1/2

368.3

7-5/8

46.1 — 54.2

7-7/8

200

4-1/2

16.3 — 21.7

14-3/4

374.7

7-5/8

46.1 — 54.2

8-1/2

215.9

4-1/2

16.3 — 21.7

15-1/2

393.7

7-5/8

46.1 — 54.2

9-1/2

241.3

6-5/8

38 — 43.4

16

406.4

7-5/8

46.1 — 54.2

9-5/8

244.5

6-5/8

38 — 43.4

17-1/2

444.5

7-5/8

46.1 — 54.2

9-7/8

250.8

6-5/8

38 — 43.4

20

508

7-5/8

46.1 — 54.2

10-1/2

266.7

6-5/8

38 — 43.4

twenty two

558.8

7-5/8

46.1 — 54.2

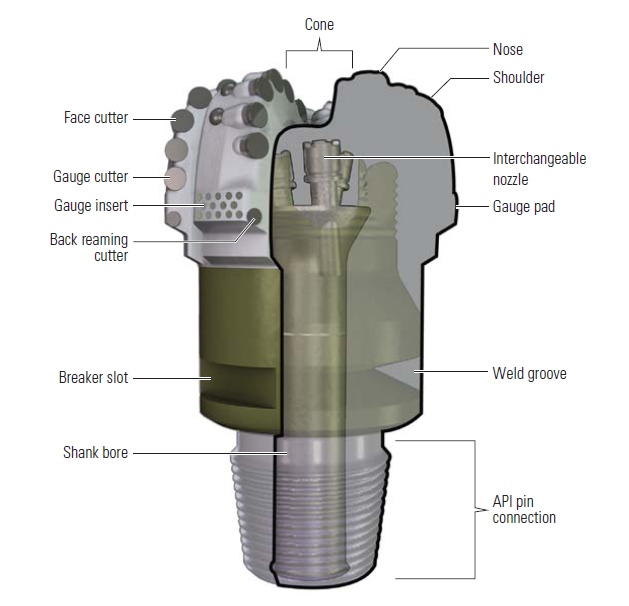

Product advantages:

1.Short parabolic crown profile, medium tool density.
2.Interchangeable spiral nozzles.
3.Structured diamond/carbide interface. delayed onset of cutterFracturing and tool wear.
4.The undercut shank maximizes the trash chute area for better bit cleaning. high filter nozzle

Used to improve hydraulics and Rop.
5.Can be used for rotary or downhole motors.
6.Surfable, suitable for soft to medium formations.





company information

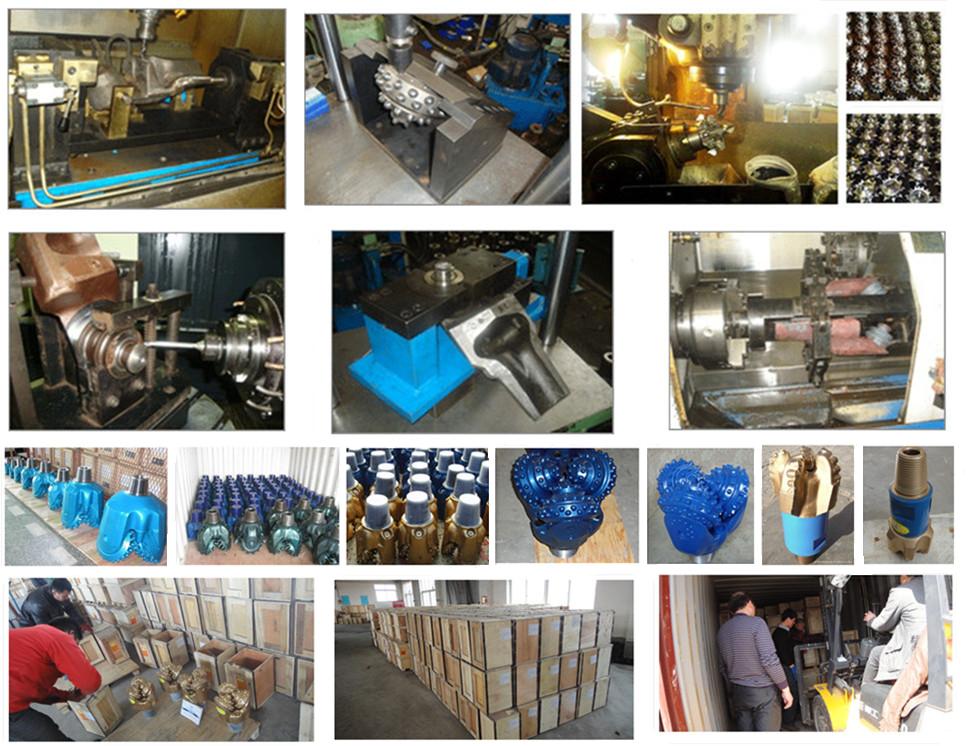

Hejian Tengda Petroleum Materials Co., Ltd. is located in PetroChina North China.Our company is a professional enterprise engaged in the development, production, sales and after-sales service of drilling equipment.

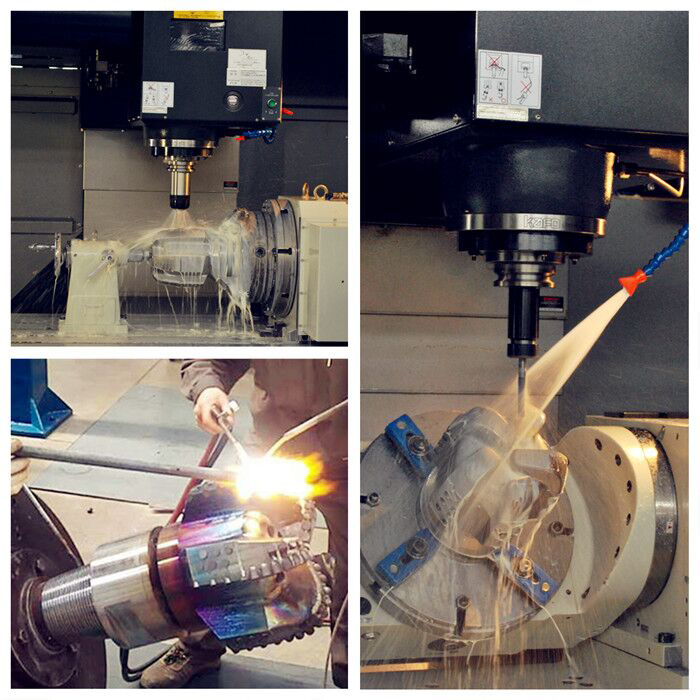

It is a company that produces, designs and develops PDC drill bits, which are applicable to almost all codes of Tricone rock drill bits.
Our company has reliable quality and competitive price. Whatever drilling tool you need, we can supply it, and can also produce it according to your special order.

Tenda products have not only won the trust of domestic users, but also exported to Southeast Asia, Russia, America and Africa.
