Small mini UHT lab scale milk processing sterilizer sterilizing machine UHT milk processing plant for laboratory

Supplier: Shanghai Easireal Technologies Co., Ltd.
Region: Shanghai, China
Contact: Mr Jet
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE,ISO;	Voltage:	380V/220V;
Outlet teperature:	Adjustable;	Features:	Completely simulation of industrial production;
Brand Name:	EasyReal;	Max. pressure:	10 bar;
Rated capacity:	20 L/H;	Function:	Research formulation, formula update, product color, test shelf life;
Condition:	New;	Showroom Location:	Egypt;
Sterilization temperature:	85~150℃;	Name:	Lab Tubular UHT sterilizer;
Power(W):	13kw;	Dimension(LWH):	150010501700 mm;
Minimum batch feed:	3 L;	After Warranty Service:	Video technical support;
Local Service Location:	Egypt;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:	Field installation, commissioning and training;	Holding time:	Second 3/5/10/20/30/300(Choose Either);
Warranty:	1 year;	Model Number:	Lab UHT and filling plant;
Place of Origin:	China;	Processing Types:	Juice/Milk/Carbonated Beverage;
Processing:	Sterilizer;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,University;
Low production capacity:	Save the consumption of raw material consumption at one batch;	Packaging Detail:	1 set complete Small mini UHT lab scale milk processing sterilizer sterilizing machine UHT milk processing plant for laboratory Export standard package;
Weight:	Based on specific machines;

Product Description

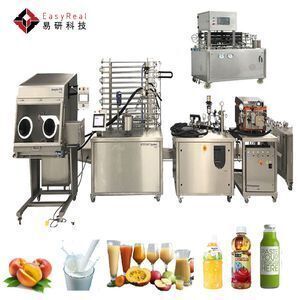

System Composition:

• Uht Sterilizer

• High Pressure Homogenizer

• Aseptic Filler

Functions:

• Completely Simulates The Industrial Production Sterilization In The Laboratory.

• Complete Functions: The Sterilizer Integrated Homo. And Aseptic Combinet Filler Can Achieve

Sterilization, Homogenization And Aseptic Filling In Laboratory.

• Making Sample, Tasting Test Of New Product, Researching Of Product Formulation, Formula Update,

Evaluation Of Product Color, Etc.

Usual Packages:

• Glass Bottle

• Pet Bottle

The Lab scale sterilizer completely simulates the industrial production sterilization in the laboratory. It is widely used for taste test of new product, research of product formulation, formula update, evaluation of product color, test of shelf life, etc. It is designed to replicate industrial scale heat exchanger in the laboratory.
The Lab scale sterilizer is manufactured with advanced design and technologies to meet requirements from universities, institutes, enterprises’ R&D department for simulating industrial manufacture and research in laboratory.

Small mini UHT lab scale milk processing sterilizer sterilizing machine UHT milk processing plant for laboratory

Application:
In the laboratory of universities and institutes and enterprises’ R&D department, it is completely simulated the industrial production sterilization in the laboratory, used for taste test of new product, research of product formulation, formula update, evaluation of product color, test of shelf life , etc.
It is suitable for wide range of visidity, and can precisely mimic product preparation, homogenization, aging, pasteurism, fast sterilization under ultra-temperature.

Process:

Raw Material→Receiving hopper→screw pump→preheating section→(homogenizer, optional) →sterilizing and holding section (85~150℃)→water cooling section→(ice water cooling section, optional) →aseptic filling cabinet.

FEATURES:

1. Independent control system, man-machine interface operation is adopted. The operation and state of the equipment are completed and displayed on the touch screen.
2. Completely simulates the industrial production sterilization in the laboratory.
3. Continuous processing with minimize product.
4. The sterilizer is integrated with the CIP and SIP function online, which can be configured homogeniser and aseptic filling cabinet on the needs.
5. All data can be printed, recorded, downloaded.
6. With high accuracy and good reproducibility, the trial result can be scale up to the industrial production.
7. Saving materials, energy and time for new product development and the rated capacity is 20 Liters per hour, and minimum batch is only 3 Liters.
8. It occupies a limited area.
9. Only electricity and water are required, the sterilizer is integrated with steam generator and refrigerator.

Technical parameter of standard type:

Name	Lab Tubular UHT sterilizer
Rated capacity: L/H	20
Power: KW	13
Max. pressure:bar	10
Minimum batch feed: L	3
SIP function	Available
CIP function	Available
Homogenization inline	Optional
Aseptic filling inline	Optional
Sterilization temperature: ℃	85~150
Holding time: Second	3/5/10/20/30/300(Choose Either)
Outlet teperature: ℃	Adjustable
Dimension:mm	1500×1050×1700
Above for reference, you have a wide choice depend on actual need.
