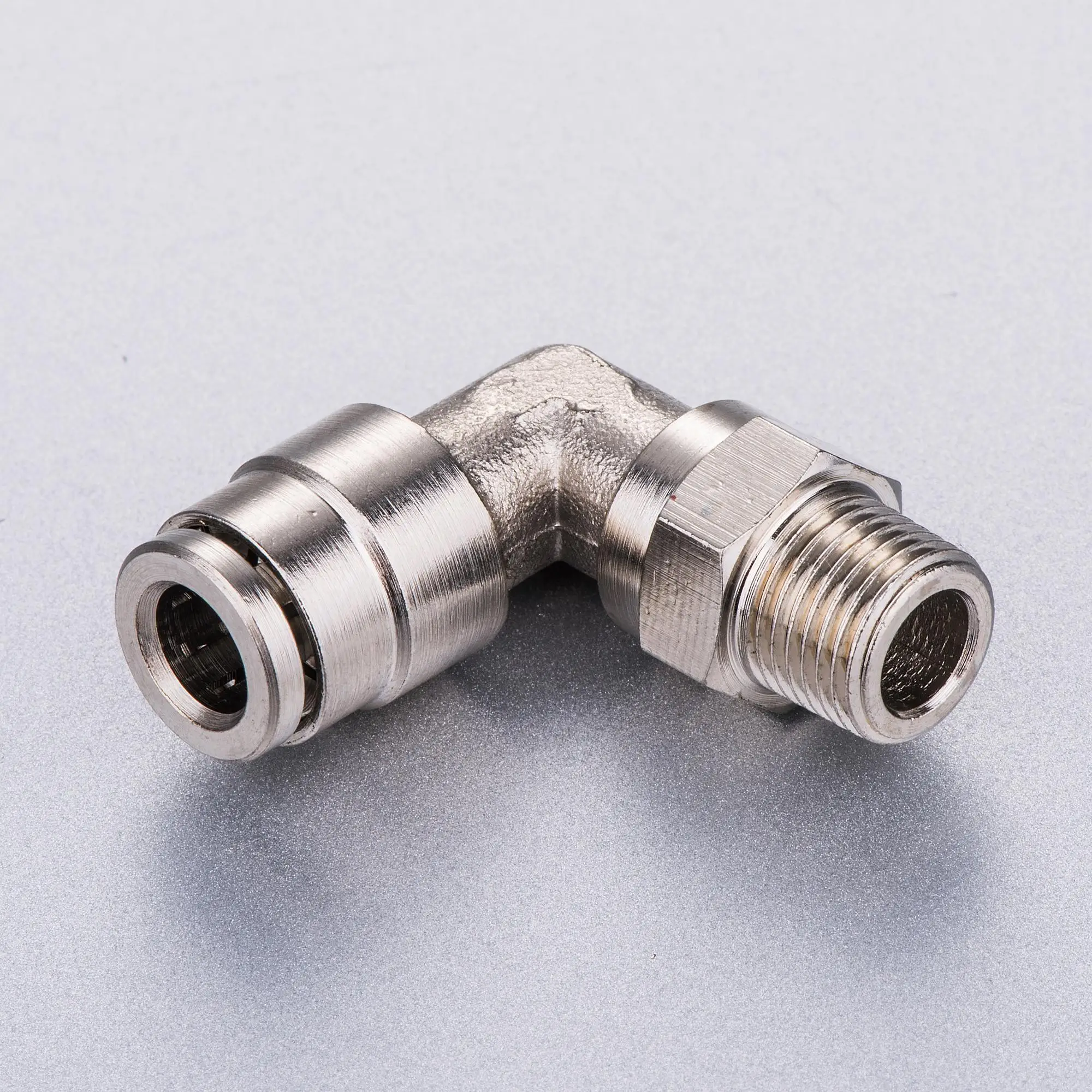

90 degree pneumatic brass male elbow swivel connector copper swivel fitting pneumatic metal push in fitting

Supplier: Ningbo Puremix Machinery Parts Co., Ltd.
Region: Zhejiang, China
Contact: Ms Penny Xiao
Price: $0.47 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Condition:	New;	Place of Origin:	China;
Packaging Detail:	package of pneumatic brass fitting sea delivery standard cartons white box is available;	Supply Ability:	1000000000 Piece/Pieces per Month the delivery pneumatic brass fitting whithin 15-30days;
Type:	Fittings;	Head Code:	Round;
used for:	compressed air;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Thread size:	M5,M6,1/8,1/4,3/8,1/2 BSPT,BSPP,NPT,Metric threads;	Tube size:	4mm 6mm 8mm 10mm 12mm 14mm 16mm;
Connection:	Male;	Material:	CNC machining;
Port:	NINGBO OR SHANGHAI;	Brand Name:	PUREMIX;
Type:	male elbow fitting;	material:	Copper / Brass;
Temperature:	-10℃-60℃(see data of used tubing);	Payment Terms:	T/T,Western Union,Wester union or Paypal;
Pressure Tube to connect:	0.8-16bar(see tube) PU,PE,Nylon 6-11-12;	Technics:	CNC machining;

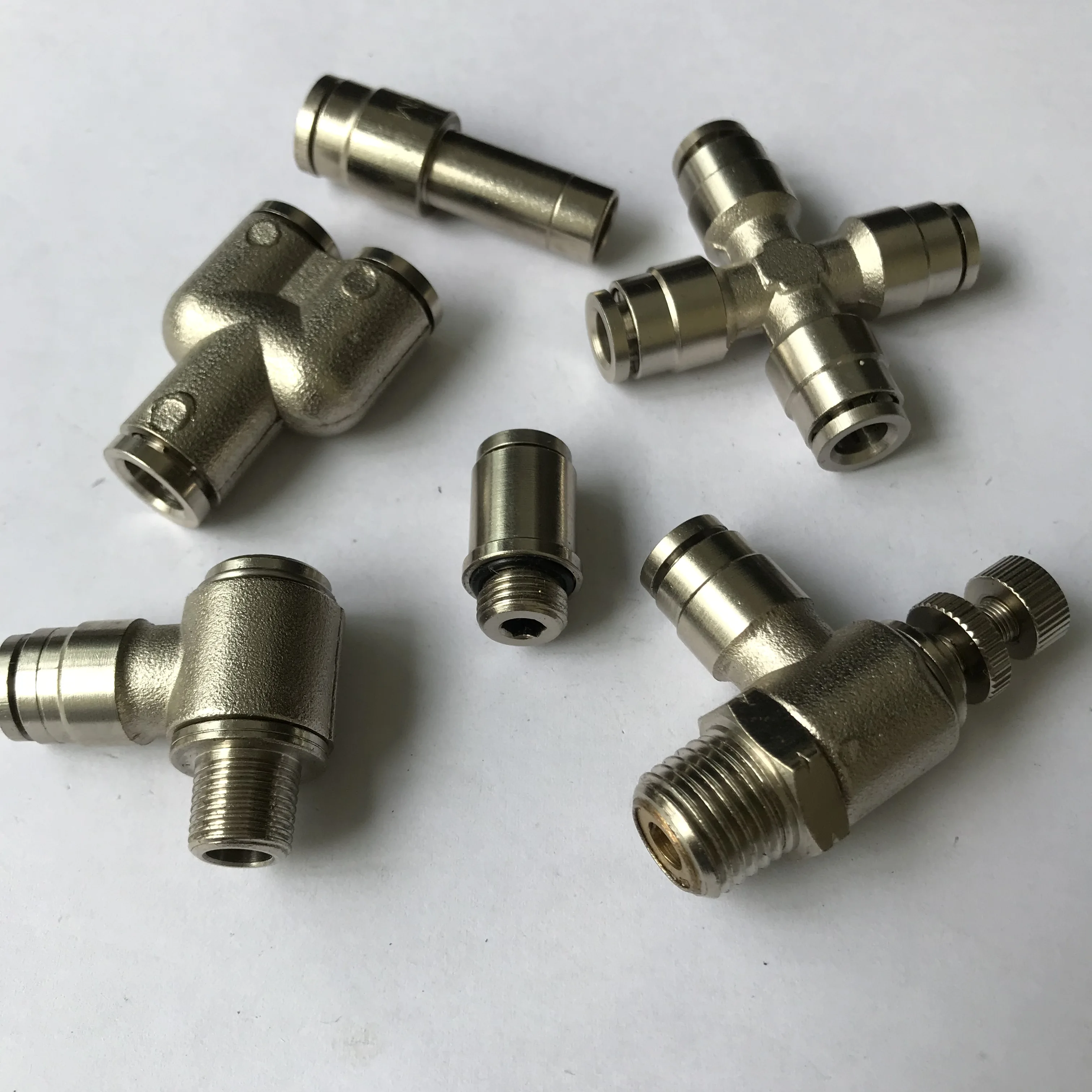

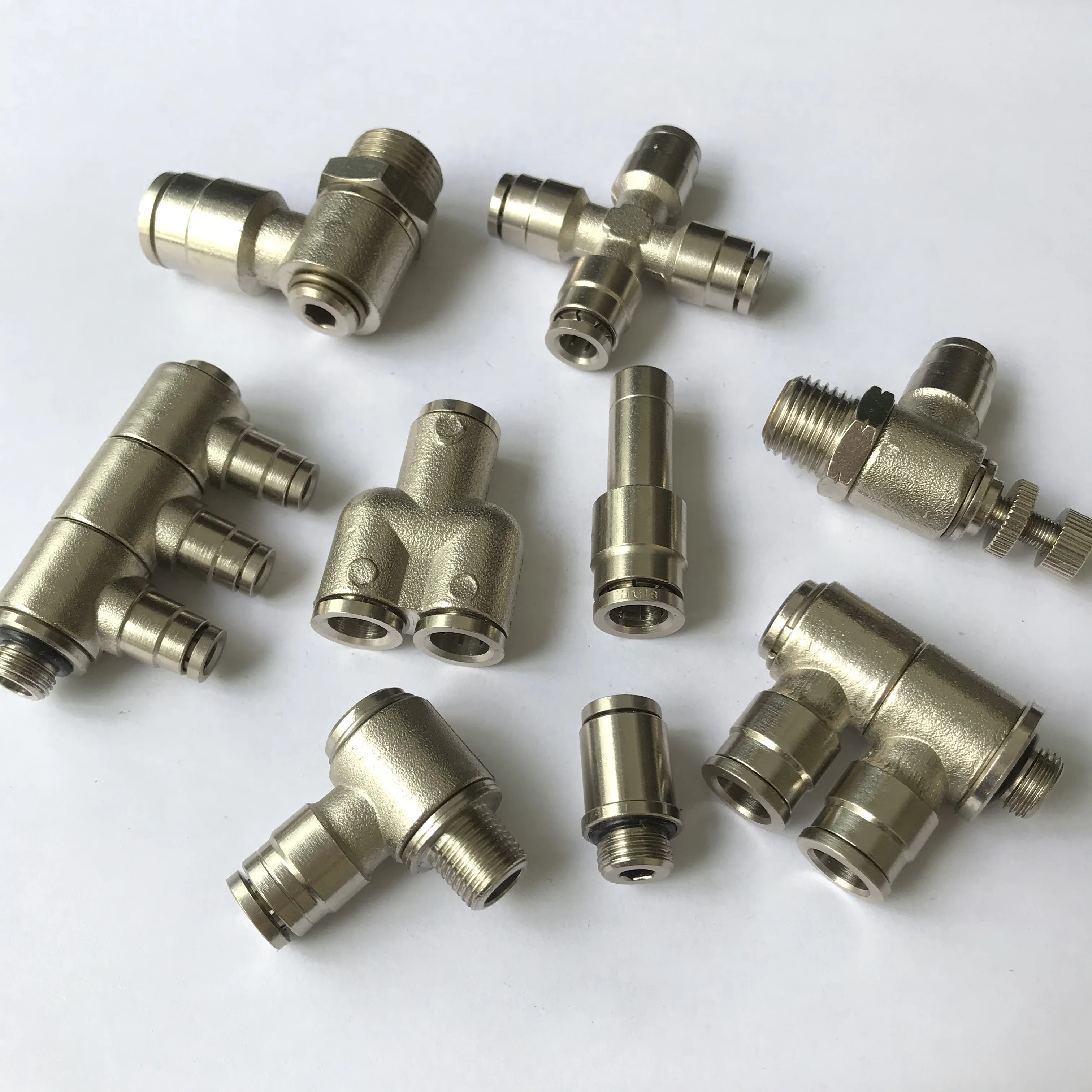

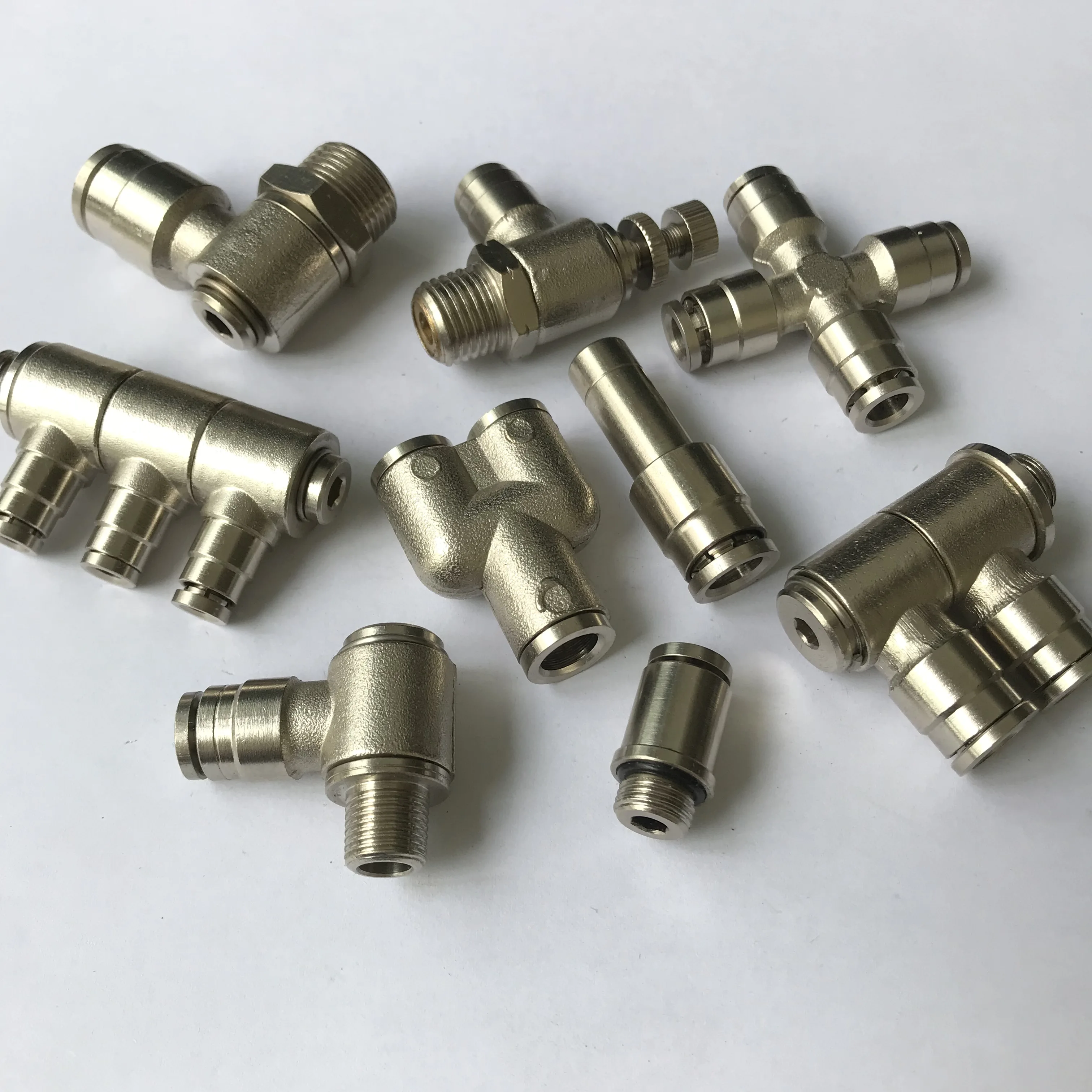

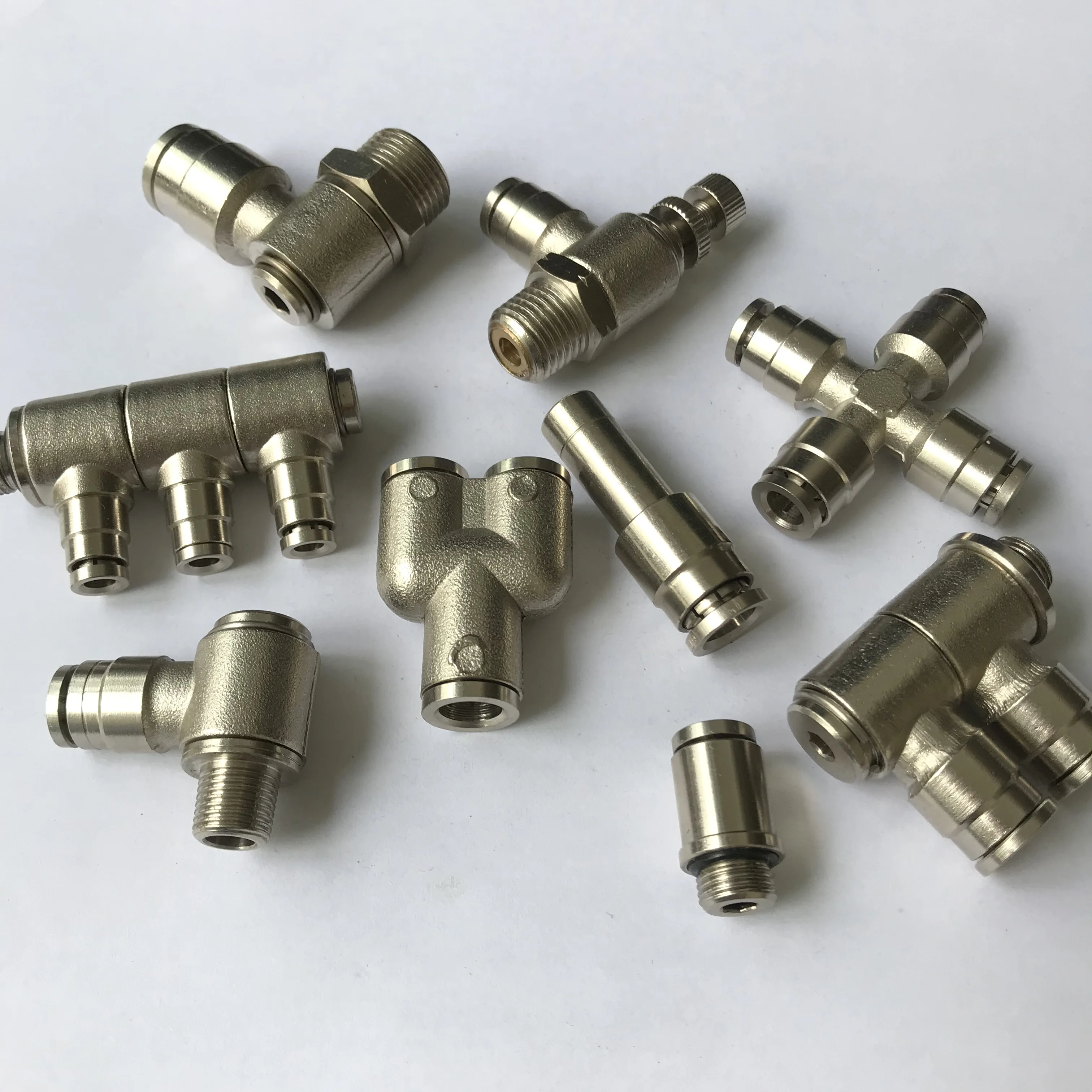

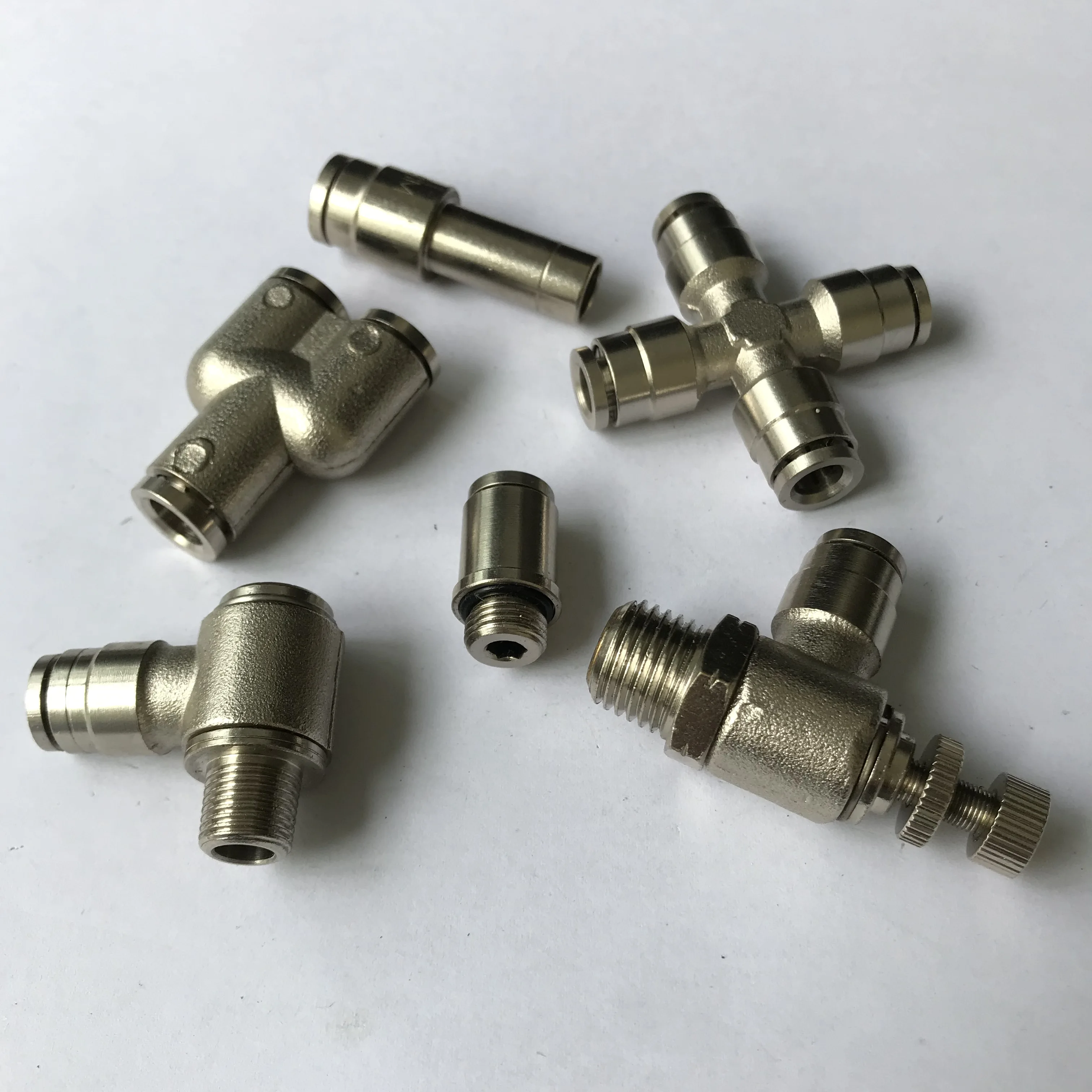

Metal Push In Fitting

Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out requirement. When it gets older along with the timed, MP series can easily be replaced.

Reliability - Rapid manual connecting and disassembling. Full flow
Compatibility - Works with the use of nylon, PU, Teflon tube

Adaptability - Hot and cold water systems, steam, machine tool, lathe Such as application if corrosive environment SP series

Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch

Connections:
M5, G1/8, G1/4, G3/8, G1/2
R1/8, R1/4, R3/8, R1/2
N1/8, N1/4, N3/8, N1/2

Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: -20° C to +80° C (200° C )

Material:
Body: Brass Nickel-Plated or Stainless Steel
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM
G = BSPP Conform ISO 228
R = BSPT Conform ISO 7
N = NPT Conform SAE AS 71051: 1999

Tube(Metric)-Thread(R)			Tube(Inch)-Thread(R)			Tube(Inch)-Thread(NPT)
Part #	øD(mm)	T(BSPT)	Part #	øD(inch)	T(BSPT)	Part #	øD(inch)	T(NPT)
MPL03-M3	3	M3	MPL1/8-01	1/8	R1/8	MPL1/8-U10	1/8	U10
MPL03-M5	3	M5	MPL1/8-02	1/8	R1/4	MPL1/8-N01	1/8	N1/8
MPL4-M5	4	M5	MPL5/32-01	5/32	R1/8	MPL1/8-N02	1/8	N1/4
MPL4-01	4	R1/8	MPL5/32-02	5/32	R1/4	MPL5/32-U10	5/32	U10
MPL4-02	4	R1/4	MPL3/16-01	3/16	R1/8	MPL5/32-N01	5/32	N1/8
MPL5-M5	5	M5	MPL3/16-02	3/16	R1/4	MPL5/32-N02	5/32	N1/4
MPL5-01	5	R1/8	MPL3/16-03	3/16	R3/8	MPL3/16-U10	3/16	U10
MPL5-02	5	R1/4	MPL1/4-01	1/4	R1/8	MPL3/16-N01	3/16	N1/8
MPL6-M5	6	M5	MPL1/4-02	1/4	R1/4	MPL3/16-N02	3/16	N1/4
MPL6-01	6	R1/8	MPL1/4-03	1/4	R3/8	MPL1/4-U10	1/4	U10
MPL6-02	6	R1/4	MPL5/16-01	5/16	R1/8	MPL1/4-N01	1/4	N1/8
MPL8-01	8	R1/8	MPL5/16-02	5/16	R1/4	MPL1/4-N02	1/4	N1/4
MPL8-02	8	R1/4	MPL5/16-03	5/16	R3/8	MPL1/4-N03	1/4	N3/8
MPL8-03	8	R3/8	MPL5/16-04	5/16	R1/2	MPL5/16-N01	5/16	N1/8
MPL10-02	10	R1/4	MPL3/8-01	3/8	R1/8	MPL5/16-N02	5/16	N1/4
MPL10-03	10	R3/8	MPL3/8-02	3/8	R1/4	MPL5/16-N03	5/16	N3/8
MPL10-04	10	R1/2	MPL3/8-03	3/8	R3/8	MPL3/8-N02	3/8	N1/4
MPL12-02	12	R1/4	MPL3/8-04	3/8	R1/2	MPL3/8-N03	3/8	N3/8
MPL12-03	12	R3/8	MPL1/2-02	1/2	R1/4	MPL3/8-N04	3/8	N1/2
MPL12-04	12	R1/2	MPL1/2-03	1/2	R3/8	MPL1/2-N02	1/2	N1/4
MPL14-03	14	R3/8	MPL1/2-04	1/2	R1/2	MPL1/2-N03	1/2	N3/8
MPL14-04	14	R1/2				MPL1/2-N04	1/2	N1/2
MPL16-03	16	R3/8
