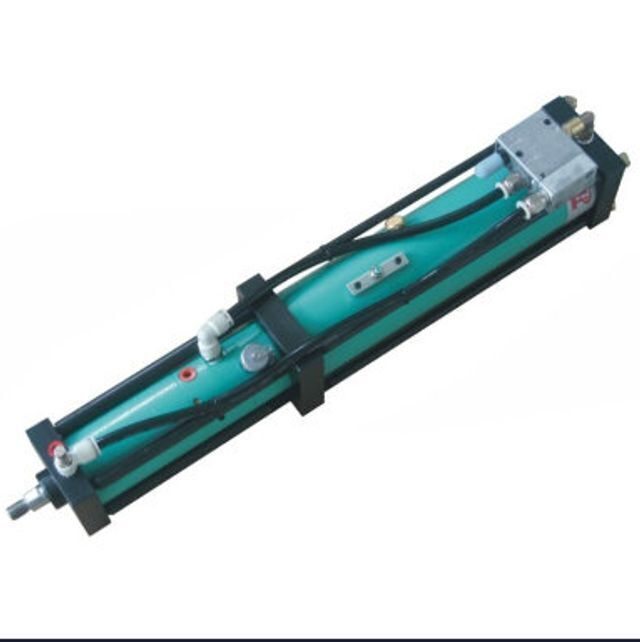

Hydraulic and Pneumatic Air Cylinders

Supplier: Rsm Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Evan Yi
Price: $1180.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Local Service Location:	None;	Air Pressure:	3-6 bar;
Warranty:	1 Year;	Selling Units:	Single item;
Single gross weight:	328.0 KG;	Total Stroke:	100mm;
Force Stroke:	12mm;	Core Components:	Motor;
Place of Origin:	Jiangsu China;	Showroom Location:	None;
Applicable Industries:	Machinery Repair Shops,Advertising Company;	Standard or Nonstandard:	Standard;
Video outgoing-inspection:	Provided;	Return Force:	370kg;
Fast Process Force:	350kg;	Body Material:	stainless steel;
Power:	Pneumatic;	Machinery Test Report:	Provided;
Structure:	Piston Cylinder;	After Warranty Service:	Video technical support,Online support;
Brand Name:	SIMITCH;	Condition:	New;
Max. Press Pressure:	76KN;	Single package size:	1380X980X1950 cm;
Warranty of core components:	1 Year;	Marketing Type:	Hot Product 2021;

Product Description

Power force cylinder installation: SIMIT pneumatic-hydraulic cylinder is generally fixed to the body plate through the threaded hole on the front flange. If the cylinder is installed horizontally, the exhaust port and the grease fitting should be installed upwards to facilitate maintenance.

Introduction

Input 6bar pressure,the max. Press pressure is 76KN,total stroke is 100mm, force stroke is 12mm, at 6bar,Fast process force is 350kg,return force is 370kg. Including power stroke changeover valve (external type), which can realize adaptive work force increase action; Includes force stroke control throttle “X” valve, which can adjust the boost speed (usually set before leaving the factory, the customer does not need additional adjustment).

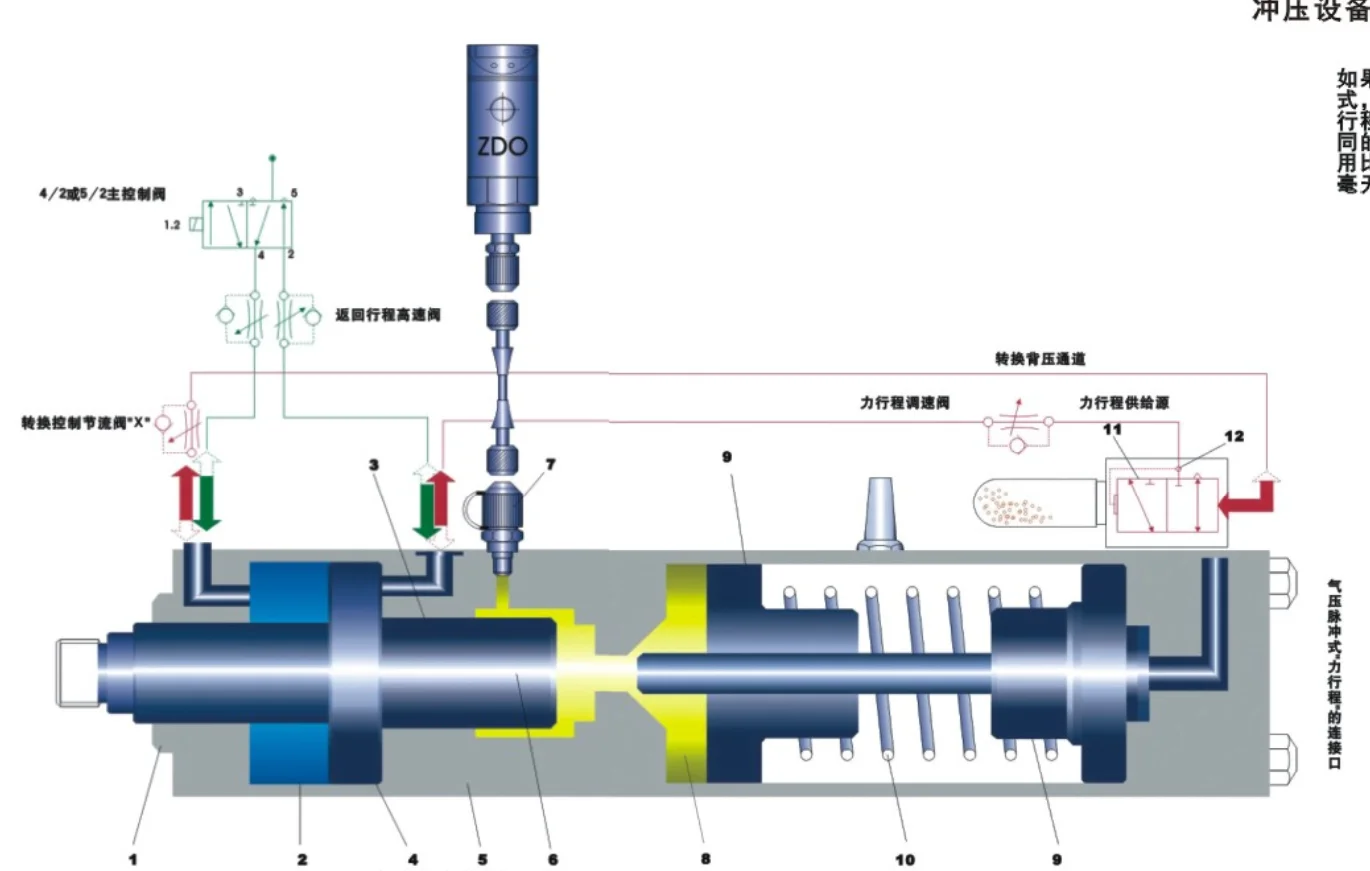

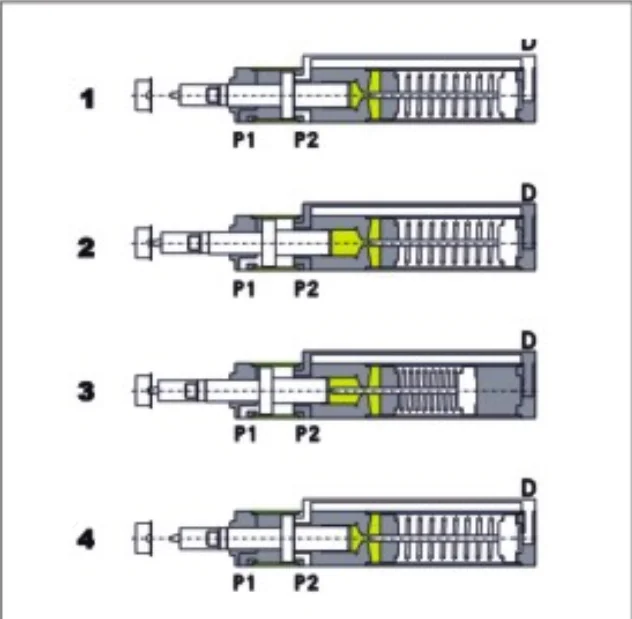

Working Process

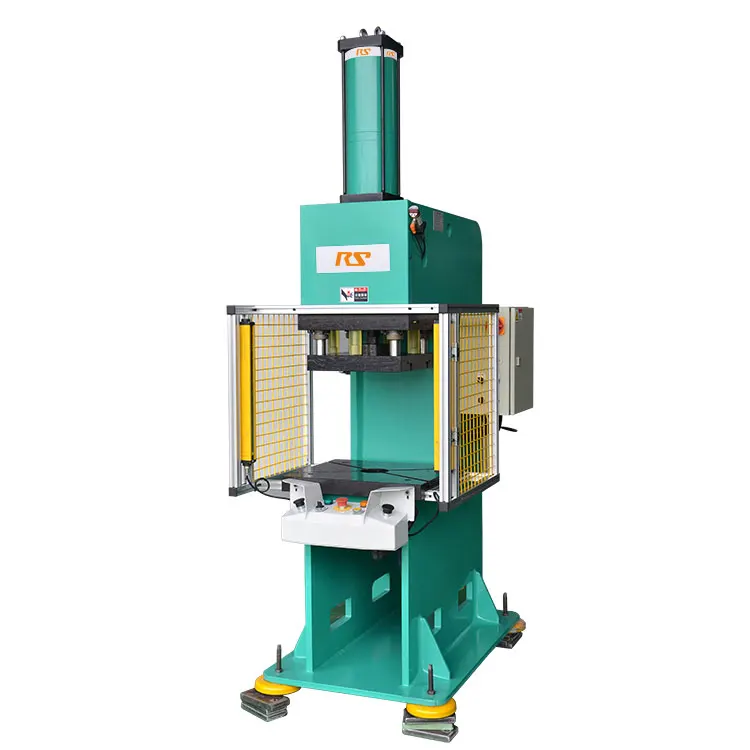

Applications

Related Products

Packing&Shipping

Exhibitions

Exhibitions in Thailand

Exhibitions in Viet Nam

Exhibitions in USA

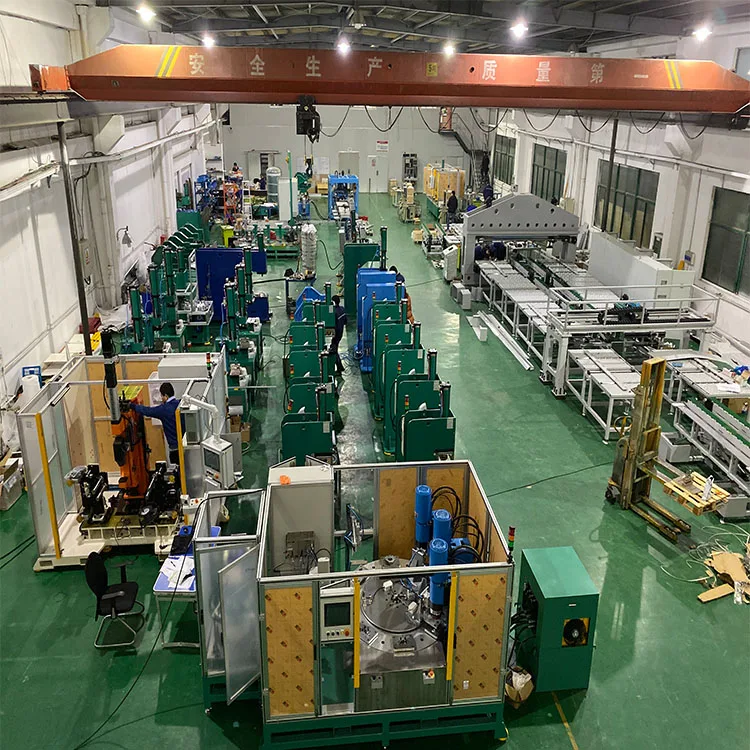

Company Introduction

RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder,etc.

RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped todeliver timely and reliable solutions for customers wherever and whenever required.
