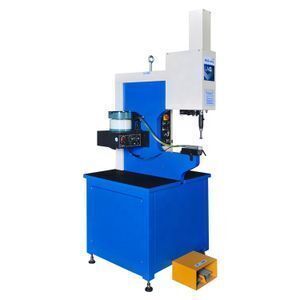

Medical Instruments Stainless Steel Metal Fastener Insertion Press With J Type Hook Bracket

  • Supplier: Rsm Machinery Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Evan Yi
  • Price: $13200.00 /set
  • Min. Order: 1 set
Product details
Packaging Detail:Export Plywood Box;Force:72 KN;
Main Power:3.75 KW;Dwell Time:Standard;
Brand Name:RSM;Stroke Length Adjustable:Yes;
After-sales Service Provided:Online support,Video technical support,Field maintenance and repair service;Net Weight:950 KG;
Throat Height:421 MM;Single package size:110X50X50 cm;
Warranty:1 Year;Safety Device:Yes;
Ram Force Repaet Accuracy:± 1%;Package Preview:;
Weight (KG):980KG;Single gross weight:50.125 KG;
Throat Depth:610 MM;Numbers Of Inserts Per Hour:1200;
Condition:New;Selling Units:Single item;
Applicable Industries:Machinery Repair Shops,Construction works ,Energy & Mining,Advertising Company;Key Selling Points:High Safety Level;
Place of Origin:Shanghai China;
Main Features

Medical Instruments Stainless Steel Metal Fastener Insertion Press With J Type Hook Bracket
-High stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator
-Quick press force setting and repeatability ±1%
-Ram force range MAX 72KN
-100% safety system
-Standard Tooling Protection System
-Energy saving Re-design reliability and energy efficiency of a full hydraulic system
-Optional auto feeding system and clinching joint system
-Possibility to insert M12 nut with the mild steel
-Standard power supply 3 phase 380v/50hz

J Type Hook Bracket




Technical Datas


416 Insertion Press


618 Insertion Press


824 Insertion Press
416 Plus
618 Plus
824 Plus
Force
44KN
54KN
72KN
Throat Depth
406mm
450mm
610mm
Throat Height
340mm
381mm
421mm
Stroke Length Adjustable
Yes
Yes
Yes
Numbers Of Inserts Per Hour (Manually)
1200
1200
1200
Repeat Accuracy
±1%
±1%
±1%
Safety Device
Yes
Yes
Yes
Manual Turret Insertion System (Optional)
Yes
Yes
Yes
Automatic Feeding System (Optional)
No
Yes
Yes
Clinching Joint System (Optional)
Yes
Yes
Yes
Dwell Time
No
Standard
Standard
Forward Limited
No
Optional
Standard
Batch Counter (Optional)
No
Yes
Yes
Main Power
1.5Kw
2.2Kw
3.75Kw
Tank Capacity
38L
38L
76L
Power Supply
220V
single phase 50HZ
380V
3phase 50HZ
380V
3phase 50HZ
Dimension (W*D*H) mm
740*840*1650
800*810*2100
1025*960*2500
Net Weight (Kg)
335
610
950
Packing & Delivery

Delivery Time:
20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.

About Us

RSM Machinery Co., Ltd.

Founded in 2011, is one of the world leaders in sheet metal high technology joint solution machine & process. We specialize in the research & development, manufacture & sales of high quality sheet metal joint machine. Our main products are Fastener Insertion Machine (LAG), Self-Clinching Press (SIMITCH), Seamless Spot Welding (PDKJ), and those machines are widely applied in electric appliance cabinet, panel, elevators, medical, household appliances, automobile and HVAC.

Whole team with rich work exoerience from famous industry company, more than 10 years experience in fastener insertion & clinching solution, customized application development, professional international trade team.

Our QC System runs through the entire material movement program, including input material inspection, machining line management, finished QC and complete machine testing to ensure the quality of every link in production.

Certification
We have gained internationally recognized patents and certificates that display as assurance and guarantee of quality and competence.

FAQ

Fastener Insertion Press
1,What size of nuts could fastener insertion 416/618/824 machine could press?
For the nuts/standoff/stud,we can make the press M3-M12.

2,If we have bought the manual fastener insertion, could we update to automatic machine easily?
Absolutely yes.

3,What is the difference between hydraulic fastener insertion machine and RSM fastener insertion press?
Hydraulic drive is with energy saving and environment protection, if can reduce energy consumption by about 40% relatively pneumatic drive.

4,What is the Manual tooling package made of? And What is the function of the Manual tooling package?
33 pieces of manual work with nuts/studs/standoff different size of punch and dies M2-M8, length up to 35mm, special insertion application for small parts flange die holder and Manual J frame.

5,What is the main function of the fastener insertion press?
Fastener insertion press with the technology to provide strong, reusable and permanent the threads and mounting points in thin sheet metal.

6,What quick-wear part does Fastener insertion press has?
Fuse, safety switch, relay, oil filter, die holder handle.

Main Options
1,How to choose BTM tooling?
Specify your joint parts material, thickness, drawing and supply min 10pcs sample to make the testing.

2,What is the function of Forward Limited?
Forward limited function is designed to protect both the tooling and workpiece from damage by positive stop cylinder.

3,How to choose Automatic tooling system?
For nut, either bottom or upper delivery; for standoff/stud, upper delivery. Please send at least 300pcs samples for us to make the testing.

4,Is it Automatic tooling system stable?
Yes, the automatic tooling system include high quality vibration bowl and intelligent digital variable voltage and variable frequency Piezoelectric vibration feeder controller.
