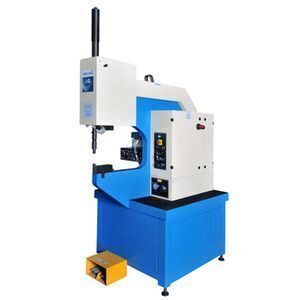

824 Plus Fastener Insertion Machine With 100% Safety Device

Supplier: Rsm Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Evan Yi
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,RMB;	Brand Name:	RSM;
Net Weight:	950 KG;	Force:	72 KN;
Supply Ability:	50 Set/Sets per Month;	Throat Height:	421 MM;
Port:	Any Port In China;	Main Power:	3.75 KW;
Warranty:	3 years;	Safety Device:	Yes;
Numbers Of Inserts Per Hour:	1200;	Place of Origin:	Shanghai China (Mainland);
Condition:	New;	Ram Force Repaet Accuracy:	± 1%;
Packaging Detail:	Export Plywood Box;	Stroke Length Adjustable:	Yes;
Dwell Time:	Standard;	After-sales Service Provided:	Online support,Video technical support,Field maintenance and repair service;
Throat Depth:	610 MM;

MAIN FEATURES

824 Plus Fastener Insertion Machine With 100% Safety Device

High stiffness, structure, high stability, less deformation, less vibration, high accuracy.

Easy operation panel to meet most of the cpmplex insertion process by single operator.

Energy saving re-design reliaility and energy efficiency of a full hydraulic system.

TECHNICAL DATAS

416 Fastener Insertion Machines

618 Fastener Insertion Machines

824 Fastener Insertion Machines

	416 Plus	618 Plus	824 Plus
Force	44KN	54KN	72KN
Throat Depth	406mm	450mm	610mm
Throat Height	340mm	381mm	421mm
Stroke Length Adjustable	Yes	Yes	Yes
Numbers Of Inserts Per Hour (Manually)	1200	1200	1200
Repeat Accuracy	±1%	±1%	±1%
Safety Device	Yes	Yes	Yes
Manual Turret Insertion System (Optional)	Yes	Yes	Yes
Automatic Feeding System (Optional)	No	Yes	Yes
Clinching Joint System (Optional)	Yes	Yes	Yes
Dwell Time	No	Standard	Standard
Forward Limited	No	Optional	Standard
Batch Counter (Optional)	No	Yes	Yes
Main Power	1.5Kw	2.2Kw	3.75Kw
Tank Capacity	38L	38L	76L
Power Supply	220V single phase 50HZ	380V 3phase 50HZ	380V 3phase 50HZ
Dimension (WDH) mm	7408401650	8008102100	10259602500
Net Weight (Kg)	335	610	950

AUTOFEED SYSTEM

1.Please specify your fastener size and supply min 300 pcss samples to us for testing and design the automatic tooling

2.Please specify machine model and seral number when ordering a vacuum generator as a retrofit item.

3.CLA, CA Aluminum nuts are made to order tooling. Standardtooling will need to be modified for aluminum fasteners.

CE STANDARD
