Type: | Air Riveter; | Place of Origin: | Shanghai China; |
Color: | Color:blue; | Delivery Detail: | 5days after receive 30% deposit; |
Supply Ability: | 5000 Set/Sets per Month; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Packaging Detail: | Export Wooden Box; | Maximum Torque: | N/A; |
Model Number: | 0611K; | Brand Name: | RSM; |
No-Load Speed: | 3000/min; | Average Air Consumption: | 70L/min; |
Port: | SHANGHAI; |
Overview

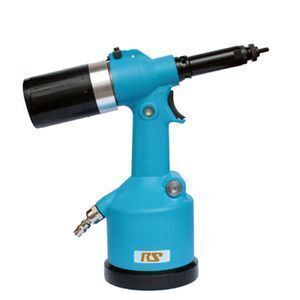

The RS-0611K model is a lightweight ergonomic tool recommended for the placement of larger Avdel blind threaded inserts. It features a one step trigger for simplicity and ease of use whilst the tough plastic body makes this tool capable of withstanding the toughest of production lines. The RS-0712K can be suspended or used as a hand tool, allowing maximum installations to minimise your installation costs.
Key features
1. Ergonomic in line design, light weight and comfortable sure grip handle.

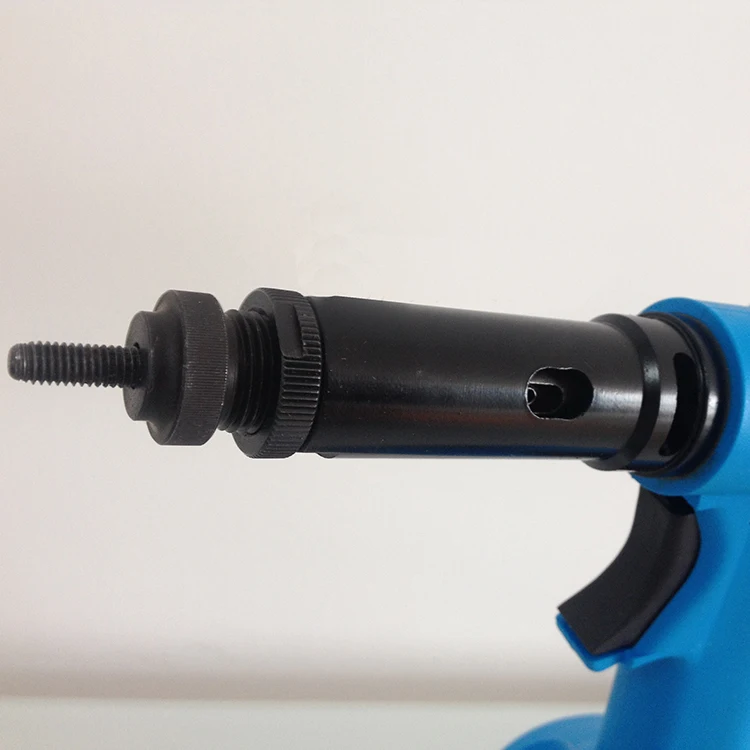

2. Automatic threaded mandrel spin-on speeds assembly increases productivity and
improves the ease of assembly for the worker.
3. Energy efficient vacuum system with high capacity mandrel tank.
4. The spin-pull-to-pressure style of tool adjusts the necessary setting force allowing
use in a variety of material thicknesses.
5. Quick setting rivet nut cycles.
6. Available for the nuts from M3--M12 with high speed.
7. 360° rotary rivet joint makes the rivet more convinent and durable.
Application area
•Lightweight and ergonomically designed •One-step trigger
•Spin-on, pull-up, spin-off action
•Can be suspended or hand-held
•Hydro-pneumatic operation
•Heavy duty plastic body
Specification
model | Rivet range | Weight (KG) | Height (mm) | Length (mm) | Stroke (mm) | Speed | Air supply | Force (N) | Air consupmtion |
RS-0611K | M3 M4 M5 M6 M8 M10 M12 1/4 3/8 10-24 | 2.1KG | 280 mm | 295 mm | 7mm | 3000/min | 5.0--6.9bar | 19800 N | 70L/min |
