Usage: | Timer Switch; | Model Number: | ATMS1612; |
Voltage Rating: | 100-240VAC 50/60Hz; | Incandescent Lamp Load: | 2300W; |
Programs: | 100 ON/OFF programs; | Brand Name: | OURTOP; |
Count Down time: | 23h59m to 1m; | Theory: | Electronic; |
Type: | Mini; | Rated Current: | 16-250VAC; |
Product Name: | ATMS1612 Wifi Smart Time&Electricity Meter; | Switching Power: | 16A 250VAC/10A 250VAC; |
Place of Origin: | Zhejiang China; | Packaging Detail: | 100pcs/carton; |
Contact configuration: | 1NO(SPST-NO); | Power Consumption: | 5VA(MAX); |
Time Basis: | WiFi time; |
KYou are here:Home>>Wifi Smart Time

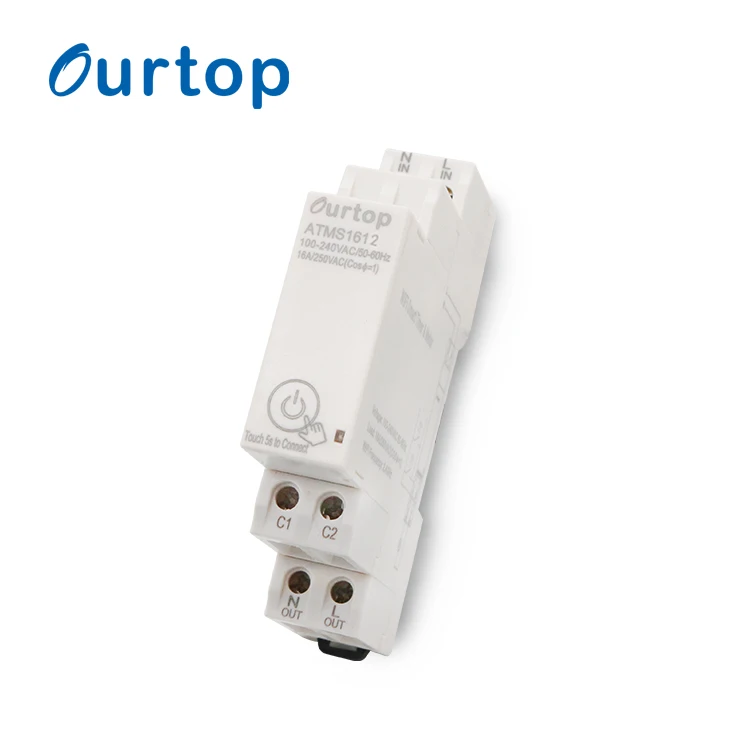

ATMS1612 Wifi Smart Time&Electricity Meter
Control The Timer By Mobile APP
Type | ATMS1612 |
Voltage Rating | 100-240VAC 50/60Hz |
Voltage Limit | 90-260VAC |
ON/OFF Operation | 100 ON/OFF programs |
Count Down time | from 1 min to 23hours59mins |
Control | by mobile App |
Switching Power | 16A 250VAC(Cosφ=1), 10A 250VAC(Cosφ=0.6) |
Contact Configuration | 1 NO (SPST-NO) |
Minimum Interval | 1 Minute |
LED
| RED and GREEN |
Power Consumption | 5VA (Max) |
Time Basis | internet time |
Share | can share 50 person to control |
Ambient Humidity | 35-85%RH |
Current | 30% Deposit,70% Balance Before Shipment,L/C And Other Payment Term |
Shipping Methods: | By Air Or By Sea(FOB Port:Shanghai/Ningbo),By Express (EMS,DHL,UPS,ARAMEX) |
Function:
* DIN Rail 35mm(EN 60715)
* Small size
* Wifi Frequency:2.4GHz
* 100 on/off programs
* Ambient temperature range: -10℃ ~ +60℃
* Program timer ,can set 100 On/Off programs one day or per week.
* Count down time ,from 1 Min to 23 hours 59 Mins
* If the product is disconnected from the network ,the timer retains all programs set up by Mobile APP and works according to the set programs.
* With memory function,When the product contact is in the close state,after the power failure,and then call,the product contacts still keep the close state.
* Also can controlled by buttons from terminal A1 and A2.
* Can be share with 100 peoples by Mobile APP.
*In the App can display:Today Ele(KWh) , Current Ele(mA) , Current Power(W) , Current Voltage(V) , Total Ele(KWh)

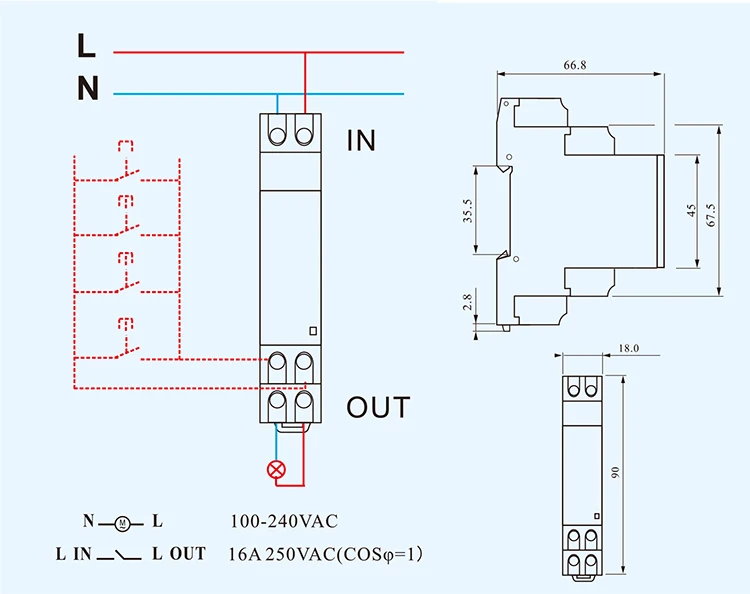

Connection Diagrams and Dimensions
Yueqing Aultop Electrical Co.,Ltd makes customer satisfied all the time via a full range of service, including design service,sourcing solutions,products simpling,reserach and development, deliver and after sales.
Packing: Inner package: PVC box per piece; Outer package: Cartons
Shipping: By air or by sea(FOB port:Shanghai/Ningbo),by express (EMS,DHL,UPS,ARAMEX)
Q1. What advantages do you have?
A1. We have professional developing, marketing & production team to offer you the most competitive price and best service.
Q2. Could you print our own logo?
A2. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
Q3. How long is the quality guarantee?
A3. 18 month warranty, our products are 100% inspection.
Q4. How long is the lead time?
A4. Sample lead time:1-3 days. Production lead time: 5 days.
Q5. What is your payment terms?
A5. Our Payment term is T/T,Western Union, PayPal,L/C at sight.
Q6. Any certification of your company or product?
A6.We have ISO 9001,CE,UL,TUV,IEC etc.
