Logo: | Free to MOQ; | Model Number: | L100; |
band: | TD FDD TD-SCDMA UMTS GSM; | Type: | Wireless; |

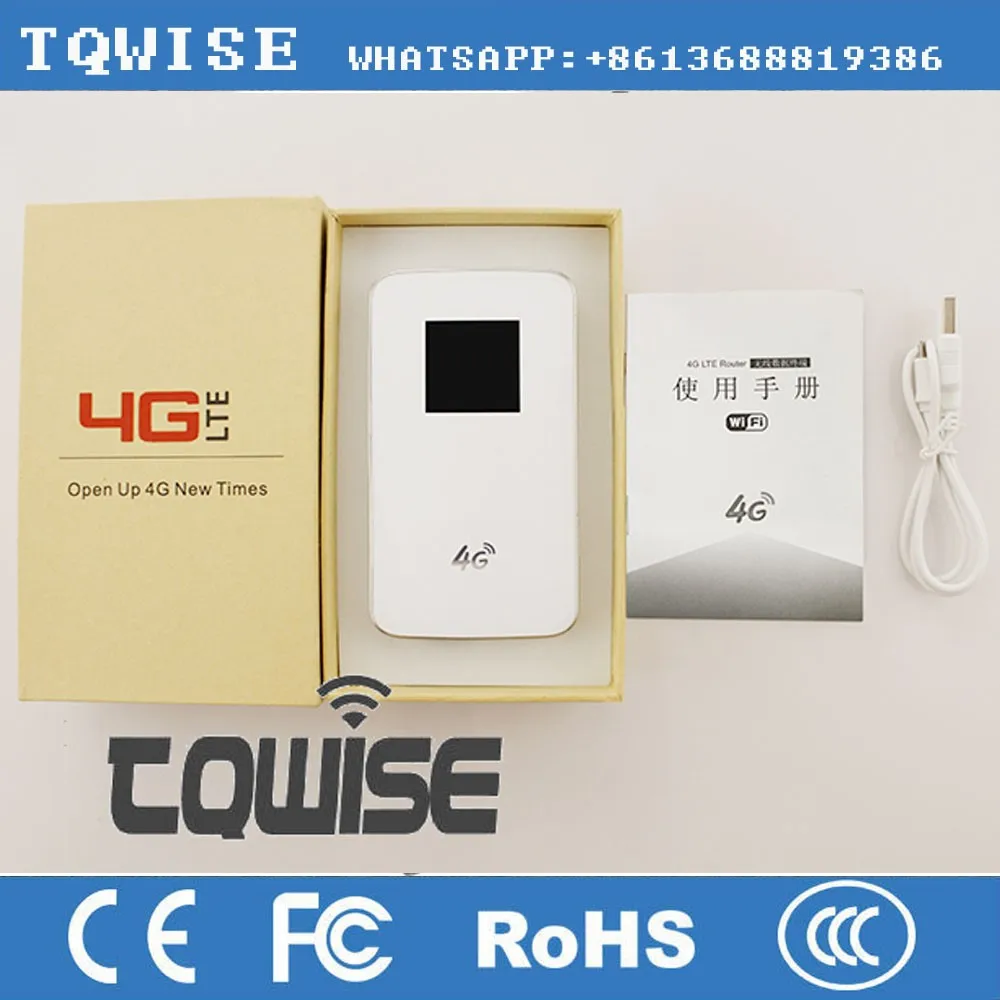

Packaging Detail: | OEM packing; | color: | white; |
Support network: | TDD-LTE,FDD-LTE, TD-SCDMA,HSPA+, HSPA, HSDPA,UMTS,EDGE,GPRS; | dimensions: | 113mmx64.5mmx13.5mm; |
wifi transfer rate: | up to 150M; | Products Status: | Stock; |
WAN Ports: | 0; | Application: | Soho; |
Certification: | CE; | Delivery Detail: | 3DAYS; |
item: | mobile power 3g wifi router; | Payment Terms: | T/T,Western Union; |
Port: | SHENZHEN; | Brand Name: | TQWISE; |
Transfer Rate: | 3GPP/3GPP2 Release8,Category 3,up to 100M DL and 50M bps UL; | LAN Ports: | 0; |
Supply Ability: | 20000 Piece/Pieces per Week; | Function: | Firewall,QoS,VPN; |
Place of Origin: | Guangdong China; | ports: | 1 micro usb port; |
battery: | 5000mah; |

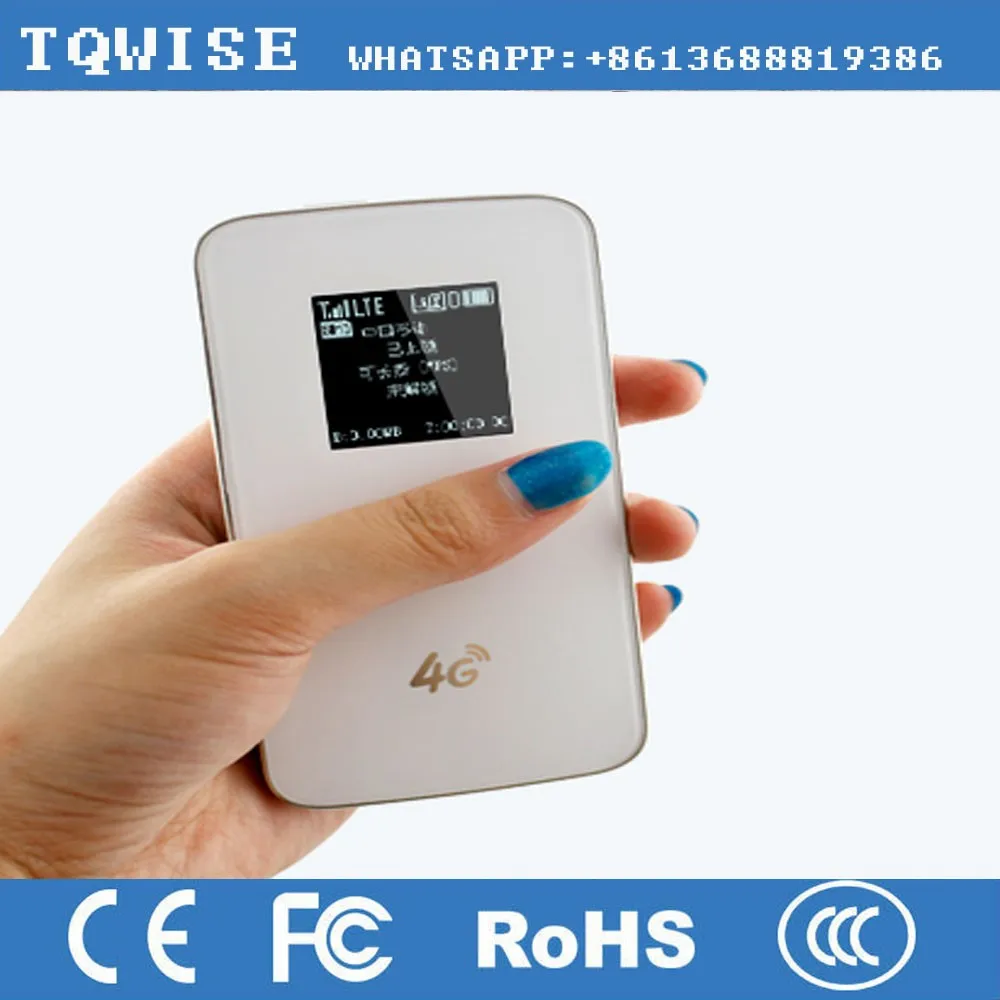

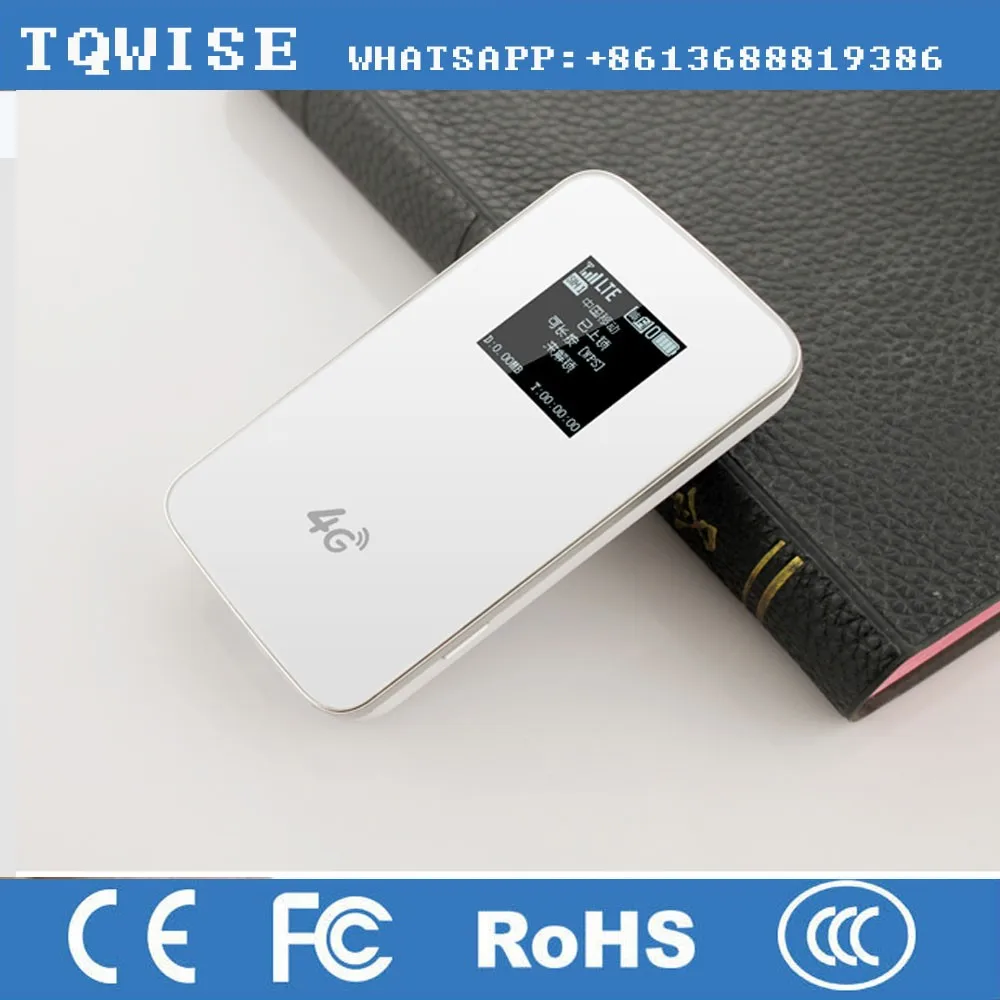

Pocket 4G LTE router mini wifi 4g router technical data :
Model | 4G LTE Router | WiFi hotspot |
Platform | Qualcomm MDM9215(MDM9615) | |
SA Time | 3.2015 | |
Band/Mode | CDMA:1x-EVDO(BC0) (MDM9615) TDD-LTE: B38/39/40/41 FDD-LTE: B1/B3/B7 TD-SCDMA: B34/39 UMTS:B1/2/5 GSM Quad Band | MDM9615 Suport CDMA 1X-EVDO |
Type | Portable hotspot device with OLED screen | |
Size(mm) | 109*60*20MM | |
Net Weight(g) | 152g | |
System memory | NandFlash 2Gb+DDR SDRAM 1Gb | |
CPU (MHz) | Cotex-A5 550Mhz | Qualcomm MDM9215/MDM9615 |
Air interfaces Speed | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
CDMA:1x-EVDO(MDM9615) | EVDO Rev.B: up to 14.7Mbps DL / 5.4Mbps UL EVDO Rev.A: up to 3.1Mbps DL / 1.8Mbps UL | |
TD-SCDMA | R5 1.28 TDD-HSDPA 2.8 Mbps DL R7 1.28 TDD-HSUPA 2.2 Mbps UL R8 1.28 TDD-HSPA+ 4.2 Mbps DL / 2.2 Mbps UL | |
UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL | |
TDD-LTE | R8 Cat3 61 Mbps DL / 18Mbps UL | |
FDD-LTE | R8 Cat3 100 Mbps DL / 50Mbps UL | |
System memory | NandFlash 2Gb+DDR SDRAM 1Gb | |

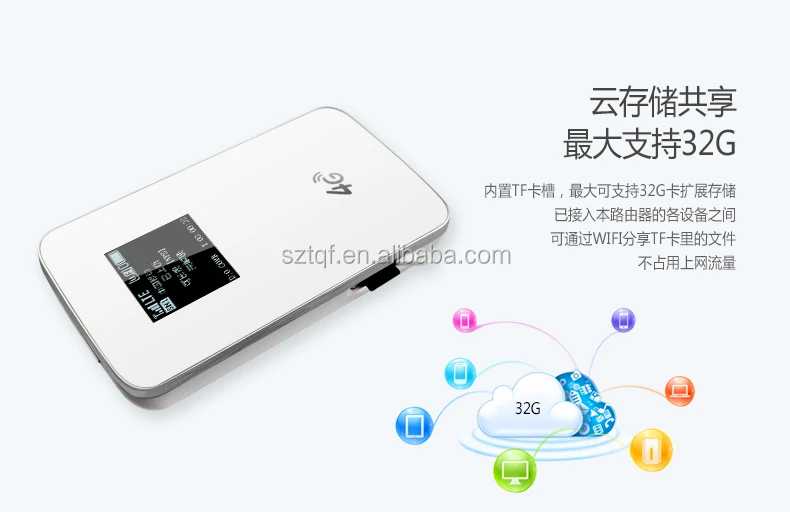

External memory | up to 32GB | Micro-SD |
WiFi Frequency Band | 2.4GHz | |
802.11b/g/n | up to 54Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) |
User amount | Max to 10 | |
AP Features | Security modes | Open WEP WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) TKIP-CCMP Hybrid mode (Mixed Mode) WPS 2.0 Hidden SSID supported |
Concurrency (FC quality for LE1.0) | AP-STA mSSID (AP-AP) – up to 2 SSID's STA-STA communication block/allow between two SSIDs Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes above except WEP in both interfaces Channel of operation - same channel | |
Other | QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding Switching of packets amongst clients Support for forwarding data to and from WAN VPN Pass-through | |
Antenna | 4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna | Internal |

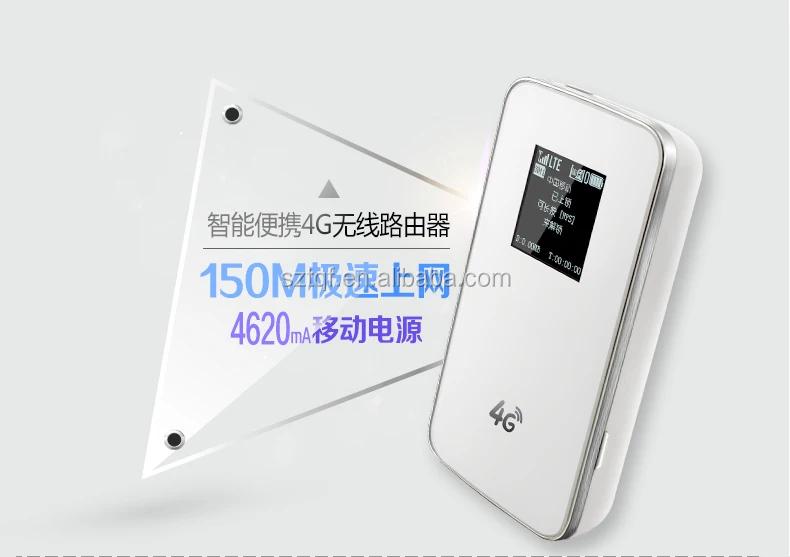

LCD | 1.44" 128×128 OLED | |

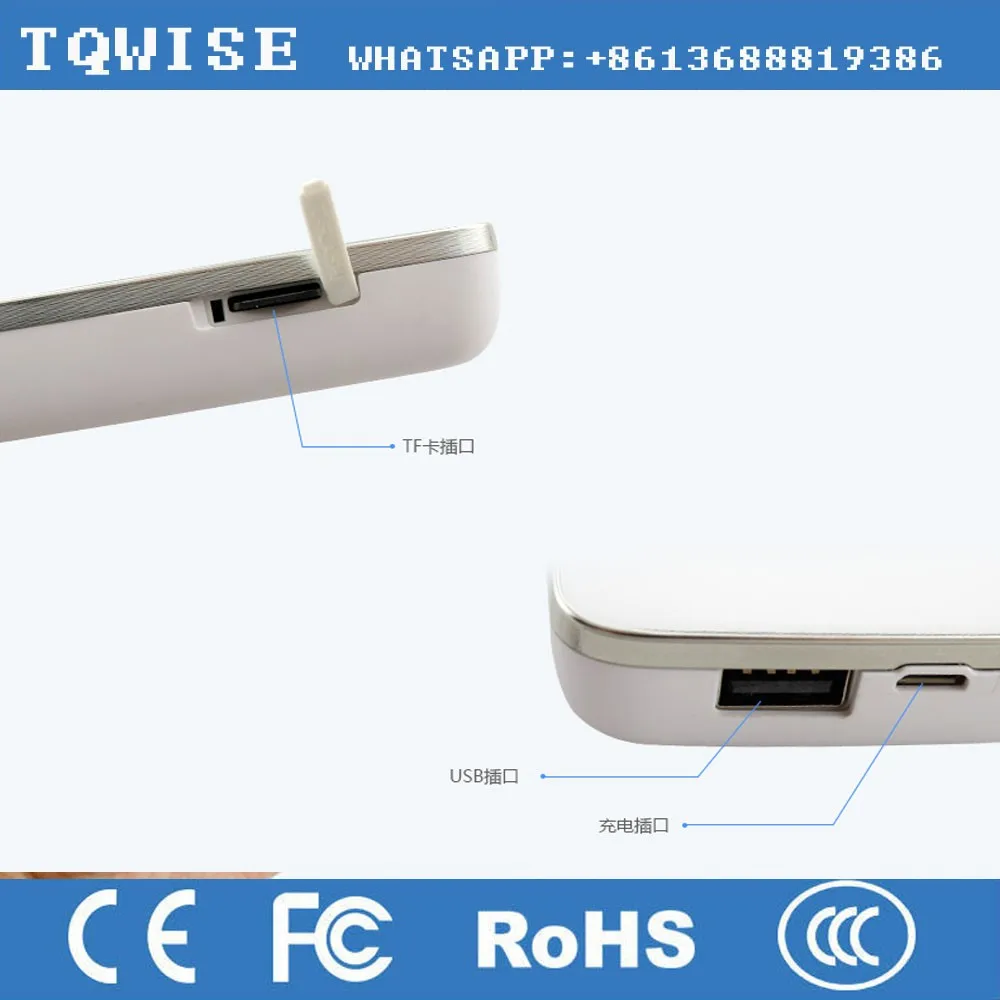

USB | Micro USB | USB 2.0 High Speed |

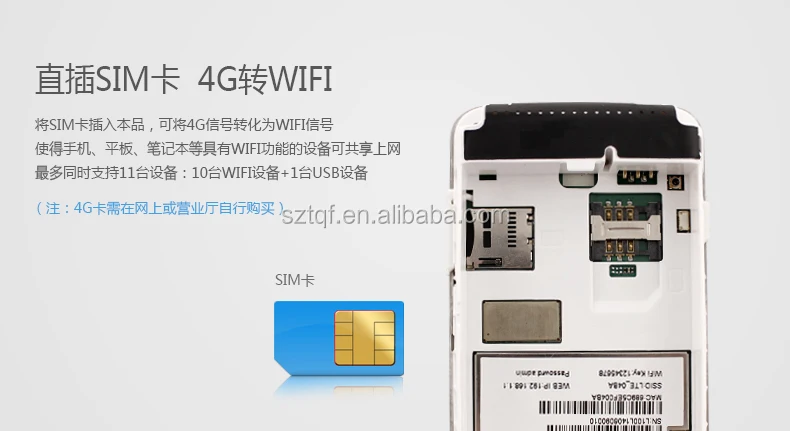

SIM/USIM Card slot | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 |
Micro-SD Card slot | Yes | |

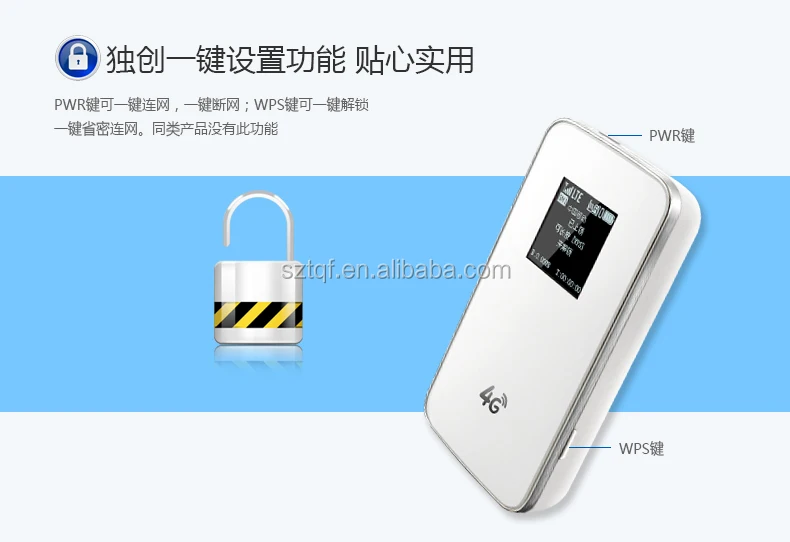

Power /WPS/Reset | Yes | |

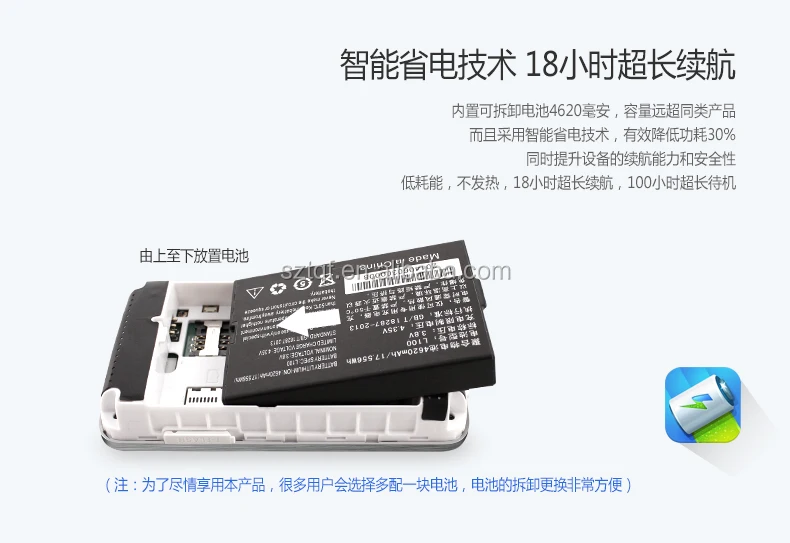

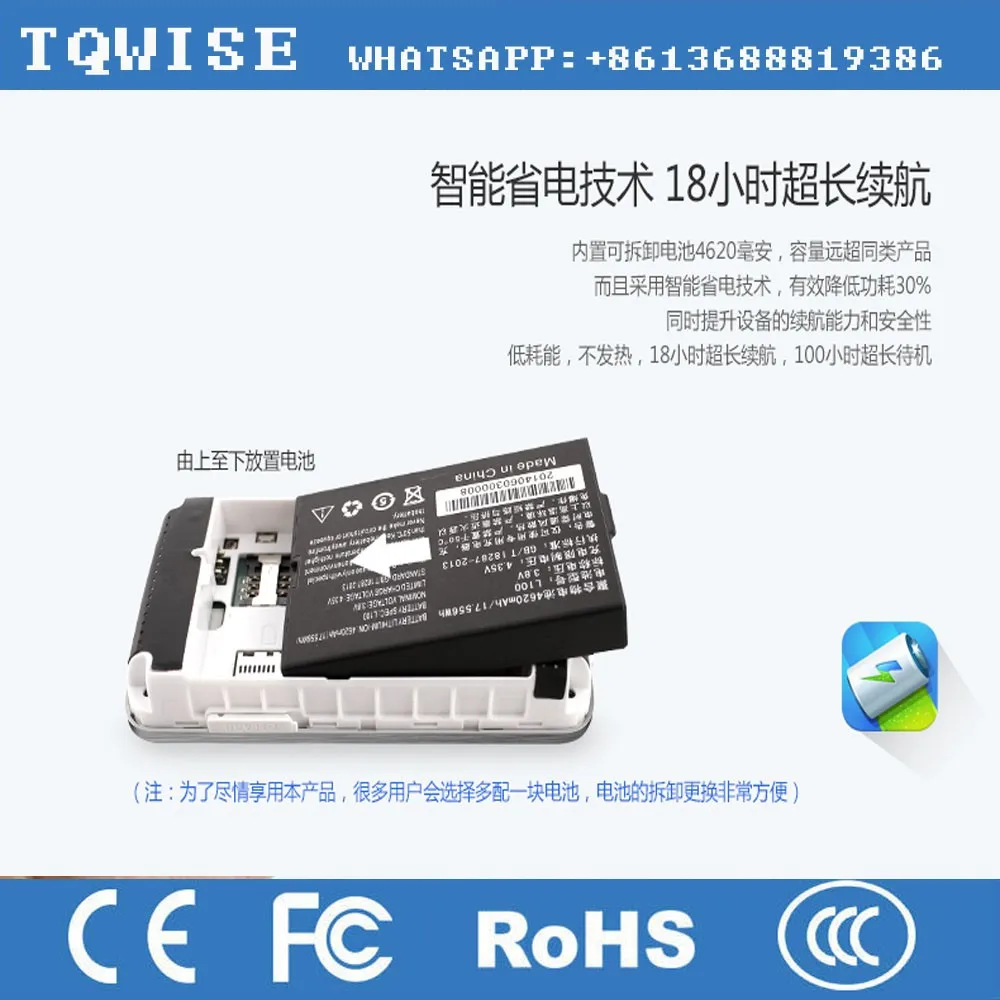

Battery | 4620mAh | polymer |
RF Power Spec | Class 3 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 | |
Power supply input | 3.4-4.2 V (5V-1A) | |

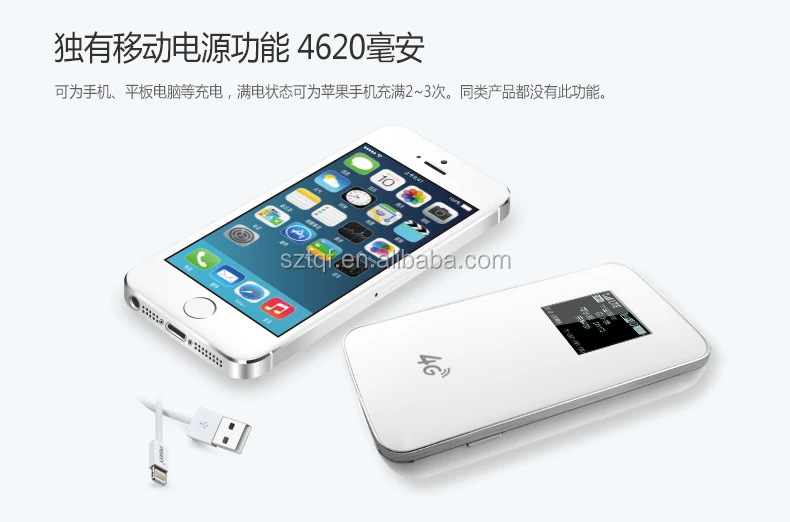

Power supply output | 5V-1A power bank | |
Normal Operation | 0°C to +45°C | |
Restricted Operation | -10°C to +55°C | |
Storage | -20°C to +70°C | |
Certification | CE, EU RoHS | |
JATE/TELEC/PSE | Yes | |
others | depend on customer required |
