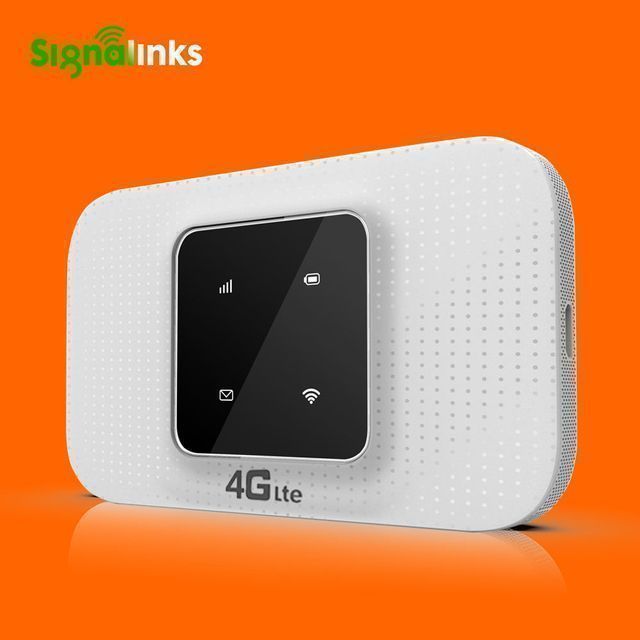

Portable WiFi Router 4g Hotspot MiFis 150Mbps 4g wifi modem Mobile Wireless Router with SIM Card Slot

Product details
Wi-Fi supported frequencies:2.4GSupport WDS:Yes
Network Type:LTE: 1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41Network mode:LTE: FDD TDD WCDMACDMA GSM
application:Homeaspect:106.2mm*65mm*16.5mm
Wired transfer rate:150 Mbit/sEncryption type:WPA2-PSK, WPA2, WPA3, WPA
chipset:MDM9207 or ZX7520V3product type:3G 4G Universal Mobile Phone SIM Card Wireless Router
Standards and Protocols:Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11nWith modem function:Yes
antenna:built-in antennaproduct status:new
type:wireless5G Wi-Fi transmission rate:not any
maximum. LAN data rate:150Mbpspayment terms:Western Union, D/P, D/A, T/T, MoneyGram, paypal
Wireless standard:802.11b/g/n2.4G Wi-Fi transmission rate:300 Mbit/s
brand:signal linkSupport WPS:No
Private Mold:YesFunction:firewall
LAN port:8Supply capacity:30000 pieces per month
Origin:Guangdong, Chinauser:10 WiFi users at the same time
Wi-Fi transmission standard:802.11nWAN port:1x10/100Mbps
Internet speed:Cat4 150Mbps DL/50Mbps Uplink
Product Description
product name
router 4G
frequency
4G LTE B1/B3/B5/B7/B8/B20/B28A/B28B/B38/B40/B41
Recommended frequency band combination: 4G B1/B3/B7/B8/B20/B28A/B28B/B38/B40/B41
chipset
ZX7520V3

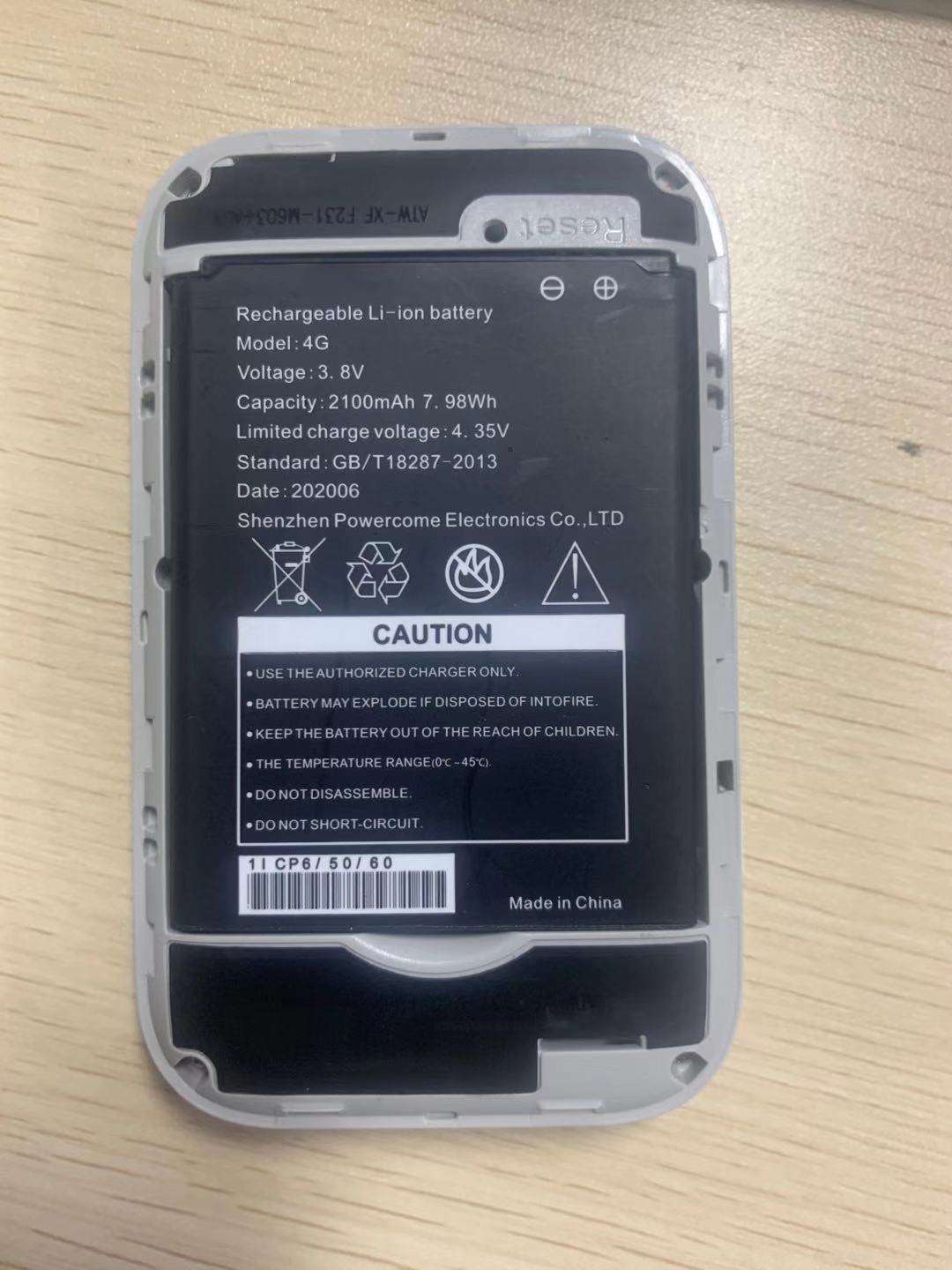

Battery
2100mAh lithium battery, can work for 8~10 hours
3000mAh (optional)
antenna
2*2 MiMo antenna high performance
WiFi sharing
10 WiFi users
language
English (default), French, Spanish, Portuguese, Japanese, etc. (provide upon request)
pack
1* USB cable, 1* removable battery, 1* router 4G, 1* user guide
size
97*58.5*15.5mm
  • product performance

    Quick description
1. Super high speed
2. Insert SIM card and play
3. Smart color screen
4. Safe Network
5. Best coverage, excellent signal
Quality of LTE/WiFi MiMo Antennas
6. 4G LTE up to 150Mbps(DL)/50Mbps(UL)
7. Up to 10 devices can be connected
8. Easier to manage
Personalized network customization platform 9. Support LTE Cat4
10. Support WiFi 11n 2X2 MiMo 11 high gain 2*2 MiMo antenna

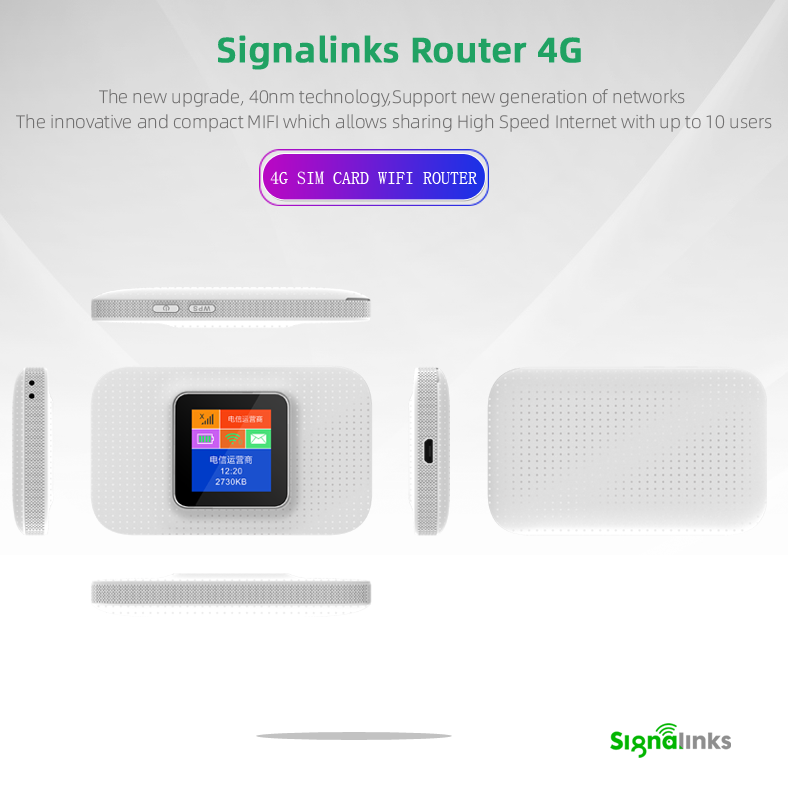

detailed drawing
Get your network up and running in seconds
M603+ Small and humanized design, just insert the SIM card
and press the power button. Your high-speed 4G hotspot will be up and running in half a minute

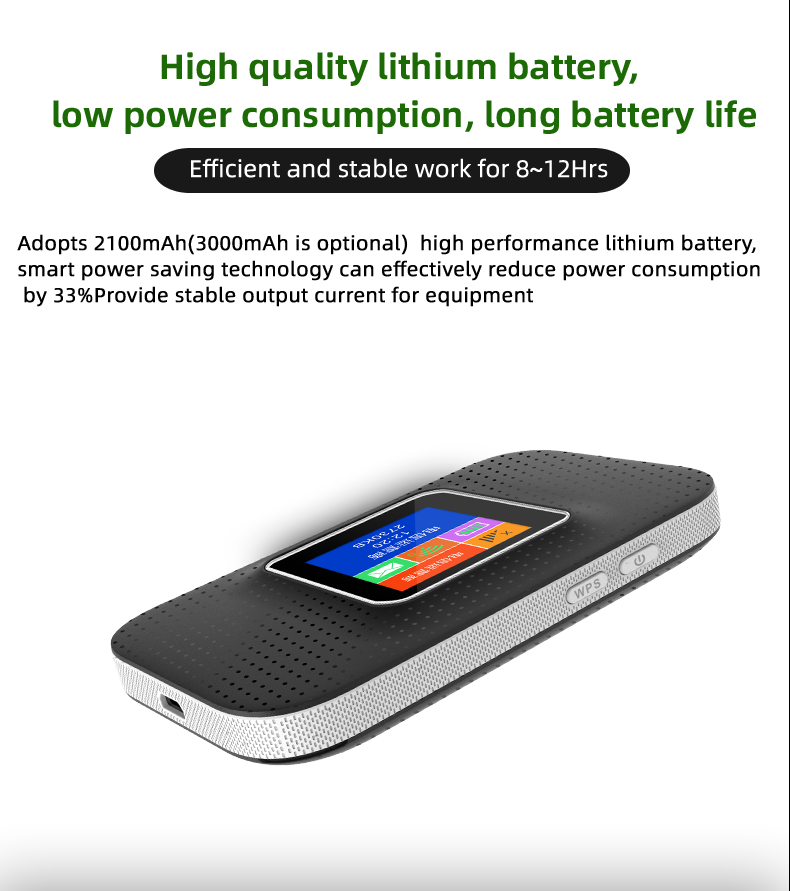

Sufficient stock of high-quality lithium batteries / long life /
fully certified/
Support 3FF Macro SIM card and SD card up to 32GB

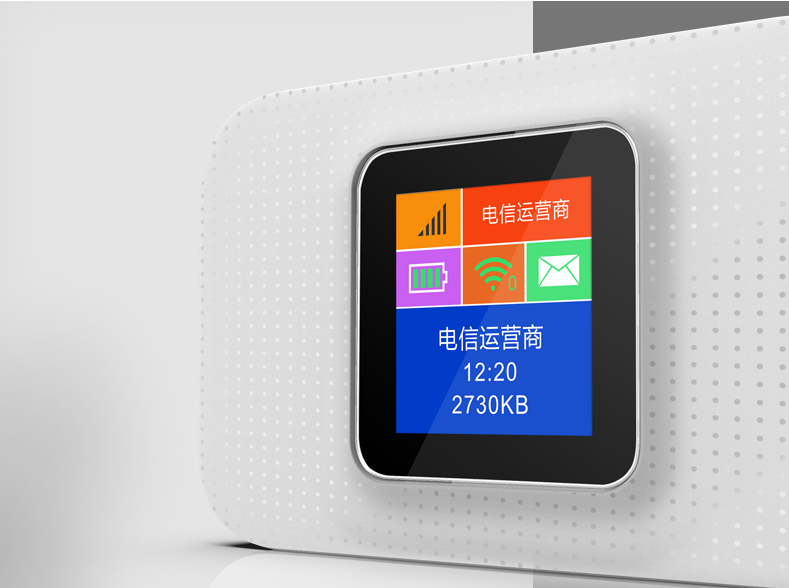

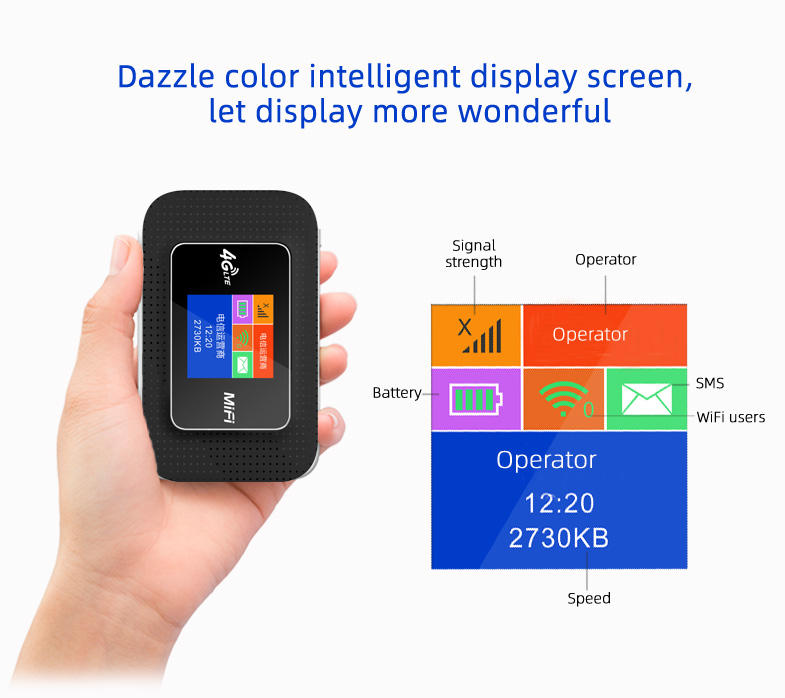

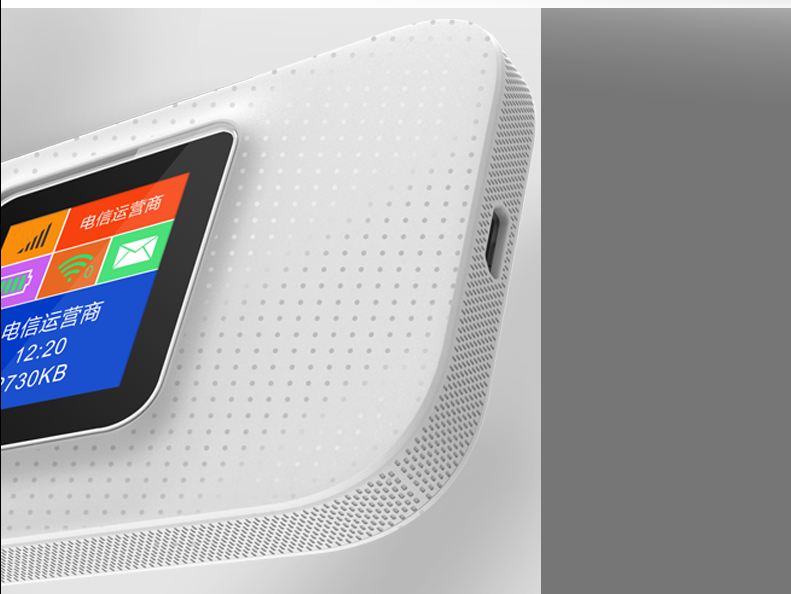

Smart color screen, useful information at a glance
Product Usage

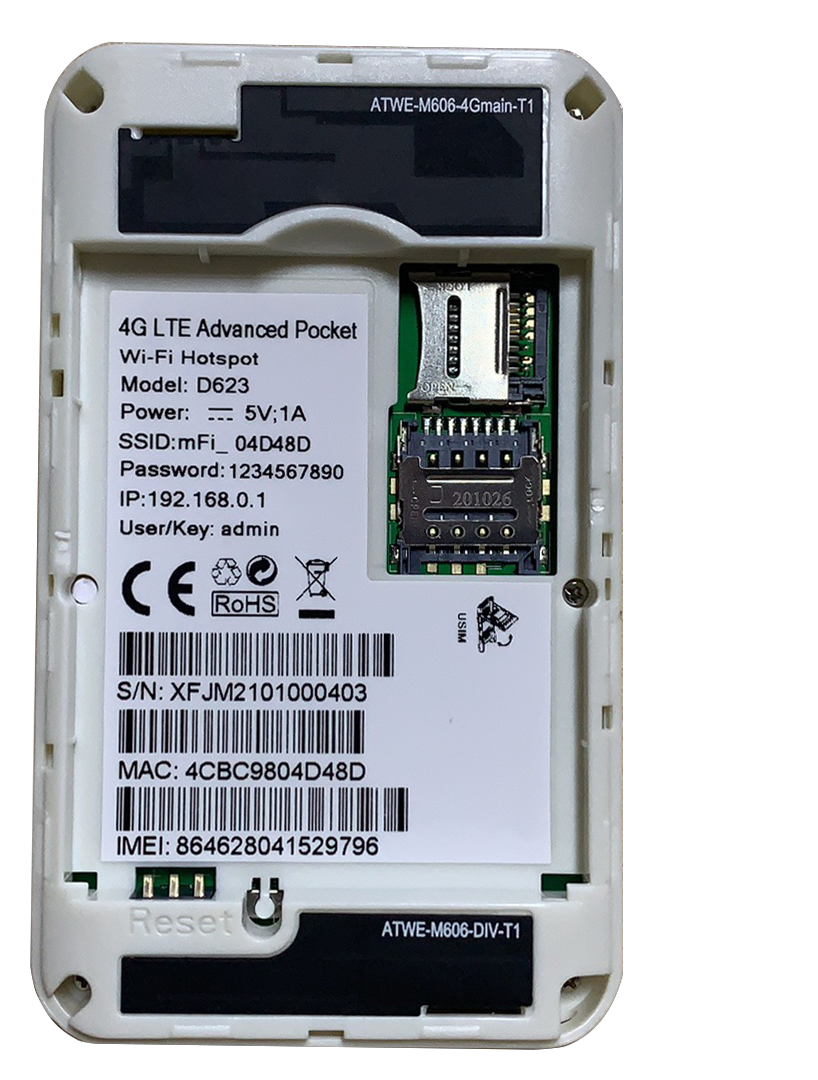

*Step 1: Install SIM card and battery
1) Remove the back cover.
2) Install SIM card (not included). Open the cover of the MicroSD card slot and insert the Micro SD card (not included) into the slot
Then replace the cover.
3) Push-pull lockers
Open the Micro SD card slot, make sure the metal chip of the Micro SD memory card faces down, and then insert it into the slot. put
Down, then pull the locker to lock it.
* Step 2: Turn on your mobile hotspot
Press and hold the power button and wait for the main LCD screen to appear
Step Three: Connect to the Internet
1) Wireless connection
Search for SSID (Wifi name) and enter the Wifi key you wrote down earlier (you can also double click the WPS button WPS to see the SSID and WiFi key on the LCD screen). You can also write down the SSID and WiFi key information on the inside of the back cover.
2) Wired connection
Connect your PC to the 4G LTE WiFi router via USB cable. Then the driver for this device will be installed automatically, you
You can surf the Internet on your computer.
