WiFi sharing: | 32 users | maximum. LAN data rate: | 300Mbps |
Function: | Firewall, Quality of Service | type: | 3G 4G mibile portable router with SIM card slot |
Packaging Details: | 50 boxes/carton | Warranty: | 12 months |
Minimum order quantity: | 2000 | place of origin; place of origin: | Guangdong, China |
LAN port: | 8 | Support WDS: | Do not |
SIM card slot: | Standard 2FF SIM card interface | port: | Hong Kong, Shenzhen |
brand: | Signal link | payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram,PayPal |
Encryption type: | WPA2-PSK,WPA2,WPA-PSK | Supply capacity: | 100000 pieces/month |
WAN port: | 1x10/100Mbps | application: | Family |
Support WPS: | Yes | Wired transfer rate: | 150Mbps |
Standards and Protocols: | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n | product status: | new |
2.4G Wi-Fi transfer rate: | 300Mbps | Wireless Speed: | Wireless speed 300Mbps , 150 Mbps download speed |
Key words: | High Speed 4G Wifi Router | 5G Wi-Fi transfer rate: | not any |
antenna: | 2*2 4G/WIFI MIMO Antenna | chipset: | ZX7520V3 |
Private model: | Yes | type: | wireless |
Quality Certification: | CE, ROHS, CCC, etc. | Wi-Fi transmission standard: | 802.11b |
With modem function: | Do not | Wi-Fi supported frequencies: | 2.4G |
category | Specification item | describe | Comment |

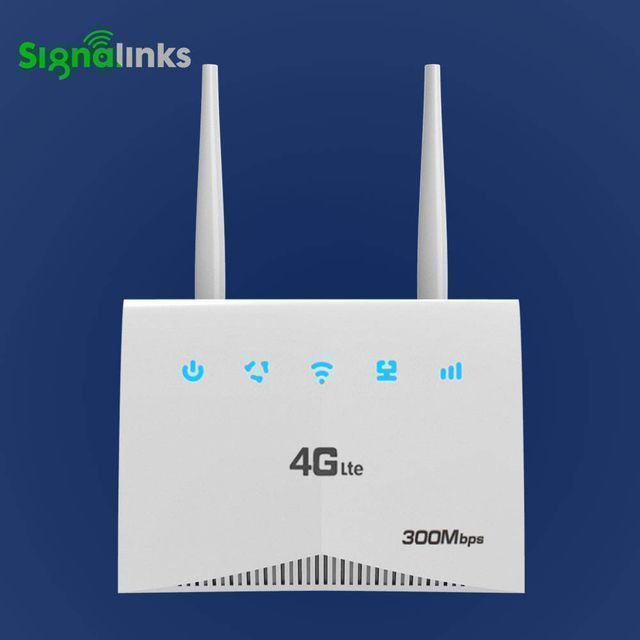

Basic Information | Model Name | R109D1 | |
type | CPE | ||
aspect | 166.0*120.2*40.2mm | ||
weight | 300 grams | ||

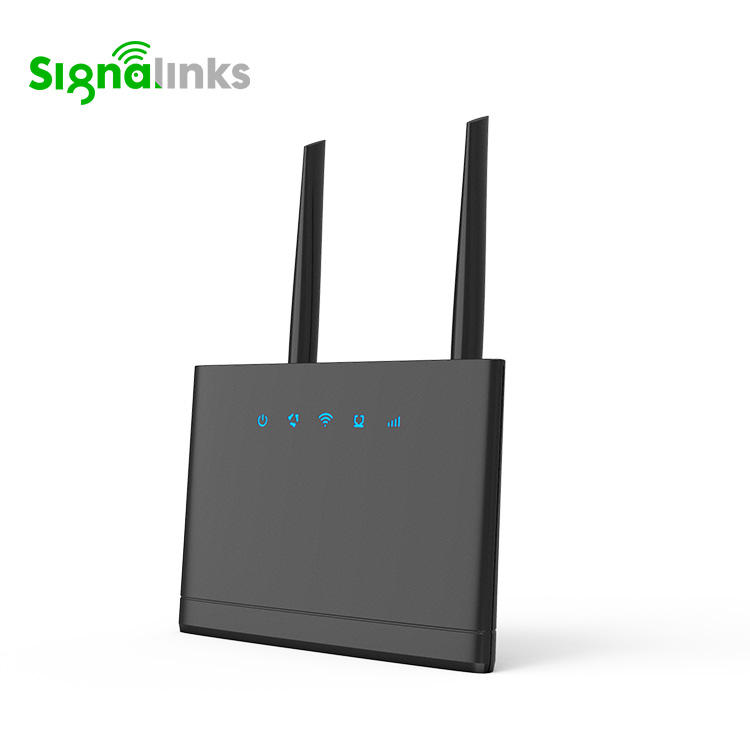

color | white/black | ||
Launch time (PP) | July 2020 | ||
air interface | technical standard | Compatible with WCDMA, FDD-LTE, TDD-LTE Default 802.11b/g/n | |
frequency | LTE: 1/2/3/4/5/6/7/8/9/12/13/ 17/19/20/25/26/28A/28B/38/39/40/41 WCDMA: B1/2/5/8 | LTE: B1/3/5/7/8/20/38/40/41 WCDMA: B1/5/8 | |
Wifi | 2.4G, WIFI 2*2 MIMO, 802.11 b/g/n | ||
Performance | maximum data throughput | LTE CAT 4 FDD-LTE (DL/UL): 150Mbps/50Mbps HSPA+ (DL/UL): 21/5.76Mbps Wireless Network: Max 300Mbps | Theoretical peak rate |
hardware | Receiving diversity | Support Reception Diversity | |
BB Chipset | ZX297520V3 | ||
wireless chipset | RTL8192ES | ||
WiFi users | 16 | ||
energy consumption | <10W | ||
voltage | DC12V/1A | ||
USIM/SIM | Support 2FF/3FF/4FF SIM card Optional support SIM/USIM/UIM, standard 6PIN SIM card interface, support 3V SIM card and 1.8V SIM Card; Push-Push SIM Card Slot | ||
exhibit | LED indicator | ||
antenna | 2 X2 MiMo Antennas for WiFi; 2X2 MiMo Antennas for 4G LTE; 2 external LTE antennas (optional) | ||
button | reset, WPS, power | ||

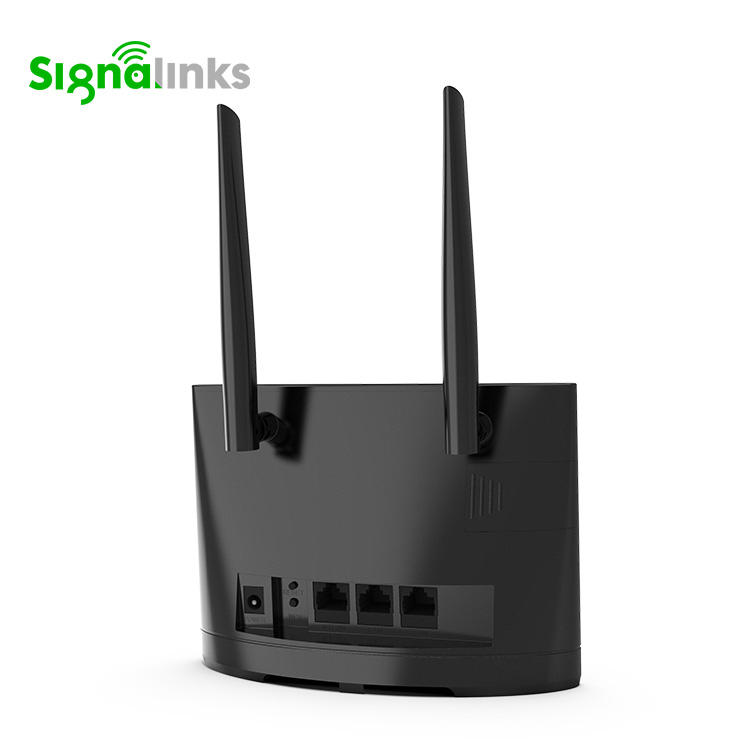

Ethernet | 3* RJ45, 10BaseT/100Base/auto-adaptive port | ||
RJ11 | Not applicable | ||
reset | pinhole | ||
electrostatic discharge | Contact ±8KV, air ±10KV | ||
Battery | Not applicable | ||
software | Software update | TR069 & FOTA(custom) & local | |
WIFI mode | AP/Station Mode | ||
WIFI security | Open & WPA-PSK & WPA2-PSK | ||
SMS and phonebook | Yes | ||
Plug and Play | Support customization | ||
voice | Not applicable | ||
IPv4 | support | ||
IPv6 | support | ||
firewall | Mac/IP address filtering, port forwarding, WiFi black/white list | ||
Statistics | support | ||
SIM card lock | support | ||
HTTP | support | ||
Demilitarized Zone | support | ||
surroundings | Operating temperature | Normal: -10°C to +65°C; | |
Storage temperature | -20°C to +85°C | ||
humidity | 5%~ 95% |
