BL-828 LONGBOW Textile spinning machinery electric motor sewing thread winding machine for metallic yarn covering machine

Product details
Port:Ningbo or Shanghai;Supply Ability:100 Set/Sets per Month;
Machine Type:Winding Machine;Applicable Industries:Manufacturing Plant;
Spindle Distance:300 (mm);Size:5900*1000*1250mm;
Spindle NO.:16 spindles (12 spindles, 20 spindle, 24 spindles etc are available;Place of Origin:Zhejiang China;
Condition:New;Warranty:1 year;
Bobbin Capacity:250g, 500g, 750g (Adjustable);Certification:CE;
Packaging Detail:Plastic bag, export standard pallets or Plywood cases for electric motor sewing thread winding machine for metallic yarn covering machine;After-sales Service Provided:Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
After-sales Service Provided:Engineers available to service machinery overseas;Type:One-side, single spindle automatic control, 4 spindles per section;
Material Capabilities:Thread;Spindle Speed:1,600(r/m);
Product:Yarn;Name:electric motor sewing thread winding machine;
Bobbin Shape:Straight / Cone;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:Longbow;



Packaging & Shipping

 Plastic bag,  export standard pallets or Plywood cases.



Product Description

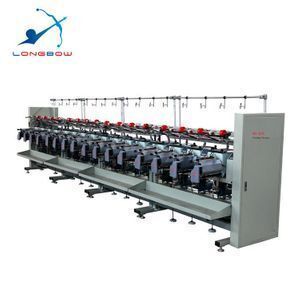

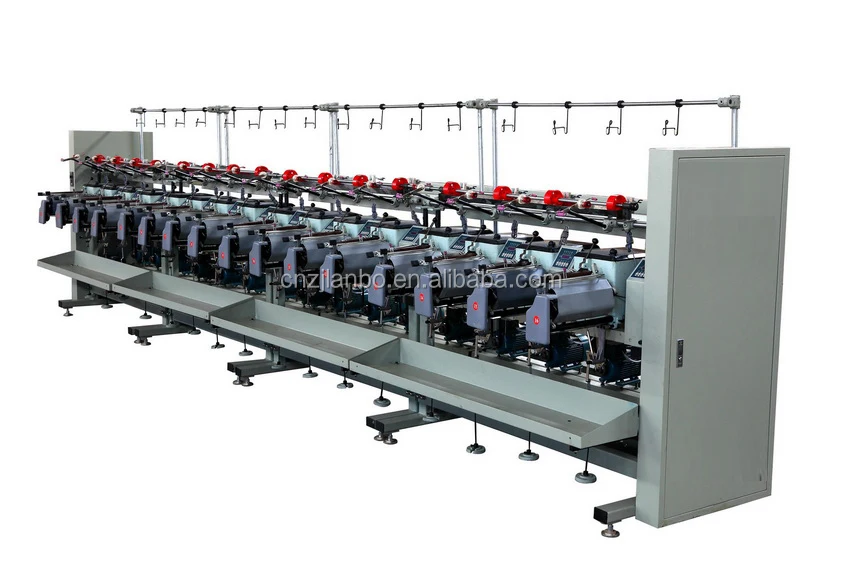

BL-828

Winding Machine

Co-work with embroidery machine, wind kinds of yarn from hank to cone. It is used to make the final products.



Technical Parameter:

TypeOne-side, single spindle automatic control, 4 spindles per section
Size (mm) L*W*H5900×1000×1250mm (16 Spindles )
The Number of Spindles16 spindles (12 spindles, 20 spindle, 24 spindles etc are available)
The Speed of Spindles1,600(r/m)
Spindle Distance300 (mm)
Bobbin ShapeStraight / Cone
Bobbin Capacity250g, 500g, 750g (Adjustable)
Electrical Power0.12 kw/ spindle

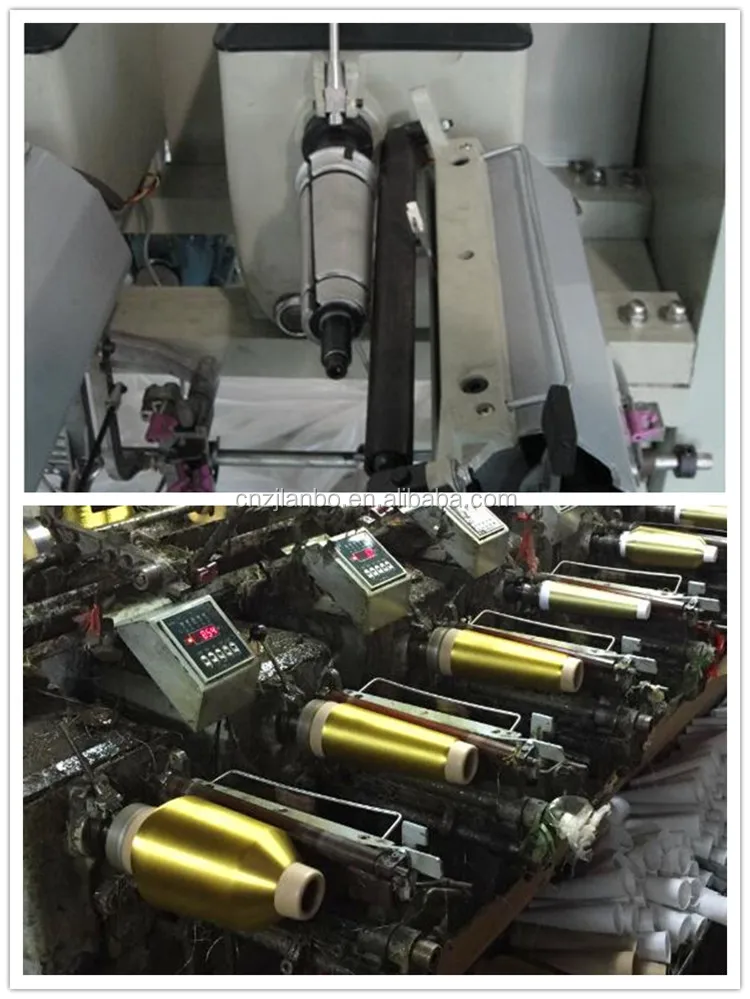

Detailed Images

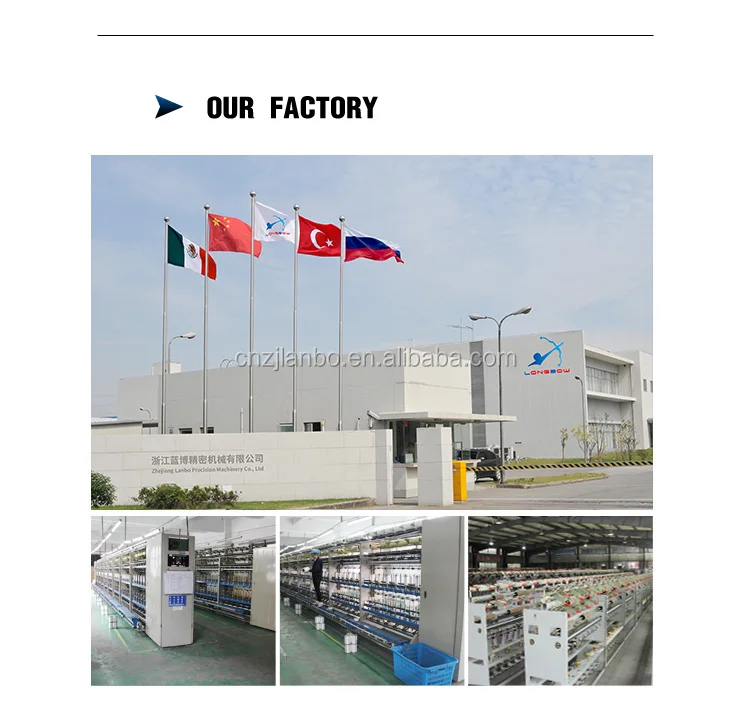

Factory



Trade Shows







Certifications



Certifications for our machines

Quality guarantee



FAQ



1.Q:  How long is the warranty period of the LONGBOW machines?

    A:  13 months after the B/L Date.



2. Q: How Many workers is need for operating one set LONGBOW machine.

     A: One skilled worker can manage 3 sets machine.



3. Q: Does the LONGBOW machine with Inverter or not.

     A: Yes, with Inverter.



4. Q: Do you supply the installation Service?

   A: Yes, By your requirements, we will send our technician to install the machine for you. but you should bear all the cost.



5.Q: How Many output of the machine per day ?

   A: Different yarn count, the output is different. We can calculate it for you.



6.  Q: How can I buy this machine from you? (Easy and flexible)

      a. Consult us about this product on line or by e-mail.

       b. Negotiate and confirm the shipping, payment method, packing and other terms.

       c. Send you the proforma invoice and confirm your order.

       d. Make the payment according to the instruction write on proforma invoice.

       e. We prepare for your order and arrange the production.

       f. Send your order by air or by sea.
