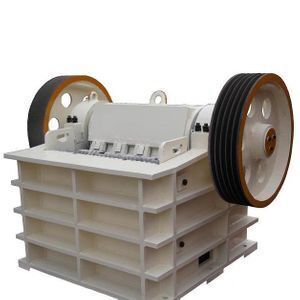

Hot sale! rock mobile jaw crusher price lifting

Supplier: AIMIX GROUP CO.,LTD.
Region: Henan, China
Contact: Ms Beata Chen
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO CE;	Keyword:	jaw crusher;
Place of Origin:	Henan China;	Condition:	New;
Weight:	2.8t;	Motor brand:	Siemens;
Application:	Mining;	Applicable Industries:	Construction works ;
Supply Ability:	50 Set/Sets per Month Hot sale! rock mobile jaw crusher price lifting;	Payment Terms:	L/C,T/T;
Packaging Detail:	Standard packing,;	Dimension(LWH):	130010901270mm;
Rotation speed of eccentric shaft:	300(r/min);	Motor Type:	AC Motor;
Machine working:	20-30 years;	After-sales Service Provided:	Engineers available to service machinery overseas;
After-sales Service Provided:	Video technical support, Free spare parts, Online support, Field maintenance and repair service;	Spare parts supply:	Lifelong Time;
Port:	qingdao;	Warranty:	1 Year;
Product name:	Hot sale! rock mobile jaw crusher price lifting;	Capacity(t/h):	5-10t/h;
Max.Feeding size:	210mm;	Brand Name:	Aimix;
Type:	Jaw Crusher;	Adjusting range of discharge opening:	20-60mm;
Color:	Customizable;

Hot sale! rock mobile jaw crusher price lifting

Product Description

Hot sale! rock mobile jaw crusher price lifting is one of the essential mechanical equipment for mine crushing, usually used for the first grade of material broken.

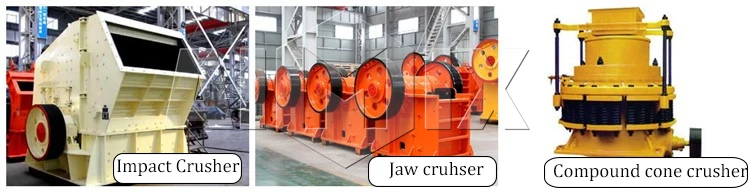

More crusher machine in our company:

Application:

This serious crusher machine have many advantages, such as big crushing ratio, equal product granularity, simple structure, reliable working condition, convenient repair and economical operation, they are widely used in the works of mine, smelting, building material, road, railway, irrigation, chemical industry etc. The compression strength of materials to be crushed is less than 320MPA.

Technology parameter

(Model)	Feed opening size(mm)	Max.Feeding size(mm	Adjusting range of discharge opening(mm)	Processing capacity (t/h)	Mixing power(kw)	Total weight(T)
PE-150*250	150*250	125	10-40	1-3	5.5	0.8
PE-200*300	200*300	180	15-50	2-6	7.5	1.2
PE-200*350	200*350	180	18-70	3-10	11	1.5
PE-250*400	250*400	210	20-60	5-10	15	2.8
PE-400*600	400*600	340	40-100	16-60	30	7
PE-500*750	500*750	425	50-100	40-110	55	12

Product Display

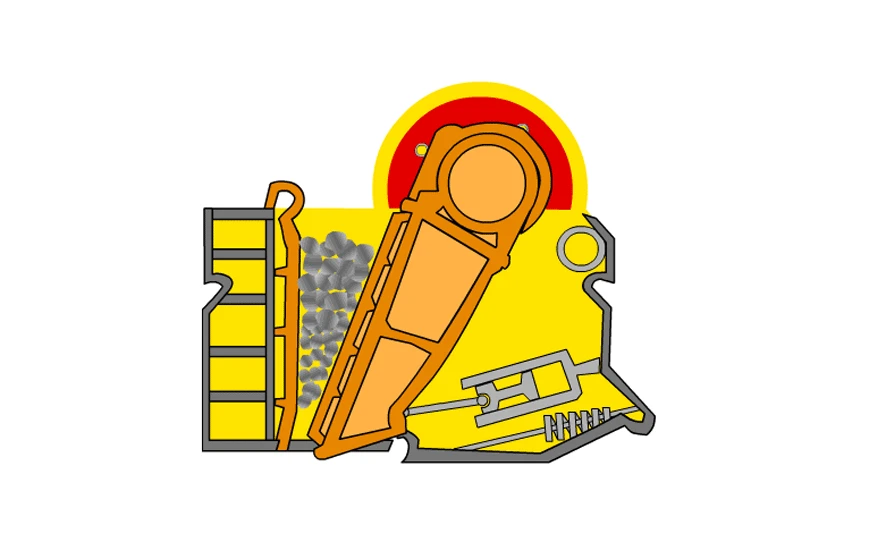

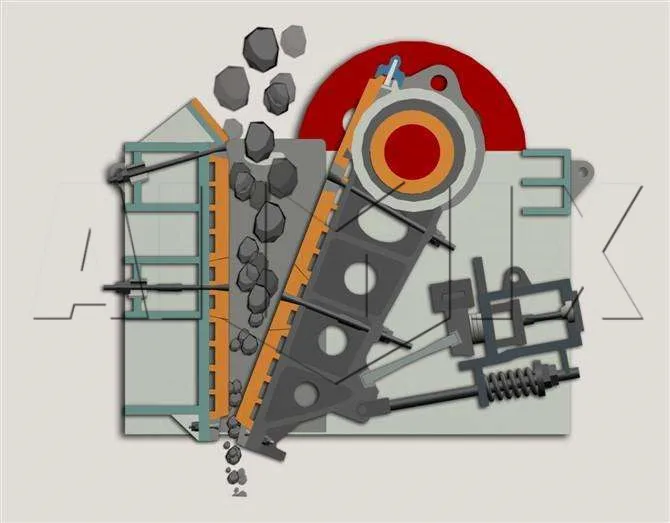

Working principle:

When the motor rotates the eccentric shaft through the belt, the vertical link moves upward and downward, when the vertical connecting rod to drive the two block, the toggle plate gradually stretched flat, forcing the movable jaw plate push toggle plate to the fixed jaw plate, By the fixed jaw plate and moving jaw space in the ore by the extrusion, splitting, folding and broken.

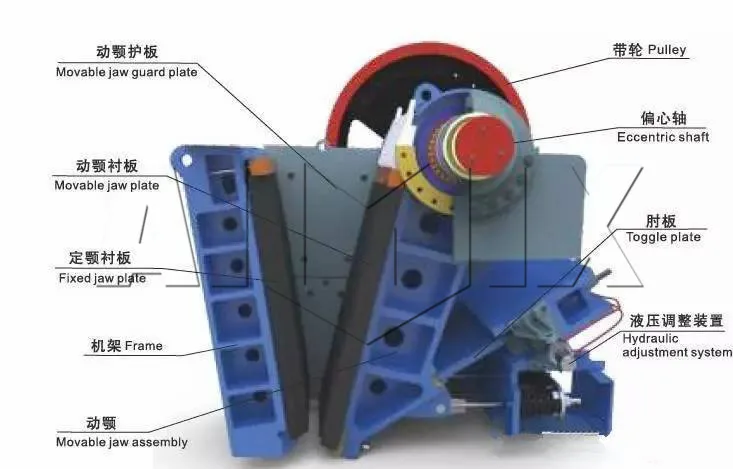

Main parts:

The main body of the jaw crusher consists of five parts: frame, eccentric shaft, moving plate, ice board and brackets. There are other auxiliary parts, such as fixed gear plate, liner, gear cover, gasket, slider, thrust plate, stop screw, locking device.

Feaures:

low noise, less dust.
large crushing ratio, product size uniformity.
simple structure, reliable work, low operating costs.
the lubrication system is safe and reliable, parts replacement is convenient, equipment maintenance is simple.
the crushing chamber is deep and has no dead zone, thus improving the feed capacity and output.
energy-saving equipment: stand-alone energy saving 15% to 30%, more than double the system energy.
the discharge adjustment range is large, which can meet the requirements of different users.
