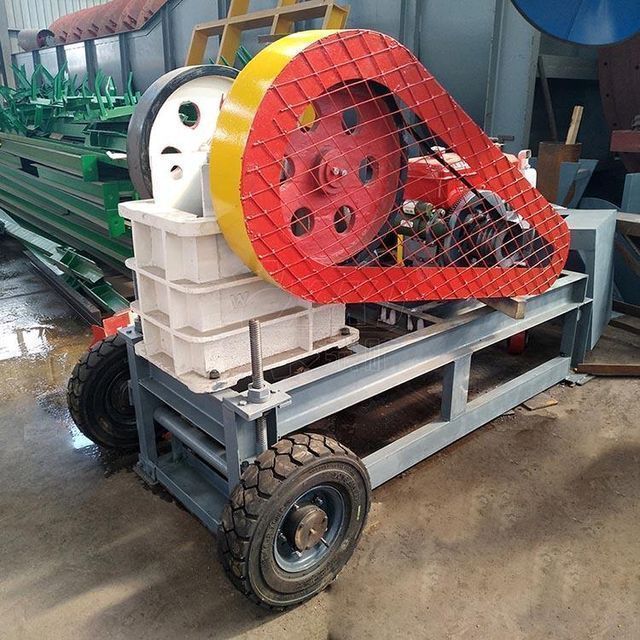

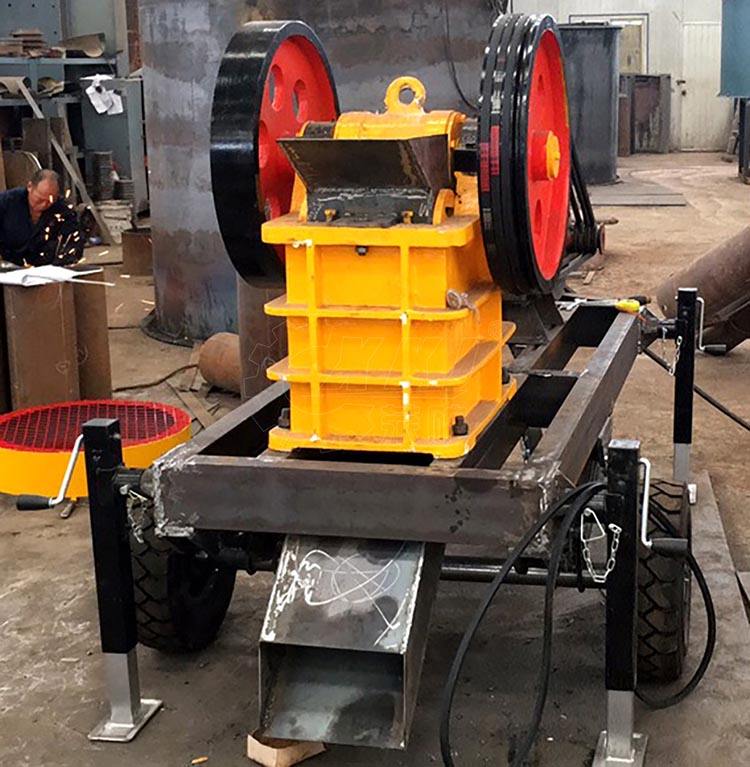

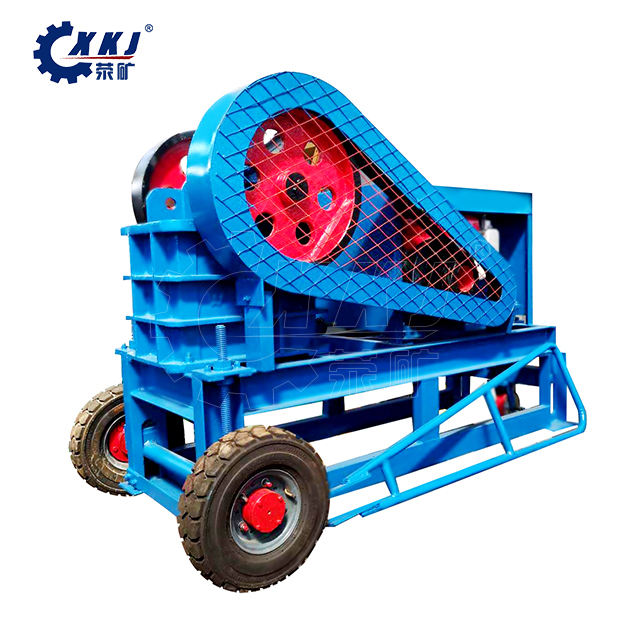

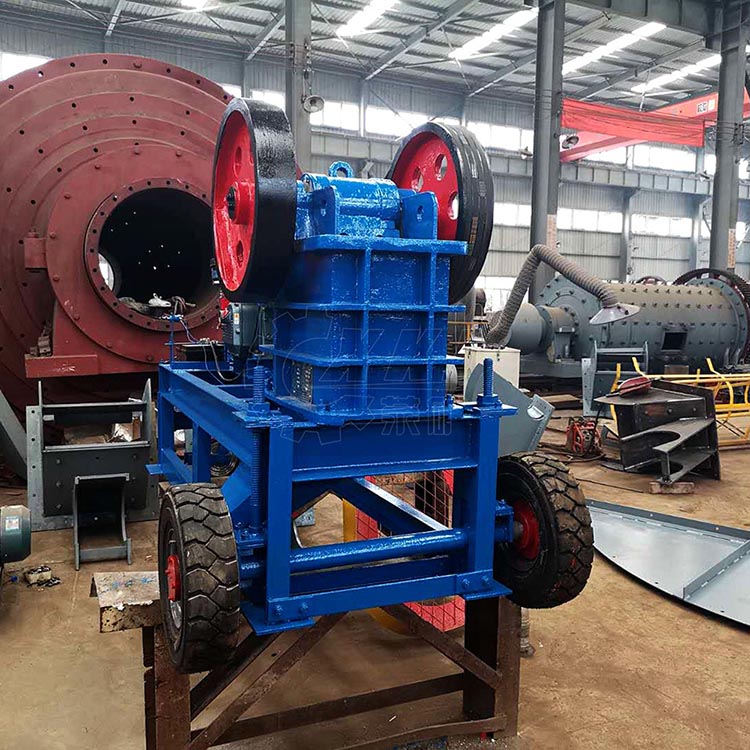

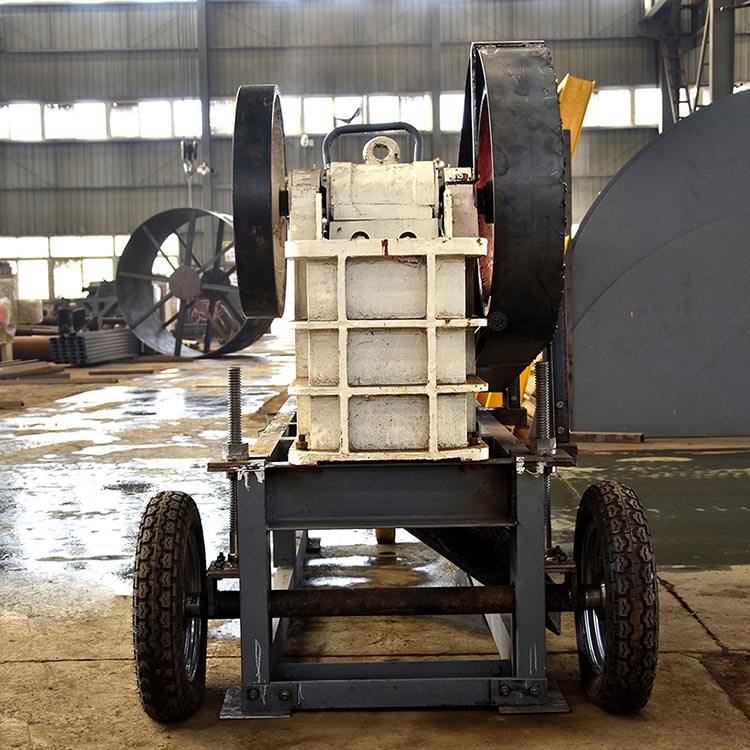

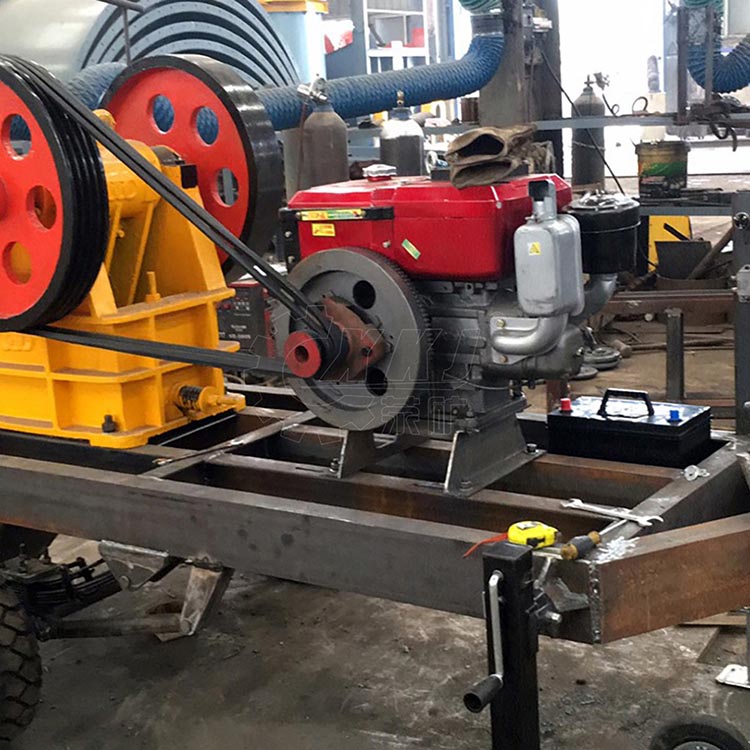

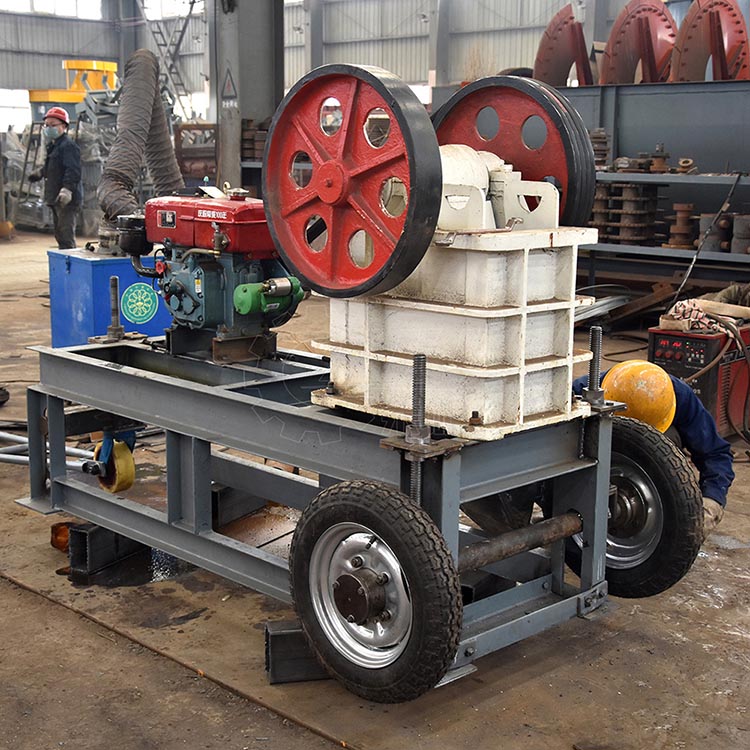

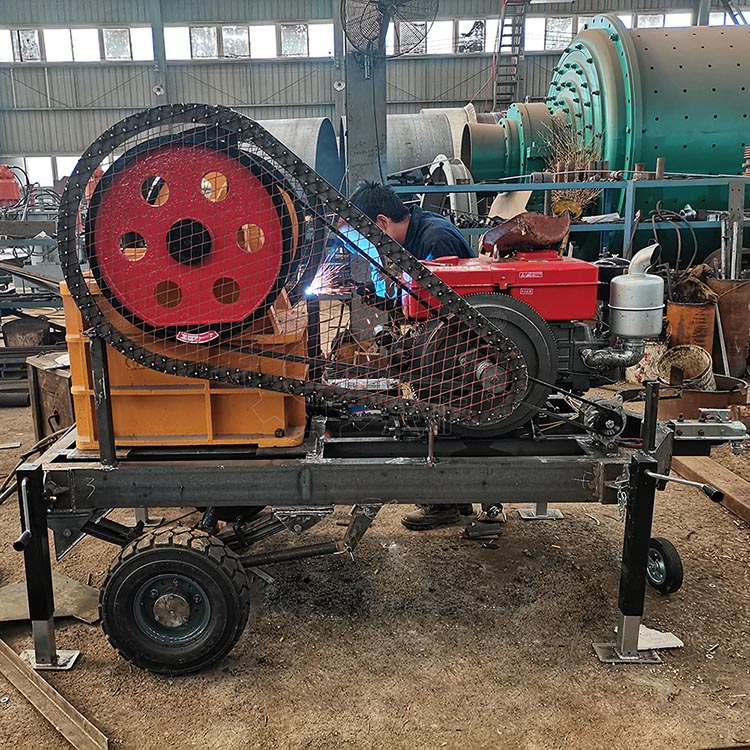

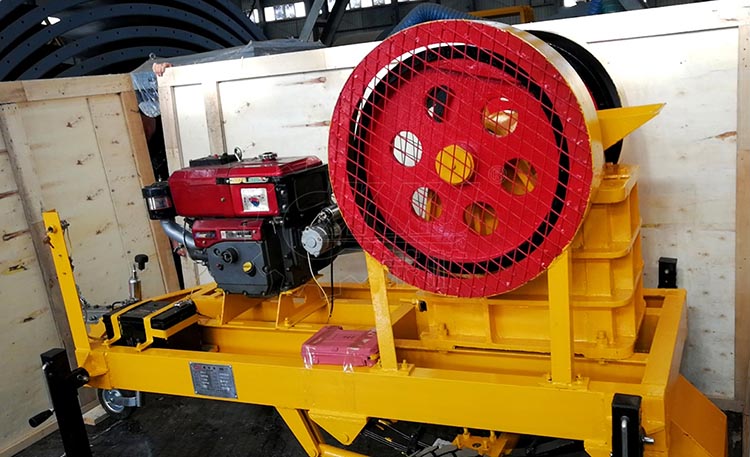

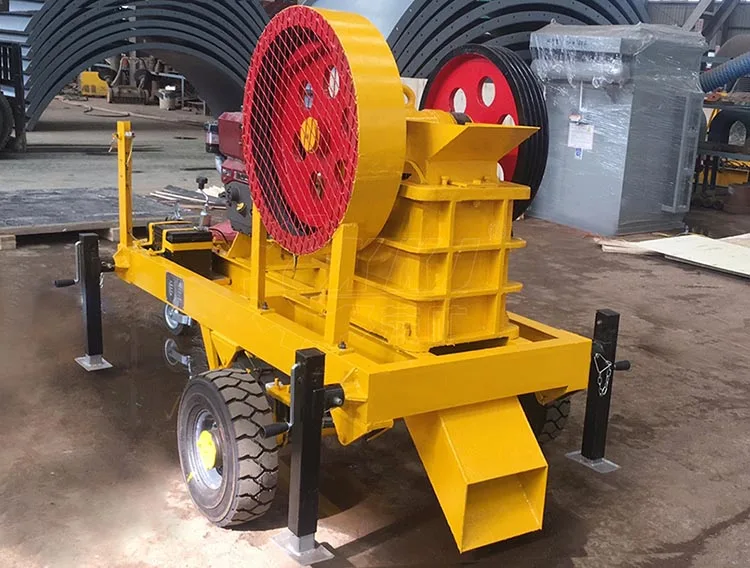

Hot Selling Small Mobile Jaw Crusher With Diesel Engine By Factory Small Stone Crusher Jaw Crusher Price

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $930.00 / 1 - 1 sets
$900.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Test & install:	Assignment of Professional Engineers

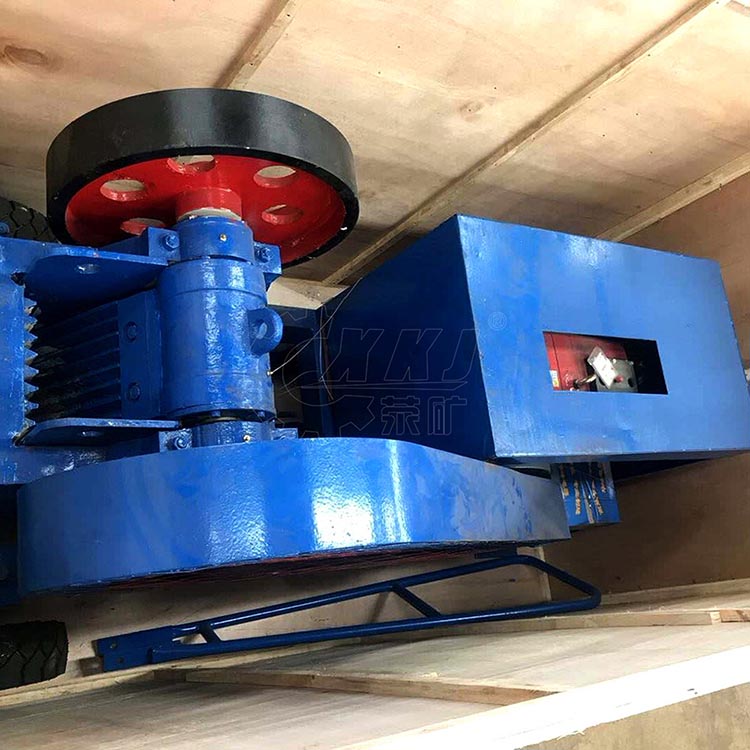

Packaging Details:	packed in a log or container	Core components:	Gears, motors, engines, bearings, gearboxes
After-sales service provided:	Engineers available to service machinery overseas	type:	Jaw Crusher
brand:	Xinkaijian	Supply capacity:	100 sets per month
Machine classification:	Jaw Crusher	port:	Qingdao, Shanghai, Tianjin
Core component warranty:	1 year	Health status:	new, new
Capacity(t/h):	1-5	color:	up to you

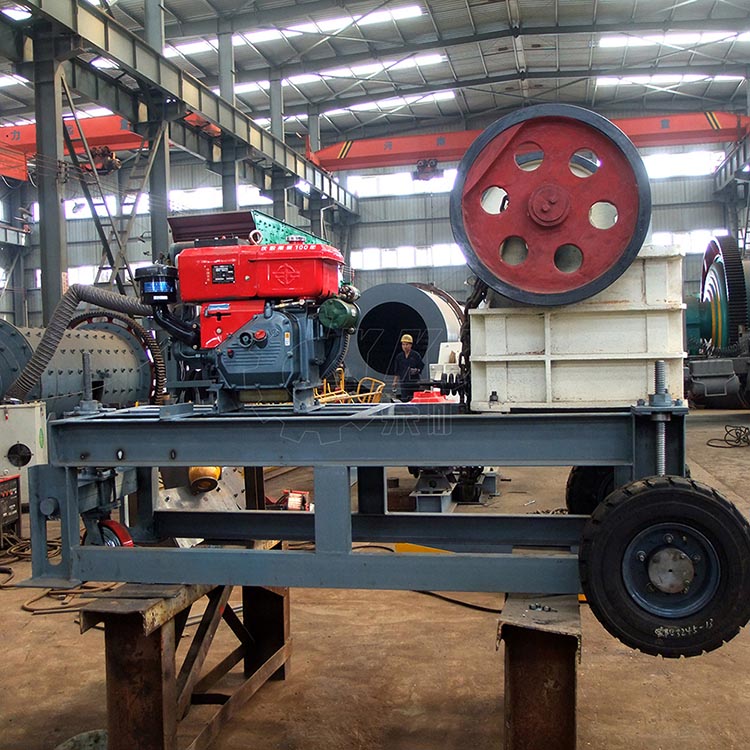

Mechanical test report:	if	Motor type:	AC motor, diesel engine
weight:	600 kg	Material:	steel
Origin:	Henan, China	Showroom location:	Egypt, Turkey, United States, Vietnam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
quality:	ISO9001:2008 certificate	Video shipment inspection:	if
Marketing Type:	Hot Products of 2021	Dimensions (LWH):	According to different models, 615x449x520 mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Applicable industries:	Building material stores, manufacturing plants, construction, energy and mining
Certification:	CE ISO BV certification	Package preview:
Main selling points:	high productivity	application:	mining

Product Description

Jaw CrusherSuitable for crushing all kinds of soft and hard ores and rocks, the maximum compressive strength is below 320MPa. The maximum size to be fed must be smaller than the maximum size required by the technical parameters. Jaw crushers are mainly used for medium and fine crushing of medium-hard ores and rocks in metallurgy, mining, chemical industry, cement, construction, refractory materials, ceramics, ceramics and other industries. Various types of stone jaw crushers can provide different fineness requirements according to your needs.

Advantage

1. Large/large crushing ratio.

2. Uniform product/particle size.

3. The outlet range is wide, which can meet the requirements of different users.

4. The lubricating system is safe and reliable, and the parts are easy to replace and maintain.

5. It is easy to replace and maintain parts, and the workload is small.

6. Simple structure, reliable operation and low cost.

7. Low noise and less dust.

8. Strong structure, stable performance, large capacity, and uniform production particle size.

9. With the increase of output, the operating cost can be greatly reduced.

10. Easy maintenance and economical operation cost.

product specification

Model	Maximum feed size (mm)	Output adjustable range (mm)	capacity (t/h)	Motor Power (kilowatt)	Spindle speed (rev/min)	aspect (mm)	weight (t)
PEF100x150	Post-90s	5-20	0.4-1.8	2.2	380	615x449x520	0.6
PEF150x250	125	10-40	1-4	5.5	300	875x750x950	0.8
PEF250x400	210	20-80	4-14	15	280	1108x1090x1392	2.8
PEF400x600	350	40-110	10-40	30	275	1663x1732x1586	6.7
PEF500x750	425	50-120	30-90	55	250	1930x2062x2246	11.5
PEF600x900	480	75-200	56-192	75	225	2531x2370x2783	17.6
PEX100x500	80	7-20	3-15	7.5	320	940x1120x870	1.5
PEX150x750	120	10-40	8-35	15	310	1215x1520x1030	2.9
PEX200x1000	210	13-50	15-50	30	300	1400x1697x1412	4.8
PEX250x1000	210	15-50	20-60	37	330	1530x1992x1380	5.4
PEX250x1200	210	15-60	25-70	45	330	1840x2192x1580	6.8

work rules

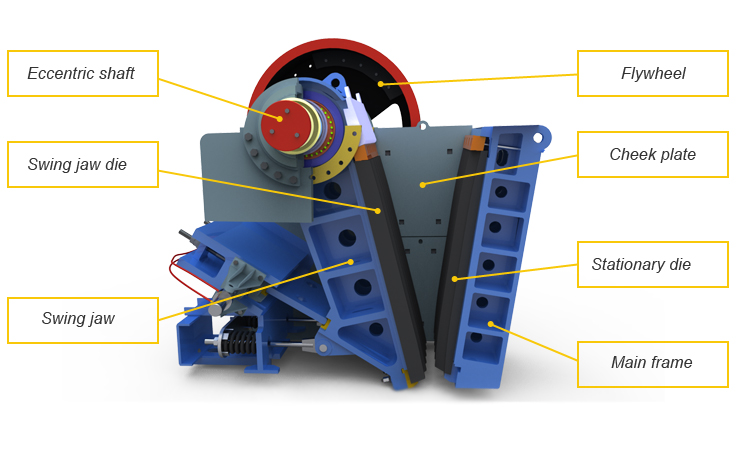

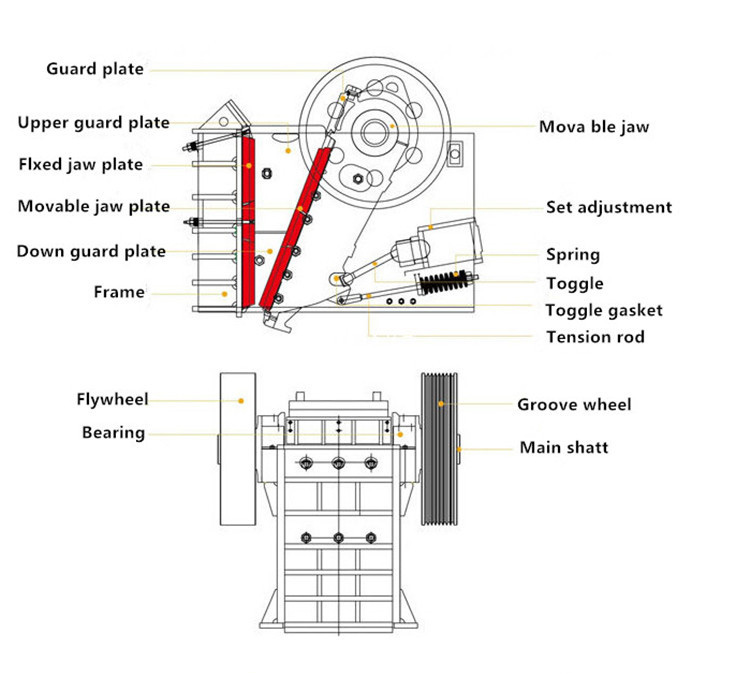

Jaw CrusherThe motor drives the belt, and the pulley drives the movable jaw to move up and down through the eccentric shaft. whenAs the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed. When the angle becomes larger, the crushed material will be discharged from the crushing cavity.
