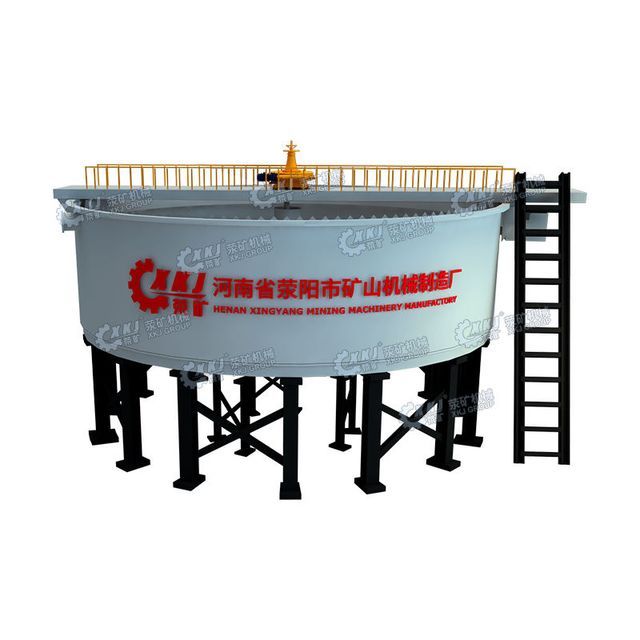

Hua Center Transmission Concentrate Tailings Thickener Dehydration

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $5850.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Service life:	over 3 years	Dimensions (lengthwidthheight):	Specification
Showroom location:	not any	brand:	Xinkejie
type:	Mining concentrator	Recovery rate:	High
Production capacity:	More than 85%	Manufacturing Standards:	Meet industry standards
Warranty:	1 year	Company experience:	more than 35 years
price:	Competitive	payment terms:	L/C, Western Union, T/T
product quality:	reliable	Package preview:
Marketing type:	normal product	Weight (kg):	8700
Core component warranty:	1 year	Place of origin:	Henan, China
Packaging details:	Seaworthy container or as per your request	Health status:	new
Prompt delivery:	Appropriately	spare parts:	supplied by us
work process:	Designed by our engineers	QC:	After five inspections
Video outbound inspection:	if	Supply capacity:	35 sets per month
application:	Dehydration, desliming, etc.	Core components:	PLC, engine, bearing, gearbox, motor, gear
port:	Qingdao/Shanghai/Tianjin	Applicable industries:	Manufacturing plants, machine repair shops, retail, energy and mining
Motor type:	AC motor	Mechanical test report:	if

describe:

The concentrator is a solid-liquid separation equipment based on gravity sedimentation.

The slurry with a solid content of 10% to 20% can be concentrated through gravity sedimentation into an underflow slurry with a solid content of 45% to 55%. The concentrated underflow slurry will be discharged from the underflow port of the machine. The thickener is operated slowly by a rake installed inside the thickener. The upper part produces cleaner clarified liquid (overflow), which is discharged from the annular chute at the top.

Model	Concentration tank		precipitate (rice²)	Harrow section			engine (kilowatt)		Production capacity (tons/day)	Weight (tons)
Model	diameter (rice)	depth (rice)	precipitate (rice²)	method	high (rice)	speed (rev/min)	drive (kilowatt)	lifting (kilowatt)	Production capacity (tons/day)	Weight (tons)
NZS-1	1.8	1.8	2.54	manual	0.16	2	1.1	/	5.6	1.8
NZS-3	3.6	1.8	10.2	manual	0.35	2.5	1.1	/	22.4	4.1
NZS-6	6	3	28.3	manual	0.2	3.7	1.1	/	62	10.2
NZS-9	9	3	63.6	manual	0.25	4.34	3	/	140	7.1
NZS-12	12	3.5	113	manual	0.25	5.28	3	/	250	10.5
NZ-15	15	4.4	176	car	0.4	10.4	5.2	2.2	350	24.7
NZ-20	20	4.4	314	car	0.4	10.4	5.2	2.2	960	27.5
NG-15	15	3.5	177	/	/	8.4	5.5	/	390	12
NG-18	18	3.5	255	/	/	10	5.5	/	Chapter 560	11
NG-24	twenty four	3.4	Chapter 452	/	/	12.7	7.5	/	1000	25.3
NG-30	30	3.6	707	/	/	16	7.5	/	Chapter 1570	29.4
NT-38	38	4.9	1134	/	/	10-25th	11	7.5	1600	60.2
NT-45	45	5.05	1590	car	/	19.3	11	/	2400	63.6
NT-53	53	5.07	2202	/	/	23.18	15	/	6250	84.8

Contact Supplier

Center drive type:

Usually, the diameter of this type of concentrator is small, usually within 24 meters.

The central drive concentrator is suitable for concentrate concentration and tailings dehydration before filtering at a height below 20 meters. It can also be widely used in industries such as coal, chemicals, building materials, water sources and sewage treatment to concentrate and purify slurries containing solid materials.

feature:

1. Fast settling speed.

Adding flocculants to increase the size of settling solid particles can speed up settling.

2. The settlement area is large.

Installing inclined plates can shorten the settlement distance and increase the settlement area.

3. Large quantity.

It plays the role of flocculation, filtration, and compression, and increases the processing capacity of thick mud deposits.

4. Simple operation.

Equipped with complete automatic control facilities.

High efficiency concentrator:

This type of concentrator has a smaller diameter, generally 3-15 meters.

The high-efficiency concentrator is a new type of solid-liquid separation equipment. It is suitable for dehydration treatment of concentrates and tailings in mineral processing plants. It can increase the 20-30% slurry to 40-70%. The high-efficiency concentrator is widely used in tailings treatment, wet process Concentrated smelting, environmental engineering mineral processing, environmental engineering and many other fields.

feature:

1. Add flocculant to increase the particle size of settled solid particles and accelerate the settling process.

2. Install an inclined plate to shorten the falling distance of mineral particles and increase the falling area.

3. It plays the role of flocculation, filtration, concentration and increasing processing capacity.

4. The high-efficiency mineral concentrator is equipped with complete automatic control devices.

Peripheral driver type:

The more common medium and large concentrators are usually around 15-30 meters in diameter.

The peripheral drive concentrator is mainly used for dehydration treatment of wet separation in the mineral processing process. It is generally set between the separation and filtering equipment. It is sometimes used for pre-selection dehydration, and can also be used for dehydration in chemical industry and coal preparation plants.

feature:

1. Add a degassing tank to prevent solid particles from adhering to the bubbles, similar to "parachute" deposition.

2. The feeding pipe is located below the liquid level to prevent gas from being brought into the mine.

3. Move the feeding sleeve downwards and set up a receiving plate to make the feed slurry fall evenly and steadily, effectively preventing overturning due to overpressure of the ore.

4. An overflow weir is added inside to allow materials to flow according to the prescribed stroke and prevent "short circuit" phenomenon.

5. The overflow weir is changed to a zigzag shape, which improves the local drainage and water absorption phenomenon caused by the uneven overflow weir.

6. Change the shape of the rake teeth from an inclination to a curve, so that the slurry not only flows to the center of the rake, but also gives the center a "backlog" force, making the discharged ore underflow concentration high, thereby improving the processing capacity.
