Fully automatic mine tailings concentrate treatment mud sewage sludge dehydration high-efficiency thickener price

Product details
Origin:Shandong Province, ChinaAfter-sales service provided:On-site installation, commissioning and training
Dimensions (L*W*H):custom madeCertification:CE, ISO 9001, IS0 14001
Supply capacity:200 sets per yearMaterial:Carbon steel, SS 316/304
capacity:custom madepayment terms:L/C, T/T
application:solid-liquid separationMotor type:AC motor
Package preview:OEM:Yes
Video outbound inspection:ifWarranty:1 year
brand:Tonsinport:Qingdao
Weight (kg):6000Core components:Engines, Gears, Pumps
Packaging Details:Export or seaworthy packing or as your requestdelivery time:2 months
Marketing Type:2020 New ProductsLife:30 years
type:Mine concentratorMechanical test report:if
Core component warranty:1 yearShowroom location:United Arab Emirates, South Africa, none
Production capacity:custom madeName:GNZ Central Drive High Efficiency Thickener
Applicable industries:Energy & Mining, Food & Beverage StoresHealth status:new
brand:Tonsin

GHZ central drive high speed concentrator



our products





Product Description

Based on the concentrating technology of Sunny Company in the United Kingdom, our company introduces and digests foreign advanced concentrating machine technology on the basis of conventional general concentrating machines. The new high-efficiency concentrator introduces the function of flocculant-assisted dehydration. At the same time, according to the application requirements of different industries, by optimizing the equipment structure and flocculant-assisted dehydration, the newly developed new thickener has the following advantages: the concentration efficiency is greatly improved, and the processing capacity is increased. , high underflow concentration; Introduction: It has been widely used in the dehydration of various metal and non-metal ores and the separation of solid and liquid in pulp.



Model

Concentrator

Sedimentary area
(square meter)

Lifting height of rake frame(mm)

Rake speed(r/min)

Motor Power
(kilowatt)

Diameter (m)

Depth (m)

GNZ-3

3

2.5

10

300

0.1-0.2

3+1.1

GNZ-6

6

3.0

28

300

0.1-0.2

4+1.5

GNZ-9

9

3.2

63

300

0.1-0.2

4+1.5

GNZ-12

12

3.5

110

300

0.1-0.2

4+1.5

GNZ-18

18

4.4

Chapter 254

600

0.1-0.2

7.5+2.2

GNZ-20

20

4.4

310

600

0.1-0.2

7.5+2.2

GNZ-24

twenty four

5.2

Chapter 452

600

0.05-0.2

7.5+2.2

GNZ-30

30

5.2

707

600

0.05-0.2

11+3

GNZ-38

38

5.5

1134

600

0.05-0.2

15+4

GNZ-45

45

5.5

1590

600

0.05-0.1

37+4

GNZ-53

53

6.0

2206

600

0.05-0.1

37+4

GNZ-60

60

6.0

2826

600

0.03-0.1

45+5.5

GNZ-70

70

6.8

3846

600

0.02-0.05

45+5.5

GNZ-85

85

7.8

5671

600

0.02-0.05

45+5.5



notes:

1. The above parameters are for reference only. Due to the large material settling performance, the specific parameters are subject to the design drawings provided by our company.

2. Our company can design different types of concentrators according to the requirements of users.



Our advantage



main feature

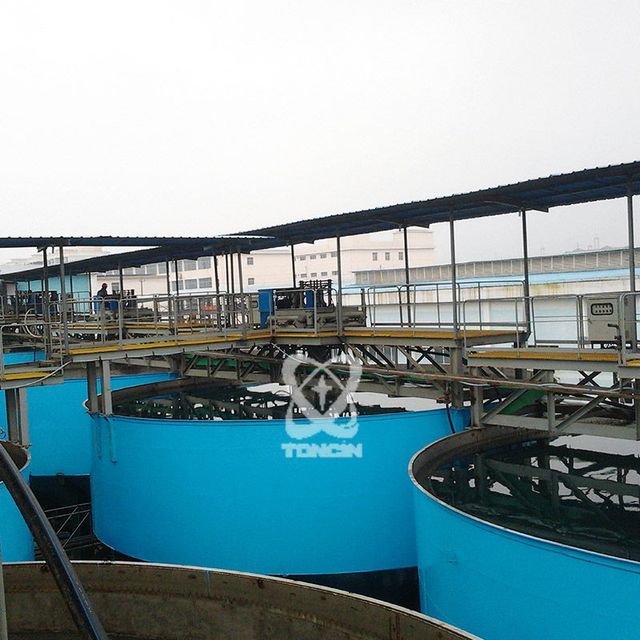

The thickener is composed of a circular thickener and a rake scraper. The solid particles are suspended in the thickener and settled by gravity, and the upper slurry becomes clear water to achieve separation. The sediment at the bottom of the thickener is continuously scraped and discharged by the rake, and overflows cleanly from the upper part.

1. Concentration and mud scraping efficiency is high, which is 3-5 times that of ordinary thickeners.

2. Excellent feeding system - high-speed feeding well:
a. The feed well degasses and dissipates energy from the feed and has a tangential feed.
b. Reasonably add flocculant to improve flocculation efficiency.
c. There is a distribution plate, which can make reasonable use of the effective area of ​​the tank.

3. The driving and lifting system adopts super-heavy design and high-torque design to ensure the normal operation of the equipment. The thickener can not stop under extreme conditions, which improves the efficiency of the equipment.

4. The logarithmic spiral design of rake teeth is adopted, and the density of rake teeth can be designed according to the material performance, which can improve the scraping efficiency.

5. With advanced thickener control system, automatic lifting rake, flocculant feeding, automatic control of underflow discharge pump





Product Details



1. Design of main drive and rake lifting device
1) The drive frame and chassis are manufactured as heavy-duty transmissions,
The operation is stable and reliable.

2) Fully automatic lifting rake.

3) Star transmission, the maximum running torque is 5000,000Nm. Drive Design Torque
The drive unit is designed according to the following standards.
a. Operating torque value: 33% of the design torque.
b. High torque alarm: 50% of the design torque.
c. Rake up; 60% of design torque.
d. Rake angle reduction: 40% of the design torque.
e. Mechanical device design torque value: 150% of the design torque.

2 control system
Combination of on-site control and remote control, equipped with DCS control point.
1. PLC control, overload protection.
2. The discharge end is equipped with a mud layer pressure sensor to control the rotation

And discharge the mud through the pump.



Applications

GNZ thickener is a new central transmission, automatic lifting rake type high-efficiency thickener developed by our company with reference to foreign technology. It is widely used in coal, metal mineral processing water, metallurgy, chemical industry, tailings treatment, environmental protection, etc.



Packaging and Shipping

export package: We use standard export packing or as your request.

shipping: We will send our products within 2 months.

mode of transport: By sea or by air.
