High Quality Mining Equipment, Mineral concentrator, high-rate thickener

Supplier: Nuclear Industry Yantai Toncin Group Co., Ltd.
Region: Shandong, China
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	2000w;	Packaging Detail:	as your require;
Warranty:	2 years;	Place of Origin:	Shandong China;
Application:	mine, metallurgy, chemicals;	Motor Type:	AC Motor;
After-sales Service Provided:	Overseas service center available;	Port:	QINGDAO;
Supply Ability:	15 Set/Sets per Month;	Brand Name:	Sunny Hexing;
application:	mining, metal, coal, chemical,dewater;	Payment Terms:	L/C,T/T;
Certification:	ISO9001;	Condition:	New;
Dimension(LWH):	10030005000;	Type:	Mining Thickener;

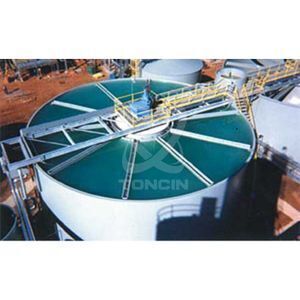

Sunny Hexing Thickener Introduction:

The newly developed thickener has such remarkable features as speedy thickening efficiency, high treatment capacity and high underflow density, and is now widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.

GNZ-type thickener is a kind of new type central drive high-rate thickener which has automatic rake lifting technology. The thickener adopts central drive, and has efficient silos, automatic rake lifting technology and other national patents; The design of heavy cores can ensure the continuous operation of the thickener in extreme conditions, and greatly improves the concentration efficiency.

Features:

1. High efficiency of concentration and scraping , which is three to five times than common thickener.
2.Excellent feed system——high-rate feed well:
a. The feed well makes the feed degas and have the energy dissipation, and it has tangential feeding.
b.Add the flocculant reasonably, and improve the efficiency .
c.It is equipped with distribution plate, which can take advantage of the effective area of the tank reasonably.
3. Driven lifting system with overweight design and large torque design can ensure the normal operation of the device. The thickener can not shut down in the extreme conditions, improving the efficiency of the device.
4.It adopts spiral design of rake teeth logarithm, and we can design rake teeth density according to material performance, which can improve the efficiency of scraping.
5.It has advanced thickener control system , automatically lifting rake, flocculant feeding, and automatically controlled underflow discharging pump

Parameters:

Model	Concentration tank		Sediment area (m2)	The lifting height of rake(mm)	Rake rotating speed(r/min)	Motor Power (KW)
Model	Diameter(m)	Depth(m)	Sediment area (m2)	The lifting height of rake(mm)	Rake rotating speed(r/min)	Motor Power (KW)
GNZ-3	3	2.5	10	300	0.1-0.2	3+1.1
GNZ-6	6	3.0	28	300	0.1-0.2	4+1.5
GNZ-9	9	3.2	63	300	0.1-0.2	4+1.5
GNZ-12	12	3.5	110	300	0.1-0.2	4+1.5
GNZ-18	18	4.4	254	600	0.1-0.2	7.5+2.2
GNZ-20	20	4.4	310	600	0.1-0.2	7.5+2.2
GNZ-24	24	5.2	452	600	0.05-0.2	7.5+2.2
GNZ-30	30	5.2	707	600	0.05-0.2	11+3
GNZ-38	38	5.5	1134	600	0.05-0.2	15+4
GNZ-45	45	5.5	1590	600	0.05-0.1	37+4
GNZ-53	53	6.0	2206	600	0.05-0.1	37+4
GNZ-60	60	6.0	2826	600	0.03-0.1	45+5.5
GNZ-70	70	6.8	3846	600	0.02-0.05	45+5.5
GNZ-85	85	7.8	5671	600	0.02-0.05	45+5.5

Note:
1. The above parameters are for reference, please refer to our designs for the specific parameters due to the settlement performance differences of the material.
2. We can design different types of thickeners according to user's requirements.

Certificates:

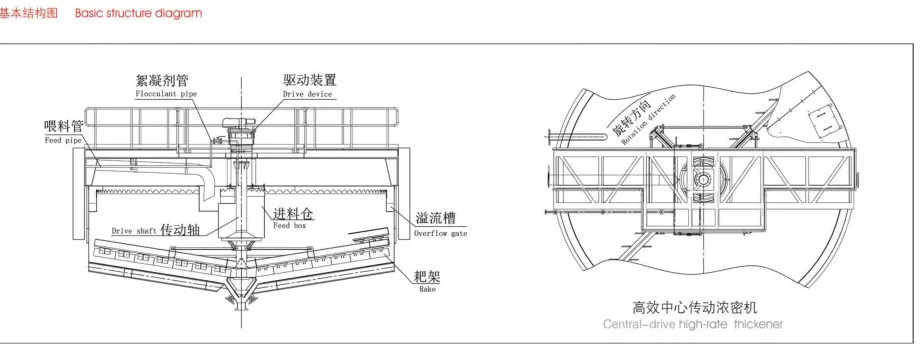

Structure:

Service:

Test

Laboratory tests can be carried out in our laboratory; Based on the experimental results, we provide a process guarantee.SelectionAccording to the test results, and our past experience , we select the appropriate specifications and models thickener, in order to meet the technological requirements of each application.

Design

The selected equipment is prepared by computer-aided design according to the needs of users.

Manufacture

Our project engineers monitor the manufacturing process, so as to ensure that the quality of the equipment in all respects in accordance with ISO9001 certification standards.

Installation and commissioning

We need to provide complete installation and commissioning services, installation and commissioning guidance servicesProcess service and technical support. Process consulting, technical support and services are provided by Yantai Sunny Environment Protection Equipment Co.,LTD.
