Automatic belt vacuum filter press belt filter

Supplier: Nuclear Industry Yantai Toncin Group Co., Ltd.
Region: Shandong, China
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2years;	Structure:	Belt filter press;
Brand Name:	Hexing;	Place of Origin:	Shandong China;
Material:	Other;	Automatic Grade:	Automatic;
Packaging Detail:	suitable for shipment;	Delivery Detail:	60 days after contract;
Function:	Other;	Name:	Automatic belt vacuum filter press belt filter;
Condition:	New;	Model Number:	DU;
Dimension(LWH):	as your size;	After-sales Service Provided:	Engineers available to service machinery overseas;
Payment Terms:	L/C,T/T;	Certification:	CE/ISO 9001/ IS0 14001;
Supply Ability:	200 Set/Sets per Year;	Weight:	as your size;
Port:	China port;

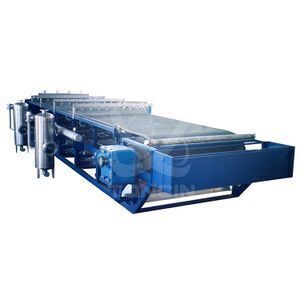

Automatic belt vacuum filter press belt filter

Our Products

Product Description

DU series Vacuum Rubber Belt Filter is a high automatic and new-type solid-liquid separation machine, using vacuum negative pressure as impetus to separate the solid and the liquid. Filter cloth only allows the liquid and the air to flow through but not the solid . The filter district can finish the procedure of filtering, residue unloading and filter cloth cleaning with high efficiency, high output, good rinsing effect, low moisture, smart operation and low repair cost.

Filtration Area (m2)	Filtration width(mm)	Filtration Length (m )	Weight (T)	Outline Size L×W×H (m)	Filtration Area (m2)	Filtration width(mm)	Filtration Length(m )	Weight (T)	Outline Size L×W×H (m)
DU-2	500	4	3.0	7.82×2×2	DU-25	2500	10	22	14.5×4.8×2.2
DU-2.5		5	3.2	8.82×2×2	DU-30		12	25.3	16.5×4.8×2.2
DU-3		6	3.4	9.9×2×2	DU-35		14	27.4	18.5×4.8×2.2
DU-5		10	3.8	14.0×2.2×2	DU-40		16	29.5	21.5×4.8×2.4
DU-4.8	800	6	5.0	10.05×2.5×2	DU-45		18	31.6	23.5×4.8×2.4
DU-6.4		8	5.5	12.05×2.5×2	DU-50		20	38.6	25.6×4.8×2.4
DU-8		10	6.0	14.10×2.6×2	DU-33.6	2800	12	20.5	17.6×5.0×2.5
DU-9.6		12	7.0	16.25×2.6×2	DU-39.2	2800	14	24.1	19.6×5.0×2.5
DU-5	1000	5	5.3	8.87×2.6×20	DU-36	3000	12	22	17.6×5.5×2.8
DU-6		6	5.8	10.5×2.6×2	DU-42		14	24	19.6×5.5×2.8
DU-8		8	6.3	12.5×2.8×2	DU-48		16	28	21.6×5.5×2.8
DU-10		10	6.8	14.5×2.8×2	DU-54		18	30.6	23.6×5.5×2.8
DU-12		12	7.3	16.5×2.8×2	DU-60		20	35.2	25.6×5.5×2.8
DU-14		14	7.8	18.5×2.8×2	DU-44.8	3200	14	35.3	19.5×5.7×3.1
DU-7.8	1300	6	7.2	10.4×3.15×2	DU-48		15	36.2	20.5×5.7×3.1
DU-10.4		8	8.3	12.4×3.15×2	DU-51.2		16	37.7	21.5×5.7×3.1
DU-13		10	9	14.4×3.15×2	DU-57.6		18	40.1	23.5×5.7×3.1
DU-15.6		12	10.5	16.4×3.15×2	DU-64		20	42.5	25.5×5.7×3.1
DU-18.2		14	11.5	18.4×3.15×2	DU-72		22.5	52.4	28.5×5.7×3.1
DU-20.8		16	12.5	20.4×3.15×2	DU-72	4000	18	56.2	24.0×7.1×3.3
DU-14.4	1800	8	12.7	12.6×4×2.2	DU-80		20	58.8	26.0×7.1×3.3
DU-18		10	13.7	14.6×4×2.2	DU-88		22	66.6	28.0×7.1×3.3
DU-21.6		12	15.3	16.6×4×2.2	DU-96		24	69.4	30.0×7.1×3.3
DU-25.2		14	16.6	18.6×4×2.2	DU-104		26	72.2	32.0×7.1×3.3
DU-28.8		16	17.9	20.6×4×2.2	DU-90	4500	20	72	26.5×7.5×3.6
DU-16	2000	8	14.2	12.7×4.2×2.2	DU-99		22	75.2	28.5×7.5×3.6
DU-20		10	15.4	14.7×4.2×2.2	DU-108		24	78.4	30.5×7.5×3.6
DU-24		12	17.2	16.7×4.2×2.2	DU-117		26	81.6	32.5×7.5×3.6
DU-28		14	18.7	18.7×4.2×2.2	DU-126		28	84.8	34.5×7.5×3.6
DU-32		16	20.2	20.7×4.2×2.2	DU-135		30	88	36.5×7.5×3.6
DU-36		18	21.7	22.7×4.2×2.2	DU-144		32	93	38.5×7.5×3.6

(1) The equipment can accomplish the process of feeding, cake washing, filtration, cake discharging and cloth washing continuously.

(2) The mother filtrate and other washing filtrate can be collected in different subsection.

(3) It is easy to transport and assemble this kind of equipment because of the modular structure.

(4) Vacuum system has a lifting device for the replacement of friction belt.

(5) We owe the patent of cloth washing device. Cleaning nozzles are products of US company.

(6) Circular rubber belt has an excellent flexibility and long service life.

(7) There is a circular friction belt between vacuum box and the rubber belt, which is sealed, lubricated and cooled with water. It can maintain stable vacuum and reduce the resistance of rubber belt friction.

Our Advantages

Product Details

Product Application

This DU rubber belt vacuum filter has been widely used for solid-liquid separation in metallurgy, mining, chemical, paper making, food, environmental protection, power plant—FGD(Flue Gas Desulfurization).

Packaging & Shipping

Package:We use standard export package or as you required.

Shipping:We will send our products within 2 months.

Transport Way:By sea or by air.

Company Information

Nuclear Industry Yantai Toncin Group Co.,Ltd. completed the restructuring and reorganization in June 2016, integrated 13 enterprises of filter industry, advanced manufacturing industry and new materials industry, set up the group company, formed the industrial pattern of common development of filtration separation machinery, new material industry and high-end equipment industry. Toncin group's enterprises mainly include Yantai Hejing Ceramic New Materials Co., Ltd., Yantai Sunny Rubber Co., Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., etc, and Nuclear Industry Yantai Toncin Group Co. Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., Yantai Xinghe Filtration Technology Co. Ltd. are belong to the solid-liquid separation equipment and technology filed, and their main products are solid-liquid separation products; Yantai Hejing Ceramic New Materials Co., Ltd. is an important crucible R & D and production enterprise in china; Yantai Sunny Rubber Co., Ltd. independently research and developed rubber dam, gas shield dam and other products, which are widely used in urban water conservancy construction, the technology level has reached the international advanced level. Toncin group currently own 5 state-level high-tech enterprises, 3 provincial-level enterprise technology centers, 1 provincial-level industrial design center, maintain 177 valid patents, including 38 invention patents, presided and participated in the formulation of more than 10 national standards and industry standards of the Horizontal Belt Type Vacuum Filter, Vertical Automatic Diaphragm Filter Press, Joint Resistance to Static Cutting Performance Test Methods of Rubber or Plastic Coated Fabrics and so on. The group has won the "China Patent Excellence Award", "National Key New Products", "Shandong Province Significant Energy-saving Achievement Award", "Shandong Province Technical Invention Award", "Shandong Province Science and Technology Progress Award" and a number of national and provincial science and technology award, undertaken a number of provincial science and technology, technical transformation special project of Shandong independent innovation achievements transformation major project and special funds project of Shandong industrial upgrading and synergism. The company has received the International Quality Control System Certification, Intellectual Property Management System Certification, Occupational Health Management System Certification and Environmental Management System Certification. The company has received the "Shandong Energy-saving Environmental Protection Demonstration Enterprise", "Shandong Intellectual Property Advantage Enterprise", " Observes Contracts and Keep Promises Enterprise", "China Patent Shandong Star Enterprise", " Shandong Management Innovation Excellent Enterprise ", "Advanced Enterprise of Excellent Performance " and other honorary successively.

FAQ

1. How to buy your interested products?

ANS: You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).

2. How to pay?

ANS:L/C or T/T are acceptable.

3. What is the delivery time?

ANS: It depends on order quantities. Generally speaking, the delivery time will be within 2 months.

4. How to pack the products?

ANS: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.

5. How to install after the equipment arriving destination?

ANS: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.

6. How long is the validity?

ANS:The validity is 12 months after installation.
