Refinery Edible Oil Biodiesel Pressure Leaf Filter

Product details
strength:2.2KW-7.5KW or customizeddescribe:Fine Filtration
set tempreture:≤150℃Maximum working pressure:0.6Mpa
Applicable industries:Clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, print shop, construction, energy and mining, food and beverage store, advertising agencyShowroom location:Brazil
port:Shanghai/Tianjin/Qingdaopayment terms:L/C, Western Union, T/T, MoneyGram
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpVibration frequency:3000-4500 times/min
Voltage:380V or customizedbrand:Raymond
Health status:newWarranty:1 year
pack:wooden case or customizedMaterial:stainless steel or carbon steel
type:palm oil leaf filterMarketing Type:2020 New Products
Mechanical test report:ifSupply capacity:100 sets per month
color:customer requestDimensions (L*W*H):by model
Core component warranty:2 yearsAutomatic level:automatic
weight:1.5 kgPackaging Details:Wooden case or as your request
Video outbound inspection:ifVibrator air pressure:0.45-0.6Mpa
Origin:Henan, China
Product Description

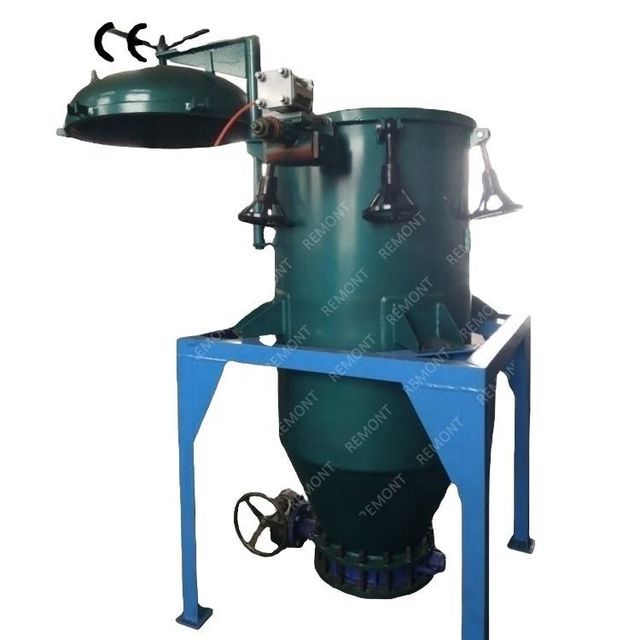

Oil Press Edible Oil Biodiesel Pressure Leaf Filter Introduction

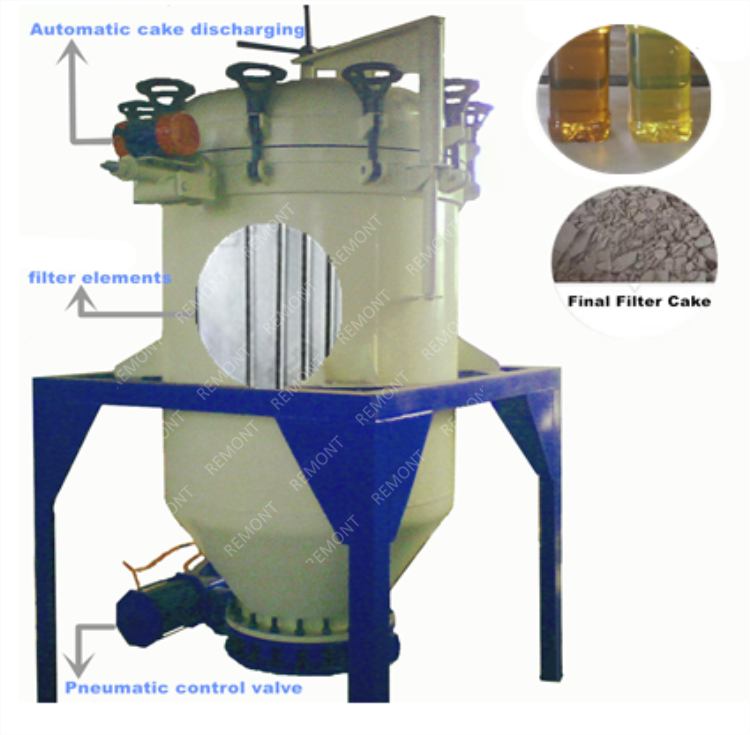

MG series waste oil filter automatic slag discharge vertical blade filter is a pressure filter equipment. Under the action of pressure, the solid particles in the filtrate are trapped on the filter leaves, gradually forming a filter cake. Under pressure, the filtrate passes through the filter cake. The filtrate then flows out of the tube through the filter. Finally, a clear filtrate can be obtained.

As the filtration time increases, the thickness of the filter cake increases continuously. The resistance of the filter increases continuously, and the pressure in the tank gradually increases to a certain value. Then you must be scum.
Stop pumping filtrate into the tank and blow compressed air through the tank overflow pipe. After the liquid is emptied, steam (or air) is blown into the tank to dry the filter cake. Then the vibrator starts to make the filter vibrate, and the filter cake on the blade shakes off to the bottom of the tank through the slag discharge valve body.





application

 Application of pressure leaf filter for edible oil biodiesel in refinery



Technical Parameters
Technical specification for oil press edible oil biodiesel pressure leaf filter
technical name data
work pressure 0.1-0.49Mpa
set tempreture ≤150℃
Vibrator air pressure 0.45-0.6Mpa
solid content in liquid 0.05%-0.2%
working pressure 0.6Mpa
vibration frequency 3000-4500 times/min
Liquid content in slag ≤20%



Model Filtration area (m3) diameter
(mm)
Filter Leaf Spacing(mm) import exit overflow Slag outlet high weight
(mm) (mm) (mm) (Kilogram)
MG-4 4 550 70 Dg50 80 Dg32 300 2000 Chapter 460
MG-8 8 650 70 Dg50 80 Dg32 300 2100 890
MG-10 10 800 70 Dg50 80 Dg32 400 2300 1200
MG-15 15 900 70 Dg50 80 Dg32 400 2400 1500
MG-20 20 1100 75 Dg50 80 Dg32 400 2500 1800
MG-30 30 1200 75 Dg50 80 Dg32 400 2600 2500
MG-40 40 1300 75 dg70 80 Dg50 500 3000 3400
MG-50 50 1400 75 Dg80 80 Dg50 500 3300 3800
MG-60 60 1500 75 Dg80 80 Dg50 600 3500 4500
 Main Features of Oil Press Edible Oil Biodiesel Pressure Leaf Filter

 ◊ Working pressure: 0.1-0.49Mpa

◊ Design temperature: ≤150℃

◊ Vibrator air pressure: 0.45-0.6 Mpa

◊ Liquid content in slag: ≤0.5%

◊ Max. Working pressure: 0.6Mpa

◊ Vibration frequency: 3000-4500 times/min

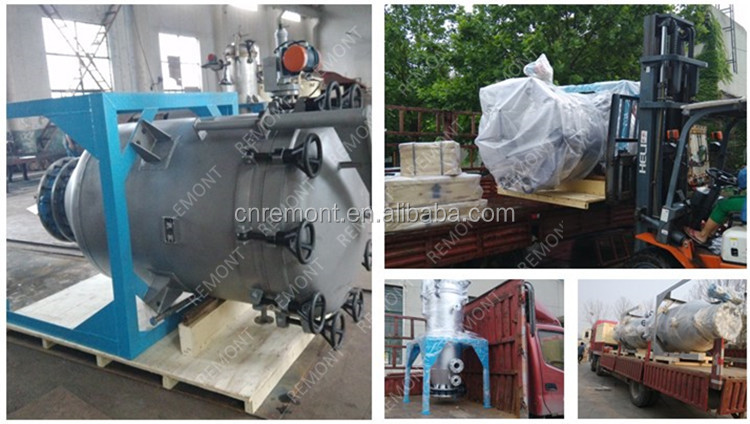

Packaging and Shipping
