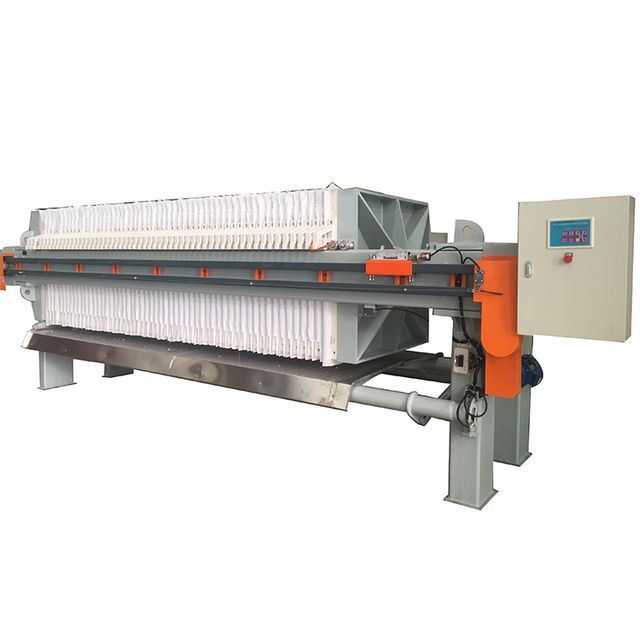

Oil wine clay ceramic automatic filter press concave plate filter press chamber filter press

Supplier: Zhengzhou Lead Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Nancy Liu
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

License plate number:	28	Filter area:	50 square meters
Showroom location:	not any	Filter chamber volume:	752L
Number of filter plates:	0.6Mpa	Packaging Details:	Wooden box or according to your requirements automatic filter press concave plate filter press oil wine clay ceramic chamber filter press
Voltage:	custom made	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	200 concave-plate filter press chamber filter presses for oil and wine per month	Name:	Embedded filter press chamber filter press for oil and wine clay ceramics
Automatic level:	automatic	brand:	lead concrete
Package preview:		Marketing Type:	2019 Hot Products
Key words:	Oil wine clay ceramic filter press chamber filter press	Type of machine:	Chamber filter press
port:	Shanghai Tianjin Qingdao	weight:	4128 kg
Mechanical test report:	if	Dimensions (LWH):	404015001400mm
Video shipment inspection:	if	Warranty:	1 year
Core component warranty:	1 year	Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Farms, Construction Works, Energy and Mining, Food and Beverage Shops, Sludge Plate and Frame Filter Presses, Automatic Filter Presses Concave Plate Filter Presses, Oil and Wine Clay Ceramic Chamber Filter Presses, Dimpled Plate filter press box filter press
strength:	4 kW	Machine weight:	4128 kg
Filter plate specifications:	1000mm	Core components:	PLC, hydraulic sludge plate and frame filter press, hydraulic automatic edible oil filter press
Press cake thickness:	30mm	Health status:	new
Origin:	Henan, China

Fully automatic filter press Concave plate filter press Box filter press

for oil and wineclayceramic

Product Description

thisOil wine clay ceramic automatic filter press concave plate filter press chamber filter pressMicrocomputer processor, PLC, and touch screen are used to control the actions of various parts, such as: cylinder, plate shifter, cloth washing, etc., which can reduce labor costs and save time during use.
It can also be equipped with a quick opening system to increase the cake output efficiency by 3-6 times, especially suitable for filter presses with a large number of filter plates and frequent operations.

Model	XMZ50/1000
Filter area	50 square meters
plate size	1000*1000mm
cake thickness	30mm
Room volume	736L
Plate quantity	28
Motor Power	4 kW

Features

1. Widely used in various applications, including mining, wastewater treatment, chemical industry, etc.
2. Fully automatic
3. Standard feed pressure up to 16 bar
4. Working temperature up to 95 degrees Celsius
5. Low operating cost, long life, convenient maintenance and high efficiency
6. Customized models and products are available

detailed image

Sodium disulfide preparation of hydraulic sludge plate and frame filter press can be customized according to your requirements. If you have any demand for filter press, please let us know, thank you very much.

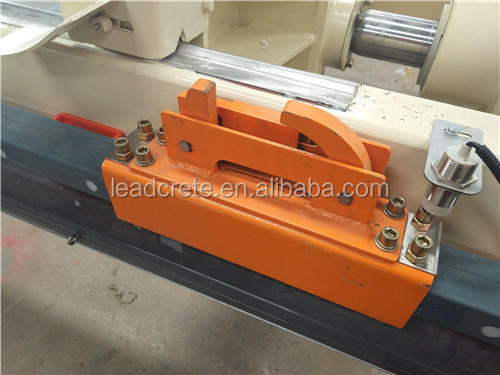

plate shifter

Vibration Disc Shifter

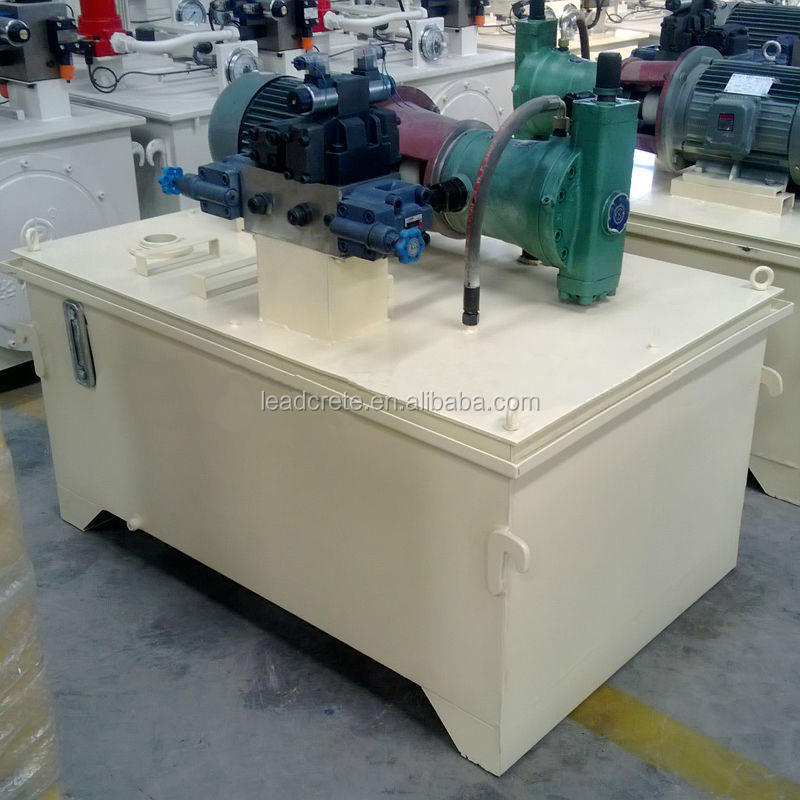

Hydraulic station

handle

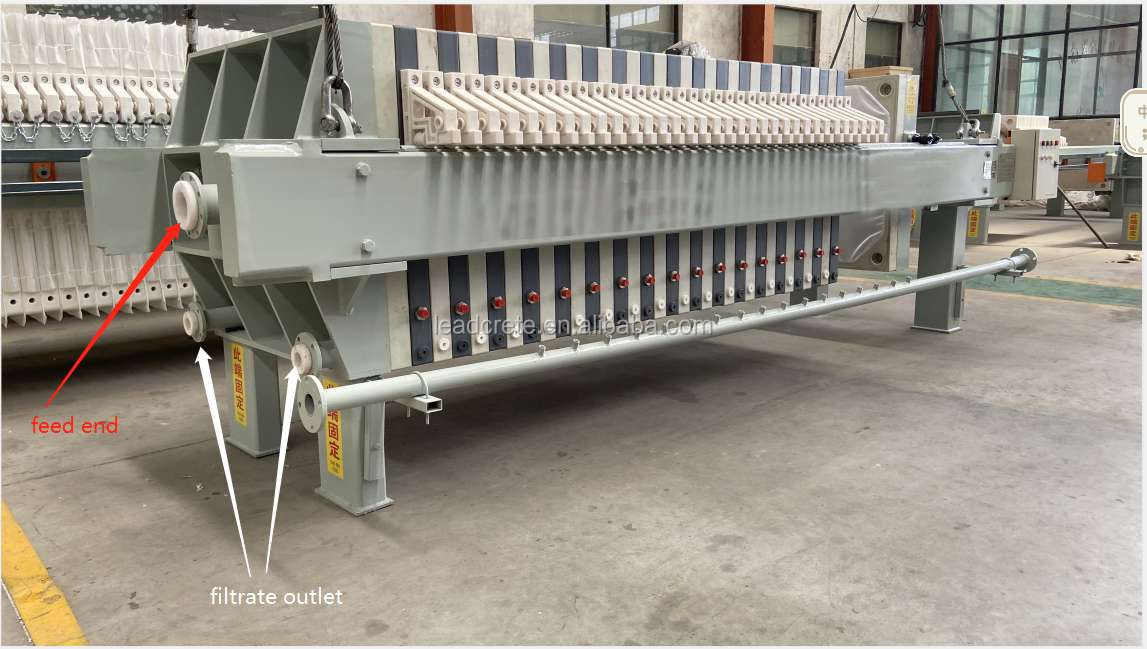

Filter press liquid flow:

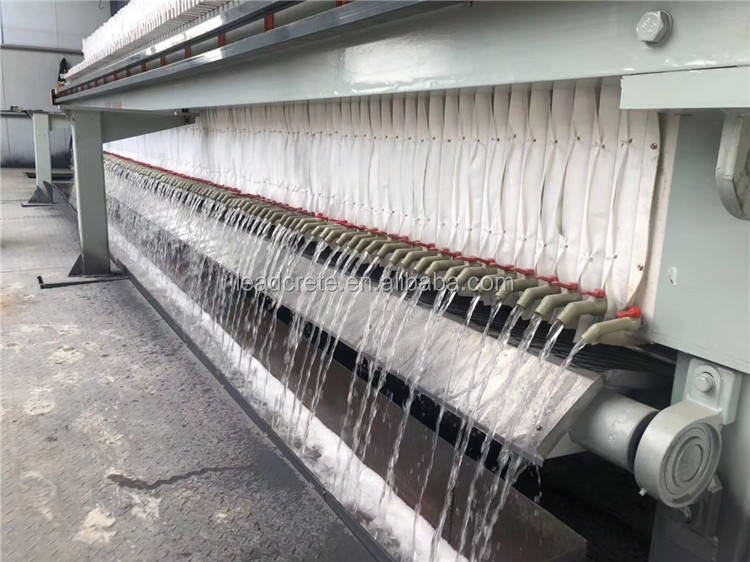

External stream:The filtrate is directly discharged from the outlet of the filter press, and the filtrate can be seen from
Faucet

Internal stream:Collect the filtrate from various filter plates and discharge from the filtrate port. This type is
Suitable for liquids that are not suitable for contact with air, such as volatile, toxic or easily oxidized liquids
