Min Height: | 1350; | Type: | 250 tons tension jack; |
Max Height: | 1600; | Certificate: | CE and ISO; |
Place of Origin: | Henan China; | Type: | Hydraulic Jack; |

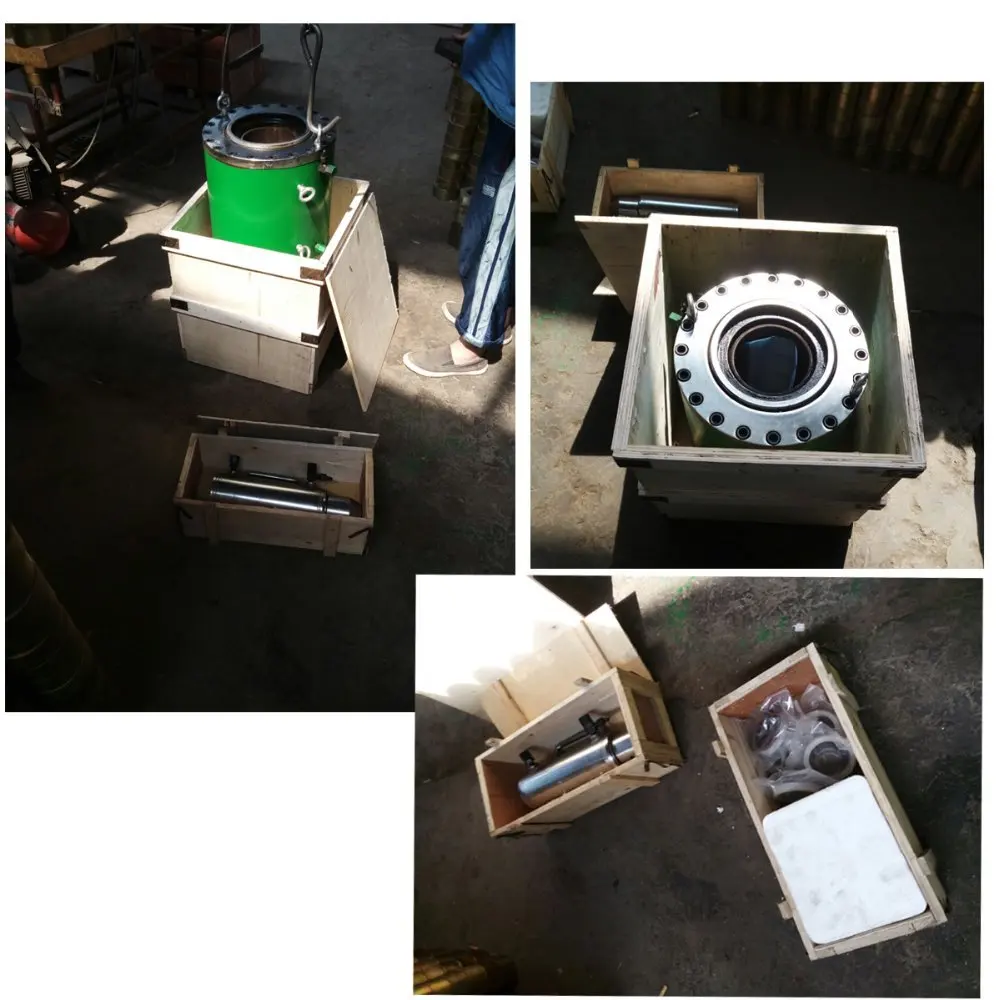

Capacity (Load): | >50T; | Packaging Detail: | 250 tons tension jack: On basis of standard, such as PLY wooden case , or according to your requirement.; |
Brand Name: | Leadcrete; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance; |
Cross core diameter: | 128mm; | Capacity (Load): | 250 tons; |
Applications: | mine, bridge, railway, highway, building, tunnel, slope strengthening; | Max stroke: | 200mm; |
Certification: | ISO CE; | Matched oil pump: | 50MPa oil pump(YBZ2x2-50A oil pump); |
Material: | alloy steel, casting iron, steel , plastic.; | Port: | Shanghai, Shenzhen, Qingdao, Tianjin; |
Supply Ability: | 3000 Set/Sets per Month 250 tons tension jack; | Model Number: | YDC; |
Specifications:

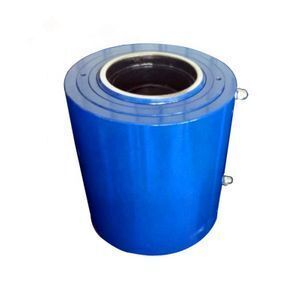

250 tons tension jack
1. Model: YDC2500
2. Capacity: 250 tons, Tension Journey: 200mm, Cross Core Diameter: 128mm, Tension Cylinnder Area: 484cm²,
3. Usage: To tension 10 and 11 holes anchor(ten and eleven numbers of pc strands), steel rabar.

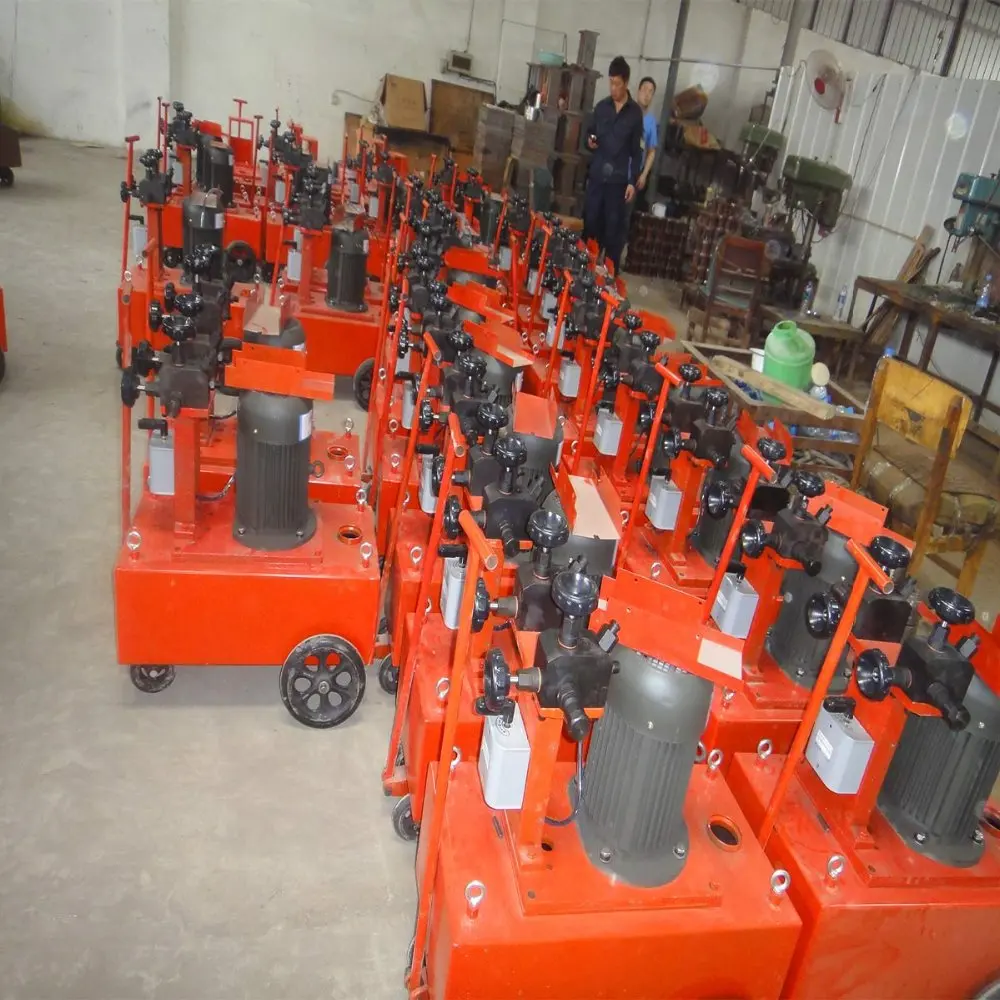

4. Matched Oil Pump: 50Mpa Electric Oil Pump
5. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .
6.Features: it can tension the followings PC Strand and Stel Rebar
A: It can tension standard pc strand diameter: 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B: It can tension non-standard pc strands diameter: 8.0mm, 9.52mmn, 10.8mm, 12.9mm. 17.8, 21.6, 21.8mm, ect.
C: It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
7. Professional services: 1x7 days 24 hours service online, and engineer can service oversea.
8. Our Advantages: We supply full complete set anchor system and equipment for construction, please see following:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire
B: Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.
C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.
D: Equipemnt: hydraulic jack, oil pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, vacuum pump, embosisng machine(bulding jack), extruding machine, ect.
E: Building materials: unbonded pc strand, bonded(bare) pc strand, metal ducts, plastic ducts, steel strip.

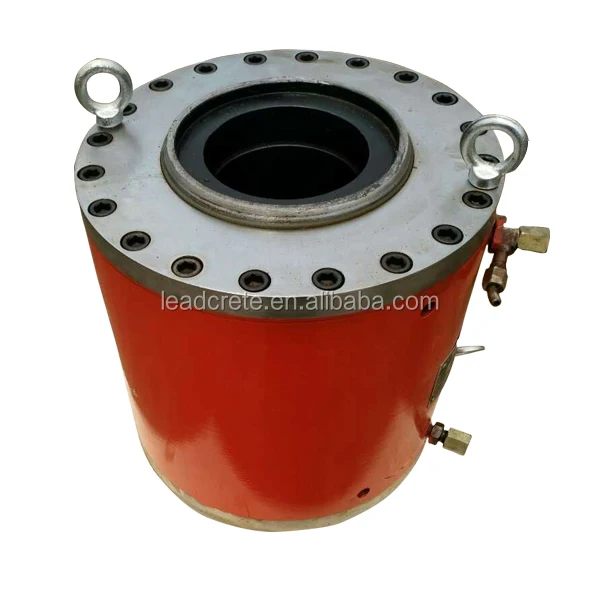

250 tons tension jack
Types of YDC | Tension Force | Pulling Stroke | operating oil pressure | Tensioning cylinder area | center hole diameter | Dimensions | E (mm) | D (mm) | K (mm) | L (mm) |
YDC650 | 650 | 200 | 50 | 13745 | Φ63.5 | Φ180×330 | 120 | 700 | 1350 | |
YDC1100 | 1100 | 200 | 60 | 20498 | Φ80 | Φ225×330 | 150 | 230 | 700 | 1350 |
YDC1500 | 1500 | 200 | 53 | 30222 | Φ94 | Φ270×330 | 170 | 280 | 780 | 1420 |
YDC2000 | 2000 | 200 | 59 | 39760 | Φ110 | Φ295×330 | 190 | 324 | 780 | 1490 |
YDC2500 | 2500 | 200 | 60 | 50579 | Φ122 | Φ325×330 | 200 | 360 | 780 | 1490 |
YDC3000 | 3000 | 200 | 50 | 60082 | Φ153 | Φ400×525 | 230 | 400 | 780 | 1500 |
YDC3500 | 3500 | 200 | 50 | 69331 | Φ157 | Φ420×525 | 240 | 420 | 780 | 1510 |
YDC4000 | 4000 | 200 | 52 | 79128 | Φ160 | Φ446×580 | 250 | 446 | 780 | 1510 |
YDC4500 | 4500 | 200 | 50 | 90981 | Φ180 | Φ480×600 | 270 | 480 | 800 | 1510 |
YDC5500 | 5500 | 200 | 50 | 113747 | Φ210 | Φ540×630 | 290 | 540 | 850 | 1570 |
YDC6500 | 6500 | 200 | 50 | 134706 | Φ240 | Φ580×680 | 310 | 580 | 850 | 1570 |
YDC8000 | 8000 | 200 | 50 | 159043 | Φ240 | Φ640×730 | 340 | 640 | 860 | 1580 |
YDC10000 | 10000 | 200 | 50 | 202318 | Φ280 | Φ720×850 | 380 | 720 | 870 | 1590 |
YDC12000 | 12000 | 200 | 50 | 231299 | Φ280 | Φ750×900 | 400 | 750 | 880 | 1600 |
Notice: The tension journey(stroke) and capacity(tons) of this type jack can be customized according to your requirement.

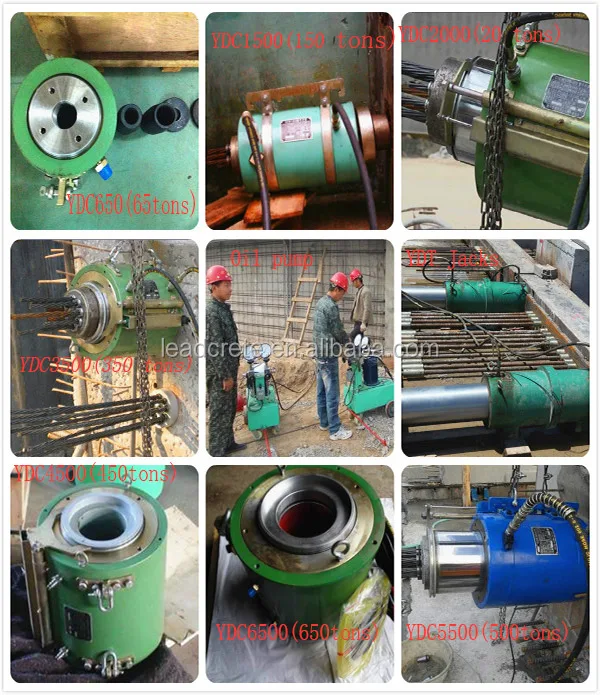

1. YDC series of jacks and its matached oil pump for construction

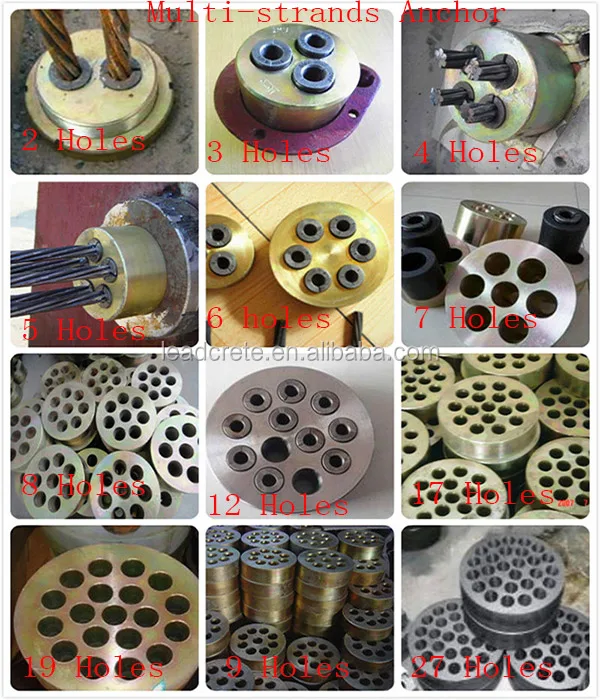

2. Mutistrands anchor system and equipment for bonded construction

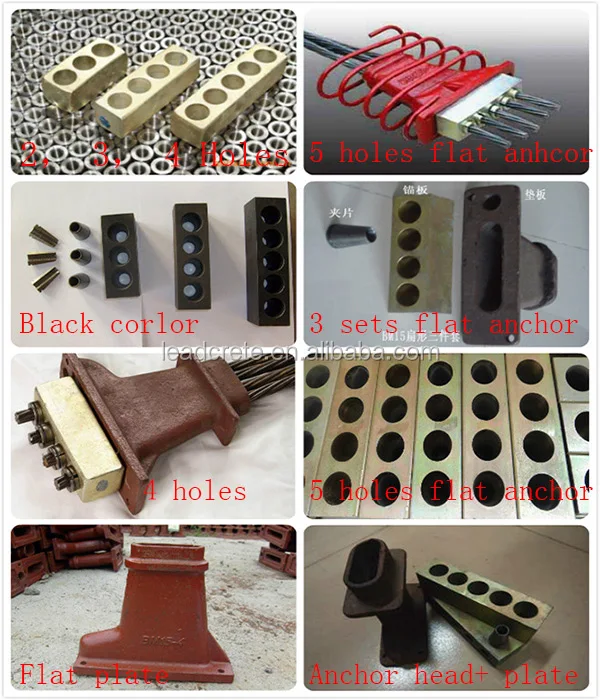

3. Flat anchor system for construction

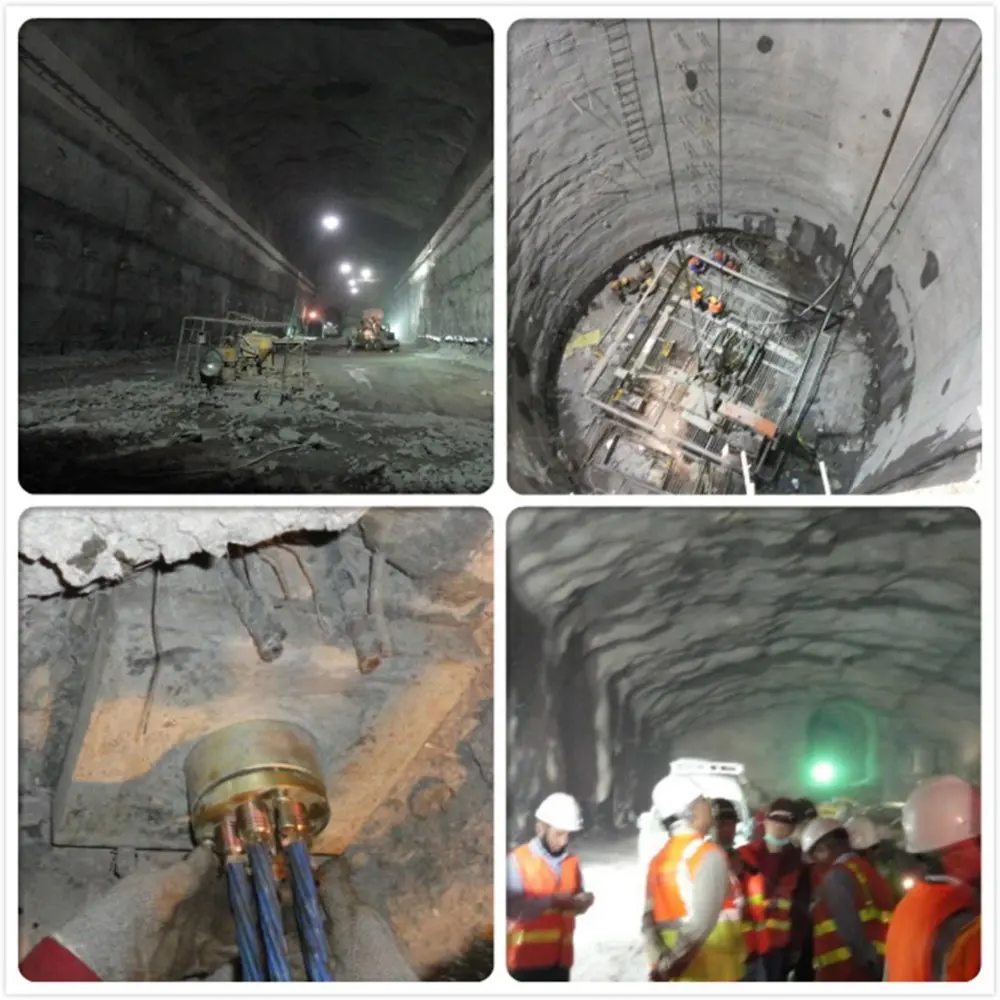

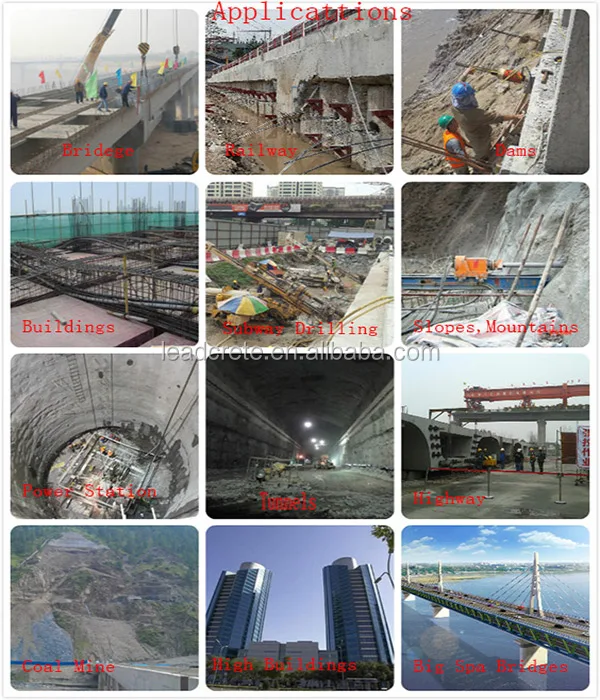

4. Applications:
