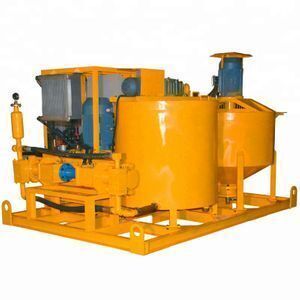

LGP500 700 100 PI-E dam construction lead chemical compact injection pump unit

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Power Type:Electric;
Mixer capacity:500L;Condition:New;
Agitator rated rev.:36rpm;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Dimension(L*W*H):2700*1750*1650mm;Warranty:12 months;
Suitable water cement ratio:more than 0.5:1;Place of Origin:Henan China (Mainland);
Certification:ISO;Brand Name:Leadcrete;
Pump pressure:0-5MPa;Mixer rated rev.:1450rpm;
Mixer output:7m3/h;Agitator capacity:700L;
Port:Shanghai port, qingdao port or others;Applicable Industries:Construction works ;
Supply Ability:500 Set/Sets per Year;Weight:1440kg;
Pump output:0-100L/min;Type:compact injection pump unit;
After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;Packaging Detail:Nude package. Will be shipped by using a 20GP container. 2sets/20GP container;

LGP500 700 100 PI-E dam construction lead chemical compact injection pump unit



Product Description



Description of compact injection pump unit

LGP500/700/100PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.



Sometimes, the transportation system is also included. Of course, silo and weighting system can be also added to ensure its semi-automatic version. All grout stations are easy to be transported and compact, making it highly efficient and easily maintained.



High-speed vortex mixer ensures mix quickly and evenly. Water, cement, and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is full hydraulic drive. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.





Features of compact injection pump unit



Grouting pressure, displacement is step-less adjustable

Simple structure, light weight, easy maintenance

Double grouting cylinder, continuous output with small pulse

Less spare parts ensure low maintenance costs

High-speed vortex mixer ensures mix quickly and evenly.

Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate

The motor has an overload protection function. Hydraulic system with oil temperature overheating protection

With CE, ISO certification





Technical data


Description

Data

Grout Station model

LGP500/700/100PI-E

Dimensions

2700*1750*1650mm

Weight

1440kg

Mixer

Capacity

500L

Output

7m3/h

Power

7.5Kw, 1450rpm,50Hz,380V

Rated Rev

1450rpm

W/C ratio

≥0.5:1

Agitator

Capacity

700L

Rated Rev.

36rpm

Power

1.5KW, 50Hz,380V

Pump

Output

0-100L/min

Pressure

0-5MPa

Power

15kw,50Hz,380V

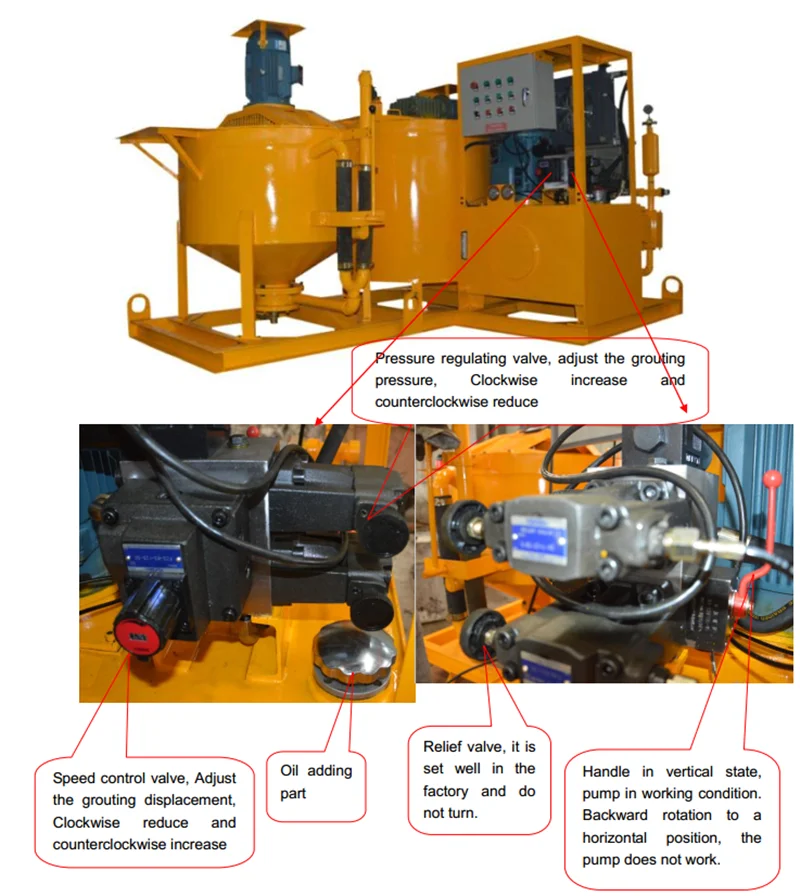

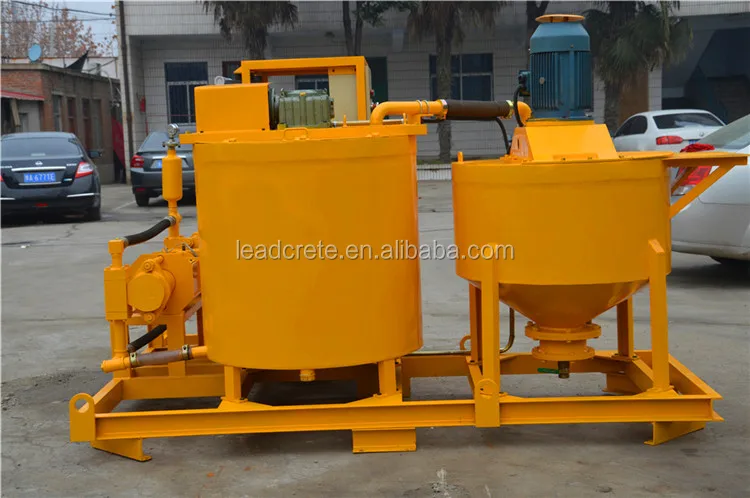

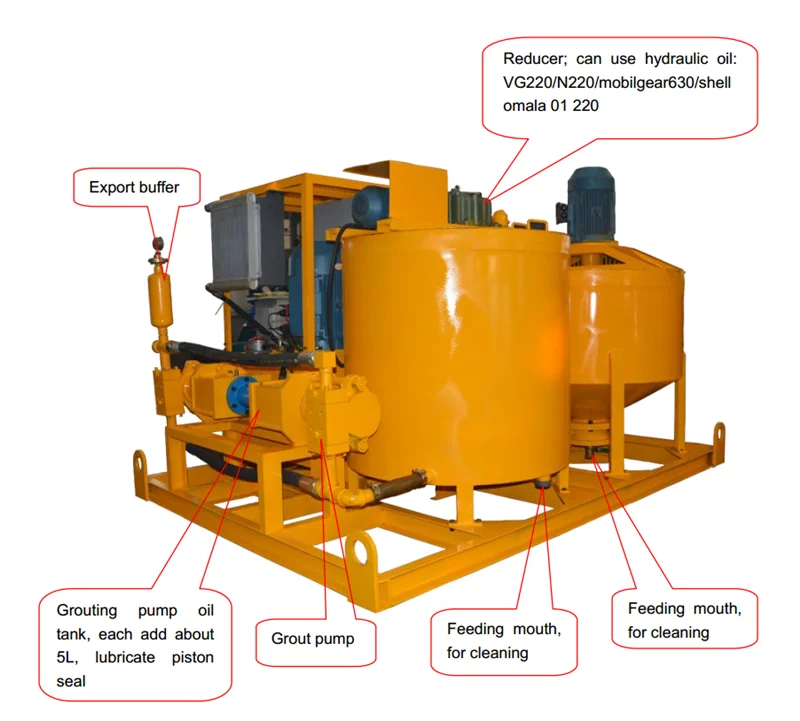

Detailed Images

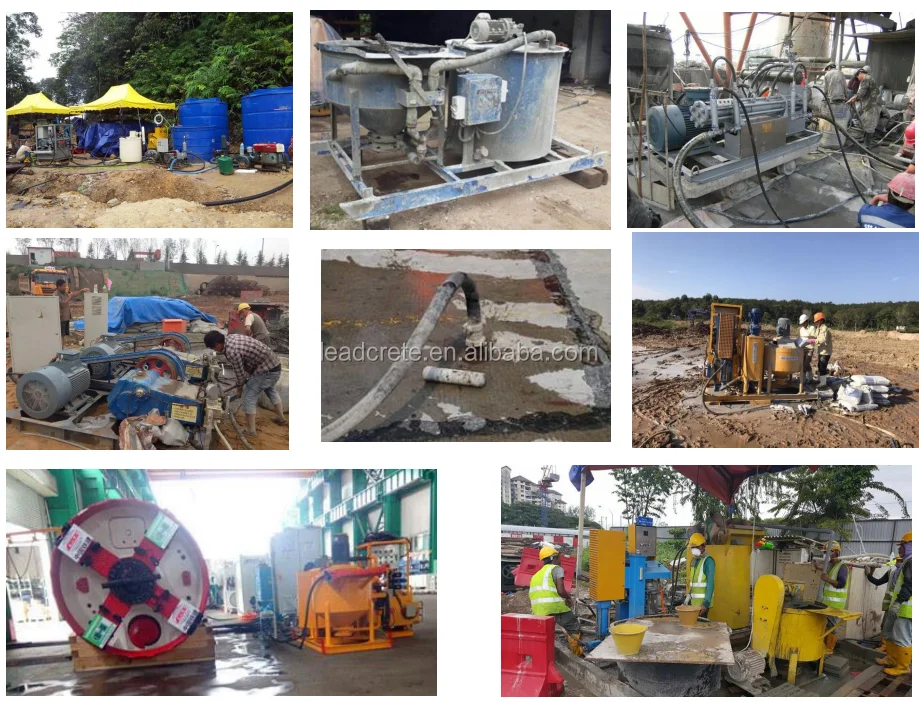

Application



Grout station is suitable for all grouting applications with cement and ultra-fine cement, bentonite suspensions for micro-tunneling, pipe jacking and directional drilling. Grout plants are ergonomic, space saving. Mixing and an agitating station can be also detached from the unit for individual use.



Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;

Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;

Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

Mine application - roadway reinforcement, backfill, waterproof grouting.









Related Products

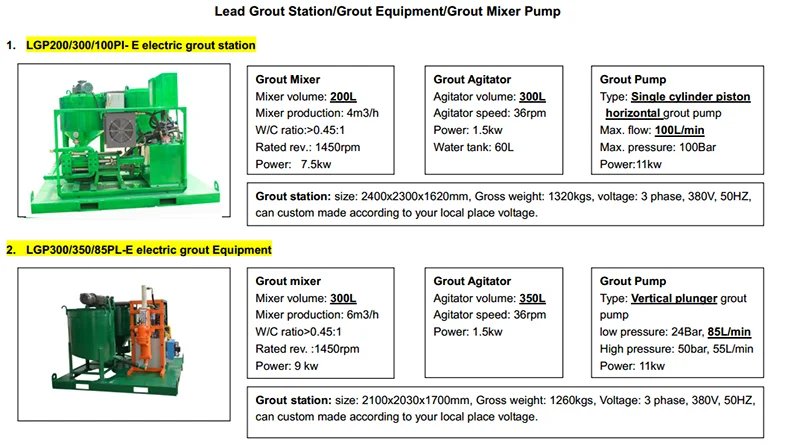

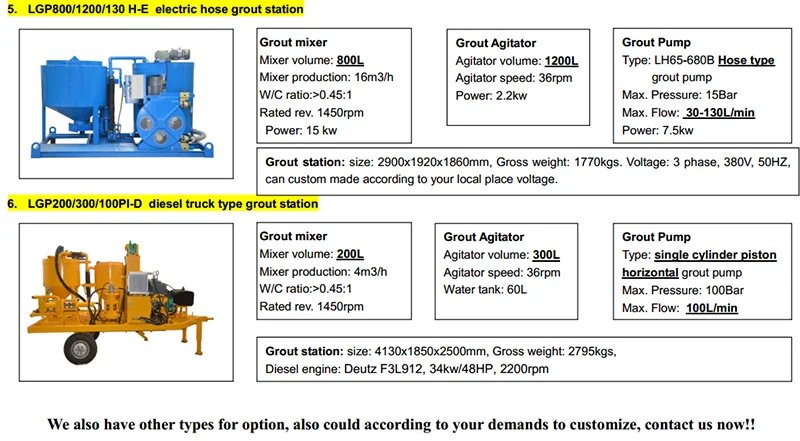

 We also can supply other cement grout injection pump plant, please click below photo for check:



grout equipment

grout station grout plant grout pump grout station







Certifications



FAQ



We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:

1. what project will you do with grouting equipment? for a dam, foundation treatment or micro-pile, etc?

2. what is the output and pressure of pump?

3. what is water cement ratio?

4. which engine do you prefer? the electric motor or diesel engine?

If you want to know more about our Latest technology, high quality, maximum reliability and long operational life grouting equipment, please feel free to contact me.
