BW250 powerful small three-cylinder mud pump drilling mud pump for sale

Supplier: Zhengzhou Lead Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Nancy Liu
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

maximum. flow:	250L/min	Marketing Type:	Hot Products of 2019
Packaging Details:	Plywood case or sell as your request BW250 Powerful Small Triplex Mud Pump Drilling Mud Pump	theory:	reciprocating pump
Core Components Warranty:	1 year	Suction pipe diameter:	76mm
Supply capacity:	Annual output of 500 sets of BW250 powerful small three-cylinder mud pump drilling mud pump	Video external inspection:	if
Core components:	Pump	Mechanical test report:	if
Applicable industries:	Manufacturing, Farms, Construction, Energy & Mining	application:	Suction pump
aspect:	100015501200mm	weight:	500kg
payment terms:	Letter of Credit, Western Union, T/T, MoneyGram, Trade Assurance	brand:	LEC
Discharge pipe diameter:	51mm	driving force:	Electric or diesel or hydraulic motor
product name:	BW250 powerful small three-cylinder mud pump drilling mud pump for sale	Warranty:	1 year
Showroom location:	not any	port:	Shanghai, Qingdao Port or as your request
maximum. pressure:	80 kg/cm²	Health status:	new

Product Description

The mud pump or drilling pump is an important piece of equipment for drilling operations, it is used to circulate the drilling fluid downhole and is often referred to as the heart of the drilling rig. BW250 Powerful Small Triplex Mud Pump Drilling mud pump is a horizontal, triplex, reciprocating triplex piston pump. It can be converted into different pressure and flow, the maximum pressure can reach 7Mpa.

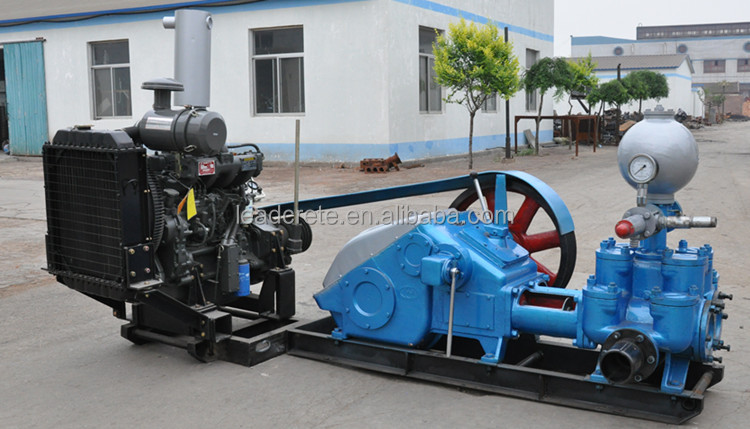

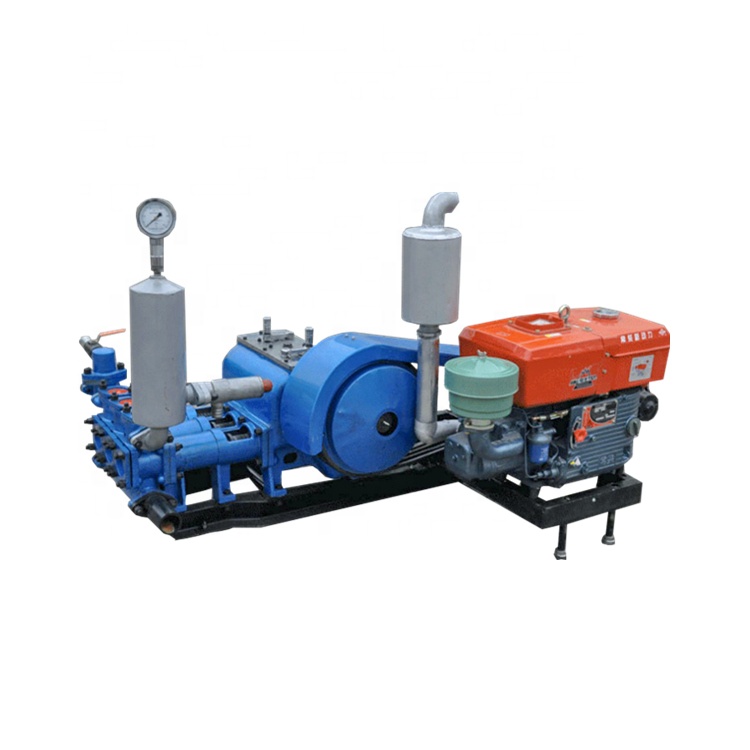

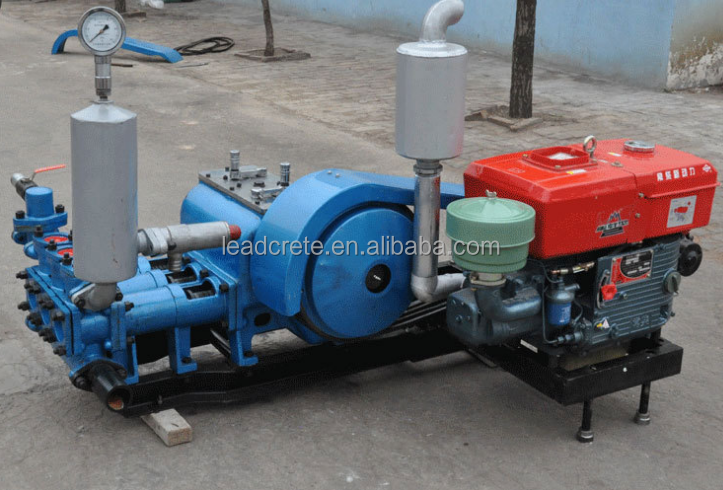

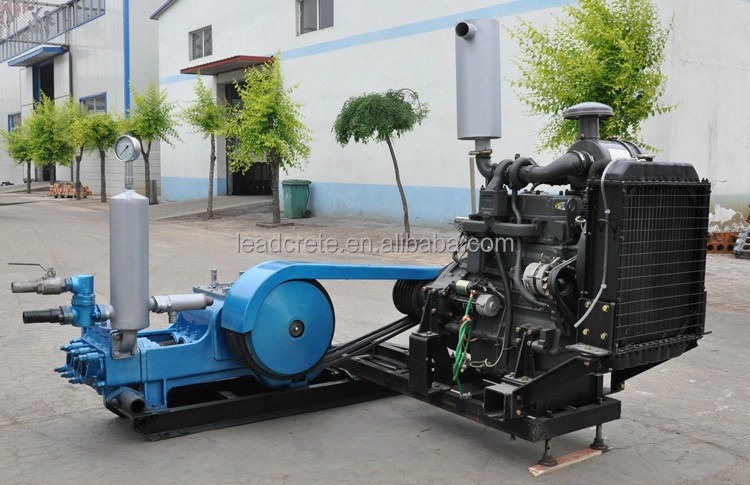

Diesel engines:

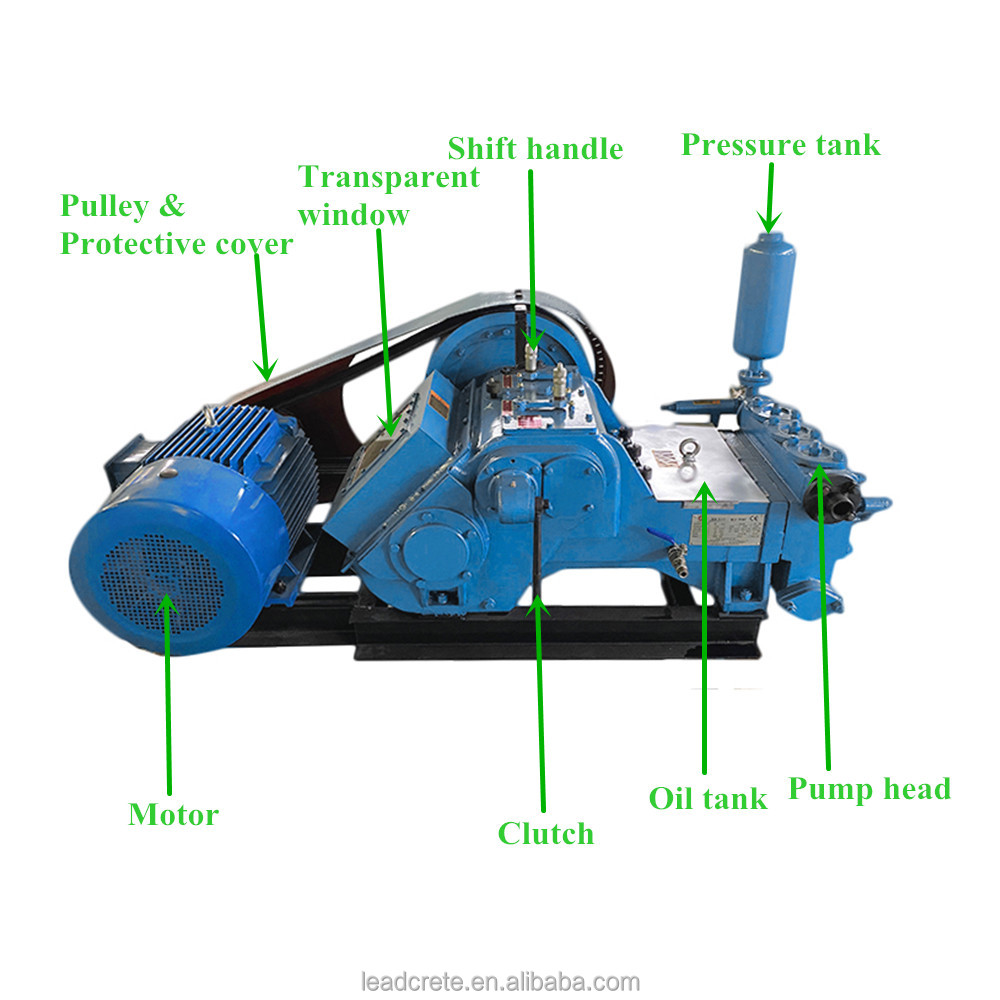

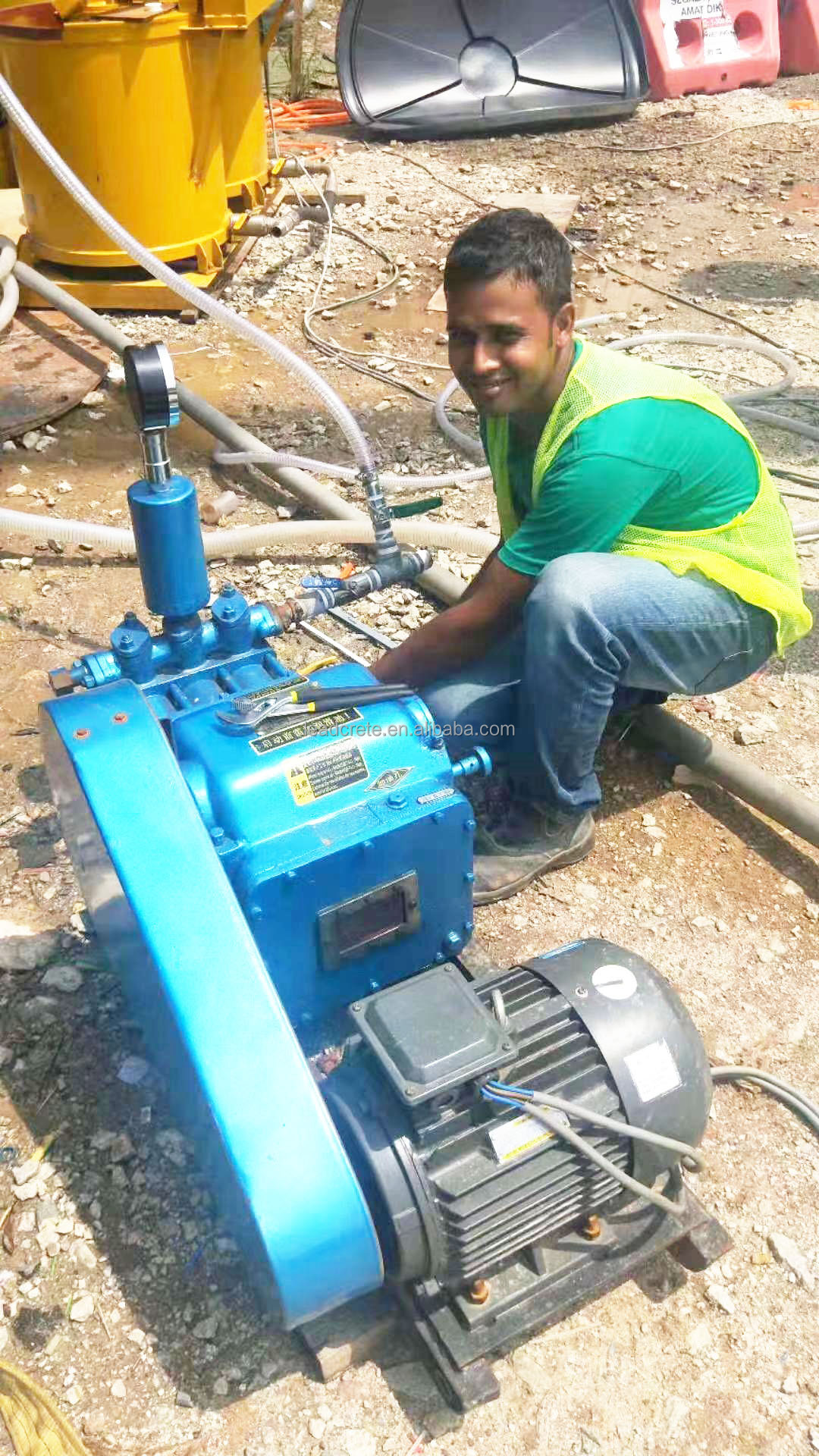

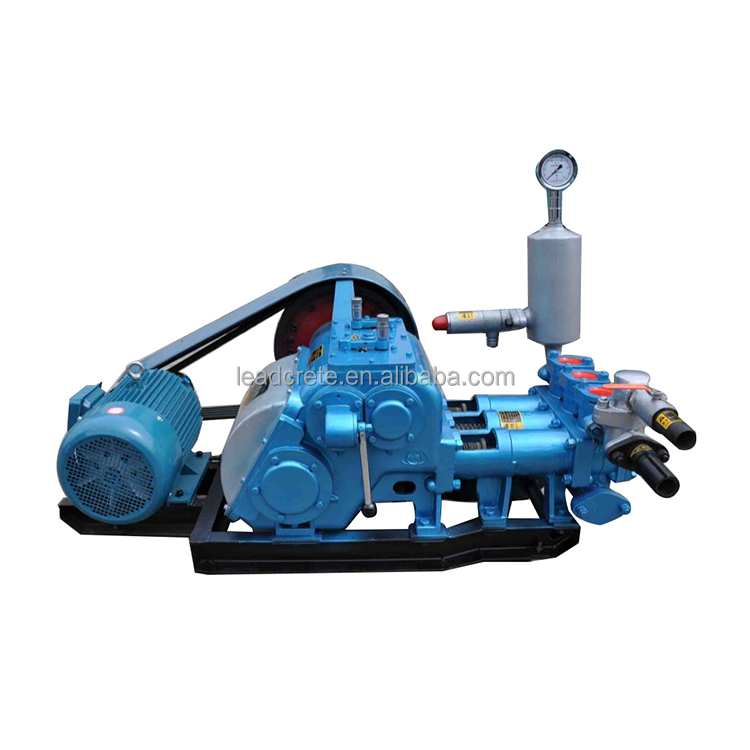

Electric engine:

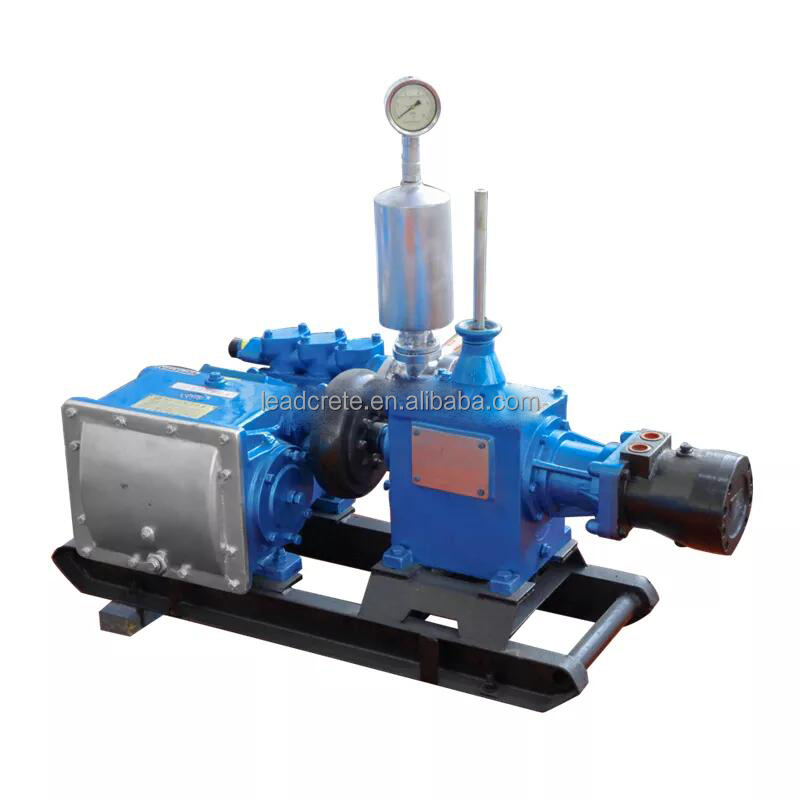

Hydraulic motor drive:

technical parameter

Model	BW250
Cylinder diameter (mm)	80
Stroke(mm)	100
Flow (L/min)	250	145	90	52
Pressure(Mpa)	2.5	4.5	6	6
Pump speed (times/min)	200	116	72	42
Inlet pipe diameter (mm)	76
Outlet diameter (mm)	51
Weight (kg)	650

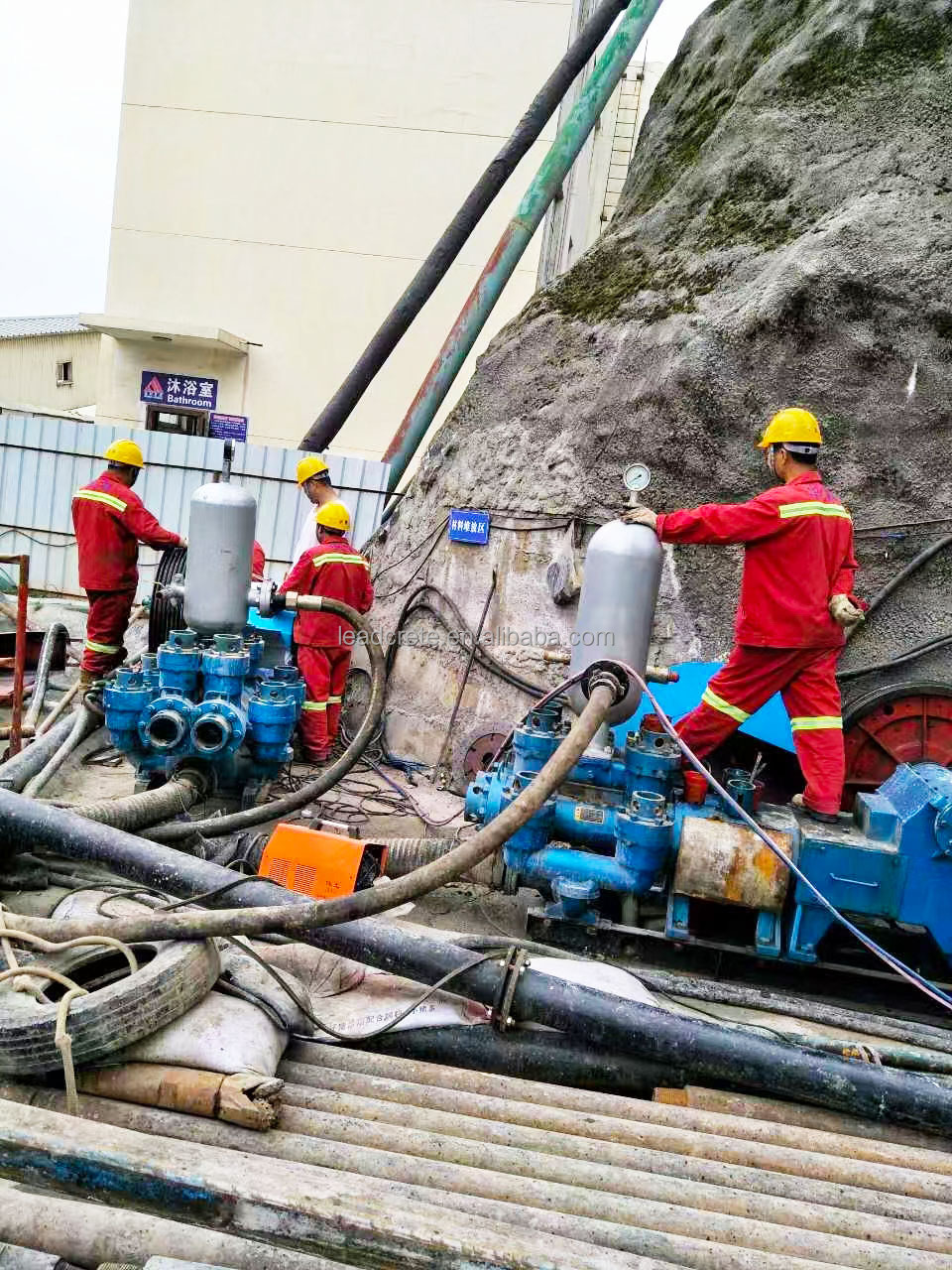

application

BW series mud pumps are widely used in mines, drilling, coal, railways, highways, water conservancy and hydropower, bridges and other wells, oil and gas wells to transport water, mud and other flushing fluids during drilling. It can also be used for high-rise buildings and foundation reinforcement projects.

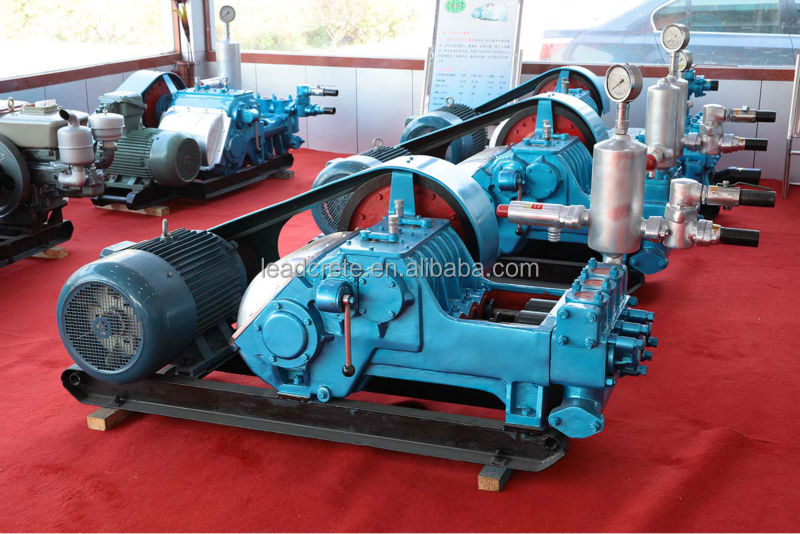

factory photo

Our company specializes in the manufacture and sales of mud pumps for more than 14 years, and the products are exported to Germany, UK, Australia, Poland, Singapore, Malaysia, Indonesia, Philippines, etc. We have a large factory for most models and we can deliver within a week.
