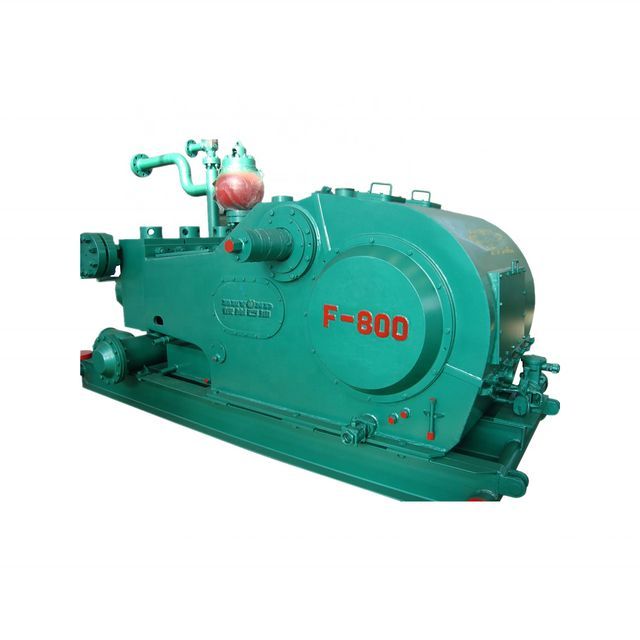

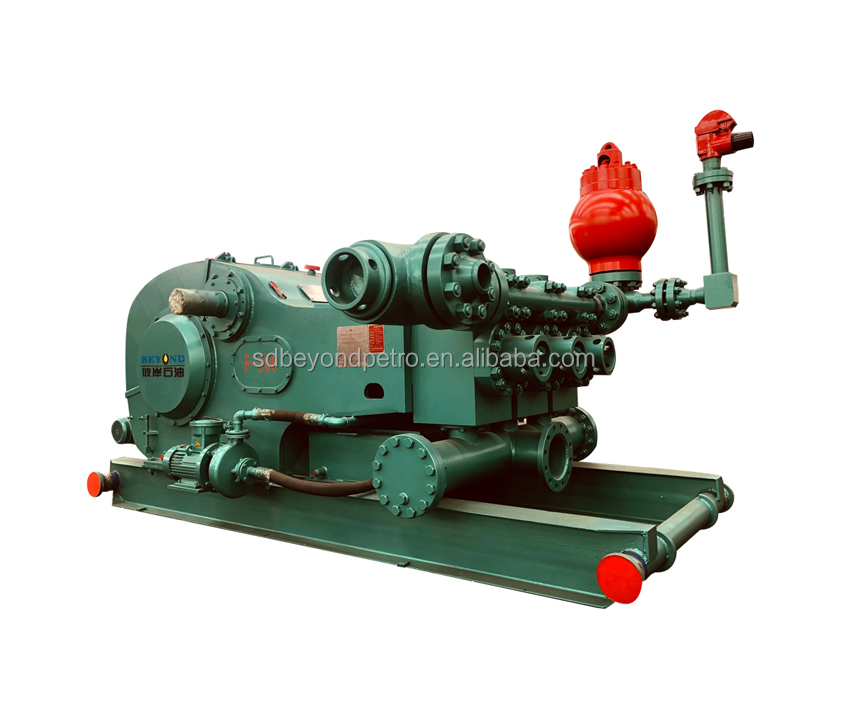

high flow F800 valve ideco hydraulic api three cylinder bomco price integrated piston mud pump for drilling rig

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $78000.00 / 1 - 2 sets
$62500.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Video outbound inspection:	if	Outlet Diameter (in):	5-1/8" Flange 5000psi
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	After-sales service provided:	On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support
Local service locations:	Egypt, United States, Russia, Argentina, South Africa, Kazakhstan	Dimensions length * width * height (mm):	396330252410
Packaging Details:	Bare/spare parts wooden box packaging	Trip Rating SPM:	150
brand:	Exceed	Applicable industries:	Energy and Mining
Mechanical test report:	if	Inlet Diameter (in/mm):	10 inches/254
About. Weight (kg):	14500	type:	triple single acting
product name:	Gardner Denver mud pump bushings	port:	Qingdao/Ningbo/Shanghai
Health status:	new	Supply capacity:	50 sets per month
Rated powerHP(kw):	800 (597)	maximum. Lining (in/mm):	6-3/4"/170
Core component warranty:	1 year	model:	F800
Stroke Length (in/mm):	9 inches/228.6	Showroom location:	Egypt, Argentina, South Africa, Kazakhstan
Warranty:	1 year	Package preview:
Core components:	Gearboxes, pumps, gears, bearings	Marketing Type:	normal product
MOQ:	1 set

hot product

Product Description

Our company's F series mud pumps are designed and manufactured in strict accordance with API 7K standards on the basis of Emsco F series mud pumps. All its spare parts are compatible with any other brand pump. Therefore, the pump is internationally easy to maintain.

Valve tank conforms to API # 6
Lubrication system: oil circulation pump device (electric, domestic), fresh water heat exchanger (oil cooling), magnetic oil filter, cartridge pressure gauge.

Pressure gauge 0-5000 PSI.

Pressure relief valve (JA-3 shear pin type) 1500-5000 PSI WP to AC tank.

Three interchangeable forged steel one-piece fluid ends. Threaded valve tank and cylinder heads.

Liner flushing system includes:
An independent pump is driven by a 3HP electric motor. (made in China)

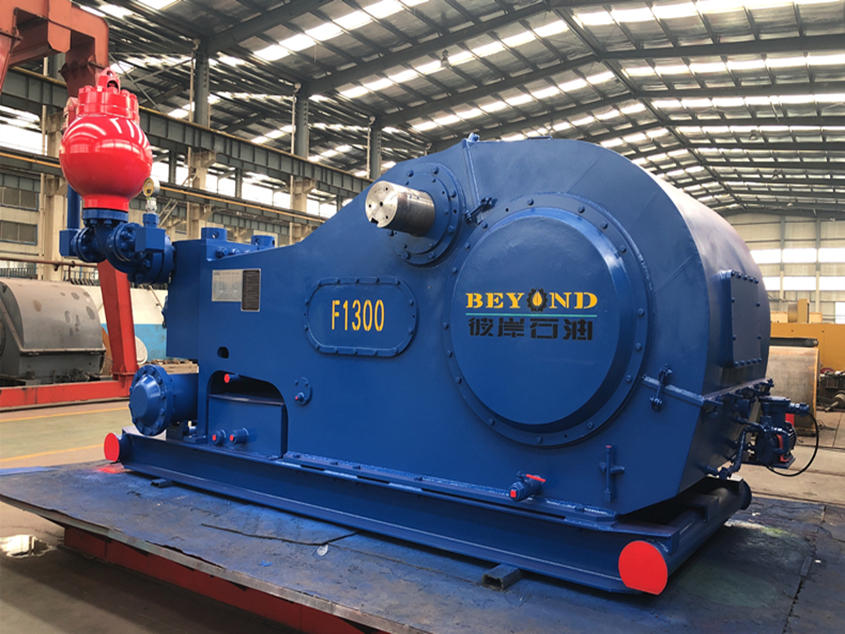

thing	F500	F800	F1000	F1300	F1600
Rated powerHP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Trip Rating SPM	165	150	140	120	120
Stroke Length (in/mm)	7.5”/190.5	9”/228.6	10”/254	12”/305	12”/305
gear ratio	4.286	4.185	4.207	4.206	4.206
Inlet Diameter (in/mm)	8”/203	10”/254	12”/305	12”/305	12”/305
outlet diameter (in)	4” flange 5000psi	5-1/8” flange 5000psi	5-1/8” flange 5000psi	5-1/8” flange 5000psi	5-1/8” flange 5000psi
valve	API5#	API6#	API6#	API7#	API7#
maximum. Lining (inch/mm)	6-3/4”/170	6-3/4”/170	6-3/4”/170	7”/180	7”/180
Dimensions length * width * height (mm)	36582709 2231	39633025 2410	42673167 2580	46173260 2600	46153276 2688
About. Weight (kg)	9770	14500	18790	24572
