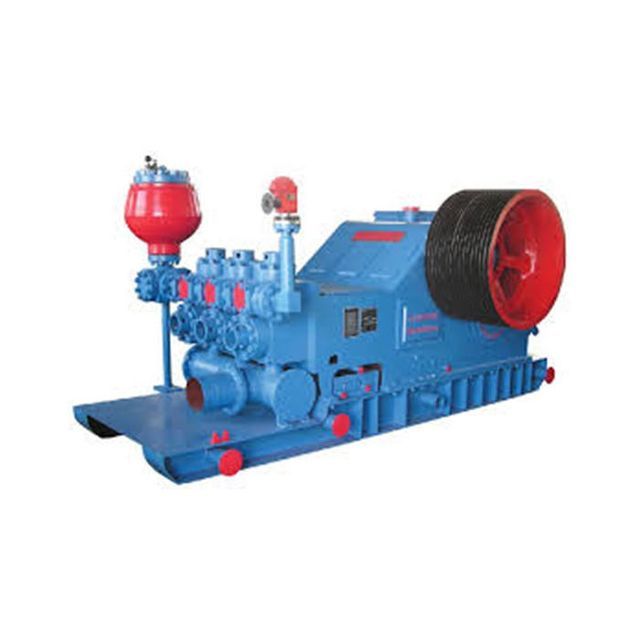

API Standard 3NB Series Oilfield Drilling Mud Pump

Supplier: Shandong Great Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Edison Young
Price: $80000.00 / 1 - 1 sets
$75000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

market:	Earth	usage:	mud pump
port:	Qingdao, Tianjin, Shanghai	type:	3NB series drilling rig mud pump
Local service locations:	not any	Advantage:	high performance
color:	as requested	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
After-sales service provided:	Video technical support, online support	Packaging Details:	Standard export packaging, fumigation-free plywood box
Warranty:	12 months, 1 year	standard:	application programming interface
Showroom location:	not any	Health status:	new
Package:	Plywood box (no fumigation)	MOQ:	1 set
application:	oilfield	Applicable industries:	Energy and Mining
delivery time:	within 30 days	Supply capacity:	5 sets per month

Product Description

The 3NB series three-cylinder mud pump is a popular piston pump with localized design and suitable for the local market. It is also strongly demanded by customers in Russia and the Commonwealth of Independent States.

Slurry pumps meet API specifications.

Pumps can be driven by AC/DC motors, chains and belts, up to drive systems available on different rigs.

Technical Parameters

Model	3NB350	3NB500	3NB600	3NB800	3NB1000	3NB1300	3NB1600	3NB2200
type	three floors	three floors	three floors	three floors	three floors	three floors	three floors	three floors
input power (kW/hp)	Chapter 257 350	Chapter 368 500	Chapter 441 600	Chapter 588 800	Chapter 735 1,000	Chapter 955 1,300	1,176 1,600	1,640 2,200
rated speed (Diploma)	130	120	135	130	125	120	120	105
Stroke (mm)	180	180	196	274	274	305	305	Chapter 356
Maximum Liner Diameter (mm)	160	170	180	180	180	190	190	230
suck Import (mm)	203	200	200	Chapter 254	Chapter 254	305	305	305
freed Import (mm)	76	83	101	101	101	101	101	130
gear ratio	4.483	4.696	4.696	3.482	3.482	3.657	3.657	3.152
maximum. pressure (MPa/pound/square inch)	31 4,495	35 5,075	35 5,075	34.5 5,000	35 5,075	35 5,075	35 5,075	35 5,075
transmission shaft speed	582.8	563.52	633.96	435.25	435.25	438.84	438.84	Chapter 369
