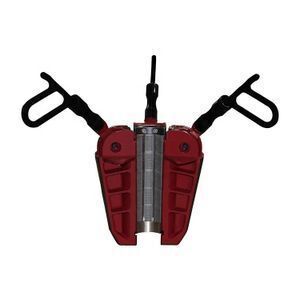

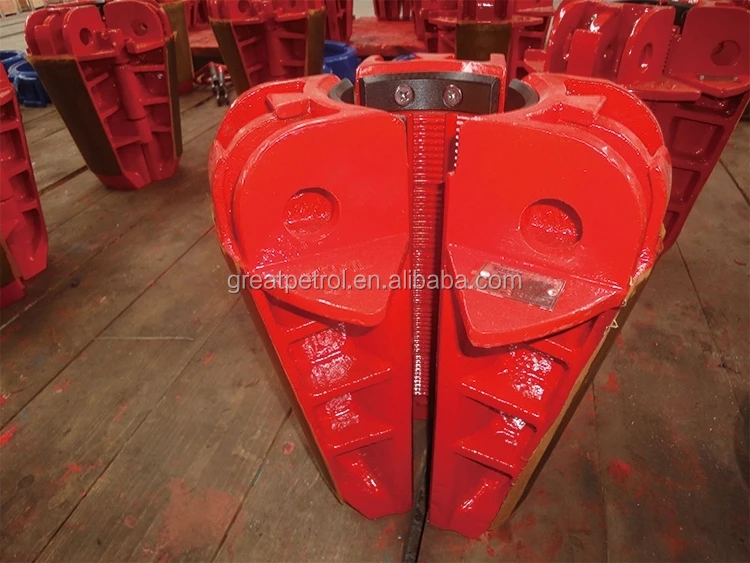

Type SD SDS SDML SDXL Rotary Slips for Oilfield

Supplier: Shandong Great Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Edison Young
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	T/T,Western Union;	Place of Origin:	China;
Port:	Chinese mian port;	Product name:	Type SD SDS SDML SDXL Rotary Slips for Oilfield;
Supply Ability:	1000 Set/Sets per Year;	Certificate:	API 8C;
Material:	Carbon Steel;	Model Number:	SD,SDS,SDML;
Min order:	1set;	Packaging Detail:	Export standard packing;
Warranty:	One Year;	Suitable for:	3 1/2''-5 1/2'';
Colour:	Red;	Type:	Drill Pipe Slip;

Product Description

Rotary slips can accommodate drill pipe from 2 3/8 -7in (60.3-177.8mm)O.D. They are classified as type Ultra-short (SDS-S), short (SDS), Medium(SDML) and Extra Long(SDXL) according to gripping length. SDS-S slips and SDS slips are designed for shallow drilling, SDML slips are the perfect choice for all medium depth drilling, SDXL slips are designed for deep drilling.

MODEL	Slips Body Size(in)		3 1/2			4 1/2
SDS	Pipe size	in	2 3/8	2 7/8	3 1/2	3 1/2	4	4 1/2
	Pipe size	mm	60.3	73.0	88.9	88.9 101.6	101.6	114.3
	weight	kg	53.1	50.3	48.5	64.9	61.7	57.6
	weight	lb	117	111	107	143	136	127
SDML	Pipe size	in	2 3/8	2 7/8	3 1/2	3 1/2	4	4 1/2
	Pipe size	mm	60.3	73.0	88.9	88.9	101.6	114.3
	weight	Kg	87.5	85.3	81.6	94	90.3	85.3
	weight	lb	193	188	180	207	199	188
SDXL	Pipe size	in	-	-	-	3 1/2	4	4 1/2
	Pipe size	mm	-	-	-	88.9	101.6	114.3
	weight	in	-	-	-	103.9	99.3	93
	weight	mm	-	-	-	229	219	205
