UC-3 Type Varco Oilfield Casing Skids

Supplier: Dongying Robust Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Leila Yang
Price: $200.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Warranty:	1 year	model:	UC-3 casing slips
Applicable industries:	Energy and Mining	Showroom location:	UK, Russia
Supply capacity:	10000 pieces per month	Origin:	Shandong China
port:	Qingdao port or Shanghai port	brand:	strong
Package:	standard packaging	Package preview:
Health status:	new	type:	security sheet
After warranty service:	Video Technical Support	Packaging Details:	1. Packaged wooden box, also can be packaged according to customer requirements. 2. By sea, by air or by land, of course, a small amount can also be delivered by express.
Local service location:	UK, Russia	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

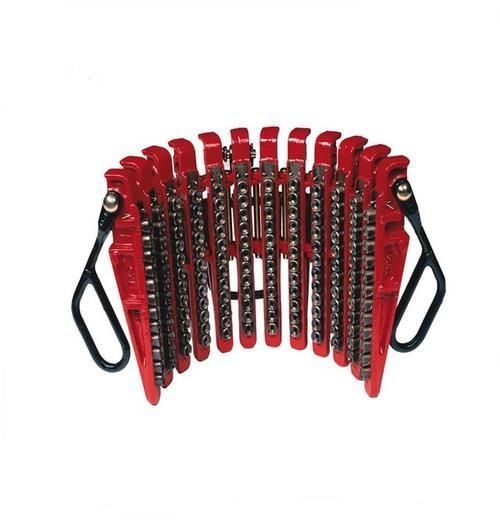

Oilfield varco type UC-3 casing slips

Product Description

describe:

Style CMS casing slips accommodate casing sizes from 4.1/2 to 30 inches (114.3 to 762 mm). They are designed and manufactured according to API Spec 7K.

CMS-XL slips are made of castings, reinforced to withstand severe service conditions. Self-centering full-wrap clamp prevents damage to the case. With some simple adjustments, the CMS-XL can accommodate casings from 6-5/8" to 42" OD and 4" taper.

Casing slips (varco style) are full wrap around slips for heavy duty, they use button inserts for maximum grip and come in sizes 6.5/8" - 30" casing.

The weight and relatively thin walls of most casing strings make it important for the support slips to provide full circumference grip. The UC-3 slips achieve this with many narrow sections. They hinge together to wrap around the shell and apply more even pressure. With each segment carrying the same load, they automatically center the casing string within the casing or star. UC-3 has a 3 inch taper. It will handle strings from 16″ OD to 42″ OD with varying number of sections and liners. The liner is held in place by a liner retention key and cotter pin.

technology:

Casing outer diameter	exist	4¹/₂-5	5¹/₂-6	6⁵/₈	7	7⁵/₈	8⁵/₈	9⁵/₈	10³/₄
	mm	114.3-127	139.7-152.4	168.3	177.8	193.7	219.1	244.5	273.1
weight	Kilogram	76	71	89	83.5	75	82	87	95
	pound	168	157	196	184	166	181	192	209
total number of segments		9	9	12	12	12	13	14	15
for inserting bowl number		API or No.3						number 2

Packaging and Shipping

Package:
Wooden case is the most popular export packaging, we also accept special packaging requirements before shipment or production. For example, a carton design with your company name on it.

deliver goods:
Usually we have enough stock for normal size, so lead time is 2-3 working days, we need this time for painting and packing. If we have no stock or insufficient stock, we will need 7-15 working days to produce according to your request.

our service

our service:

1. We have a 24-hour response system to provide convenient, fast and effective pre-sales, sales and after-sales services.

2. Our commitment: For any equipment sold by Dongying Robust anywhere in the world, we will provide after-sales service in a timely and efficient manner. For any equipment parts damaged due to manufacturing defects or quality problems during the warranty period, Dongying Robust will bear the direct cost of the damaged parts.

3. Warranty period: 18 months from the date the unit leaves the factory or 12 months from the date the unit is put into use (whichever comes first).
