Maximum lift: | 120 meters | payment terms: | L/C, Western Union, D/P, D/A, T/T |
Packaging Details: | Crate | product name: | screw pump |
Marketing Type: | 2019 Hot Products | Shift: | 350 cubic meters / hour |
type: | screw pump | Outer diameter: | 6.5/8" |
Showroom location: | Egypt, Canada, Italy, France, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan, None | Applicable power supply: | 350V/50HZ |
Motor Power: | 45KW | Core component warranty: | 1 year |
pressure: | 1.2 MPa | Warranty: | 1.5 years |
Package preview: | brand: | strong | |
model: | G35-2 | Core components: | rotor, screw rotor |
Applicable industries: | Construction Engineering, Energy and Mining | MOQ: | 1 set |
Video shipment inspection: | if | color: | blue |
Health status: | new | port: | Qingdao, Tianjin, Shanghai |
Supply capacity: | 2000 pieces per month | Mechanical test report: | if |
After-sales service provided: | online support |

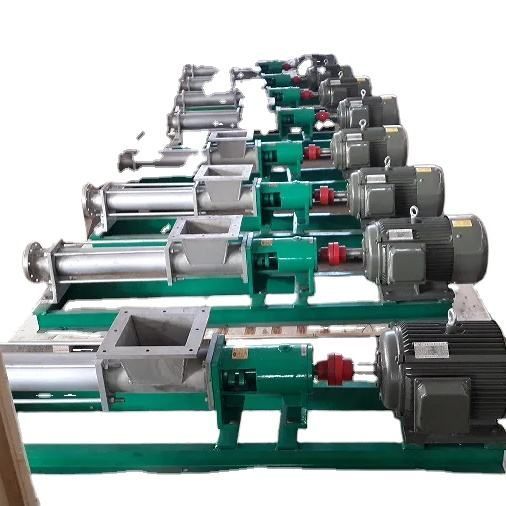

What is a screw pump?
A progressive cavity pump is a positive displacement pump that uses one or more screws to move fluids or solids along the screw axis. It is a single screw rotating in a cylindrical cavity, so that the material moves along the main axis of the screw.
A progressive cavity pump is a positive displacement pump that uses one or more screws to move fluid or solid material along the screw axis. There are single-screw pumps, twin-screw pumps, three-screw pumps, and five-screw pumps. For the drilling mud process, we use progressive cavity pumps to transport the drilling fluid from desilter tanks or centrifuge tanks to decanter centrifuges
The screw pump rotates and conveys the drilling fluid through the screw conveyor. The central screw is positive, and the screw conveyors on both sides are negative. The direction of rotation of the negative pole is opposite to that of the positive pole.
In fact, when the screw conveyor rotates, the lower V-chamber becomes larger. The V chamber will close to prevent fluid from being aspirated. Closed rooms will advance along the axis. A new suction chamber is then created at the suction end. As the closed cavities move forward, the fluid is forced out.
Compared with other pumps, screw conveyors are less prone to eddy currents. This goes a long way in maintaining pump capacity. It is not sensitive to viscosity and can transport high viscosity materials.
Features of our screw pumps:
The speed is stable.
Pressure pulsations are smaller.
Self-priming function.
low noise.
high efficiency.
Long service life and reliable performance.
High-quality S.S304~316L and carbon steel materials are optional.
How to choose a screw pump?
Confirm which part or function you need the slurry pump to achieve?
Determine the traffic we need
wet end material. Carbon steel, S.S304 or S.S316L?
If further customization of the screw pump is required
Model |
speed(rpm) |
Capacity (m3/h) |
Pressure (Mpa) |
Head (m) |
Motor (KW) |
Outlet flange(mm) |
Allowable solid diameter (mm) |
Fiber length (mm) |
G35-2 |
960 |
8 |
1.2 |
120 |
4 |
50 |
3 |
40 |
G40-1 |
12 |
0.6 |
60 |
4 |
65 |
3.8 |
45 |
|
G50-1 |
20 |
0.6 |
60 |
5.5 |
80 |
5 |
50 |
|
G60-2 |
30 |
1.2 |
120 |
15 |
100 |
6 |
60 |
|
G70-1 |
720 |
45 |
0.6 |
60 |
11 |
125 |
8 |
70 |
G85-2 |
65 |
1.2 |
120 |
18.5 |
150 |
10 |
80 |
|
G105-1 |
145 |
0.6 |
60 |
twenty two |
200 |
15 |
110 |
|
G135-2 |
350 |
1.2 |
120 |
45 |
250 |
20 |
150 |
After-sales service:
Operation training: Free service for the first commissioning, training for customer engineers until the system runs in the best state, and the engineers can operate and maintain.
technical support:24-hour free telephone service, 12-hour online consultation, after receiving the user's technical support needs or fault reports, call back as soon as possible to guide the user to solve the problem.
Remote network support:Online technical support is provided through the company website and email.
Customer concern:During the trial operation of the equipment, the engineer will regularly return to the customer to check the operation of the equipment and provide suggestions for equipment maintenance.
Supervision service management:If you are not satisfied with our engineer, please feedback to the headquarters, we will arrange another engineer to solve the problem as soon as possible.
