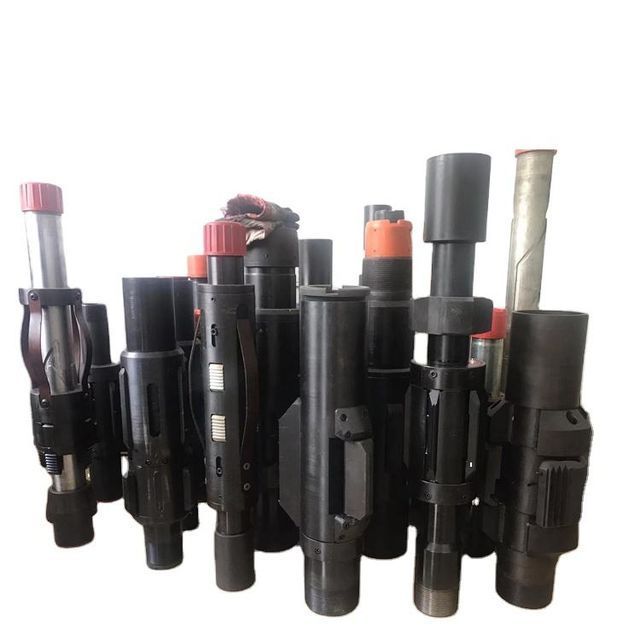

Oil well downhole tools screw pump torque anchor for tubing

Supplier: Dongying Robust Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Leila Yang
Price: $400.00 /set
Min. Order: 1 set

Click here to contact

Product details

After warranty service:	online support	product name:	torque anchor
type:	cam lock	thread type:	European Union
brand:	strong	Packaging Details:	Standard export wooden box
Health status:	new	Core component warranty:	1 year
Local service location:	Philippines, Indonesia, Mexico, Australia, Uzbekistan	Package preview:
Showroom location:	Philippines, Kazakhstan, Uzbekistan, Australia	Marketing Type:	normal product
Core components:	blade	Applicable industries:	Energy and Mining
port:	Qingdao	Warranty:	1 year
Video shipment inspection:	if	model:	6 5/8 inches
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Mechanical test report:	if
Supply capacity:	10000 sets per month	size:	6 5/8''

Product Description

Progressive cavity pump torque anchor

screw pumptorque anchorUse separate slide and resistance blocks to eliminate premature slide wear during installation.

The drag block centers the tool and provides frictional interference to deploy the slips when torque is applied.

Chassis Dimensions (inches)	Torque anchor outer diameter (mm)	Torque anchor inner diameter (mm)	connection (inch)
5-1/2”	112.8	62.0	2-7/8 EU
6-5/8”	138.4	62.0	2-7/8 EU
7"	148.1	62.0	2-7/8 EU
9-5/8”	215.9	76.0	3-1/2 EU

Packaging and Shipping

our service

1. We have a 24-hour response system to provide convenient, fast and effective pre-sales, sales and after-sales services.

2. Our commitment: we will provide timely and efficient after-sales service for any equipment sold by Dongying Robust anywhere in the world. For any equipment parts damaged due to manufacturing defects or quality problems during the warranty period, Dongying Robust will bear the direct cost of the damaged parts.

3. Warranty period: 18 months from the date the unit leaves the factory or 12 months from the date the unit is put into use (whichever comes first).
