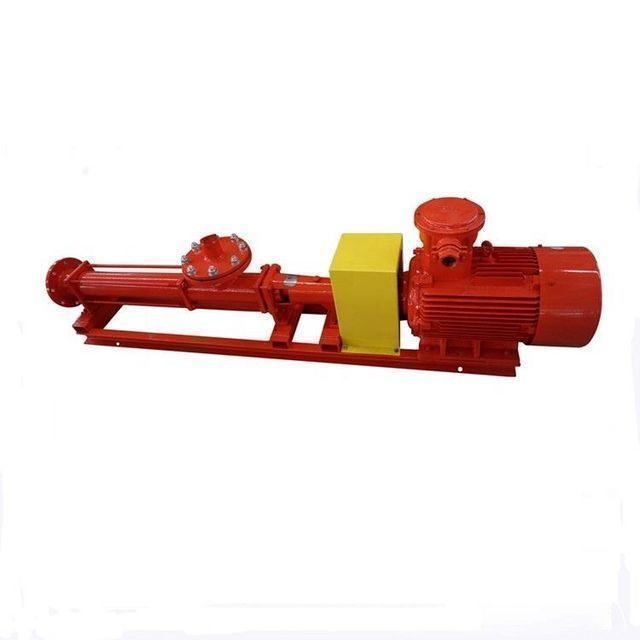

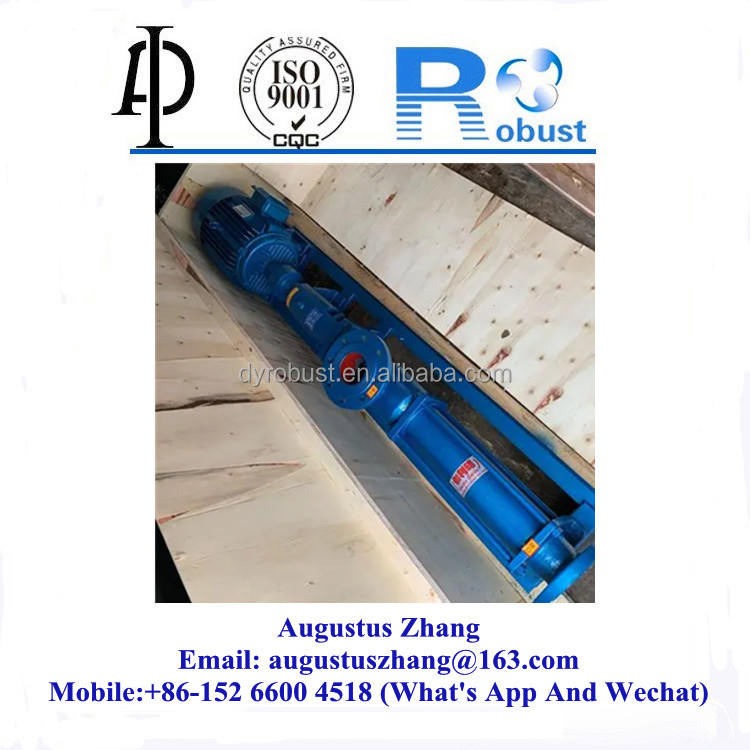

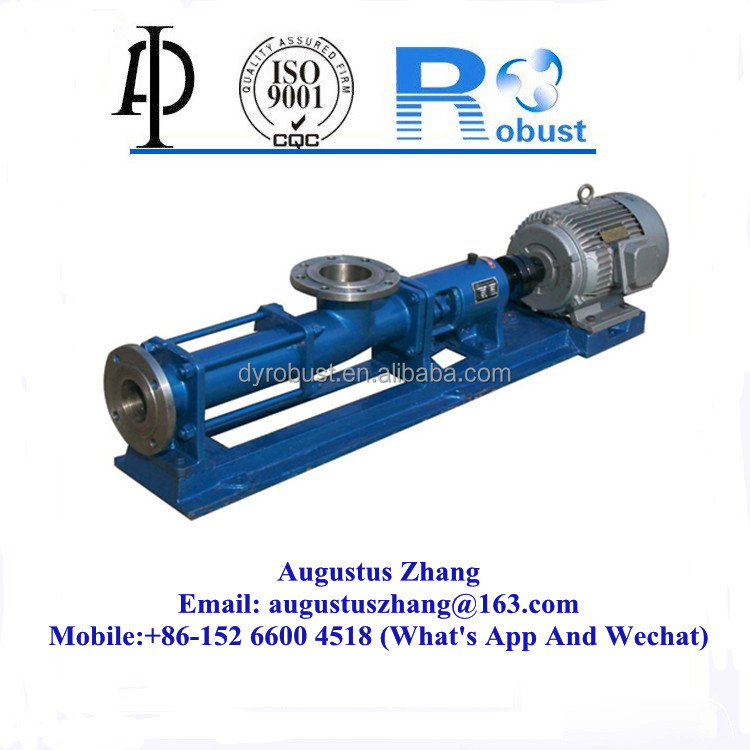

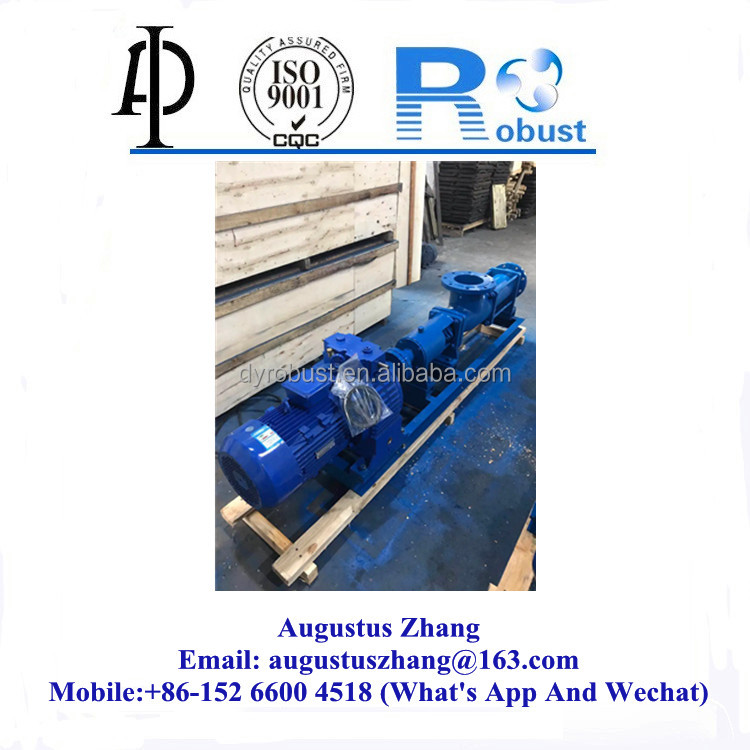

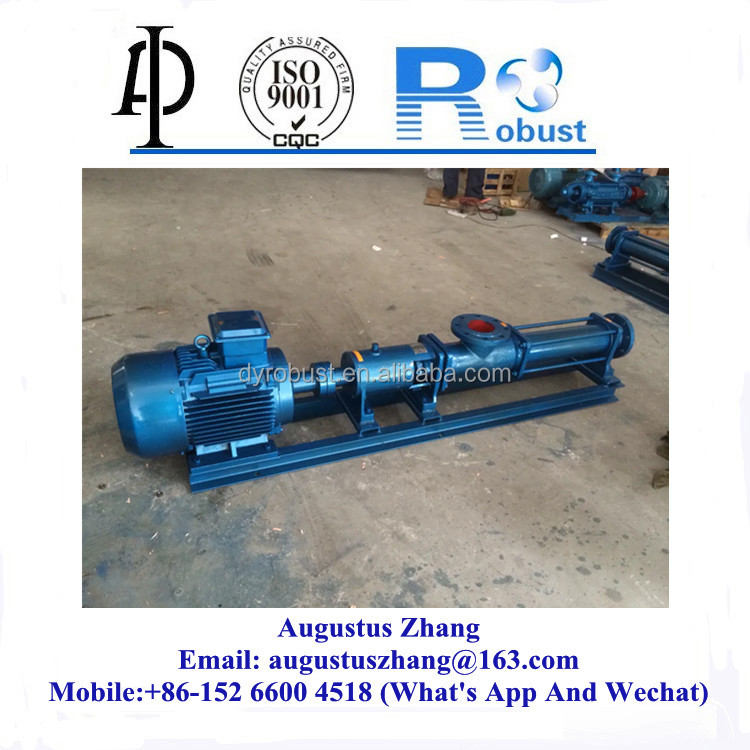

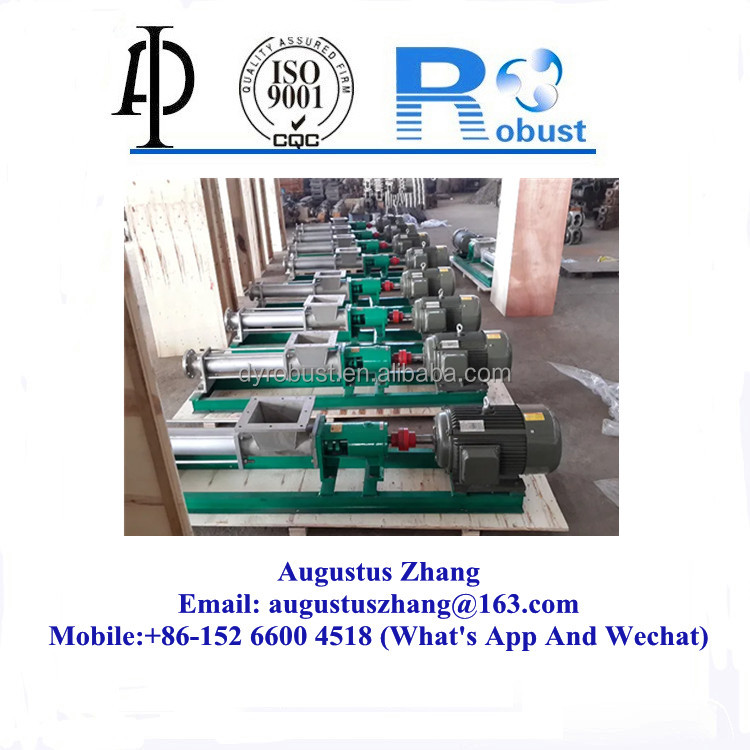

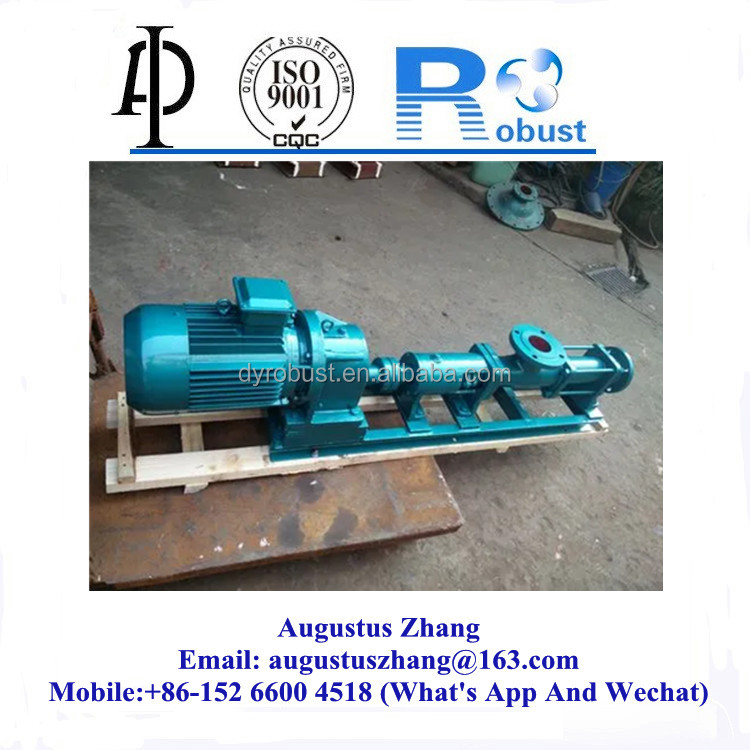

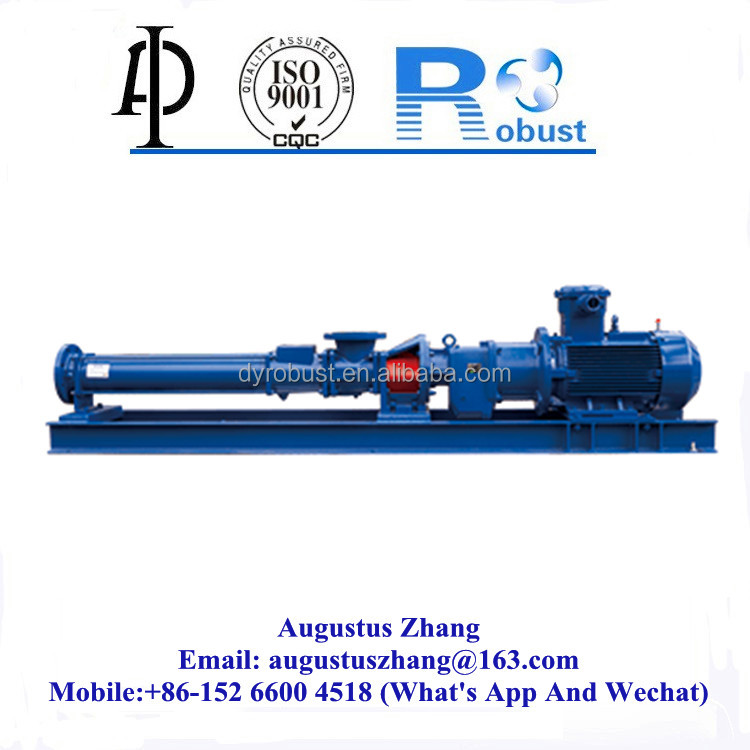

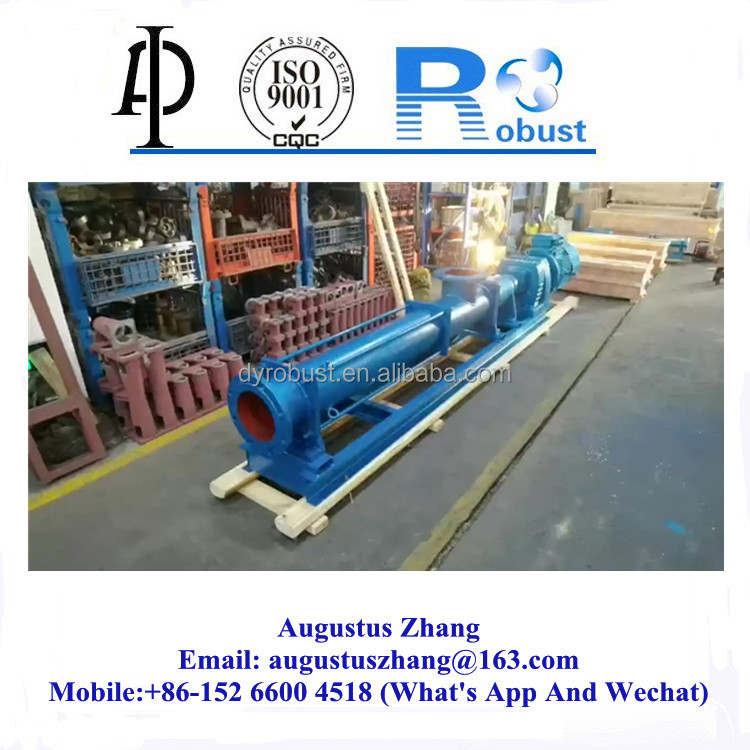

Screw pump mud screw pump screw rotor single screw oil slurry sludge pump

Supplier: Dongying Robust Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Leila Yang
Price: $350.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable industries:	Construction Engineering, Energy and Mining	payment terms:	L/C, Western Union, D/P, D/A, T/T
Package preview:		Warranty:	1.5 years
Core component warranty:	1 year	MOQ:	1 set
State of health:	new	Mechanical test report:	if
Packaging Details:	Crate	Motor Power:	45KW
model:	G35-2	Video shipment inspection:	if
Types of:	screw pump	Shift:	350 cubic meters / hour
Core components:	rotor, screw rotor	Supply capacity:	2000 pieces per month
After-sales service provided:	online support	port:	Qingdao, Tianjin, Shanghai
brand:	strong	Marketing Type:	2019 Hot Products
pressure:	1.2 MPa	Applicable power supply:	350V/50HZ
Showroom location:	Egypt, Canada, Italy, France, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan, None	product name:	screw pump
color:	blue	Maximum lift:	120 meters
Outer diameter:	6.5/8"

Screw pump mud screw pump screw rotor single screw oil slurry sludge pump
Electric stainless steel screw rotor stator pump made in China
Factory Price Industrial Stainless Steel Food Grade Vacuum Suction Single Screw Pump
Progressive cavity pump mini micro single screw helical stainless steel single screw pump for molas
G Sanitary High Viscosity Liquid Positive Displacement Rotary Screw Single Screw Pump with Hopper
Stainless Steel SS304 SS316L Sanitary Single Screw Pump with Fixed Speed Motor
High Viscosity Stainless Steel Single Screw Unit Pump/Positive Displacement Pump

Product Description

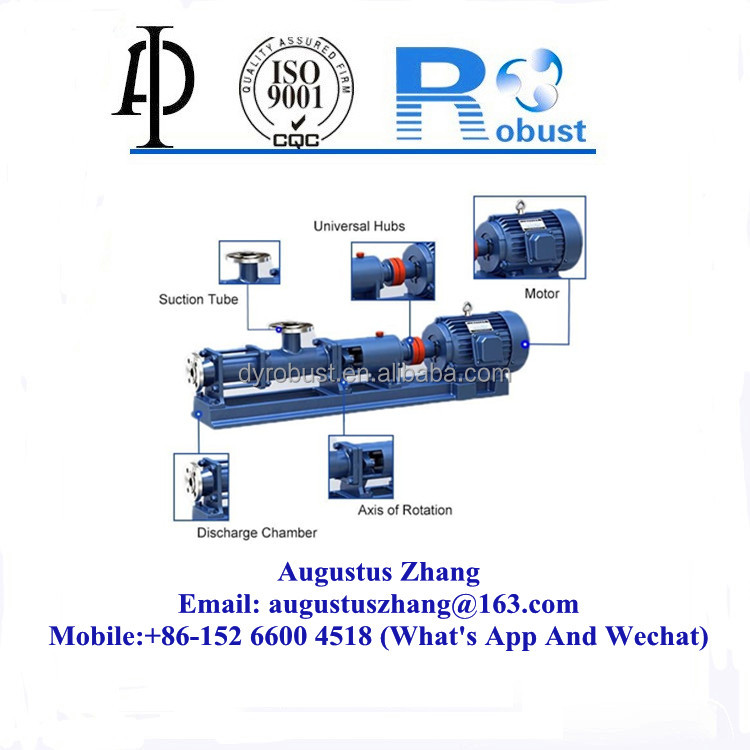

What is a screw pump?
A progressive cavity pump is a positive displacement pump that uses one or more screws to move fluids or solids along the screw axis. It is a single screw rotating in a cylindrical cavity, so that the material moves along the main axis of the screw.

A progressive cavity pump is a positive displacement pump that uses one or more screws to move fluid or solid material along the screw axis. There are single-screw pumps, twin-screw pumps, three-screw pumps, and five-screw pumps. For the drilling mud process, we use progressive cavity pumps to transport the drilling fluid from desilter tanks or centrifuge tanks to decanter centrifuges

The screw pump rotates and conveys the drilling fluid through the screw conveyor. The central screw is positive, and the screw conveyors on both sides are negative. The direction of rotation of the negative pole is opposite to that of the positive pole.

In fact, when the screw conveyor rotates, the lower V-chamber becomes larger. The V chamber will close to prevent fluid from being aspirated. Closed rooms will advance along the axis. A new suction chamber is then created at the suction end. As the closed cavities move forward, the fluid is forced out.

Compared with other pumps, screw conveyors are less prone to eddy currents. This goes a long way in maintaining pump capacity. It is not sensitive to viscosity and can transport high viscosity materials.

Features of our screw pumps:
The speed is stable.
Pressure pulsations are smaller.
Self-priming function.
low noise.
high efficiency.
Long service life and reliable performance.
High-quality S.S304~316L and carbon steel materials are optional.

How to choose a screw pump?
Confirm which part or function you need the slurry pump to achieve?
Determine the traffic we need
wet end material. Carbon steel, S.S304 or S.S316L?
If further customization of the screw pump is required

Screw pump technical parameters:

Model	speed(rpm)	Capacity (m3/h)	Pressure (Mpa)	Head (m)	Motor (KW)	Outlet flange(mm)	Allowable solid diameter (mm)	Fiber length (mm)
G35-2	960	8	1.2	120	4	50	3	40
G40-1		12	0.6	60	4	65	3.8	45
G50-1		20	0.6	60	5.5	80	5	50
G60-2		30	1.2	120	15	100	6	60
G70-1	720	45	0.6	60	11	125	8	70
G85-2		65	1.2	120	18.5	150	10	80
G105-1		145	0.6	60	twenty two	200	15	110
G135-2		350	1.2	120	45	250	20	150

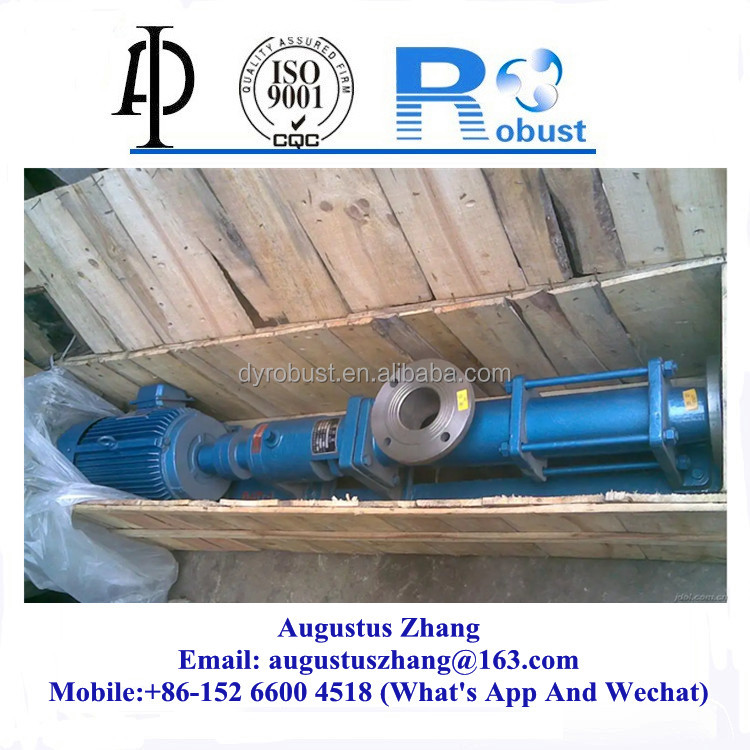

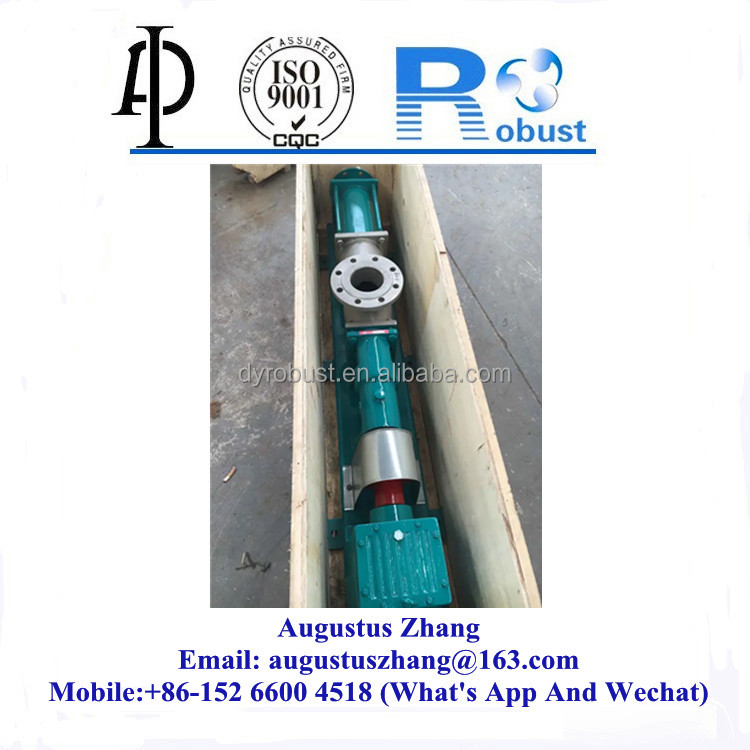

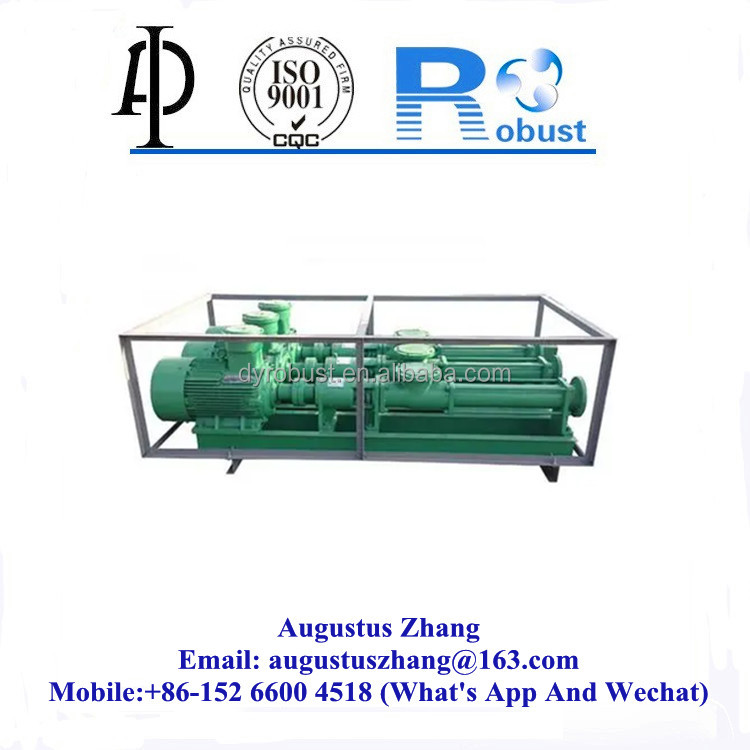

Packaging and Shipping
