API 5CT downhole tool oil well string anchor

Supplier: Tianjin Soright Technology Development Co., Ltd.
Region: Tianjin, China
Contact: Ms Peggy Lee
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	1 year	Mechanical test report:	if
Unlocking force:	80-120KN	Connection thread type:	work hard
Warranty:	1 year	Tool type:	Downhole Tools
length:	790 mm	Marketing Type:	Hot Products of 2019
type:	NM-512	Work pressure:	35 MPa

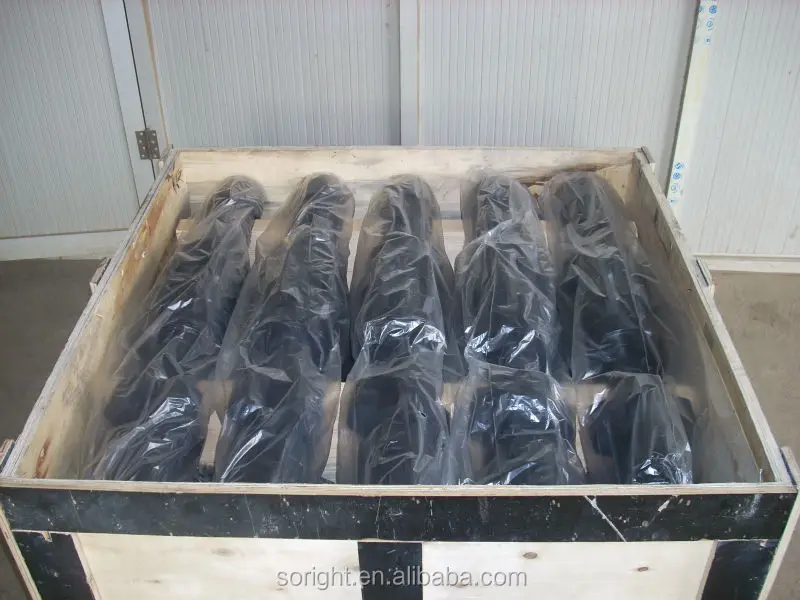

Packaging Details:	wooden box	Supply capacity:	5000 sets of PC pump pipe anchors per month
Thread type:	European Union, European Union	Core components:	anchor
brand:	SRD	Showroom location:	Egypt, USA, Germany, Peru, Saudi Arabia, Indonesia, Russia, UAE, Kazakhstan
Health status:	new	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	usage:	Anchoring the pipe string to the well wall
Package preview:		standard:	API 5CT
port:	Tianjin port or any other port	Applicable industries:	Energy and Mining
model:	application programming interface	Workbook:	supply
Suitable housing outer diameter:	5-1/2'', 6-5/8'', 7'' and 9-5/8''

API 5CT Standard Downhole Tools Oil Well String Tubing Anchor

Basic Information

birthplace	Tianjin, China (Mainland)
brand	China Petroleum Equipment
model	2-3/8" to 4-1/2"
type	Tubing anchor
type of machine	oil production
certified	API 5CT
Material	Alloy steel, stainless steel
processing type	forging
use	oil production

Tubing anchor A downhole device similar to a packer that runs in a string of tubing clamped against the casing wall. The tubing anchor prevents the tubing from "breathing," the cyclical up-and-down movement of the lower part of the tubing as the well is pumped by the rod pump.

1. Features: (1) When the PC pump is running, it can effectively anchor the pipe string on the well wall.

(2) When anchoring is not needed, it is easy to release the anchoring condition.
2. Size: API 5CT 2-3/8” to 4-1/2”
3. Connecting thread type: EUE, NUE

Tubing Anchor Specifications

Specification	Maximum outer diameter (mm)	Diameter (mm)	Non-slip outer diameter (mm)	Slide open maximum outer diameter(mm)	Working pressure (Mpa)	Pull force(KN)	Set pressure (Mpa)	Release force (KN)	Lifting load (KN)	Applicable casing diameter (mm)
Tubing anchor	114	62	112	132	35	≤60	8~10	90~100	≤400	121.4~124.3

feature:

1. Fits securely and securely in all types of bushings, including premium ones.

2. Two-way sliding anchoring, which improves the ability to resist the pressure difference between the upper and lower sides

3. Static pressure setting, straight pull release, suitable for all kinds of wells (vertical wells, inclined wells, horizontal wells)

4. The aperture can meet the requirements of different types of wells.

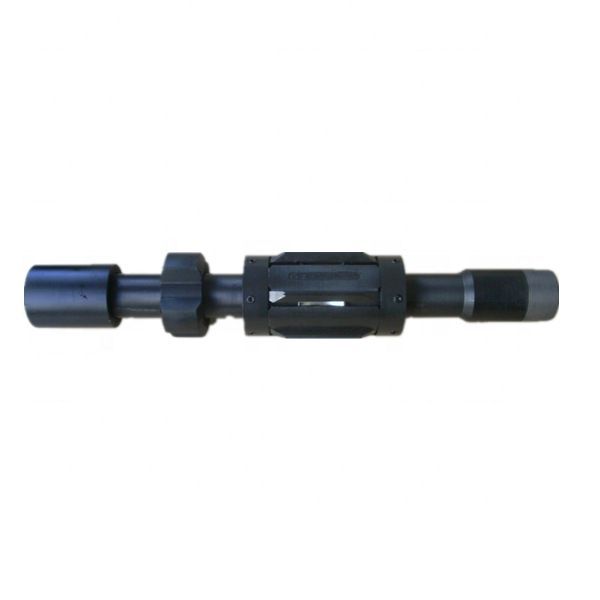

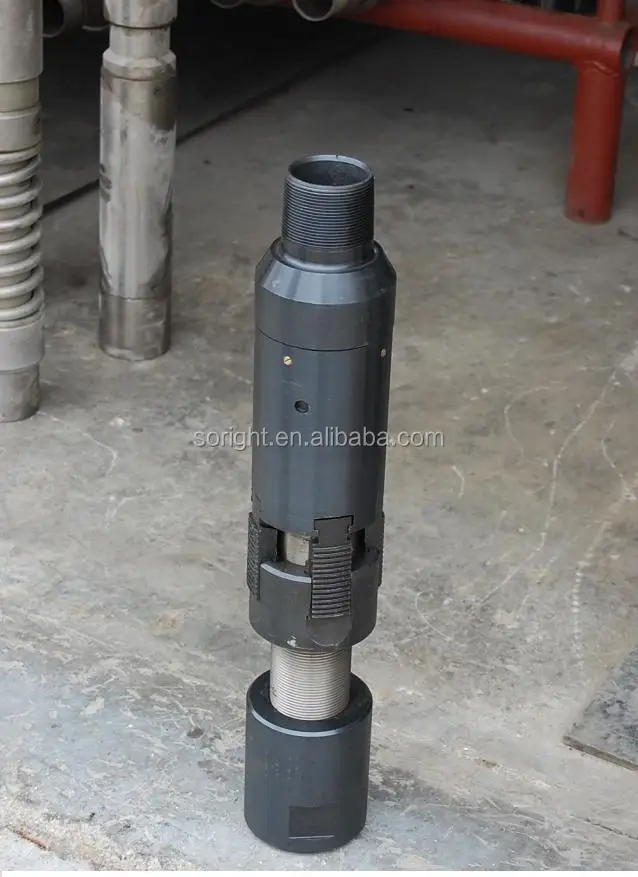

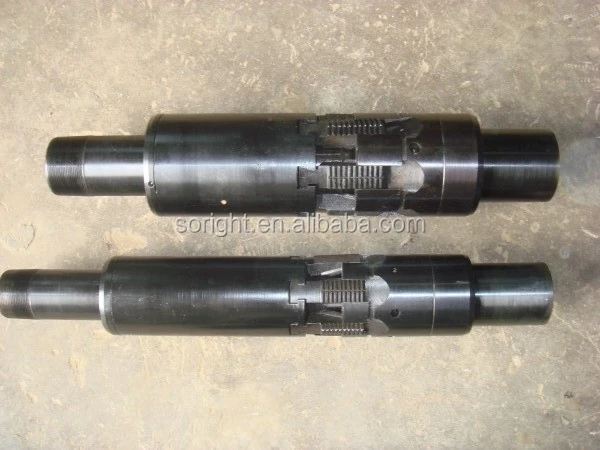

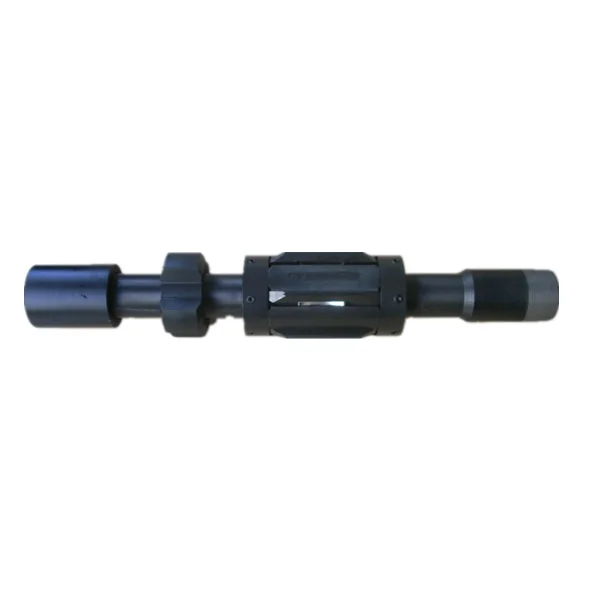

Pictures of Tubing Anchor

our workflow

1. Display the company's products on the Alibaba website

2. Receive inquiries from potential customers

3. Provide quotations and product technical information to customers

4. Negotiate with customers on price, payment terms, delivery terms, etc.

5. Sign the product purchase contract

6. Customer remits advance payment

7. Receive advance payment and arrange production

8. After production and inspection are completed, charter and book space

9. The customer pays the follow-up payment

10. Timely delivery of products to the carrier and completion of customs clearance

11. Issue documents to customers, including bill of lading, invoice, packing list, certificate of origin, product testing report, quality certificate, etc.

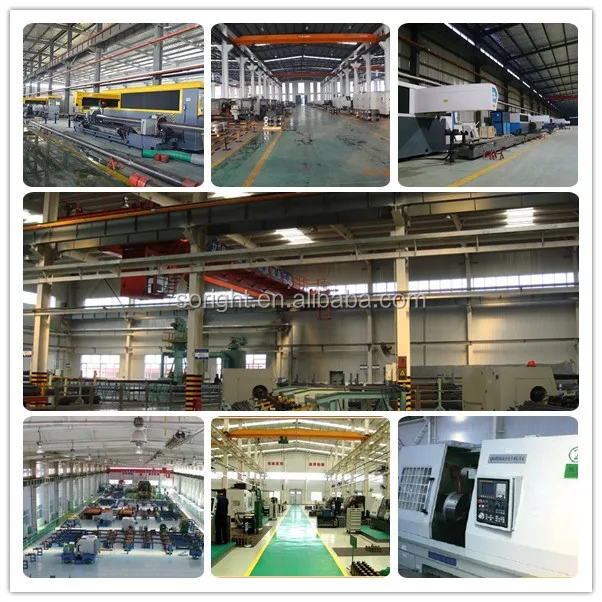

Tianjin Solite Technology Development Co., Ltd. is one of China's petroleum machinery export windows. It is a comprehensive enterprise integrating R&D, mechanical processing and technical services, petroleum machinery products and services.

The company always insists on quality first. A quality management system has been established to ensure that the entire process is properly controlled. All products are designed and processed in compliance with API specifications.

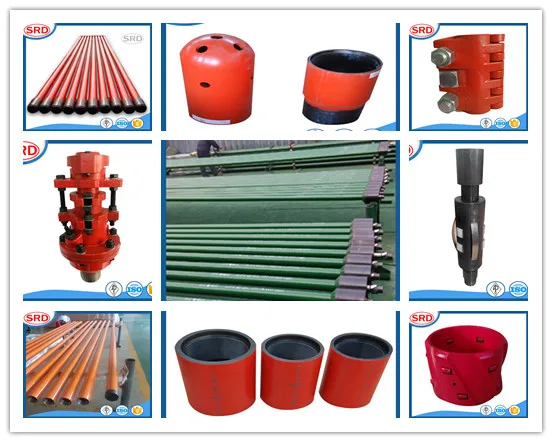

Our main products are: stuffing box, sucker rod, underground sucker rod pump, thread protector, split cone packing, tubing jumper, floating shoe, floating ring, etc.
